JZS147L-BEAQFA (1995)

Toyota Lexus Gs300

Production Aug 1995 - Aug 1997
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9301-9708)

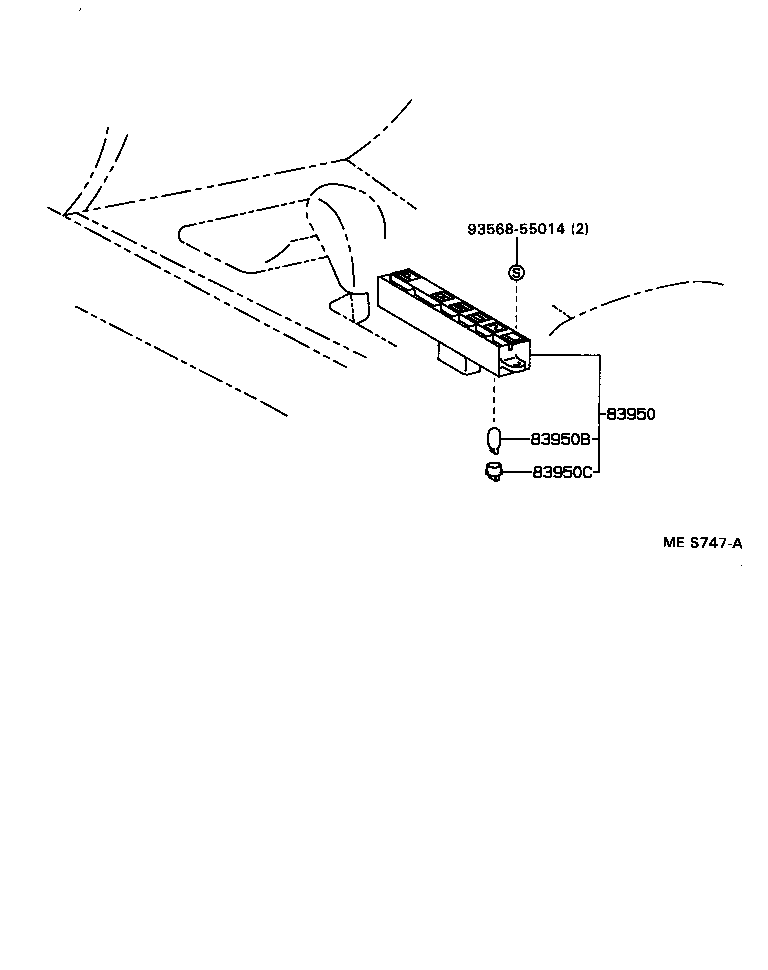

Click highlighted areas on diagram

diagram 83950 83950B 83950C 9356855014
Part # Description Qty Price
83950 - LAMP ASSY, TELLTALE
83950-30070

JZS147

 1
83950B - BULB, TELLTALE LAMP
90072-02004

JZS147

14V 1.1W

 2
83950C - SOCKET, TELLTALE LAMP
90072-01003

JZS147

 2
Common parts
93568-55014
