JZS147L-BEAQFA (1995)

Toyota Lexus Gs300

Production Aug 1995 - Aug 1997
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9301-9708)

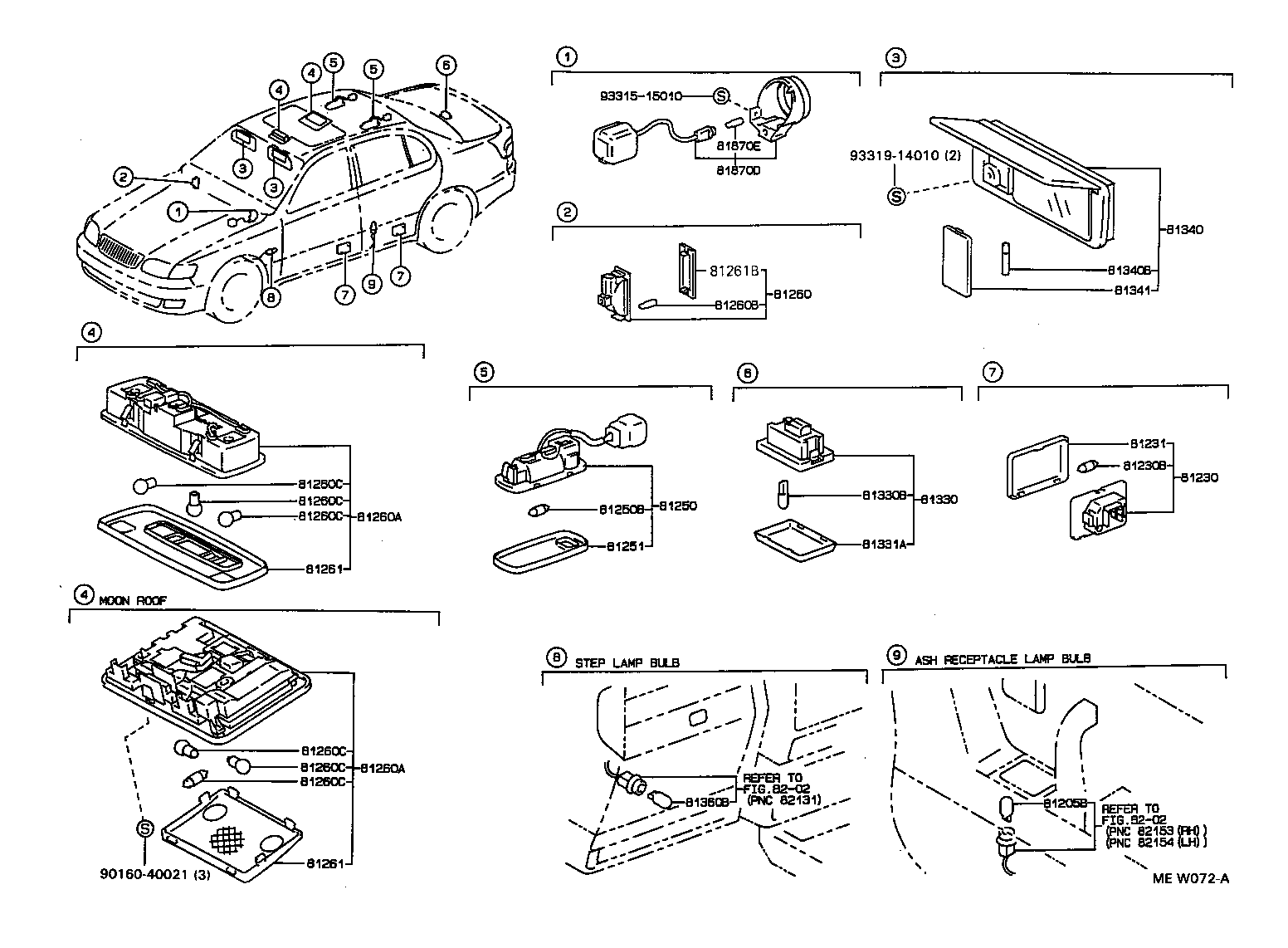

Click highlighted areas on diagram

diagram 81205B 81230 81230B 81231 81250 81250B 81251 81260 81260A 81260A 81260B 81260C 81260C 81260C 81260C 81260C 81260C 81261 81261 81261B 81330 81330B 81331A 81340 81340B 81341 81360B 81870D 81870E 8202 8202 9016040021 9331515010 9331914010
Part # Description Qty Price
81205B - BULB, ASH RECEPTACLE LAMP
90981-11041

JZS147

14V 1.4W

 1
81230 - LAMP ASSY, COURTESY
81230-30140

JZS147

 4
81230B - BULB(FOR COURTESY LAMP)
90981-11020

JZS147

12V 3.8W

 4
81231 - LENS, COURTESY LAMP
81231-50010

JZS147

 4
81250 - LAMP ASSY, ROOM, NO.2
81250-30140B0

JZS147

LI.GRAY,TRIM1#

 2
81250-30140A0

JZS147

IVORY,TRIM0#

 2
81250-30140G0

JZS147

LI.SPRUCE,TRIM6#

 2
81250B - BULB, ROOM LAMP, NO.2
90981-14010

JZS147

12V 3W

 2
81251 - LENS, ROOM LAMP, NO.2
81251-30140

JZS147

 2
81260 - LAMP ASSY, GLOVE BOX
81260-50010

JZS147

 1
81260A - LAMP ASSY, MAP
81260-30180A0

JZS147

IVORY,TRIM0#

 1
81260-30190A0

JZS147

W(*MR),IVORY,TRIM0#

 1
81260-30190B0

JZS147

W(*MR),LI.GRAY,TRIM1#

 1
81260-30180G0

JZS147

LI.SPRUCE,TRIM6#

 1
81260-30190G0

JZS147

W(*MR),LI.SPRUCE,TRIM6#

 1
81260-30180B0

JZS147

LI.GRAY,TRIM1#

 1
81260A - LAMP ASSY, MAP
81260-30180A0

JZS147

IVORY,TRIM0#

 1
81260-30190A0

JZS147

W(*MR),IVORY,TRIM0#

 1
81260-30190B0

JZS147

W(*MR),LI.GRAY,TRIM1#

 1
81260-30180G0

JZS147

LI.SPRUCE,TRIM6#

 1
81260-30190G0

JZS147

W(*MR),LI.SPRUCE,TRIM6#

 1
81260-30180B0

JZS147

LI.GRAY,TRIM1#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

JZS147

12V 1.2W W/O SOCKET

 1
81260C - BULB(FOR MAP LAMP)
90981-14004

JZS147

12V 8W,W(*MR),ROOM LAMP

 1
90981-12020

JZS147

12V 8W,W(*MR),MAP LAMP

 2
90981-12020

JZS147

12V 8W

 3
81260C - BULB(FOR MAP LAMP)
90981-14004

JZS147

12V 8W,W(*MR),ROOM LAMP

 1
90981-12020

JZS147

12V 8W,W(*MR),MAP LAMP

 2
90981-12020

JZS147

12V 8W

 3
81260C - BULB(FOR MAP LAMP)
90981-14004

JZS147

12V 8W,W(*MR),ROOM LAMP

 1
90981-12020

JZS147

12V 8W,W(*MR),MAP LAMP

 2
90981-12020

JZS147

12V 8W

 3
81260C - BULB(FOR MAP LAMP)
90981-14004

JZS147

12V 8W,W(*MR),ROOM LAMP

 1
90981-12020

JZS147

12V 8W,W(*MR),MAP LAMP

 2
90981-12020

JZS147

12V 8W

 3
81260C - BULB(FOR MAP LAMP)
90981-14004

JZS147

12V 8W,W(*MR),ROOM LAMP

 1
90981-12020

JZS147

12V 8W,W(*MR),MAP LAMP

 2
90981-12020

JZS147

12V 8W

 3
81260C - BULB(FOR MAP LAMP)
90981-14004

JZS147

12V 8W,W(*MR),ROOM LAMP

 1
90981-12020

JZS147

12V 8W,W(*MR),MAP LAMP

 2
90981-12020

JZS147

12V 8W

 3
81261 - LENS AND COVER, MAP LAMP
81261-30180G0

JZS147

LI.SPRUCE,TRIM6#

 1
81261-30180B0

JZS147

LI.GRAY,TRIM1#

 1
81261-30180A0

JZS147

IVORY,TRIM0#

 1
81261-24050

JZS147

W(*MR)

 1
81261 - LENS AND COVER, MAP LAMP
81261-30180G0

JZS147

LI.SPRUCE,TRIM6#

 1
81261-30180B0

JZS147

LI.GRAY,TRIM1#

 1
81261-30180A0

JZS147

IVORY,TRIM0#

 1
81261-24050

JZS147

W(*MR)

 1
81261B - LENS,GLOVE BOX LAMP
81261-50010

JZS147

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-50010

JZS147

 1
81330-40020

JZS147

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

JZS147

12V 3.8W

 1
99132-12050

JZS147

12V 5W

 1
81331A - COVER, LUGGAGE COMPARTMENT LAMP
81331-50010

JZS147

 1
81340 - LAMP ASSY, VANITY
81340-30050G0

JZS147

LI.SPRUCE,TRIM6#,LH

 1
81350-30010B0

JZS147

LI.GRAY,TRIM1#,RH

 1
81340-30050B0

JZS147

LI.GRAY,TRIM1#,LH

 1
81340-30050A0

JZS147

IVORY,TRIM0#,LH

 1
81350-30010G0

JZS147

LI.SPRUCE,TRIM6#,RH

 1
81350-30010A0

JZS147

IVORY,TRIM0#,RH

 1
81360B - BULB, STEP OR SPOT LAMP
90981-11041

JZS147

14V 1.4W

 2
81870D - LAMP ASSY, KEY CYLINDER
81870-30060

JZS147

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11018

JZS147

12V 1.2W W/O SOCKET

 1
Common parts
90160-40021
93315-15010
93319-14010
Linked diagrams
8202
