JZS147L-BEAQFA (1995)

Toyota Lexus Gs300

Production Aug 1995 - Aug 1997
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

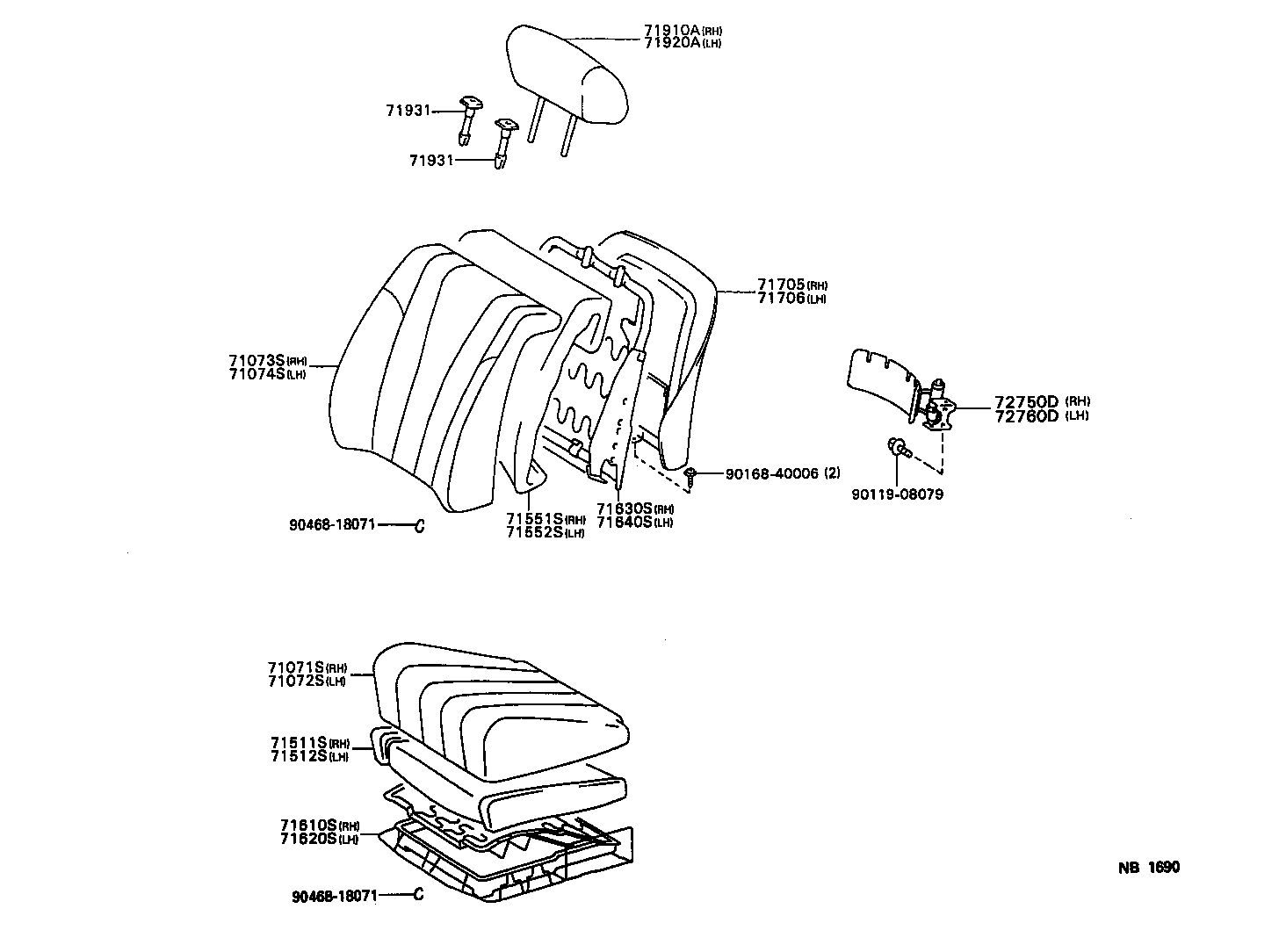

ILLUST NO. 1 OF 3(9301-9608)

Click highlighted areas on diagram

diagram 71071S 71072S 71073S 71074S 71511S 71512S 71551S 71552S 71610S 71620S 71630S 71640S 71705 71706 71910A 71920A 71931 71931 72750D 72760D 9011908079 9016840006 9046818071 9046818071
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-3F670A0

JZS147..USA

W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#

 1
71071-3F670B1

JZS147..USA

W(LEATHER SEAT & SEAT HEATER),SHADOW GRAY,TRIM1#

 1
71071-3F670G0

JZS147..USA

W(LEATHER SEAT & SEAT HEATER),LI.SPRUCE,TRIM6#

 1
71071-3F700B0

JZS147..USA

W(LEATHER SEAT),GRAY,TRIM1#

 1
71071-3F700G0

JZS147..USA

W(LEATHER SEAT),LI.SPRUCE,TRIM6#

 1
71071-3F370B0

JZS147..USA

SHADOW GRAY,TRIM1#

 1
71071-3F700A0

JZS147..USA

W(LEATHER SEAT),IVORY,TRIM0#

 1
71071-3F850B0

JZS147..USA

MD.GRAY,TRIM1#

 1
71071-3F860A0

JZS147..USA

W(LEATHER SEAT),IVORY,TRIM0#

 1
71071-3F860G0

JZS147..USA

W(LEATHER SEAT),SPRUCE,TRIM6#

 1
71071-3F870G0

JZS147..USA

W(LEATHER SEAT & SEAT HEATER),SPRUCE,TRIM6#

 1
71071-3F870A0

JZS147..USA

W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#

 1
71071-3F870B0

JZS147..USA

W(LEATHER SEAT & SEAT HEATER),MD.GRAY,TRIM1#

 1
71071-3F860B0

JZS147..USA

W(LEATHER SEAT),MD.GRAY,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-3F110B0

JZS147..USA

SHADOW GRAY,TRIM1#

 1
71072-3F130A0

JZS147..USA

W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#

 1
71072-3F130G0

JZS147..USA

W(LEATHER SEAT & SEAT HEATER),LI.SPRUCE,TRIM6#

 1
71072-3F130B1

JZS147..USA

W(LEATHER SEAT & SEAT HEATER),SHADOW GRAY,TRIM1#

 1
71072-3F160B0

JZS147..USA

W(LEATHER SEAT),GRAY,TRIM1#

 1
71072-3F160G0

JZS147..USA

W(LEATHER SEAT),LI.SPRUCE,TRIM6#

 1
71072-3F160A0

JZS147..USA

W(LEATHER SEAT),IVORY,TRIM0#

 1
71072-3F280G0

JZS147..USA

W(LEATHER SEAT),SPRUCE,TRIM6#

 1
71072-3F290B0

JZS147..USA

W(LEATHER SEAT & SEAT HEATER),MD.GRAY,TRIM1#

 1
71072-3F280A0

JZS147..USA

W(LEATHER SEAT),IVORY,TRIM0#

 1
71072-3F280B0

JZS147..USA

W(LEATHER SEAT),MD.GRAY,TRIM1#

 1
71072-3F290G0

JZS147..USA

W(LEATHER SEAT & SEAT HEATER),SPRUCE,TRIM6#

 1
71072-3F290A0

JZS147..USA

W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#

 1
71072-3F270B0

JZS147..USA

MD.GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-3F400A0

JZS147..USA

W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#

 1
71073-3F090B0

JZS147..USA

W(LEATHER SEAT),GRAY,TRIM1#

 1
71073-3F090A0

JZS147..USA

W(LEATHER SEAT),IVORY,TRIM0#

 1
71073-3F380B0

JZS147..USA

SHADOW GRAY,TRIM1#

 1
71073-3F400G0

JZS147..USA

W(LEATHER SEAT & SEAT HEATER),LI.SPRUCE,TRIM6#

 1
71073-3F400B1

JZS147..USA

W(LEATHER SEAT & SEAT HEATER),SHADOW GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-3F090B0

JZS147..USA

W(LEATHER SEAT),GRAY,TRIM1#

 1
71074-3A780A0

JZS147..USA

W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#

 1
71074-3A780G0

JZS147..USA

W(LEATHER SEAT & SEAT HEATER),LI.SPRUCE,TRIM6#

 1
71074-3A780B0

JZS147..USA

W(LEATHER SEAT & SEAT HEATER),GRAY,TRIM1#

 1
71073-3F090A0

JZS147..USA

W(LEATHER SEAT),IVORY,TRIM0#

 1
71073-3F380B0

JZS147..USA

SHADOW GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-3A020

JZS147

 1
71511-30830

JZS147

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-30490

JZS147

 1
71512-30470

JZS147

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-30770

JZS147..USA

 1
71551-30850

JZS147..USA

W(LEATHER SEAT)

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-30850

JZS147..USA

W(LEATHER SEAT)

 1
71551-30770

JZS147..USA

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-30602

JZS147

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-30342

JZS147

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-3A040

JZS147

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-30890

JZS147

 1
71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH
71705-30460G0

JZS147..USA

W(LEATHER SEAT),LI.SPRUCE,TRIM6#

 1
71705-30440B0

JZS147..USA

GRAY,TRIM1#

 1
71705-30460A0

JZS147..USA

W(LEATHER SEAT),IVORY,TRIM0#

 1
71705-30460B0

JZS147..USA

W(LEATHER SEAT),GRAY,TRIM1#

 1
71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH
71705-30440B0

JZS147..USA

GRAY,TRIM1#

 1
71705-30460B0

JZS147..USA

W(LEATHER SEAT),GRAY,TRIM1#

 1
71705-30460A0

JZS147..USA

W(LEATHER SEAT),IVORY,TRIM0#

 1
71705-30460G0

JZS147..USA

W(LEATHER SEAT),LI.SPRUCE,TRIM6#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-30700A0

JZS147..USA

W(LEATHER SEAT),IVORY,TRIM0#

 1
71910-30700B0

JZS147..USA

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

 1
71910-30740B0

JZS147..USA

SHADOW GRAY,TRIM1#

 1
71910-30700G2

JZS147..USA

W(LEATHER SEAT),LI.SPRUCE,TRIM6#

 1
71920A - HEADREST ASSY, FRONT SEAT, LH
71920-30530B0

JZS147..USA

SHADOW GRAY,TRIM1#

 1
71910-30700A0

JZS147..USA

W(LEATHER SEAT),IVORY,TRIM0#

 1
71910-30700G2

JZS147..USA

W(LEATHER SEAT),LI.SPRUCE,TRIM6#

 1
71910-30700B0

JZS147..USA

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-12070A0

JZS147

W(LOCK),IVORY,TRIM0#

 2
71930-12070G0

JZS147

W(LOCK),LI.SPRUCE,TRIM6#

 2
71931-12040A0

JZS147

W/O(LOCK),IVORY,TRIM0#

 2
71930-12070B2

JZS147

W(LOCK),GRAY,TRIM1#

 2
71931-12040G0

JZS147

W/O(LOCK),LI.SPRUCE,TRIM6#

 2
71931-12040B2

JZS147

W/O(LOCK),GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-12070A0

JZS147

W(LOCK),IVORY,TRIM0#

 2
71930-12070G0

JZS147

W(LOCK),LI.SPRUCE,TRIM6#

 2
71931-12040A0

JZS147

W/O(LOCK),IVORY,TRIM0#

 2
71930-12070B2

JZS147

W(LOCK),GRAY,TRIM1#

 2
71931-12040G0

JZS147

W/O(LOCK),LI.SPRUCE,TRIM6#

 2
71931-12040B2

JZS147

W/O(LOCK),GRAY,TRIM1#

 2
72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH
72750-30160

JZS147

 1
72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH
72750-30210

JZS147

 1
Common parts
90119-08079
90168-40006
90468-18071
