JZS147L-BEAQFA (1995)
Toyota Lexus Gs300
Production
Aug 1995
-
Aug 1997
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

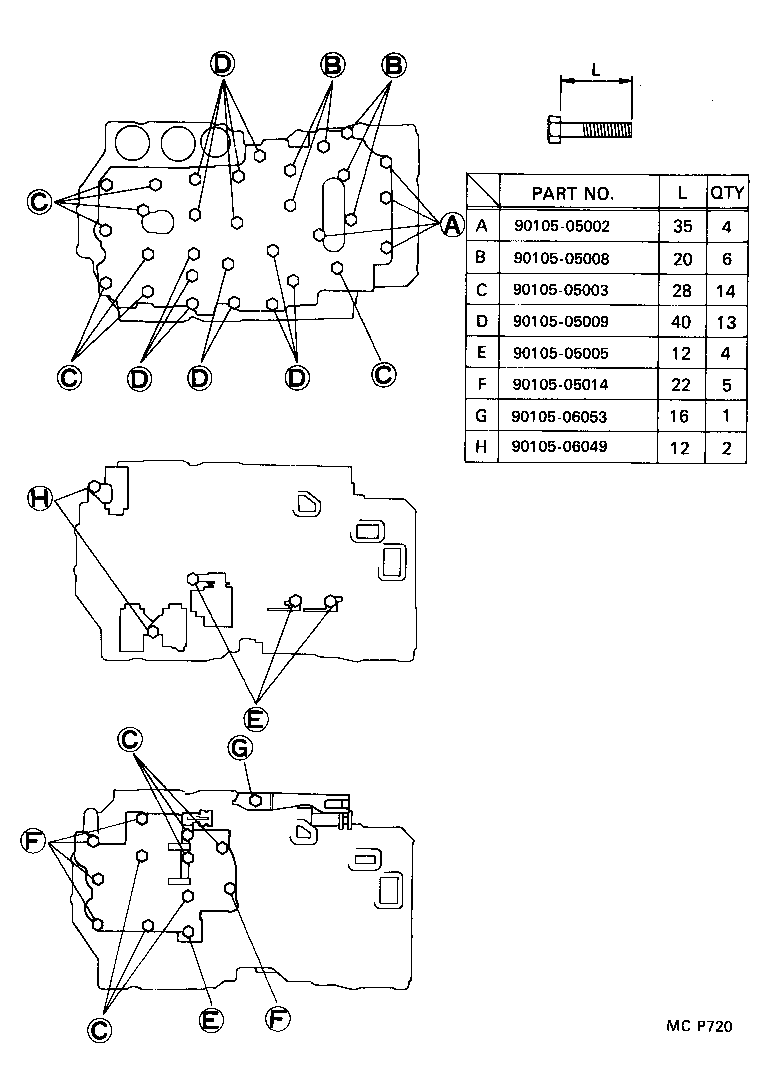

ILLUST NO. 5 OF 5(9508- )
Click highlighted areas on diagram
A350E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05002 | ||||
| 90105-05003 | ||||
| 90105-05005 | ||||
| 90105-05008 | ||||
| 90105-05009 | ||||
| 90105-05014 | ||||
| 90105-06049 | ||||
| 90105-06053 | ||||

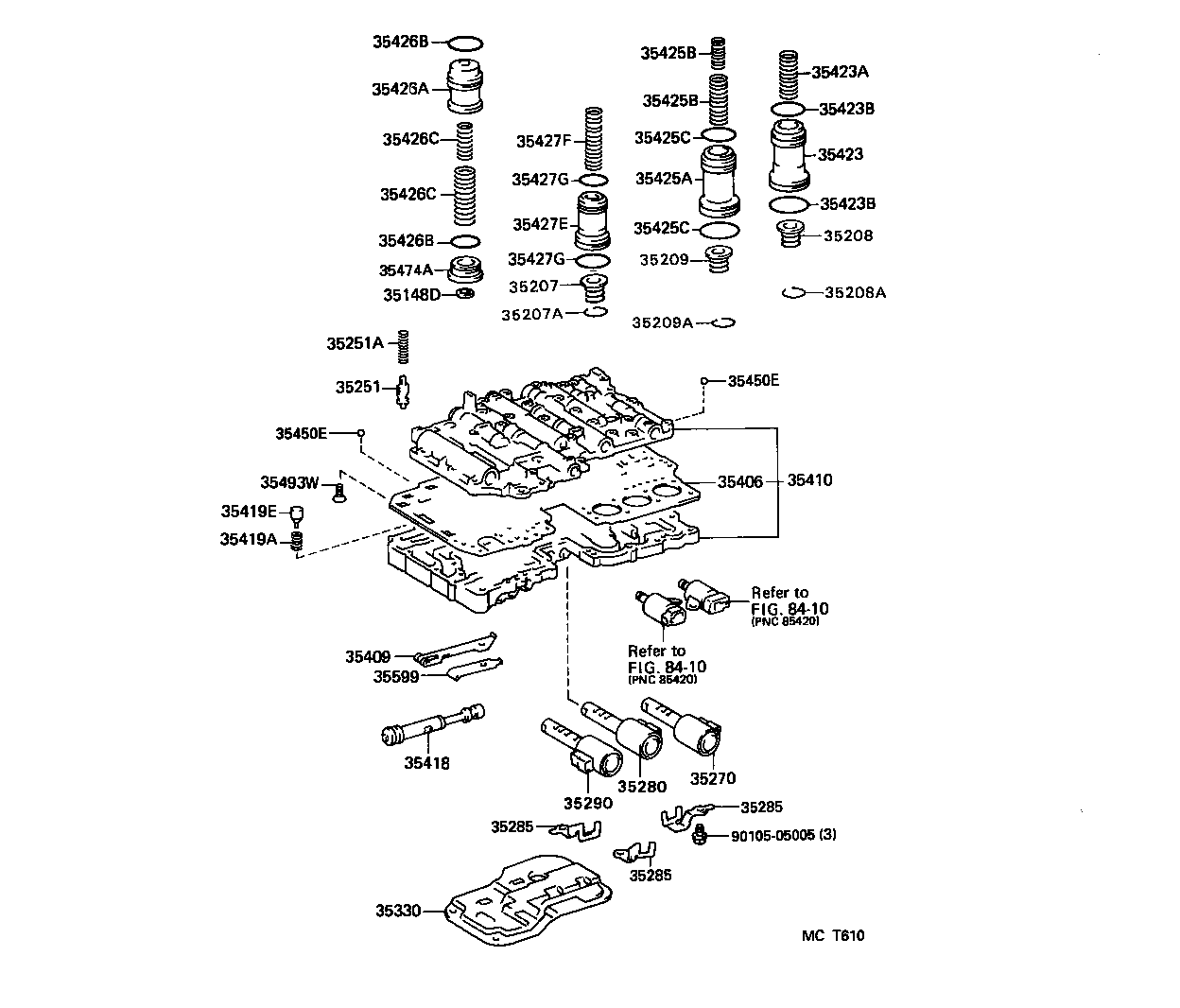

ILLUST NO. 4 OF 5(9508- )
Click highlighted areas on diagram
A350E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35148D - GASKET (FOR C-O ACCUMULATOR PISTON) | ||||
| 35148-16010 |
JZS147 |
1 | ||
| 35207 - SPRING SUB-ASSY, B-0 ACCUMULATOR | ||||
| 35207-30030 |
JZS147 |
1 | ||
| 35207-22010 |
JZS147 |
1 | ||
| 35207A - RING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING) | ||||
| 90521-20004 |
JZS147 |
1 | ||
| 90521-22004 |
JZS147 |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-30010 |
JZS147 |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
JZS147 |
1 | ||
| 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35209-50010 |
JZS147 |
1 | ||
| 35209A - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
JZS147 |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
JZS147 |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
JZS147 |
1 | ||
| 35270 - SOLENOID ASSY, SHIFT CONTROL | ||||
| 35270-50010 |
JZS147 |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-30010 |
JZS147 |
1 | ||
| 35280-50010 |
JZS147 |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-30010 |
JZS147 SHIFT CONTROL |
1 | ||
| 35285-30020 |
JZS147 LOCK UP CONTROL |
1 | ||
| 35285-30030 |
JZS147 PRESSURE CONTROL |
1 | ||
| 35285-50010 |
JZS147 |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-30010 |
JZS147 SHIFT CONTROL |
1 | ||
| 35285-30020 |
JZS147 LOCK UP CONTROL |
1 | ||
| 35285-30030 |
JZS147 PRESSURE CONTROL |
1 | ||
| 35285-50010 |
JZS147 |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-30010 |
JZS147 SHIFT CONTROL |
1 | ||
| 35285-30020 |
JZS147 LOCK UP CONTROL |
1 | ||
| 35285-30030 |
JZS147 PRESSURE CONTROL |
1 | ||
| 35285-50010 |
JZS147 |
1 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-30010 |
JZS147 |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-50010 |
JZS147 |
1 | ||
| 35330-30040 |
JZS147 |
1 | ||
| 35406 - PLATE SUB-ASSY, VALVE BODY | ||||
| 35406-30040 |
JZS147 |
1 | ||
| 35406-30120 |
JZS147 |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-22020 |
JZS147 |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-30580 |
JZS147 |
1 | ||
| 35410-30700 |
JZS147 |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-50010 |
JZS147 |
1 | ||
| 35418-30080 |
JZS147 |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-09093 |
JZS147 |
1 | ||
| 35419E - VALVE, CHECK, NO.3 | ||||
| 35419-50010 |
JZS147 |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-30030 |
JZS147 |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-25026 |
JZS147 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-23194 |
JZS147 UPR |
1 | ||
| 90301-31002 |
JZS147 LWR |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-23194 |
JZS147 UPR |
1 | ||
| 90301-31002 |
JZS147 LWR |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-30020 |
JZS147 |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-28013 |
JZS147 INNER |
1 | ||
| 90501-21012 |
JZS147 OUTER |
1 | ||
| 90501-23093 |
JZS147 UPR,OUTER |
1 | ||
| 90501-25027 |
JZS147 UPR,INNER |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-28013 |
JZS147 INNER |
1 | ||
| 90501-21012 |
JZS147 OUTER |
1 | ||
| 90501-23093 |
JZS147 UPR,OUTER |
1 | ||
| 90501-25027 |
JZS147 UPR,INNER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-31002 |
JZS147 LWR |
1 | ||
| 90301-25003 |
JZS147 UPR |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-31002 |
JZS147 LWR |
1 | ||
| 90301-25003 |
JZS147 UPR |
1 | ||
| 35426A - PISTON, C-0 ACCUMULATOR | ||||
| 35426-50010 |
JZS147 |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-24001 |
JZS147 |
2 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-24001 |
JZS147 |
2 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-20113 |
JZS147 INNER |
1 | ||
| 90501-20112 |
JZS147 OUTER |
1 | ||
| 90501-21021 |
JZS147 |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-20113 |
JZS147 INNER |
1 | ||
| 90501-20112 |
JZS147 OUTER |
1 | ||
| 90501-21021 |
JZS147 |
1 | ||
| 35427E - PISTON, B-0 ACCUMULATOR | ||||
| 35427-30040 |
JZS147 |
1 | ||
| 35427-30050 |
JZS147 |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90501-22007 |
JZS147 |
1 | ||
| 90501-10184 |
JZS147 LWR |
1 | ||
| 90501-25041 |
JZS147 UPR |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-26002 |
JZS147 LWR |
1 | ||
| 90903-01002 |
JZS147 LWR |
1 | ||
| 90301-20002 |
JZS147 UPR |
1 | ||
| 90903-01001 |
JZS147 UPR |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-26002 |
JZS147 LWR |
1 | ||
| 90903-01002 |
JZS147 LWR |
1 | ||
| 90301-20002 |
JZS147 UPR |
1 | ||
| 90903-01001 |
JZS147 UPR |
1 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35496-22030 |
JZS147 OD=6.35,RUBBER |
2 | ||
| 35495-22020 |
JZS147 OD=5.535,RUBBER |
9 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35496-22030 |
JZS147 OD=6.35,RUBBER |
2 | ||
| 35495-22020 |
JZS147 OD=5.535,RUBBER |
9 | ||
| 35474A - COVER, ACCUMULATOR | ||||
| 35474-50010 |
JZS147 |
1 | ||
| 35474-30010 |
JZS147 |
1 | ||
| 35493W - SEAT, VALVE BODY | ||||
| 35493-50040 |
JZS147 |
2 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-22020 |
JZS147 |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| Linked diagrams | ||||
| 8410 | ||||

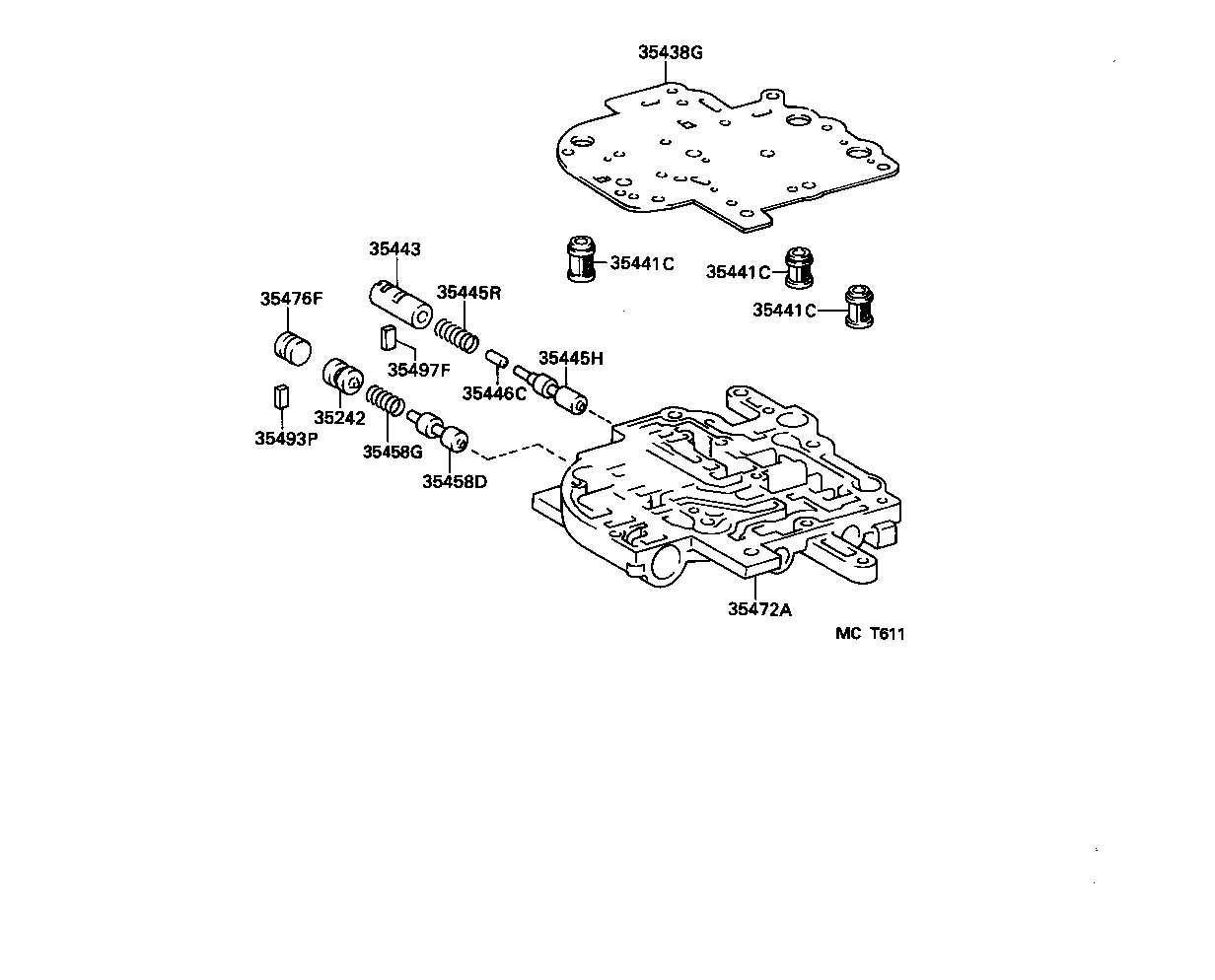

ILLUST NO. 3 OF 5(9508- )
Click highlighted areas on diagram
A350E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35242 - PLUNGER, B-0 RELAY VALVE | ||||
| 35242-30010 |
JZS147 |
1 | ||
| 35438G - PLATE, VALVE BODY, NO.2 | ||||
| 35404-30010 |
JZS147 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-50030 |
JZS147 |
3 | ||
| 35441-50010 |
JZS147 NO.1 |
1 | ||
| 35441-50030 |
JZS147 NO.2 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-50030 |
JZS147 |
3 | ||
| 35441-50010 |
JZS147 NO.1 |
1 | ||
| 35441-50030 |
JZS147 NO.2 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-50030 |
JZS147 |
3 | ||
| 35441-50010 |
JZS147 NO.1 |
1 | ||
| 35441-50030 |
JZS147 NO.2 |
1 | ||
| 35443 - SLEEVE, LOW COAST SHIFT CONTROL VALVE | ||||
| 35443-50010 |
JZS147 |
1 | ||
| 35445H - VALVE, 2ND COAST MODULATOR | ||||
| 35445-50010 |
JZS147 |
1 | ||
| 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) | ||||
| 90501-07077 |
JZS147 |
1 | ||
| 90501-07100 |
JZS147 |
1 | ||
| 35446C - PLUNGER, LOW COAST MODULATOR VALVE | ||||
| 35446-50010 |
JZS147 |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-50010 |
JZS147 |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-06055 |
JZS147 |
1 | ||
| 90501-06073 |
JZS147 |
1 | ||
| 35472A - COVER, LOWER VALVE BODY | ||||
| 35472-30020 |
JZS147 |
1 | ||
| 35472-50010 |
JZS147 |
1 | ||
| 35476F - PLUG (FOR CUT OFF VALVE) | ||||
| 90339-05019 |
JZS147 |
2 | ||
| 90339-05021 |
JZS147 |
1 | ||
| 35493P - SEAT, CUT BACK VALVE PLUG | ||||
| 35493-30040 |
JZS147 |
1 | ||
| 35497F - KEY, STRAIGHT (FOR 3-4 SHIFT VALVE) | ||||
| 90282-03002 |
JZS147 |
1 | ||

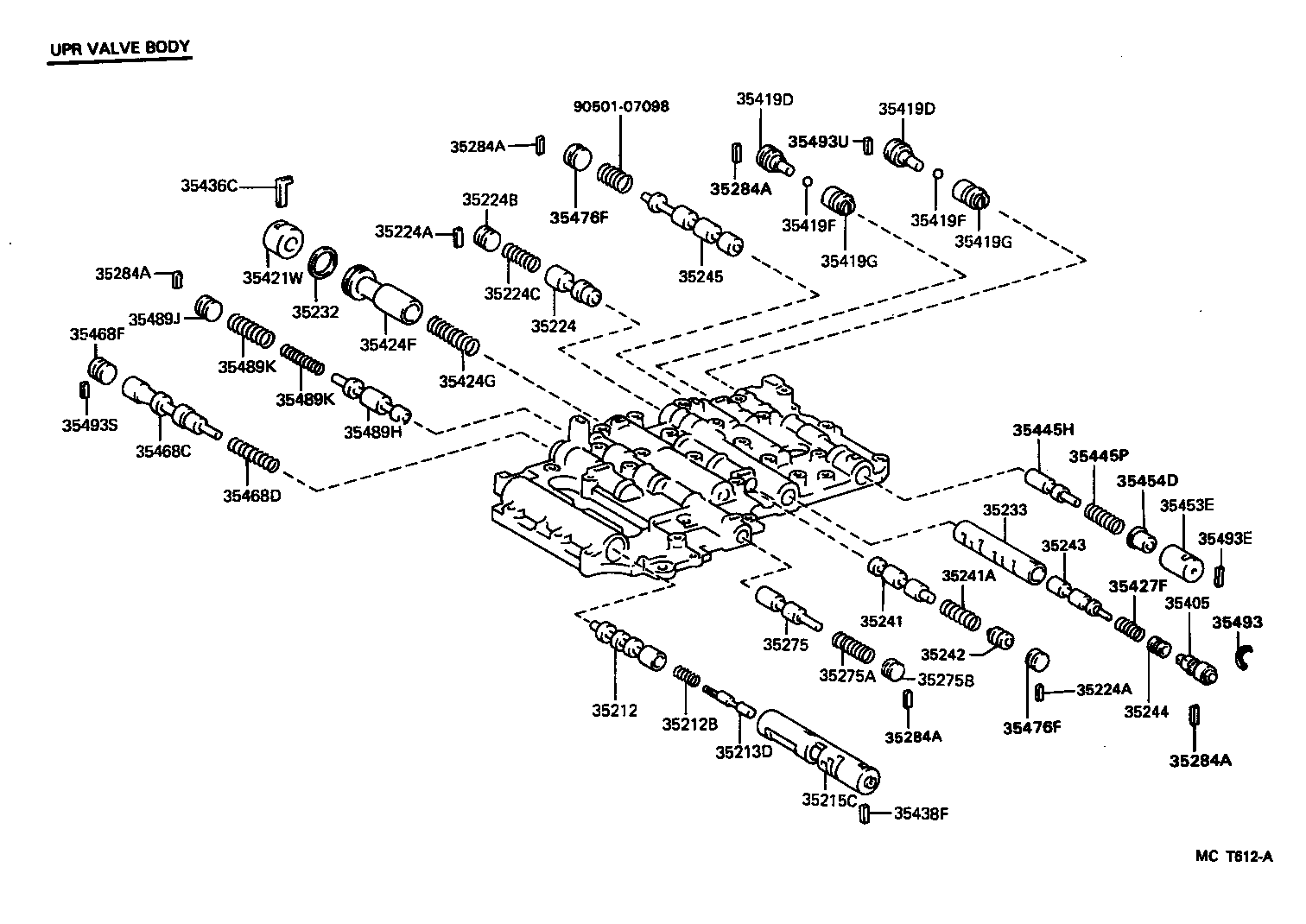

ILLUST NO. 1 OF 5(9508- )
Click highlighted areas on diagram
A350E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-50010 |
JZS147 |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-06057 |
JZS147 |
1 | ||
| 35213D - PLUNGER, LOCK UP RELAY VALVE | ||||
| 35213-50010 |
JZS147 |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-50010 |
JZS147 |
1 | ||
| 35224 - VALVE, REVERSE CONTROL | ||||
| 35224-50010 |
JZS147 |
1 | ||
| 35224A - KEY, STRAIGHT (FOR REVERSE CONTROL VALVE) | ||||
| 90282-03010 |
JZS147 |
1 | ||
| 90282-03003 |
JZS147 |
2 | ||
| 35224A - KEY, STRAIGHT (FOR REVERSE CONTROL VALVE) | ||||
| 90282-03010 |
JZS147 |
1 | ||
| 90282-03003 |
JZS147 |
2 | ||
| 35224B - PLUG (FOR REVERSE CONTROL VALVE) | ||||
| 90339-05020 |
JZS147 |
1 | ||
| 35224C - SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE) | ||||
| 90501-06056 |
JZS147 |
1 | ||
| 35232 - RING, C-1 ACCUMULATOR SEAL | ||||
| 35232-30010 |
JZS147 |
1 | ||
| 35233 - SLEEVE, B-0 CONTROL VALVE | ||||
| 35233-30010 |
JZS147 |
1 | ||
| 35241 - VALVE, B-0 RELAY | ||||
| 35241-30010 |
JZS147 |
1 | ||
| 35241A - SPRING, B-0 RELAY VALVE | ||||
| 90501-06073 |
JZS147 |
1 | ||
| 35242 - PLUNGER, B-0 RELAY VALVE | ||||
| 35242-30010 |
JZS147 |
1 | ||
| 35243 - VALVE, B-0 CONTROL | ||||
| 35243-30010 |
JZS147 |
1 | ||
| 35244 - PLUNGER, B-0 CONTROL VALVE | ||||
| 35244-30010 |
JZS147 |
1 | ||
| 35245 - VALVE, B-0 ACCUMULATOR CUT OFF | ||||
| 35245-30010 |
JZS147 |
1 | ||
| 35275 - VALVE, SOLENOID MODULATOR | ||||
| 35275-30010 |
JZS147 |
1 | ||
| 35275-50010 |
JZS147 |
1 | ||
| 35275A - SPRING, COMPRESSION (FOR SOLENOID MODULATOR VALVE) | ||||
| 90501-12143 |
JZS147 |
1 | ||
| 90501-12123 |
JZS147 |
1 | ||
| 35275B - PLUG (FOR SOLENOID MODULATOR VALVE) | ||||
| 90339-04030 |
JZS147 |
1 | ||
| 35284A - KEY, STRAIGHT (FOR SOLENOID RELAY VALVE) | ||||
| 90282-03016 |
JZS147 |
1 | ||
| 90282-03016 |
JZS147 |
5 | ||
| 35284A - KEY, STRAIGHT (FOR SOLENOID RELAY VALVE) | ||||
| 90282-03016 |
JZS147 |
1 | ||
| 90282-03016 |
JZS147 |
5 | ||
| 35284A - KEY, STRAIGHT (FOR SOLENOID RELAY VALVE) | ||||
| 90282-03016 |
JZS147 |
1 | ||
| 90282-03016 |
JZS147 |
5 | ||
| 35284A - KEY, STRAIGHT (FOR SOLENOID RELAY VALVE) | ||||
| 90282-03016 |
JZS147 |
1 | ||
| 90282-03016 |
JZS147 |
5 | ||
| 35284A - KEY, STRAIGHT (FOR SOLENOID RELAY VALVE) | ||||
| 90282-03016 |
JZS147 |
1 | ||
| 90282-03016 |
JZS147 |
5 | ||
| 35405 - PLUG SUB-ASSY, SECONDARY DOWN SHIFT | ||||
| 35405-30010 |
JZS147 |
1 | ||
| 35419D - VALVE, CHECK, NO.2 | ||||
| 35419-50020 |
JZS147 |
1 | ||
| 35419-50020 |
JZS147 |
2 | ||
| 35419D - VALVE, CHECK, NO.2 | ||||
| 35419-50020 |
JZS147 |
1 | ||
| 35419-50020 |
JZS147 |
2 | ||
| 35419F - BALL, CHECK VALVE | ||||
| 90360-06004 |
JZS147 |
2 | ||
| 35419F - BALL, CHECK VALVE | ||||
| 90360-06004 |
JZS147 |
2 | ||
| 35419G - VALVE, CHECK, NO.4 | ||||
| 35419-50030 |
JZS147 |
1 | ||
| 35419-50030 |
JZS147 |
2 | ||
| 35419G - VALVE, CHECK, NO.4 | ||||
| 35419-50030 |
JZS147 |
1 | ||
| 35419-50030 |
JZS147 |
2 | ||
| 35421W - PLUG, C-1 ACCUMULATOR VALVE | ||||
| 35421-50010 |
JZS147 |
1 | ||
| 35421-30030 |
JZS147 |
1 | ||
| 35424F - VALVE, C-1 ACCUMULATOR | ||||
| 35424-30020 |
JZS147 |
1 | ||
| 35424-50010 |
JZS147 |
1 | ||
| 35424G - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR VALVE) | ||||
| 90501-19020 |
JZS147 |
1 | ||
| 90501-15016 |
JZS147 |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90501-22007 |
JZS147 |
1 | ||
| 90501-10184 |
JZS147 LWR |
1 | ||
| 90501-25041 |
JZS147 UPR |
1 | ||
| 35436C - RETAINER, C-1 ACCUMULATOR VALVE | ||||
| 35436-50010 |
JZS147 |
1 | ||
| 35436-30060 |
JZS147 |
1 | ||
| 35438F - SEAT, DETENT SPRING | ||||
| 35438-22020 |
JZS147 |
1 | ||
| 35445H - VALVE, 2ND COAST MODULATOR | ||||
| 35445-50010 |
JZS147 |
1 | ||
| 35445P - SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90501-10167 |
JZS147 ORANGE |
1 | ||
| 90501-10166 |
JZS147..5FC LIGHT GREEN |
1 | ||
| 90501-10165 |
JZS147 YELLOW |
1 | ||
| 35453E - SLEEVE, 2ND COAST MODULATOR VALVE | ||||
| 35453-50010 |
JZS147 |
1 | ||
| 35454D - PLUNGER, 2ND COAST MODULATOR VALVE | ||||
| 35454-50021 |
JZS147 |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-50010 |
JZS147 |
1 | ||
| 35468-30020 |
JZS147 |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-12150 |
JZS147 |
1 | ||
| 90501-12122 |
JZS147 |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-05020 |
JZS147 |
1 | ||
| 35476F - PLUG (FOR CUT OFF VALVE) | ||||
| 90339-05019 |
JZS147 |
2 | ||
| 90339-05021 |
JZS147 |
1 | ||
| 35476F - PLUG (FOR CUT OFF VALVE) | ||||
| 90339-05019 |
JZS147 |
2 | ||
| 90339-05021 |
JZS147 |
1 | ||
| 35489H - VALVE, C-1 ORIFICE CONTROL | ||||
| 35489-50010 |
JZS147 |
1 | ||
| 35489-30020 |
JZS147 |
1 | ||
| 35489J - PLUG (FOR C-1 ORIFICE CONTROL VALVE) | ||||
| 90339-05014 |
JZS147 |
1 | ||
| 90339-05025 |
JZS147 |
1 | ||
| 35489K - SPRING, COMPRESSION (FOR C-1 ORIFICE CONTROL VALVE) | ||||
| 90501-08123 |
JZS147 INNER |
1 | ||
| 90501-08121 |
JZS147 OUTER |
1 | ||
| 35489K - SPRING, COMPRESSION (FOR C-1 ORIFICE CONTROL VALVE) | ||||
| 90501-08123 |
JZS147 INNER |
1 | ||
| 90501-08121 |
JZS147 OUTER |
1 | ||
| 35493 - SEAT, SHIFT VALVE SPRING | ||||
| 35493-30120 |
JZS147 |
1 | ||
| 35493E - SEAT, 2ND COAST MODULATOR VALVE PLUG | ||||
| 35493-22020 |
JZS147 |
1 | ||
| 35493-30030 |
JZS147 |
1 | ||
| 35493S - SEAT, SECONDARY REGULATOR VALVE PLUG | ||||
| 35493-30030 |
JZS147 |
1 | ||
| 35493U - SEAT, CHECK VALVE, NO.1 | ||||
| 35493-30030 |
JZS147 |
1 | ||
| Common parts | ||||
| 90501-07098 | ||||

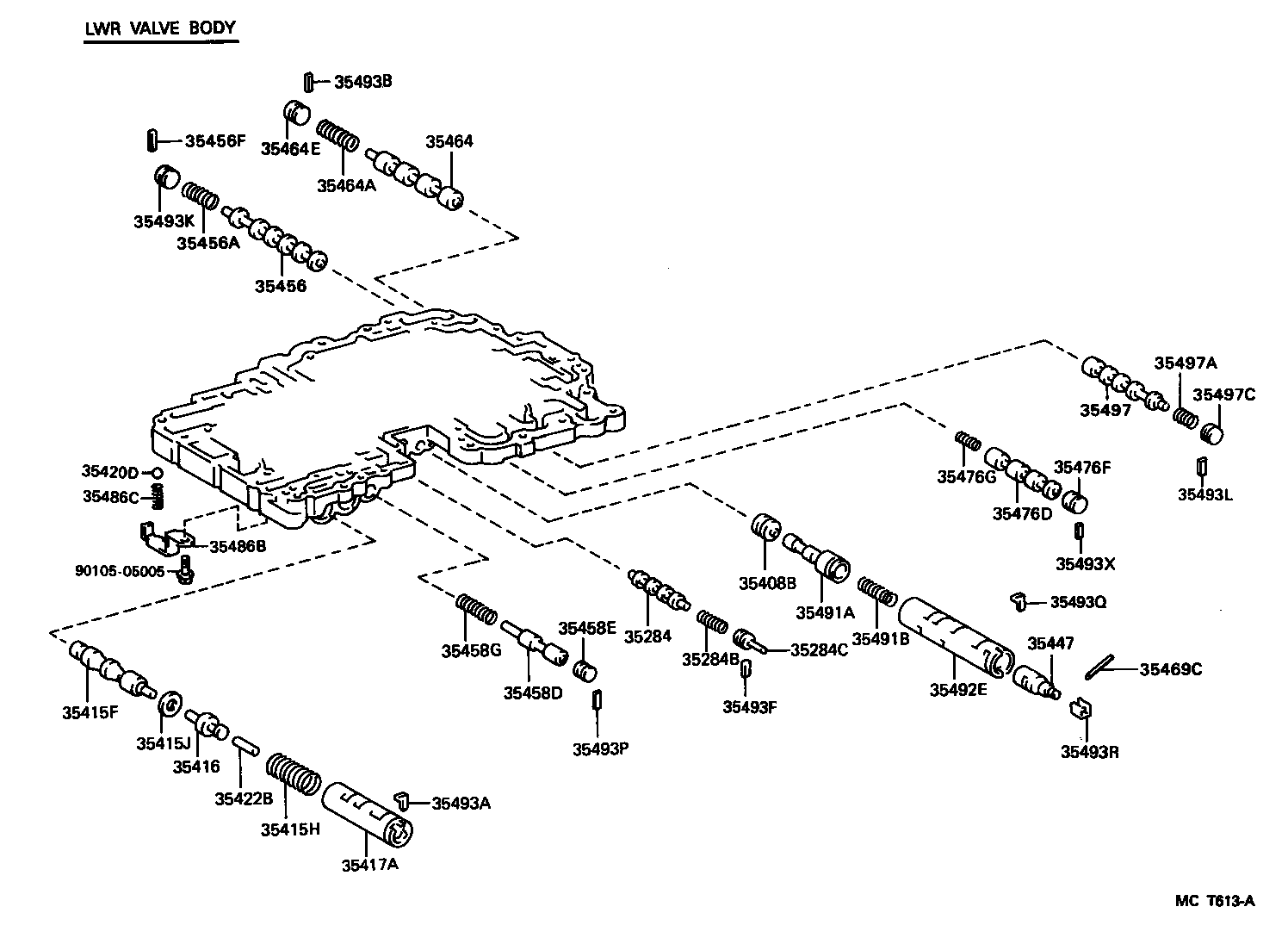

ILLUST NO. 2 OF 5(9508- )
Click highlighted areas on diagram
A350E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35284 - VALVE, SOLENOID RELAY | ||||
| 35284-50010 |
JZS147 |
1 | ||
| 35284B - SPRING, COMPRESSION (FOR SOLENOID RELAY VALVE) | ||||
| 90501-06055 |
JZS147 |
1 | ||
| 35284C - PLUG (FOR SOLENOID RELAY VALVE) | ||||
| 90339-04030 |
JZS147 |
1 | ||
| 90339-04040 |
JZS147 |
1 | ||
| 35408B - PLUG SUB-ASSY, ACCUMULATOR CONTROL VALVE | ||||
| 35408-50010 |
JZS147 |
1 | ||
| 35408-30050 |
JZS147 |
1 | ||
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-50010 |
JZS147 |
1 | ||
| 35415-30050 |
JZS147 |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-14117 |
JZS147 |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 90201-08067 |
JZS147 |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-50010 |
JZS147 |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-50011 |
JZS147 |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 90360-08003 |
JZS147 OD=8.00,STEEL |
1 | ||
| 35422B - PLUNGER, PRIMARY REGULATOR VALVE, NO.2 | ||||
| 35422-50011 |
JZS147 |
1 | ||
| 35447 - PLUNGER, ACCUMULATOR CONTROL VALVE | ||||
| 35447-50010 |
JZS147 |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-30070 |
JZS147 |
1 | ||
| 35456-30060 |
JZS147 |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-09053 |
JZS147 |
1 | ||
| 90501-08135 |
JZS147 |
1 | ||
| 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 35493-30110 |
JZS147 |
1 | ||
| 90282-03016 |
JZS147 |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-50010 |
JZS147 |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 90339-04030 |
JZS147 |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-06055 |
JZS147 |
1 | ||
| 90501-06073 |
JZS147 |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-12030 |
JZS147 |
1 | ||
| 35464-30040 |
JZS147 |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-08135 |
JZS147 |
1 | ||
| 90501-09053 |
JZS147 |
1 | ||
| 35464E - PLUG (FOR 1-2 SHIFT VALVE) | ||||
| 90339-05019 |
JZS147 |
1 | ||
| 90339-05014 |
JZS147 |
1 | ||
| 35469C - ROLLER, SHIFT VALVE PLUG | ||||
| 90361-02051 |
JZS147 |
1 | ||
| 35476D - VALVE, CUT OFF | ||||
| 35476-50010 |
JZS147 |
1 | ||
| 35476F - PLUG (FOR CUT OFF VALVE) | ||||
| 90339-05019 |
JZS147 |
2 | ||
| 90339-05021 |
JZS147 |
1 | ||
| 35476G - SPRING, COMPRESSION (FOR CUT OFF VALVE) | ||||
| 90501-06062 |
JZS147 |
1 | ||
| 35486B - SEAT, PRESSURE RELIEF VALVE SPRING | ||||
| 35486-50010 |
JZS147 |
1 | ||
| 35486-30020 |
JZS147 |
1 | ||
| 35486C - SPRING, COMPRESSION(FOR PRESSURE RELIFE VALVE) | ||||
| 90501-10143 |
JZS147 |
1 | ||
| 90501-12142 |
JZS147 |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-50010 |
JZS147 |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-11049 |
JZS147 |
1 | ||
| 35492E - SLEEVE, ACCUMULATOR CONTROL VALVE | ||||
| 35492-30040 |
JZS147 |
1 | ||
| 35492-50010 |
JZS147 |
1 | ||
| 35493A - SEAT, PRIMARY REGULATOR VALVE PLUG | ||||
| 35493-50010 |
JZS147 |
1 | ||
| 35493B - SEAT, 1-2 SHIFT VALVE PLUG | ||||
| 35493-22020 |
JZS147 |
1 | ||
| 35493-30110 |
JZS147 |
1 | ||
| 35493F - SEAT, SHIFT VALVE PLUG | ||||
| 35493-30100 |
JZS147 |
1 | ||
| 35493K - SEAT, SHIFT VALVE PLUG | ||||
| 90339-05019 |
JZS147 |
1 | ||
| 35493L - SEAT, SHIFT VALVE PLUG | ||||
| 35493-30030 |
JZS147 |
1 | ||
| 35493P - SEAT, CUT BACK VALVE PLUG | ||||
| 35493-30040 |
JZS147 |
1 | ||
| 35493Q - SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.1 | ||||
| 35493-50020 |
JZS147 |
1 | ||
| 35436-50010 |
JZS147 |
1 | ||
| 35493R - SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.2 | ||||
| 35493-50030 |
JZS147 |
1 | ||
| 35493X - SEAT, CUT OFF VALAE | ||||
| 35493-30040 |
JZS147 |
1 | ||
| 35493-50050 |
JZS147 |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-30050 |
JZS147 |
1 | ||
| 35497-30040 |
JZS147 |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09053 |
JZS147 |
1 | ||
| 90501-08135 |
JZS147 |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-05014 |
JZS147 |
1 | ||
| 90339-05019 |
JZS147 |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
