UZS160L-BEAQKA (1997)

Toyota Lexus Gs300/400/430

Production Aug 1997 - Jul 2000
Engine 1UZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9708- )

Click highlighted areas on diagram

O RING

diagram 9009914119 9009914120 9009914121 9009914122 9009914125
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122
90099-14125

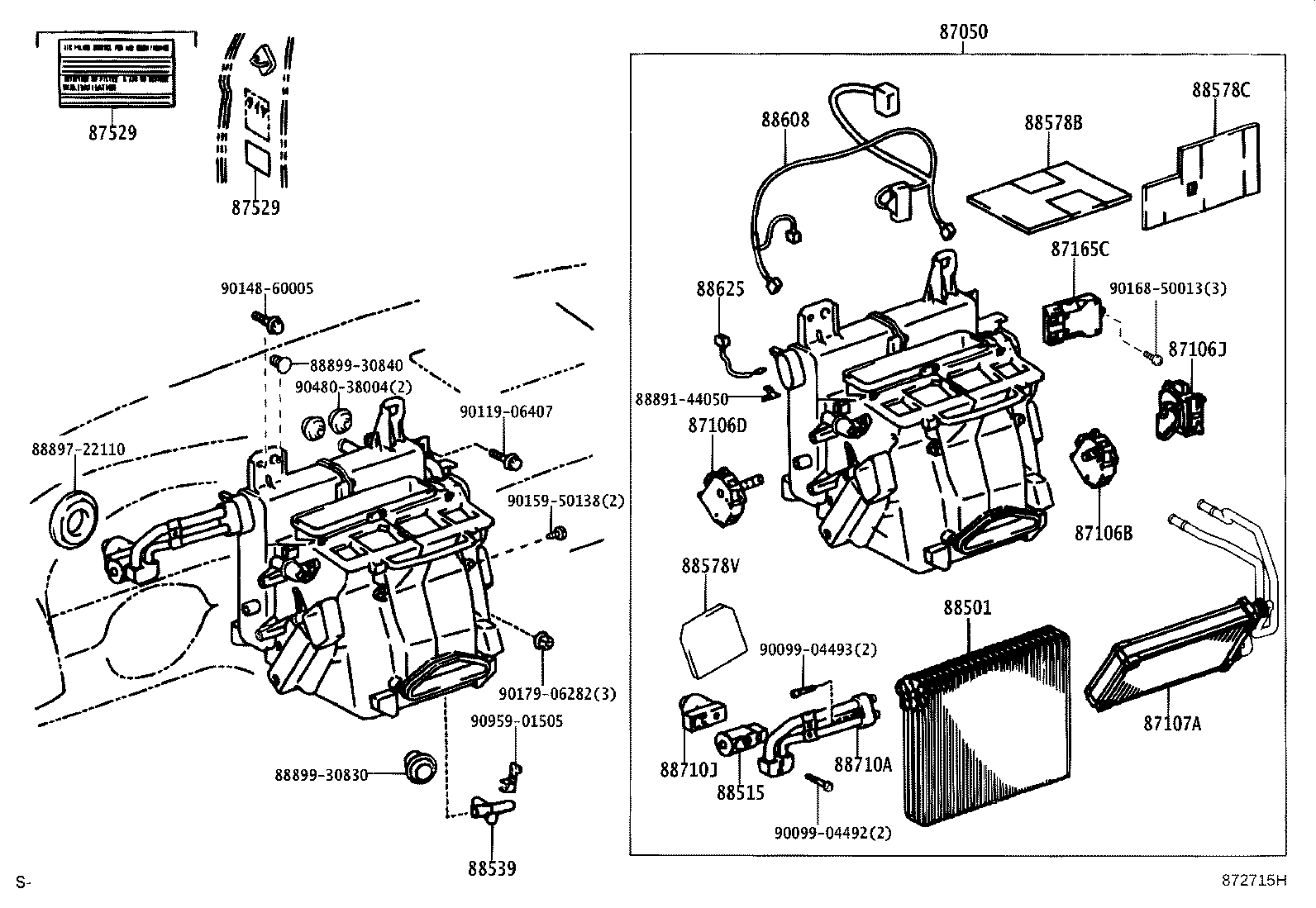

ILLUST NO. 1 OF 2(9708-0208)

Click highlighted areas on diagram

diagram 87050 87106B 87106D 87106J 87107A 87165C 87529 87529 88501 88515 88539 88578B 88578C 88578V 88608 88625 88710A 88710J 8889144050 8889722110 8889930830 8889930840 9009904492 9009904493 9011906407 9014860005 9015950138 9016850013 9017906282 9048038004 9095901505
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-30020

JZS160,UZS16#

 1
87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT)
87106-30340

JZS160,UZS16#

 1
87106D - SERVO SUB-ASSY, DAMPER, NO.1
87106-30350

JZS160,UZS16#

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-30370

JZS160,UZS160

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-30530

JZS160,UZS16#

 1
87107-30500

JZS160,UZS160

 1
87165C - CONTROL, BLOWER MOTOR
87165-22040

JZS160,UZS16#

 1
87529 - PLATE, AIR FILTER CAUTION
87529-50010

JZS160,UZS16#

 1
87529 - PLATE, AIR FILTER CAUTION
87529-50010

JZS160,UZS16#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-3A020

JZS160,UZS16#

 1
88515 - VALVE, COOLER EXPANSION
88515-30690

JZS160,UZS16#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-30820

JZS160,UZS16#

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-30760

JZS160,UZS16#

 1
88578C - PACKING, COOLING UNIT, NO.2
88578-30770

JZS160,UZS16#

 1
88578V - PACKING, COOLING UNIT, NO.3
88578-30790

JZS160,UZS16#

 1
88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88608-3A020

JZS160,UZS160

 1
88625 - THERMISTOR, COOLER, NO.1
88625-3A120

JZS160,UZS16#

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-3A150

JZS160,UZS16#

 1
88710J - TUBE, AIR CONDITIONER CONNECTOR
88899-30890

JZS160,UZS16#

 1
Common parts
88891-44050
88897-22110
88899-30830
88899-30840
90099-04492
90099-04493
90119-06407
90148-60005
90159-50138
90168-50013
90179-06282
90480-38004
90959-01505
