UZS160L-BEAQKA (1997)

Toyota Lexus Gs300/400/430

Production Aug 1997 - Jul 2000
Engine 1UZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

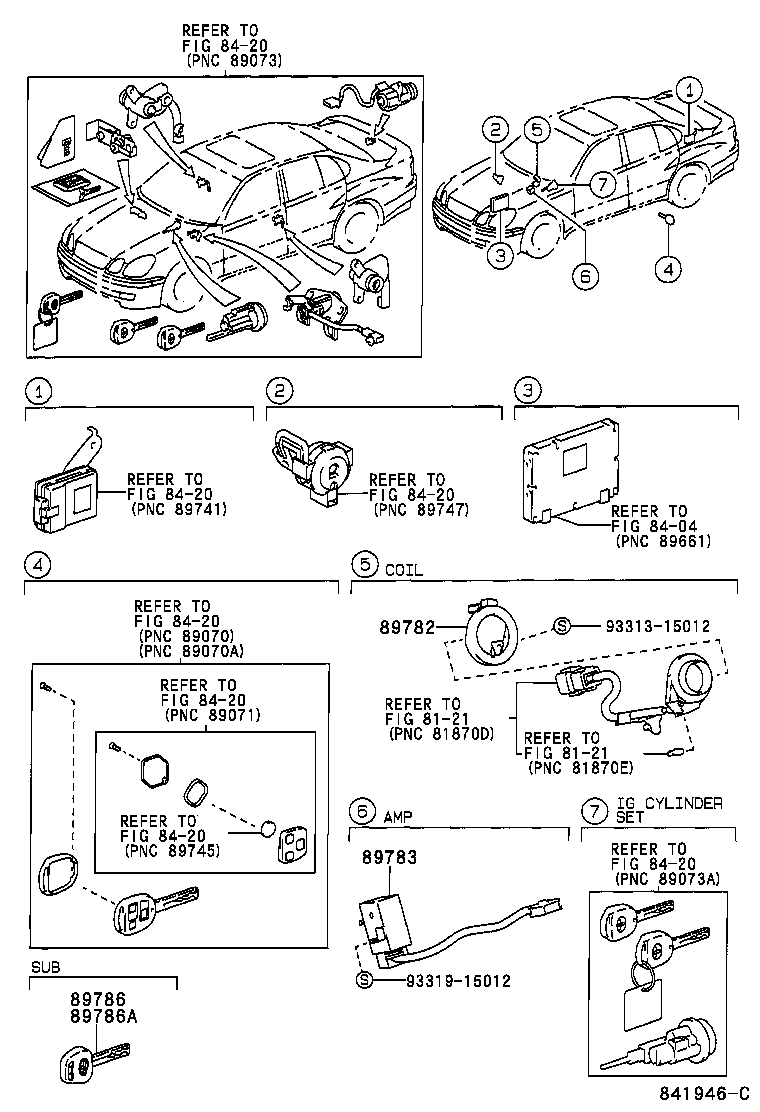

ILLUST NO. 1 OF 2(9708-0007)

Click highlighted areas on diagram

IMMOBILIZER

diagram 8121 8121 8404 8420 8420 8420 8420 8420 8420 8420 89782 89783 89786 89786A 9331315012 9331915012
Part # Description Qty Price
89782 - COIL, TRANSPONDER KEY
89782-30010

JZS160,UZS16#

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-30030

JZS160,UZS160

 1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-50030

JZS160,UZS16#

 1
89786A - TRANSMITTER, TRANSPONDER CUT KEY SUB
89786-50040

JZS160,UZS16#

 1
Common parts
93313-15012
93319-15012
Linked diagrams
8121
8404
8420

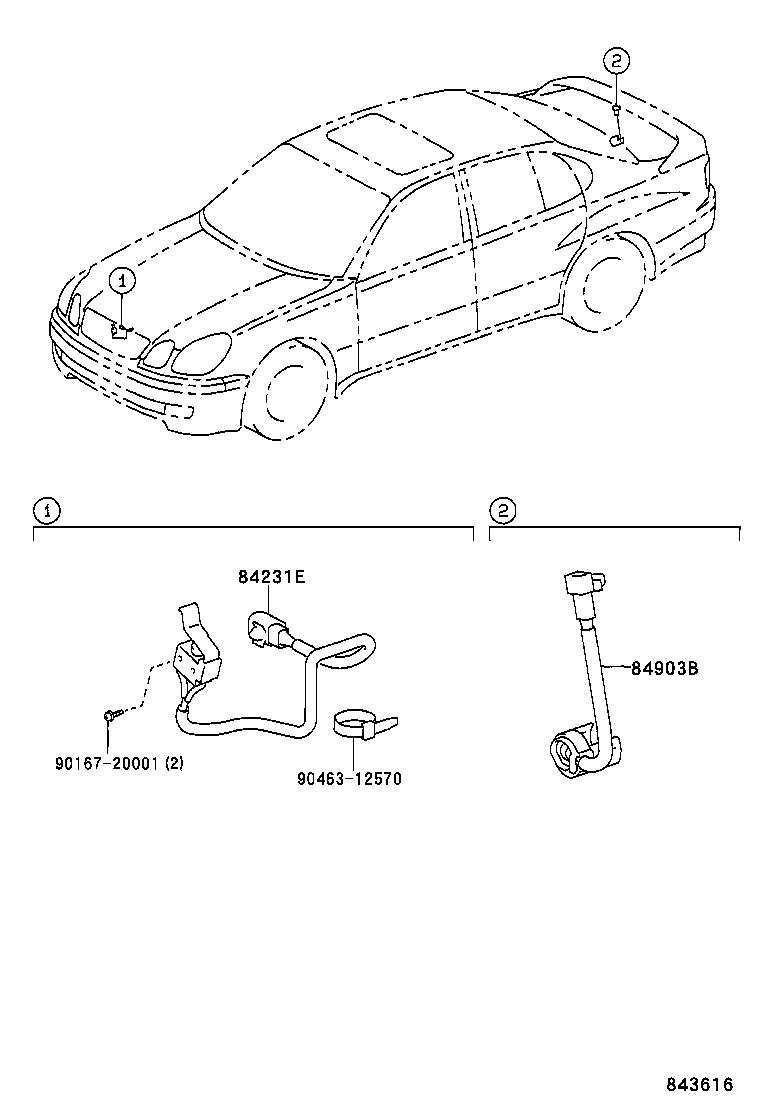

ILLUST NO. 2 OF 2(9708-0501)

Click highlighted areas on diagram

THEFT WARNING SYSTEM

diagram 84231E 84903B 9016720001 9046312570
Part # Description Qty Price
84231E - SWITCH, COURTESY(FOR SECURITY)
84231-33030

JZS160,UZS16#

 1
84903B - SWITCH SUB-ASSY, DOOR UNLOCK
84903-30060

JZS160,UZS16#

 1
Common parts
90167-20001
90463-12570
