UZS160L-BEAQKA (1997)
Toyota Lexus Gs300/400/430

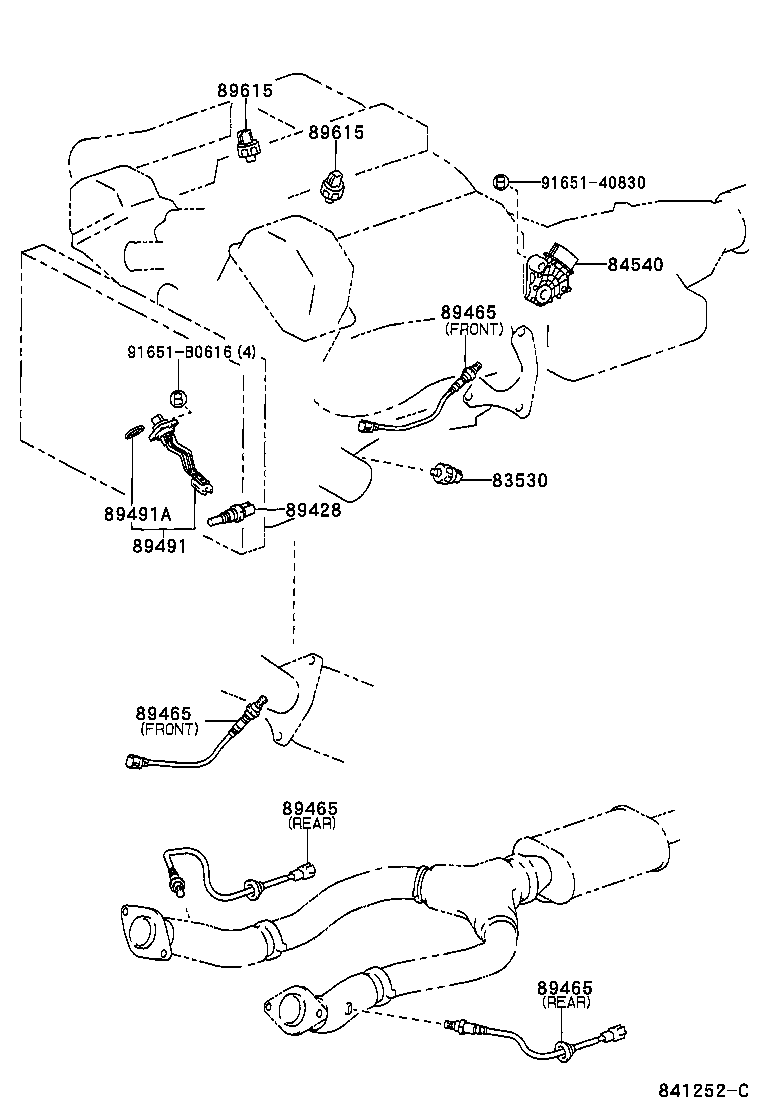

ILLUST NO. 1 OF 6(9708-0007)UZS160
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
UZS160 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-30270 |
JZS160,UZS160 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-33010 |
JZS160,UZS16# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-50060 |
UZS160 FRONT |
2 | ||
| 89465-30410 |
UZS160 REAR |
2 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-50060 |
UZS160 FRONT |
2 | ||
| 89465-30410 |
UZS160 REAR |
2 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-50060 |
UZS160 FRONT |
2 | ||
| 89465-30410 |
UZS160 REAR |
2 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-50060 |
UZS160 FRONT |
2 | ||
| 89465-30410 |
UZS160 REAR |
2 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-30050 |
UZS16# |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 90430-27001 |
UZS160 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12040 |
UZS160 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12040 |
UZS160 |
2 | ||
| Common parts | ||||
| 91651-40830 | ||||
| 91651-B0616 | ||||

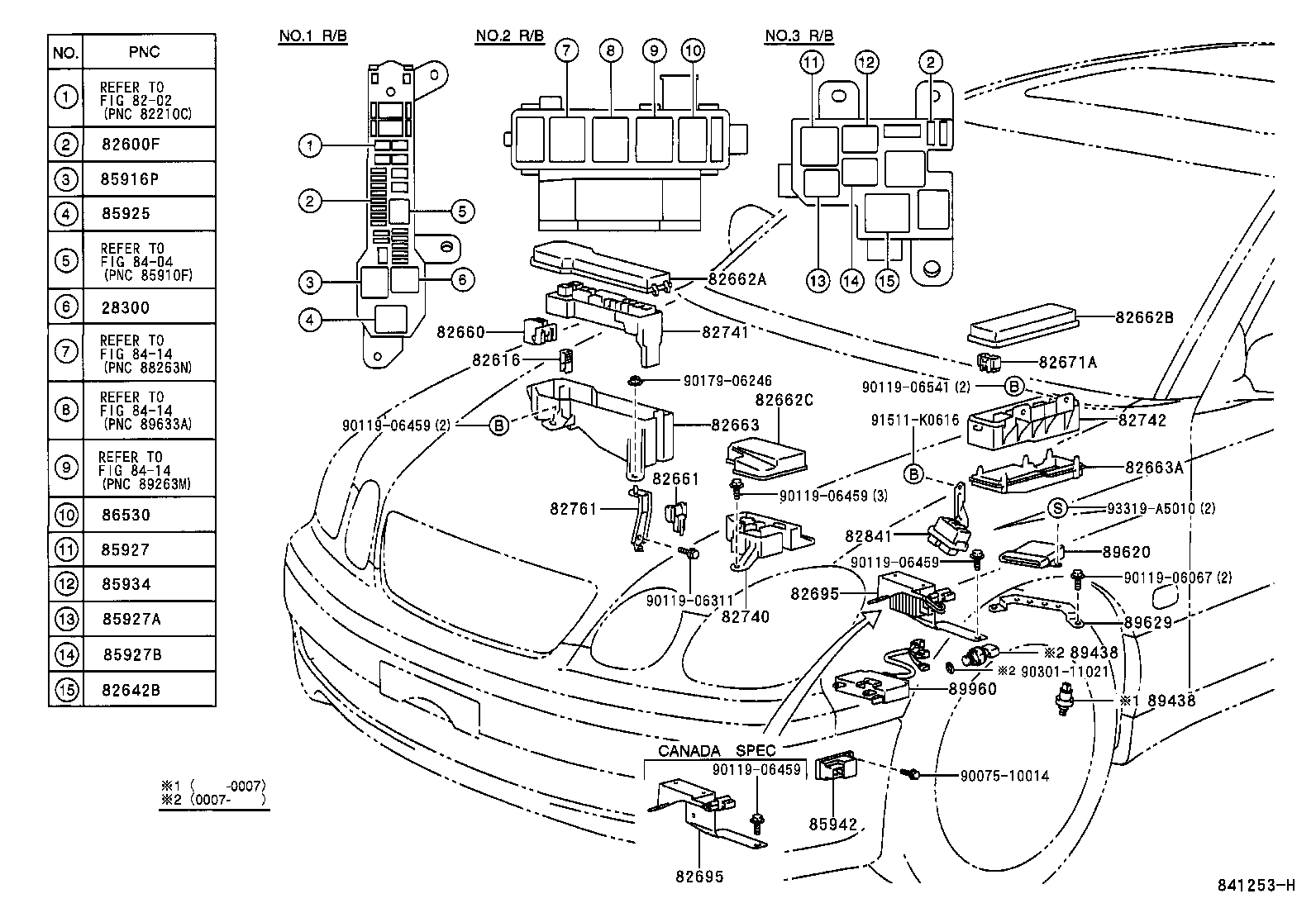

ILLUST NO. 2 OF 6(9708- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
2JZGE,1UZFE,3UZFE..JZS160,UZS16# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
JZS160,UZS16# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09011 |
JZS160,UZS16# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
JZS160,UZS16# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09010 |
JZS160,UZS16# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
JZS160,UZS16# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
JZS160,UZS16# 10A,MINI FUSE,RED |
1 | ||
| 90982-09012 |
JZS160,UZS16# 25A,MINI FUSE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
JZS160,UZS16# |
1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90987-02006 |
JZS160,UZS16# |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82602-30460 |
JZS160,UZS16# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-30450 |
JZS160,UZS16# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-30420 |
JZS160,UZS16# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-30430 |
JZS160,UZS16# |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-30440 |
JZS160,UZS16# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-30130 |
JZS160,UZS16# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-30140 |
JZS160,UZS16# |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-30340 |
JZS160,UZS16# |
1 | ||
| 82695 - RESISTOR, DAYTIME RUNNING LIGHT | ||||
| 82695-30020 |
JZS160,UZS16# CANADA SPEC |
1 | ||
| 82695-30010 |
JZS160,UZS16# |
1 | ||
| 82695 - RESISTOR, DAYTIME RUNNING LIGHT | ||||
| 82695-30020 |
JZS160,UZS16# CANADA SPEC |
1 | ||
| 82695-30010 |
JZS160,UZS16# |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-30280 |
JZS160,UZS160 |
1 | ||
| 82740-30290 |
JZS160,UZS160 W(*DRL) |
1 | ||
| 82740-30290 |
JZS160,UZS160 CANADA SPEC |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-30030 |
JZS160,UZS16# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-30030 |
JZS160,UZS16# |
1 | ||
| 82761 - BRACKET, RELAY BLOCK, NO.1 | ||||
| 82761-30010 |
JZS160,UZS16# |
1 | ||
| 82841 - RELAY, RUNNING LIGHT VOLTAGE CONTROL | ||||
| 82840-30010 |
JZS160,UZS16# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 85916-30060 |
JZS160,UZS16# |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 85925-17010 |
JZS160,UZS16# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
UZS160 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
UZS160 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02012 |
UZS160 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02012 |
UZS160 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-30010 |
JZS160,UZS16# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02012 |
UZS160 |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-30050 |
JZS160,UZS160 |
1 | ||
| Common parts | ||||
| 90075-10014 | ||||
| 90119-06067 | ||||
| 90119-06311 | ||||
| 90119-06459 | ||||
| 90119-06541 | ||||
| 90179-06246 | ||||
| 90301-11021 | ||||
| 91511-K0616 | ||||
| 93319-A5010 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8414 | ||||

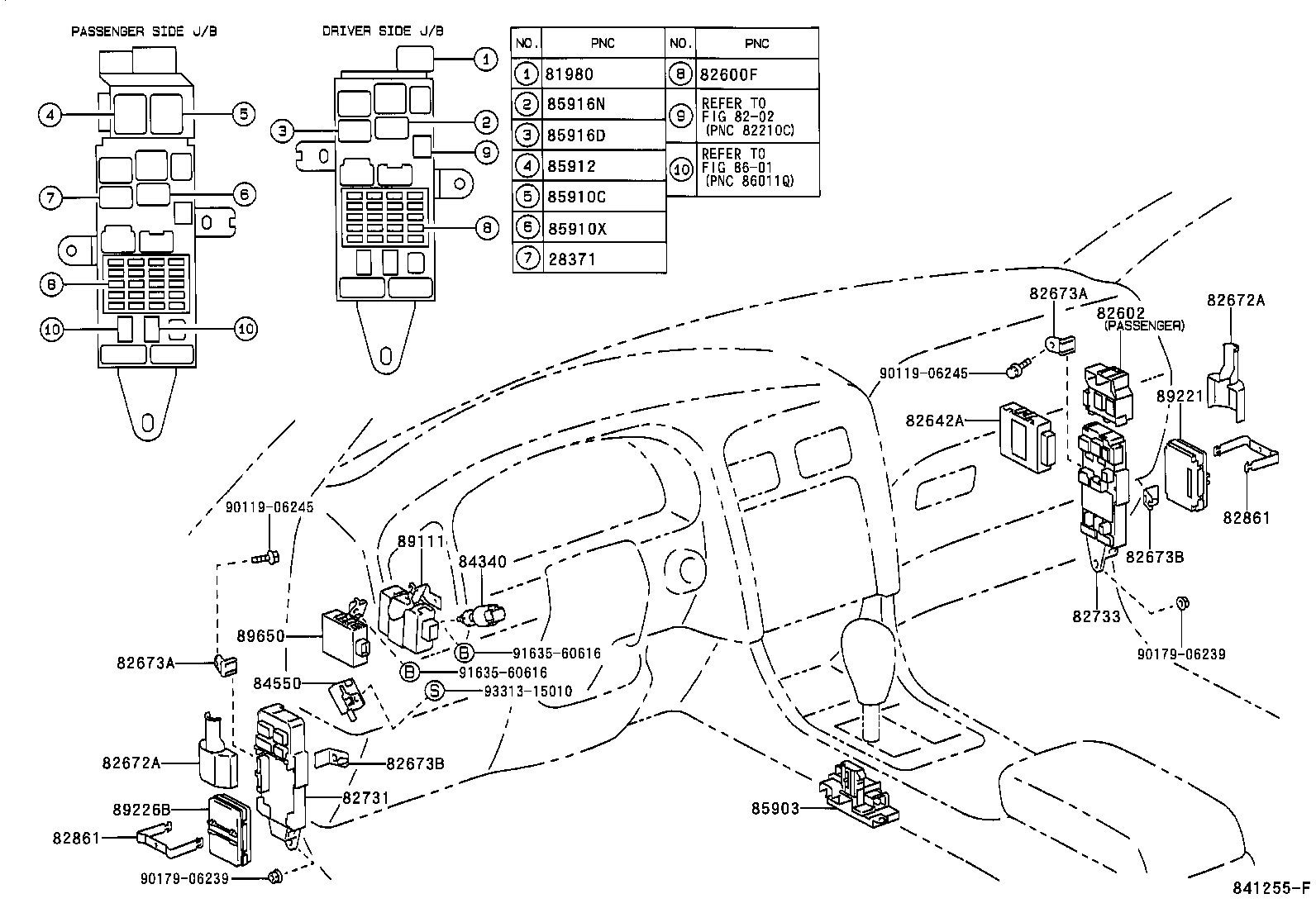

ILLUST NO. 3 OF 6(9708- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02012 |
2JZGE,1UZFE,3UZFE..JZS160,UZS16# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50020 |
JZS160,UZS160 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
JZS160,UZS16# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09011 |
JZS160,UZS16# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
JZS160,UZS16# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09010 |
JZS160,UZS16# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
JZS160,UZS16# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
JZS160,UZS16# 10A,MINI FUSE,RED |
1 | ||
| 90982-09012 |
JZS160,UZS16# 25A,MINI FUSE |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-30440 |
UZS160 |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-33020 |
JZS160,UZS16# |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-30060 |
JZS160,UZS16# |
2 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-30060 |
JZS160,UZS16# |
2 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-30030 |
UZS160 |
2 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-30030 |
UZS160 |
2 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-30040 |
UZS160 |
2 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-30040 |
UZS160 |
2 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-30031 |
JZS160,UZS16# |
1 | ||
| 82733 - BLOCK, PASSENGER SIDE JUNCTION | ||||
| 82733-30011 |
JZS160,UZS16# |
1 | ||
| 82861 - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-30010 |
JZS160,UZS16# |
1 | ||
| 82861 - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-30010 |
JZS160,UZS16# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32110 |
JZS160,UZS160 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
JZS160,UZS16# |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-30020 |
JZS160,UZS160 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
JZS160,UZS16# |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90987-02012 |
JZS160,UZS16# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02011 |
JZS160,UZS16# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
JZS160,UZS16# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
JZS160,UZS16# |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-30120 |
UZS160 CANADA SPEC |
1 | ||
| 89220-30031 |
UZS160 |
1 | ||
| 89220-30122 |
UZS160 CANADA SPEC |
1 | ||
| 89220-30030 |
UZS160 |
1 | ||
| 89220-30121 |
UZS160 CANADA SPEC |
1 | ||
| 89220-30032 |
UZS160 |
1 | ||
| 89226B - COMPUTER, MULTIPLEX NETWORK BODY, NO.2 | ||||
| 89226-30030 |
JZS160,UZS160 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-30580 |
JZS160,UZS160 |
1 | ||
| Common parts | ||||
| 90119-06245 | ||||
| 90179-06239 | ||||
| 91635-60616 | ||||
| 93313-15010 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8601 | ||||

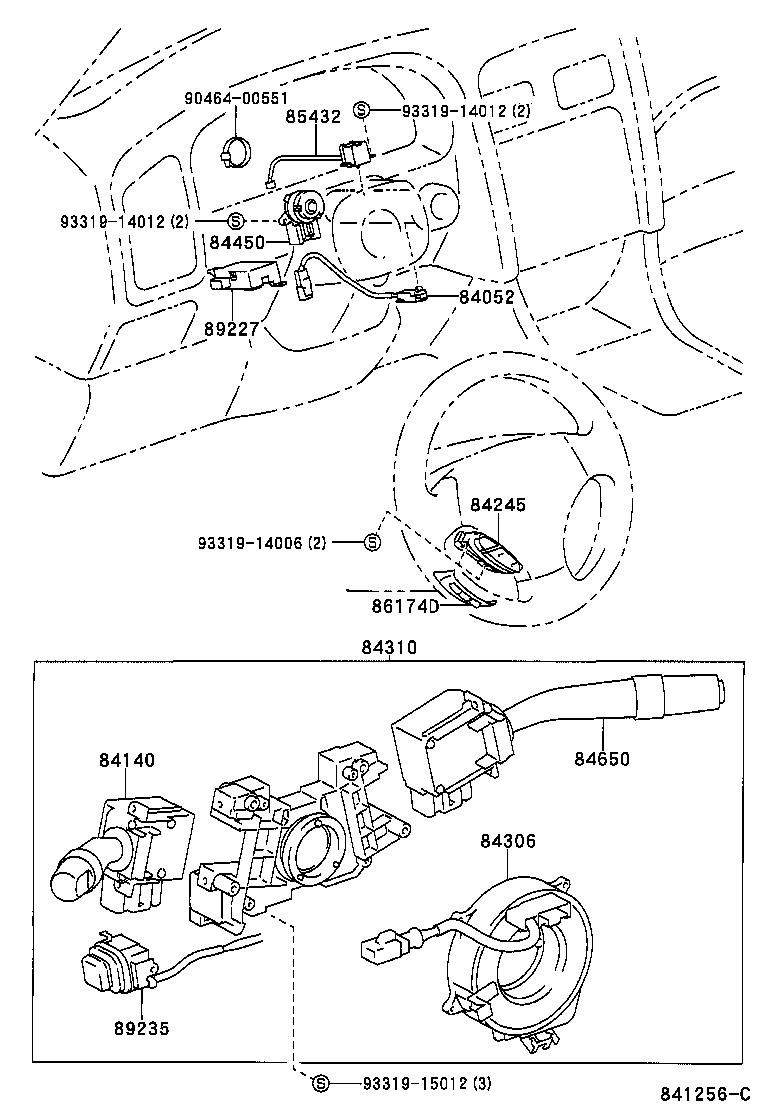

ILLUST NO. 5 OF 6(9708- )
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-22050 |
JZS160,UZS16# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-50090 |
JZS160,UZS16# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-30150 |
UZS16# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-3F150 |
UZS160 |
1 | ||
| 84310-3F151 |
UZS160 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
JZS160,UZS16# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-30490 |
JZS160,UZS16# |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-30050 |
JZS160,UZS16# |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-30010 |
JZS160,UZS160 |
1 | ||
| 89235 - SWITCH, TILT STEERING | ||||
| 89235-30110 |
JZS160,UZS16# |
1 | ||
| Common parts | ||||
| 90464-00551 | ||||
| 93319-14006 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

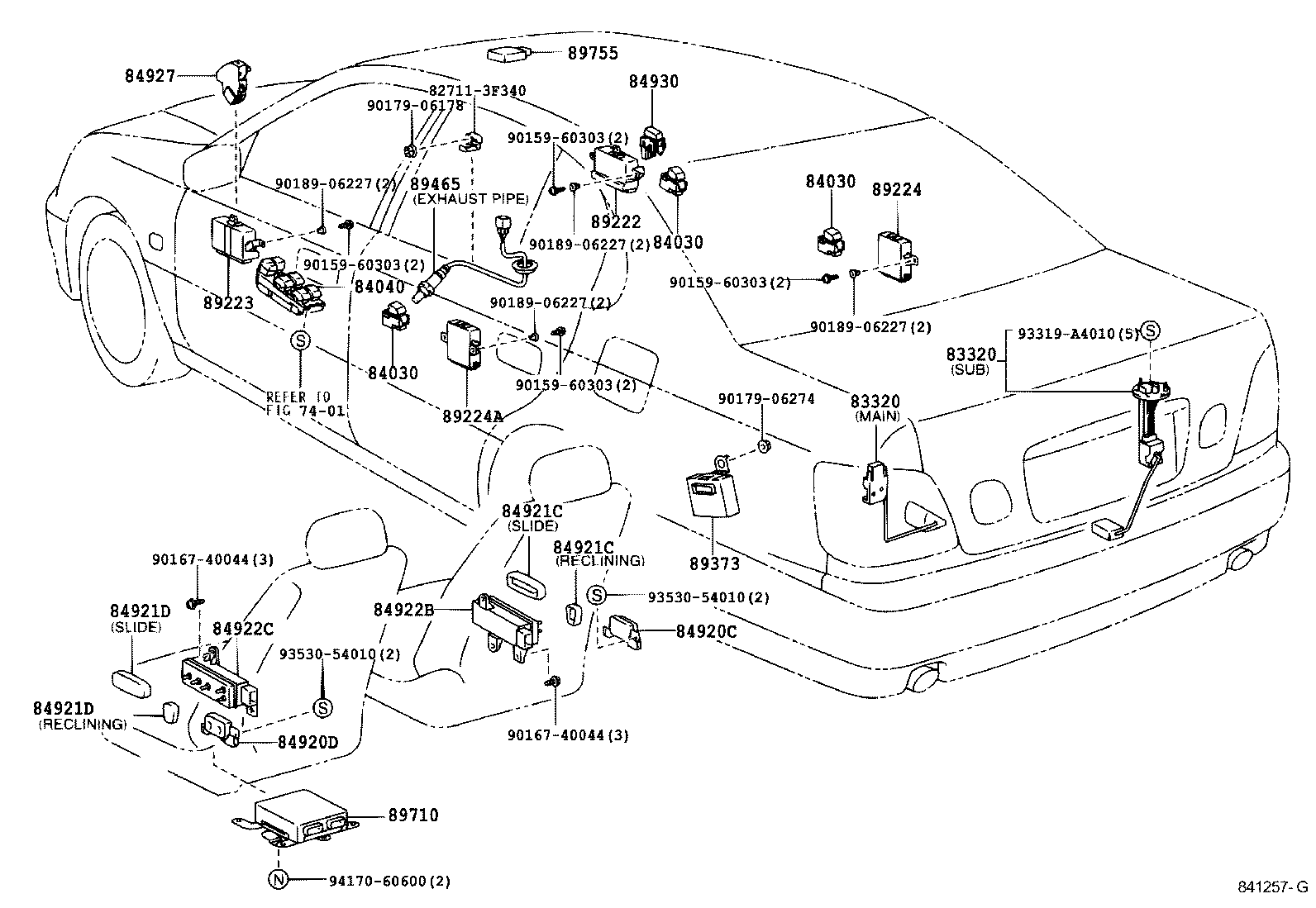

ILLUST NO. 6 OF 6(9708- )
DOOR,ROOF,FLOOR,SEAT & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-30500 |
JZS160,UZS16# MAIN |
1 | ||
| 83320-80362 |
JZS160,UZS16# SUB |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-30500 |
JZS160,UZS16# MAIN |
1 | ||
| 83320-80362 |
JZS160,UZS16# SUB |
1 | ||
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84030-30020C0 |
JZS160,UZS16# BLACK,TRIM2# |
3 | ||
| 84030-30020B0 |
JZS160,UZS16# DK.CHARCOAL,TRIM1# |
3 | ||
| 84030-30020E0 |
JZS160,UZS16# SANDAL WOOD,TRIM0# |
3 | ||
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84030-30020C0 |
JZS160,UZS16# BLACK,TRIM2# |
3 | ||
| 84030-30020B0 |
JZS160,UZS16# DK.CHARCOAL,TRIM1# |
3 | ||
| 84030-30020E0 |
JZS160,UZS16# SANDAL WOOD,TRIM0# |
3 | ||
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84030-30020C0 |
JZS160,UZS16# BLACK,TRIM2# |
3 | ||
| 84030-30020B0 |
JZS160,UZS16# DK.CHARCOAL,TRIM1# |
3 | ||
| 84030-30020E0 |
JZS160,UZS16# SANDAL WOOD,TRIM0# |
3 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-30050E0 |
JZS160,UZS16# SANDAL WOOD,TRIM0# |
1 | ||
| 84040-30050B0 |
JZS160,UZS16# DK.CHARCOAL,TRIM1# |
1 | ||
| 84040-30050C0 |
JZS160,UZS16# BLACK,TRIM2# |
1 | ||
| 84920C - SWITCH ASSY, POWER SEAT FRONT, RH | ||||
| 84920-30200A1 |
JZS160,UZS16# IVORY,TRIM0# |
1 | ||
| 84920-30200B3 |
JZS160,UZS16# MD.CHARCOAL,TRIM1# |
1 | ||
| 84920-30200C0 |
JZS160,UZS16# BLACK,TRIM2# |
1 | ||
| 84920D - SWITCH ASSY, POWER SEAT FRONT, LH | ||||
| 84920-30210A1 |
JZS160,UZS16# IVORY,TRIM0# |
1 | ||
| 84920-30210B2 |
JZS160,UZS16# MD.CHARCOAL,TRIM1# |
1 | ||
| 84920-30210C0 |
JZS160,UZS16# BLACK,TRIM2# |
1 | ||
| 84921C - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-24030A1 |
JZS160,UZS16# IVORY,TRIM0#,SLIDE |
1 | ||
| 84921-24030C0 |
JZS160,UZS16# BLACK,TRIM2#,SLIDE |
1 | ||
| 84921-30120C0 |
JZS160,UZS16# BLACK,TRIM2#,RECLINING |
1 | ||
| 84921-24030B3 |
JZS160,UZS16# MD.CHARCOAL,TRIM1#,SLIDE |
1 | ||
| 84921-30120A0 |
JZS160,UZS16# IVORY,TRIM0#,RECLINING |
1 | ||
| 84921-30120B0 |
JZS160,UZS16# MD.CHARCOAL,TRIM1#,RECLINING |
1 | ||
| 84921C - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-24030A1 |
JZS160,UZS16# IVORY,TRIM0#,SLIDE |
1 | ||
| 84921-24030C0 |
JZS160,UZS16# BLACK,TRIM2#,SLIDE |
1 | ||
| 84921-30120C0 |
JZS160,UZS16# BLACK,TRIM2#,RECLINING |
1 | ||
| 84921-24030B3 |
JZS160,UZS16# MD.CHARCOAL,TRIM1#,SLIDE |
1 | ||
| 84921-30120A0 |
JZS160,UZS16# IVORY,TRIM0#,RECLINING |
1 | ||
| 84921-30120B0 |
JZS160,UZS16# MD.CHARCOAL,TRIM1#,RECLINING |
1 | ||
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-24050B1 |
JZS160,UZS16# MD.CHARCOAL,TRIM1#,SLIDE |
1 | ||
| 84921-30130C0 |
JZS160,UZS16# BLACK,TRIM2#,RECLINING |
1 | ||
| 84921-30130B0 |
JZS160,UZS16# MD.CHARCOAL,TRIM1#,RECLINING |
1 | ||
| 84921-24050C0 |
JZS160,UZS16# BLACK,TRIM2#,SLIDE |
1 | ||
| 84921-30130A0 |
JZS160,UZS16# IVORY,TRIM0#,RECLINING |
1 | ||
| 84921-24050A1 |
JZS160,UZS16# IVORY,TRIM0#,SLIDE |
1 | ||
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-24050B1 |
JZS160,UZS16# MD.CHARCOAL,TRIM1#,SLIDE |
1 | ||
| 84921-30130C0 |
JZS160,UZS16# BLACK,TRIM2#,RECLINING |
1 | ||
| 84921-30130B0 |
JZS160,UZS16# MD.CHARCOAL,TRIM1#,RECLINING |
1 | ||
| 84921-24050C0 |
JZS160,UZS16# BLACK,TRIM2#,SLIDE |
1 | ||
| 84921-30130A0 |
JZS160,UZS16# IVORY,TRIM0#,RECLINING |
1 | ||
| 84921-24050A1 |
JZS160,UZS16# IVORY,TRIM0#,SLIDE |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-30210 |
JZS160,UZS16# |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-30280 |
JZS160,UZS16# W(MEMORY ADJUST SYSTEM) |
1 | ||
| 84922-30230 |
JZS160,UZS16# |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-30030E0 |
JZS160,UZS16# SANDAL WOOD,TRIM0# |
1 | ||
| 84927-30030B0 |
JZS160,UZS16# DK.CHARCOAL,TRIM1# |
1 | ||
| 84927-30030C0 |
JZS160,UZS16# BLACK,TRIM2# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-30060E0 |
JZS160,UZS16# SANDAL WOOD,TRIM0# |
1 | ||
| 84930-30060B0 |
JZS160,UZS16# DK.CHARCOAL,TRIM1# |
1 | ||
| 84930-30060C0 |
JZS160,UZS16# BLACK,TRIM2# |
1 | ||
| 89222 - COMPUTER, MULTIPLEX NETWORK DOOR, FRONT RH | ||||
| 89223-30020 |
JZS160,UZS16# |
1 | ||
| 89223 - COMPUTER, MULTIPLEX NETWORK DOOR, FRONT LH | ||||
| 89222-30020 |
JZS160,UZS16# |
1 | ||
| 89224 - COMPUTER, MULTIPLEX NETWORK DOOR, REAR RH | ||||
| 89224-30010 |
UZS160 |
1 | ||
| 89224A - COMPUTER, MULTIPLEX NETWORK DOOR, REAR LH | ||||
| 89224-30010 |
UZS160 |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89370-30160 |
JZS160,UZS16# W(REAR SPOILER) |
1 | ||
| 89370-30130 |
JZS160,UZS16# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-50060 |
UZS160 FRONT |
2 | ||
| 89465-30410 |
UZS160 REAR |
2 | ||
| 89710 - COMPUTER ASSY, POSITION CONTROL | ||||
| 89710-30090 |
JZS160,UZS16# |
1 | ||
| 89755 - TRANSMITTER, GARAGE DOOR OPENER | ||||
| 89755-0W030A0 |
JZS160,UZS16# IVORY,TRIM0# |
1 | ||
| 89755-0W030B0 |
JZS160,UZS16# MD.CHARCOAL,TRIM1#,2# |
1 | ||
| Common parts | ||||
| 82711-3F340 | ||||
| 90159-60303 | ||||
| 90167-40044 | ||||
| 90179-06178 | ||||
| 90179-06274 | ||||
| 90189-06227 | ||||
| 93319-A4010 | ||||
| 93530-54010 | ||||
| 94170-60600 | ||||
| Linked diagrams | ||||
| 7401 | ||||

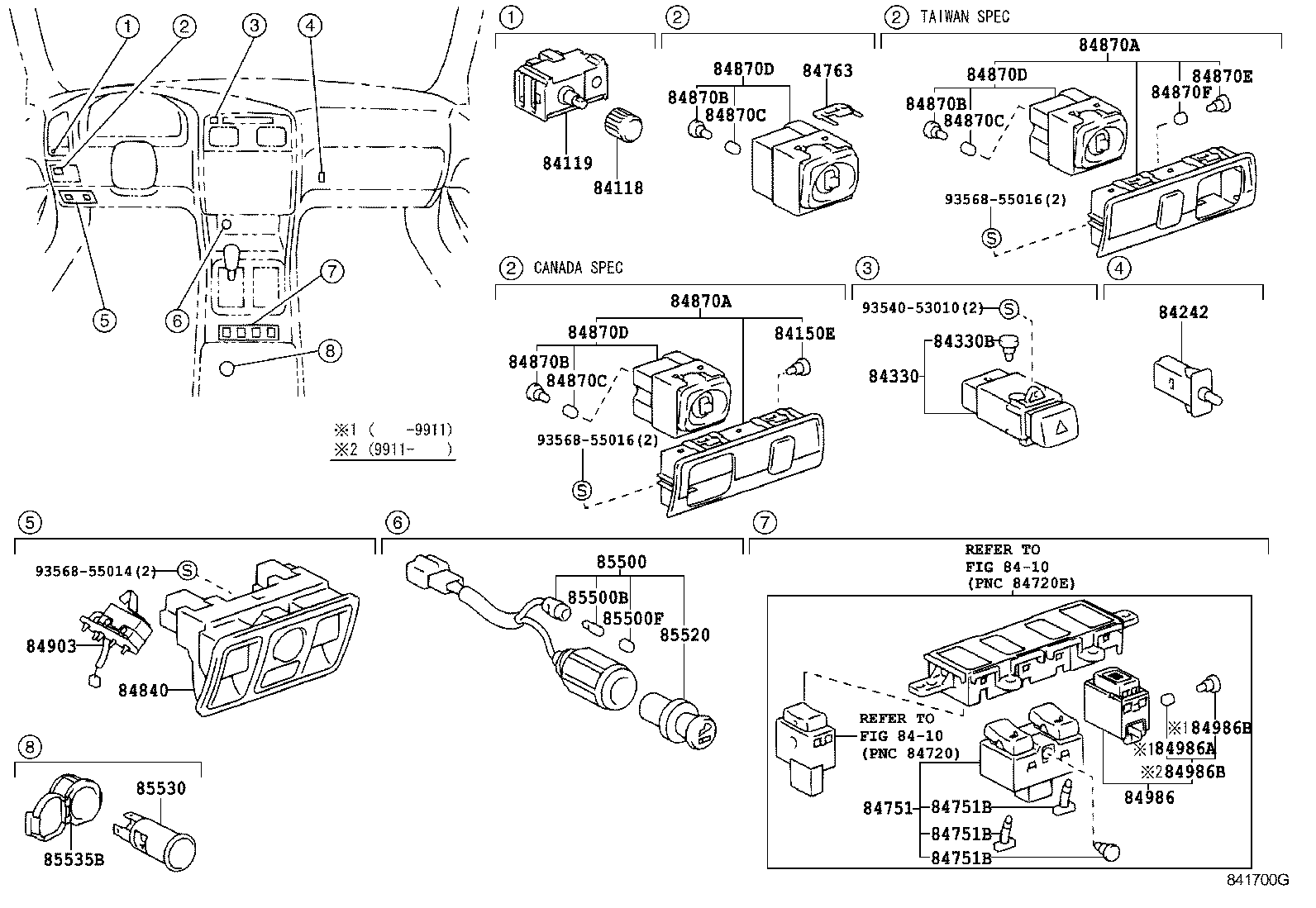

ILLUST NO. 4 OF 6(9708- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-30050C0 |
JZS160,UZS16# BLACK,TRIM2# |
1 | ||
| 84118-30050E0 |
JZS160,UZS16# SANDAL WOOD,TRIM0# |
1 | ||
| 84118-30050B0 |
JZS160,UZS16# DK.CHARCOAL,TRIM1# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-30160 |
JZS160,UZS16# |
1 | ||
| 84150E - BULB, HEADLAMP CLEANER SWITCH | ||||
| 84999-10540 |
JZS160,UZS16# 14V 1.19W |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
JZS160,UZS16# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-30260 |
JZS160,UZS16# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
UZS160 14V 0.84W |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-30130 |
JZS160,UZS16# |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 90010-01026 |
JZS160,UZS16# 14V 0.84W |
1 | ||
| 84999-10130 |
JZS160,UZS16# 12V 0.56W |
2 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 90010-01026 |
JZS160,UZS16# 14V 0.84W |
1 | ||
| 84999-10130 |
JZS160,UZS16# 12V 0.56W |
2 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 90010-01026 |
JZS160,UZS16# 14V 0.84W |
1 | ||
| 84999-10130 |
JZS160,UZS16# 12V 0.56W |
2 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-50020 |
JZS160,UZS16# |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30150B4 |
JZS160,UZS16# MD.CHARCOAL,TRIM1# |
1 | ||
| 84840-30150A1 |
JZS160,UZS16# IVORY,TRIM0# |
1 | ||
| 84840-30150C0 |
JZS160,UZS16# BLACK,TRIM2# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-30440E0 |
JZS160,UZS16# CANADA SPEC,SANDAL WOOD,TRIM0# |
1 | ||
| 84870-30440B0 |
JZS160,UZS16# CANADA SPEC,DK.CHARCOAL,TRIM1# |
1 | ||
| 84870-30440C0 |
JZS160,UZS16# CANADA SPEC,BLACK,TRIM2# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-30440E0 |
JZS160,UZS16# CANADA SPEC,SANDAL WOOD,TRIM0# |
1 | ||
| 84870-30440B0 |
JZS160,UZS16# CANADA SPEC,DK.CHARCOAL,TRIM1# |
1 | ||
| 84870-30440C0 |
JZS160,UZS16# CANADA SPEC,BLACK,TRIM2# |
1 | ||
| 84870B - BULB, OUTER MIRROR SWITCH | ||||
| 84999-10470 |
UZS160 14V 1.12W |
1 | ||
| 84870B - BULB, OUTER MIRROR SWITCH | ||||
| 84999-10470 |
UZS160 14V 1.12W |
1 | ||
| 84870B - BULB, OUTER MIRROR SWITCH | ||||
| 84999-10470 |
UZS160 14V 1.12W |
1 | ||
| 84870C - CAP, OUTER MIRROR SWITCH BULB | ||||
| 84998-10430 |
UZS160 |
1 | ||
| 84870C - CAP, OUTER MIRROR SWITCH BULB | ||||
| 84998-10430 |
UZS160 |
1 | ||
| 84870C - CAP, OUTER MIRROR SWITCH BULB | ||||
| 84998-10430 |
UZS160 |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-30020 |
JZS160,UZS16# |
1 | ||
| 84870-30450 |
JZS160,UZS160 |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-30020 |
JZS160,UZS16# |
1 | ||
| 84870-30450 |
JZS160,UZS160 |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-30020 |
JZS160,UZS16# |
1 | ||
| 84870-30450 |
JZS160,UZS160 |
1 | ||
| 84903 - SWITCH SUB-ASSY, DOOR UN-LOCK | ||||
| 84903-50040 |
JZS160,UZS16# |
1 | ||
| 84986 - SWITCH, VEHICLE STABILITY CONTROL | ||||
| 84986-30010 |
JZS160,UZS16# |
1 | ||
| 84986A - CAP, VEHICLE STABILITY CONTROL SWITCH BULB | ||||
| 84998-10740 |
JZS160,UZS160 |
1 | ||
| 84986B - BLUB, VEHICLE STABILITY CONTROL SWITCH | ||||
| 90010-01039 |
JZS160,UZS16# 14V0.91W,W(GREEN CAP |
1 | ||
| 84999-10310 |
JZS160,UZS160 14V 0.91W |
1 | ||
| 84986B - BLUB, VEHICLE STABILITY CONTROL SWITCH | ||||
| 90010-01039 |
JZS160,UZS16# 14V0.91W,W(GREEN CAP |
1 | ||
| 84999-10310 |
JZS160,UZS160 14V 0.91W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30490 |
JZS160,UZS16# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10440 |
JZS160,UZS16# 14V 2.0W |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10530 |
JZS160,UZS16# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
JZS160,UZS16# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
JZS160,UZS16# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 86831-30010 |
JZS160,UZS16# |
1 | ||
| Common parts | ||||
| 93540-53010 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
