JZS160L-BEAQFA (1997)

Toyota Lexus Gs300/400/430

Production Aug 1997 - Jan 2005
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708-0007)

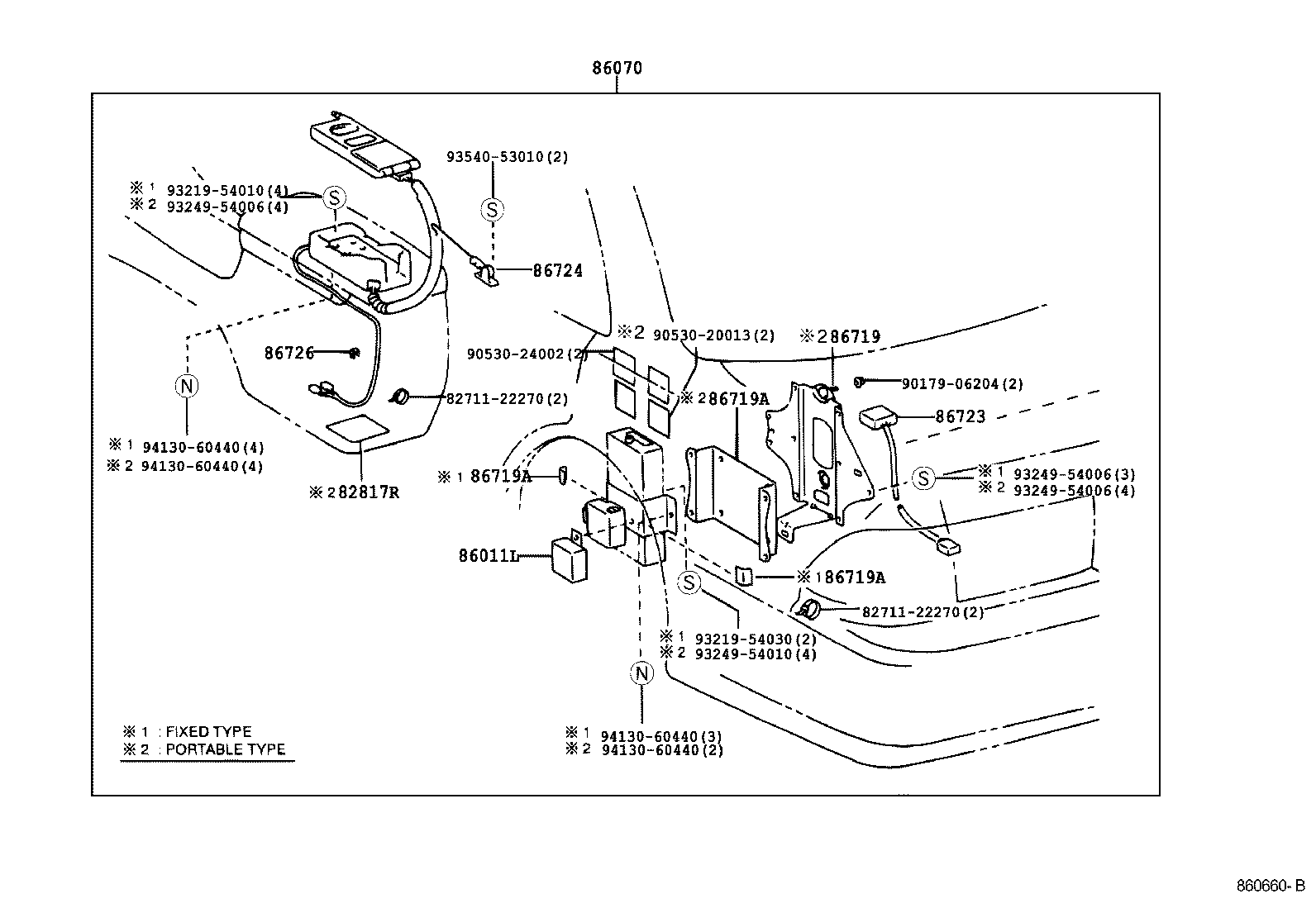

Click highlighted areas on diagram

diagram 8271122270 8271122270 82817R 86011L 86070 86719 86719A 86719A 86719A 86723 86724 86726 9017906204 9053020013 9053024002 9321954010 9321954030 9324954006 9324954006 9324954006 9324954010 9354053010 9413060440 9413060440 9413060440 9413060440
Part # Description Qty Price
82817R - PROTECTOR, WIRING HARNESS, NO.16
82817-87013

JZS160,UZS160

 1
86011L - FILTER, NOISE
90980-05281

JZS160,UZS160

 2
86070 - MOBILEPHONE & ACCESSORY ASSY
86075-30040

JZS160,UZS160

FIXED TYPE

 1
86075-30041

JZS160,UZS160

FIXED TYPE

 1
86075-30051

JZS160,UZS160

PORTABLE TYPE

 1
86075-30050

JZS160,UZS160

PORTABLE TYPE

 1
86719 - BRACKET, TELEPHONE
86719-30080

JZS160,UZS160

 2
86719-30150

JZS160,UZS161

 1
86719A - BRACKET, TELEPHONE NO.1
86719-50100

JZS160,UZS160

FIXED TYPE

 2
86719-30090

JZS160,UZS160

PORTABLE TYPE

 1
86719A - BRACKET, TELEPHONE NO.1
86719-50100

JZS160,UZS160

FIXED TYPE

 2
86719-30090

JZS160,UZS160

PORTABLE TYPE

 1
86719A - BRACKET, TELEPHONE NO.1
86719-50100

JZS160,UZS160

FIXED TYPE

 2
86719-30090

JZS160,UZS160

PORTABLE TYPE

 1
86723 - WIRE, MOBILEPHONE
86723-50100

JZS160,UZS160

 2
86724 - GUIDE, CURL CORD
86724-33010

JZS160,UZS160

 2
86726 - COVER, MOBILEPHONE
86726-30190

JZS160,UZS161

 1
86726-30190

JZS160,UZS160

 2
Common parts
82711-22270
90179-06204
90530-20013
90530-24002
93219-54010
93219-54030
93249-54006
93249-54010
93540-53010
94130-60440

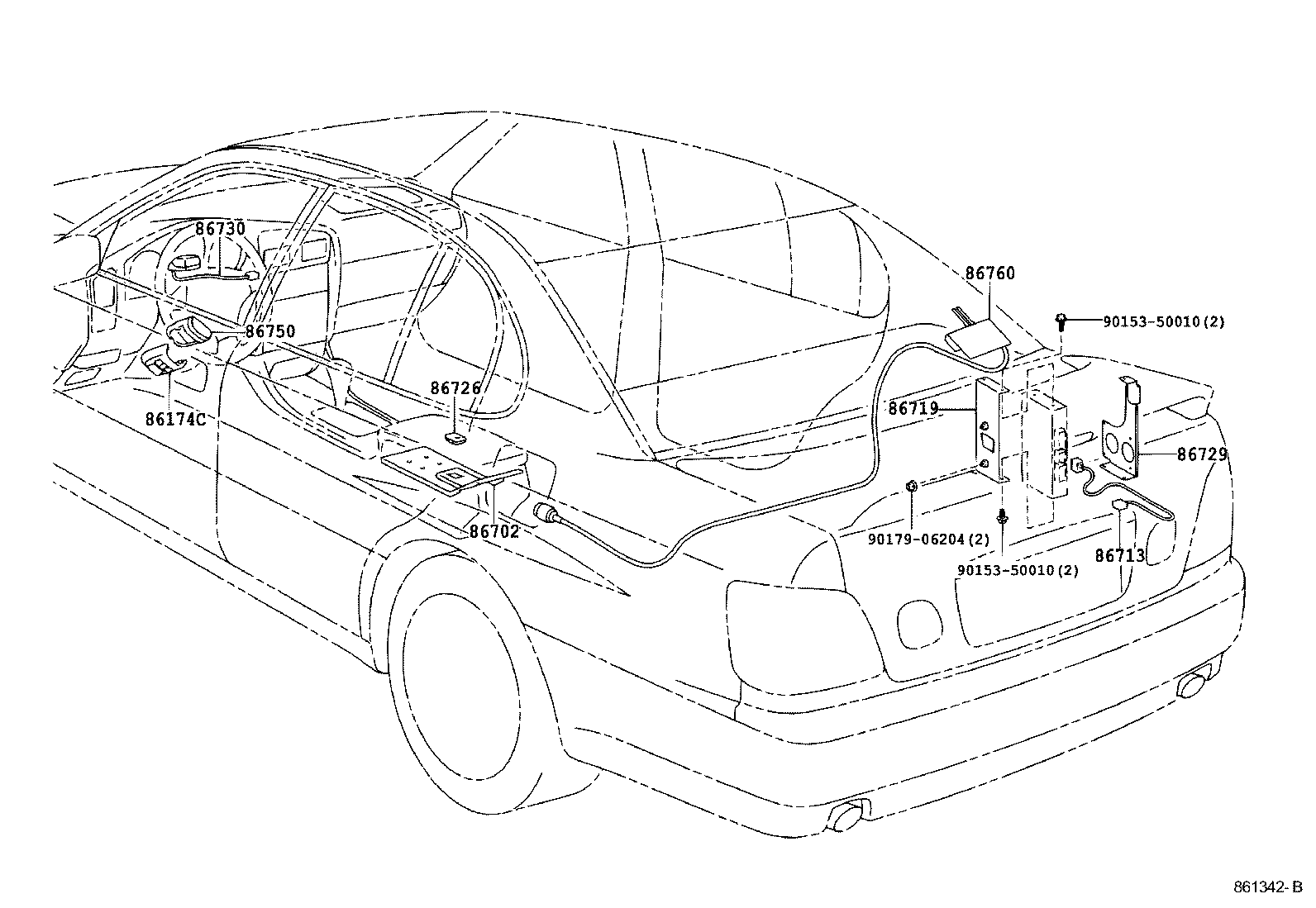

ILLUST NO. 1 OF 2(0007- )

Click highlighted areas on diagram

diagram 86174C 86702 86713 86719 86726 86729 86730 86750 86760 9015350010 9015350010 9017906204
Part # Description Qty Price
86174C - CASE, SWITCH & VOLUME
86174-48010

JZS160,UZS161

 1
86702 - BRACKET SET, TELEPHONE
86702-30070

JZS160,UZS161

 1
86713 - WIRE, TELEPHONE COMPUTER
86713-30020

JZS160,UZS161

 1
86719 - BRACKET, TELEPHONE
86719-30080

JZS160,UZS160

 2
86719-30150

JZS160,UZS161

 1
86726 - COVER, MOBILEPHONE
86726-30190

JZS160,UZS161

 1
86726-30190

JZS160,UZS160

 2
86729 - BRACKET, MOBILEPHONE
86729-30050

JZS160,UZS161

 1
86730 - MICROPHONE ASSY, TELEPHONE
86730-48010

JZS160,UZS161

 1
86750 - SWITCH ASSY, TELEPHONE
86750-48010

JZS160,UZS161

 1
86760 - ANTENNA ASSY, TELEPHONE
86760-50040

JZS160,UZS161

 1
Common parts
90153-50010
90179-06204

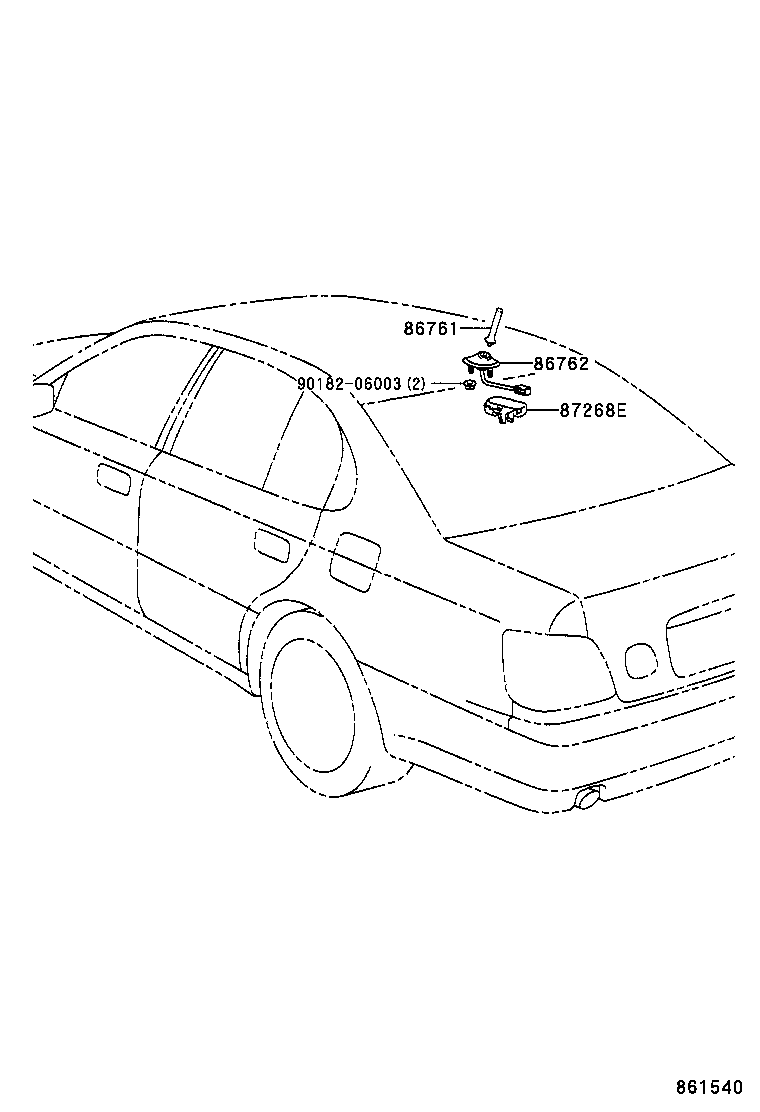

ILLUST NO. 2 OF 2(0110- )JZS160

Click highlighted areas on diagram

TELEPHONE ANTENNA

diagram 86761 86762 87268E 9018206003
Part # Description Qty Price
86761 - ROD, TELEPHONE ANTENNA
86761-50050

JZS160

 1
86761-50051

JZS160

 1
86762 - BASE, TELEPHONE ANTENNA
86762-50050

JZS160

 1
86762-50051

JZS160

 1
87268E - PROTECTOR, TELEPHONE ANTENNA
87268-50010

JZS160

 1
87268-50011

JZS160

 1
Common parts
90182-06003
