JZS160L-BEAQFA (1997)

Toyota Lexus Gs300/400/430

Production Aug 1997 - Jan 2005
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

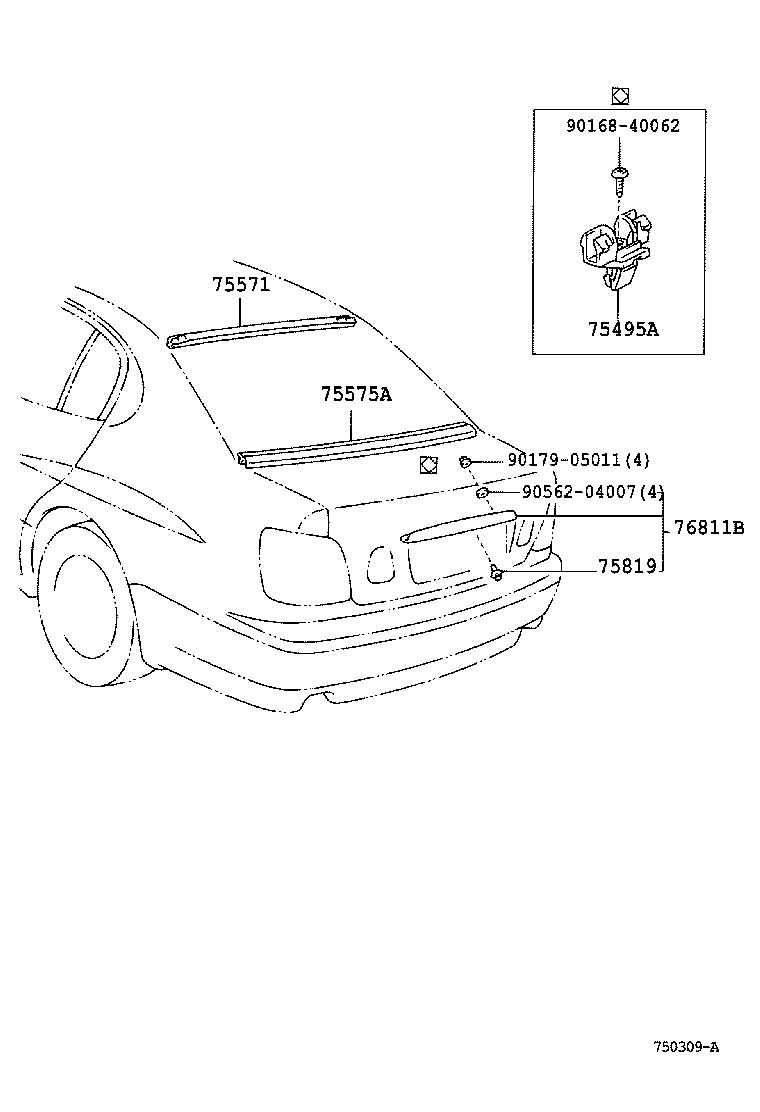

Click highlighted areas on diagram

diagram 75495A 75571 75575A 75819 76811B 9016840062 9017905011 9056204007
Part # Description Qty Price
75495A - CLIP, OUTSIDE MOULDING, NO.4
75495-30020

JZS160,UZS16#

 7
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-30341

JZS160,UZS16#

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-30280

JZS160,UZS16#

 1
75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
75819-12040

JZS160,UZS16#

 2
76811B - GARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76811-30040A0

JZS160,UZS160

SU.WHITE PM,051

 1
76811-30040G0

JZS160,UZS160

DK. GREEN MC.,6Q7

 1
76811-30040D0

JZS160,UZS16#

RED MC.,3N1

 1
76811-30040G2

JZS160,UZS161

DARK GREEN MC.,6S6

 1
76811-30040B2

JZS160

SPECIAL EDITION(USA),DARK GRAY MC.,1C6

 1
76811-30040E1

JZS160,UZS16#

BEIGE SF.,4P2

 1
76811-30040B2

JZS160

SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),DARK GRAY MC.,1C6

 1
76811-30040C0

JZS160,UZS16#

BLACK,202

 1
76811-30040J3

JZS160,UZS161

BLUE M.M.,8P9

 1
76811-30040G1

JZS160,UZS161

GREEN M.M.,6S5

 1
76811-30040A1

JZS160,UZS16#

WHITE PEARL CS.,062

 1
76811-30040B0

JZS160,UZS160

SILVER ME,199

 1
76811-30040E2

JZS160,UZS161

BEIGE ME.,4P7

 1
76811-30040B1

JZS160,UZS16#

SILVER ME.,1C0

 1
76811-30040A2

JZS160,UZS161

IVORY PEARL CS.,066

 1
76811-30040J1

JZS160,UZS160

BLUE MC.,8M6

 1
76811-30040D1

JZS160,UZS161

BORDEAUX MC.,3P2

 1
76811-30040J2

JZS160,UZS161

DARK BLUE MC.,8P8

 1
76811-30040E0

JZS160,UZS160

COPPER BROWN M.M.MS.,4P1

 1
Common parts
90168-40062
90179-05011
90562-04007
