JZS160L-BEAQFA (1997)
Toyota Lexus Gs300/400/430
(9708-0007)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74203A - PANEL SUB-ASSY, REAR ARMREST BASE, UPPER RH | ||||
| 74203-30090C0 |
JZS160,UZS16# BLACK,TRIM2# |
1 | ||
| 74203-30090B0 |
JZS160,UZS16# DK.CHARCOAL,TRIM1# |
1 | ||
| 74203-30090E0 |
JZS160,UZS16# SANDAL WOOD,TRIM0# |
1 | ||
| 74204A - PANEL SUB-ASSY, REAR ARMREST BASE, UPPER LH | ||||
| 74204-30090E0 |
JZS160,UZS16# SANDAL WOOD,TRIM0# |
1 | ||
| 74204-30090B0 |
JZS160,UZS16# DK.CHARCOAL,TRIM1# |
1 | ||
| 74204-30090C0 |
JZS160,UZS16# BLACK,TRIM2# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-30300C0 |
JZS160,UZS16# BLACK,TRIM2# |
1 | ||
| 74231-30300B0 |
JZS160,UZS16# DK.CHARCOAL,TRIM1# |
1 | ||
| 74231-30300E0 |
JZS160,UZS16# SANDAL WOOD,TRIM0# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-30230C0 |
JZS160,UZS16# BLACK,TRIM2# |
1 | ||
| 74232-30240E0 |
JZS160,UZS16# W(LEATHER SEAT & MEMORY POWER SEAT),SANDAL WOOD,TRIM0# |
1 | ||
| 74232-30230E0 |
JZS160,UZS16# SANDAL WOOD,TRIM0# |
1 | ||
| 74232-30230B0 |
JZS160,UZS16# DK.CHARCOAL,TRIM1# |
1 | ||
| 74232-30240B0 |
JZS160,UZS16# W(LEATHER SEAT & MEMORY POWER SEAT),DK.CHARCOAL,TRIM1# |
1 | ||
| 74232-30240E0 |
JZS160,UZS161 W(LEATHER SEAT & MEMORY POWER SEAT),SANDAL WOOD,TRIM0# |
1 | ||
| 74232-30230 |
JZS160,UZS161 |
1 | ||
| 74232-30240B0 |
JZS160,UZS161 W(LEATHER SEAT & MEMORY POWER SEAT),DK.CHARCOAL,TRIM1# |
1 | ||
| 74232-30240 |
JZS160,UZS161 W(LEATHER SEAT & MEMORY POWER SEAT) |
1 | ||
| 74232-30240C0 |
JZS160,UZS16# W(LEATHER SEAT & MEMORY POWER SEAT),BLACK,TRIM2# |
1 | ||
| 74232-30240C0 |
JZS160,UZS161 W(LEATHER SEAT & MEMORY POWER SEAT),BLACK,TRIM2# |
1 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-3A081B0 |
JZS160,UZS160 MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 74310-3A080A0 |
JZS160,UZS160 IVORY,TRIM0# |
1 | ||
| 74310-3A081A0 |
JZS160,UZS160 IVORY,TRIM0# |
1 | ||
| 74310-3A080B0 |
JZS160,UZS160 MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 74310-3A210A0 |
JZS160,UZS161 IVORY,TRIM0# |
1 | ||
| 74310-3A210B0 |
JZS160,UZS161 MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-30790A0 |
JZS160,UZS160 IVORY,TRIM0# |
1 | ||
| 74320-30790B0 |
JZS160,UZS160 MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 74320-3A030A0 |
JZS160,UZS161 IVORY,TRIM0# |
1 | ||
| 74320-30791A0 |
JZS160,UZS160 IVORY,TRIM0# |
1 | ||
| 74320-30791B0 |
JZS160,UZS160 MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 74320-3A030B0 |
JZS160,UZS161 MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 74331 - CASE, VISOR ARM, RH | ||||
| 74331-50030A1 |
JZS160,UZS16# IVORY,TRIM0# |
1 | ||
| 74317-50010B0 |
JZS160,UZS161 MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 74331-50030B1 |
JZS160,UZS16# MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 74317-50010A0 |
JZS160,UZS161 IVORY,TRIM0# |
1 | ||
| 74334 - CASE, VISOR ARM, LH | ||||
| 74317-50010B0 |
JZS160,UZS161 MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 74331-50030B1 |
JZS160,UZS16# MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 74331-50030A1 |
JZS160,UZS16# IVORY,TRIM0# |
1 | ||
| 74317-50010A0 |
JZS160,UZS161 IVORY,TRIM0# |
1 | ||
| 74348B - HOLDER, VISOR, RH | ||||
| 74348-50020A1 |
JZS160,UZS16# IVORY,TRIM0# |
1 | ||
| 74348-50020B2 |
JZS160,UZS16# MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 74348C - HOLDER, VISOR, LH | ||||
| 74348-50020B2 |
JZS160,UZS16# MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 74348-50020A1 |
JZS160,UZS16# IVORY,TRIM0# |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-30210B0 |
JZS160,UZS160 MD.CHARCOAL,TRIM1#,2# |
3 | ||
| 74610-30230B0 |
JZS160,UZS161 MD.CHARCOAL,TRIM1#,2# |
4 | ||
| 74610-30210A0 |
JZS160,UZS160 IVORY,TRIM0# |
3 | ||
| 74610-30230A0 |
JZS160,UZS161 IVORY,TRIM0# |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-30170B0 |
JZS160,UZS160 MD.CHARCOAL,TRIM1#,2# |
6 | ||
| 74612-30170A0 |
JZS160,UZS160 IVORY,TRIM0# |
6 | ||
| 74612-30171B0 |
JZS160,UZS161 MD.CHARCOAL,TRIM1#,2# |
8 | ||
| 74612-30171A0 |
JZS160,UZS161 IVORY,TRIM0# |
8 | ||
| 74631B - HOOK, COAT | ||||
| 74605-30010B0 |
JZS160,UZS16# MD.CHARCOAL,TRIM1#,2# |
2 | ||
| 74605-30010A0 |
JZS160,UZS16# IVORY,TRIM0# |
2 | ||
| Common parts | ||||
| 90151-50025 | ||||
| 90164-40103 | ||||
| 93381-16028 | ||||
| 93530-A5016 | ||||

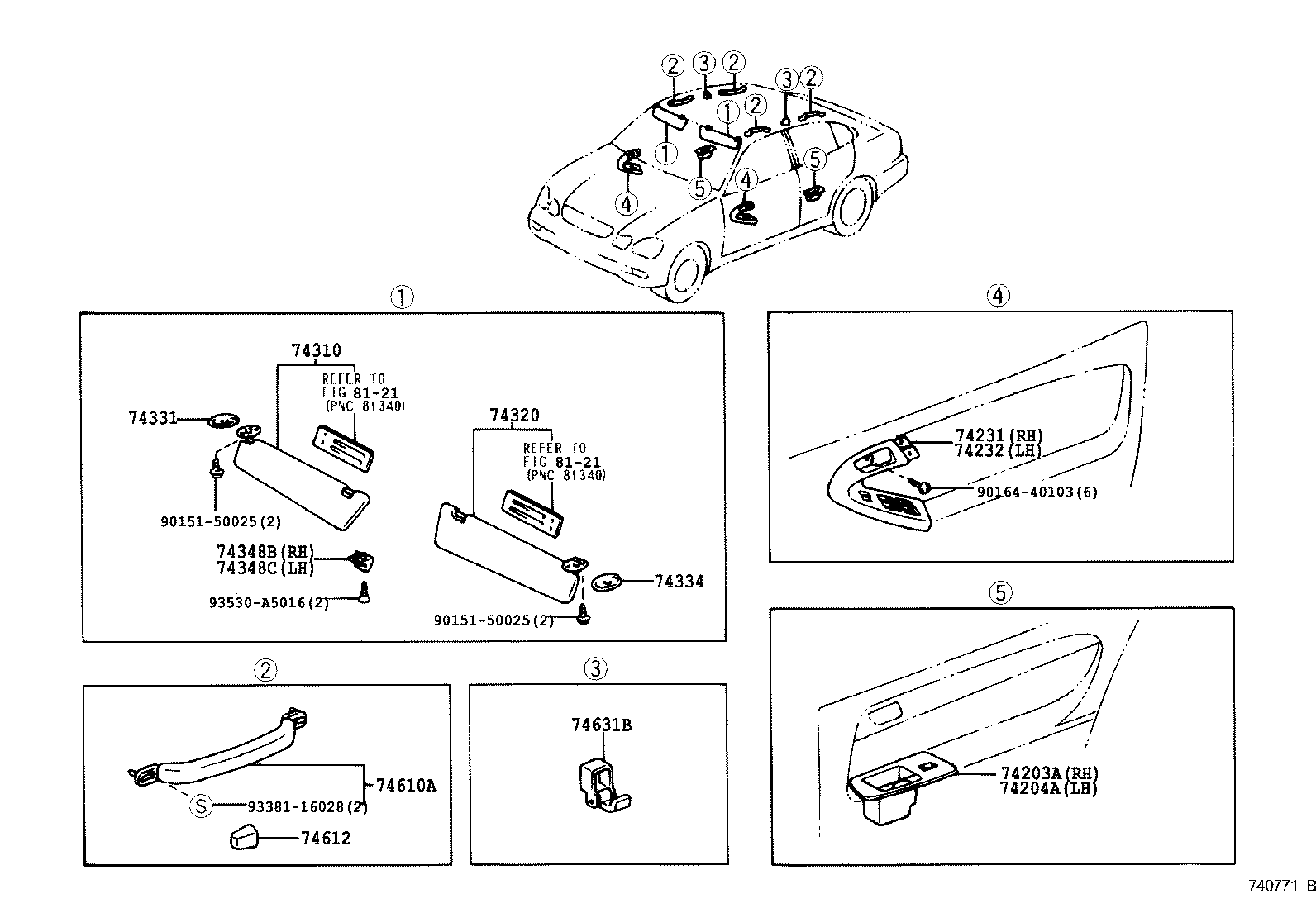

| Linked diagrams | ||||
| 8121 | ||||
(0007-0501)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74203A - PANEL SUB-ASSY, REAR ARMREST BASE, UPPER RH | ||||
| 74203-30090C0 |
JZS160,UZS16# BLACK,TRIM2# |
1 | ||
| 74203-30090B0 |
JZS160,UZS16# DK.CHARCOAL,TRIM1# |
1 | ||
| 74203-30090E0 |
JZS160,UZS16# SANDAL WOOD,TRIM0# |
1 | ||
| 74204A - PANEL SUB-ASSY, REAR ARMREST BASE, UPPER LH | ||||
| 74204-30090E0 |
JZS160,UZS16# SANDAL WOOD,TRIM0# |
1 | ||
| 74204-30090B0 |
JZS160,UZS16# DK.CHARCOAL,TRIM1# |
1 | ||
| 74204-30090C0 |
JZS160,UZS16# BLACK,TRIM2# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-30300C0 |
JZS160,UZS16# BLACK,TRIM2# |
1 | ||
| 74231-30300B0 |
JZS160,UZS16# DK.CHARCOAL,TRIM1# |
1 | ||
| 74231-30300E0 |
JZS160,UZS16# SANDAL WOOD,TRIM0# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-30230C0 |
JZS160,UZS16# BLACK,TRIM2# |
1 | ||
| 74232-30240E0 |
JZS160,UZS16# W(LEATHER SEAT & MEMORY POWER SEAT),SANDAL WOOD,TRIM0# |
1 | ||
| 74232-30230E0 |
JZS160,UZS16# SANDAL WOOD,TRIM0# |
1 | ||
| 74232-30230B0 |
JZS160,UZS16# DK.CHARCOAL,TRIM1# |
1 | ||
| 74232-30240B0 |
JZS160,UZS16# W(LEATHER SEAT & MEMORY POWER SEAT),DK.CHARCOAL,TRIM1# |
1 | ||
| 74232-30240E0 |
JZS160,UZS161 W(LEATHER SEAT & MEMORY POWER SEAT),SANDAL WOOD,TRIM0# |
1 | ||
| 74232-30230 |
JZS160,UZS161 |
1 | ||
| 74232-30240B0 |
JZS160,UZS161 W(LEATHER SEAT & MEMORY POWER SEAT),DK.CHARCOAL,TRIM1# |
1 | ||
| 74232-30240 |
JZS160,UZS161 W(LEATHER SEAT & MEMORY POWER SEAT) |
1 | ||
| 74232-30240C0 |
JZS160,UZS16# W(LEATHER SEAT & MEMORY POWER SEAT),BLACK,TRIM2# |
1 | ||
| 74232-30240C0 |
JZS160,UZS161 W(LEATHER SEAT & MEMORY POWER SEAT),BLACK,TRIM2# |
1 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-3A081B0 |
JZS160,UZS160 MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 74310-3A080A0 |
JZS160,UZS160 IVORY,TRIM0# |
1 | ||
| 74310-3A081A0 |
JZS160,UZS160 IVORY,TRIM0# |
1 | ||
| 74310-3A080B0 |
JZS160,UZS160 MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 74310-3A210A0 |
JZS160,UZS161 IVORY,TRIM0# |
1 | ||
| 74310-3A210B0 |
JZS160,UZS161 MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-30790A0 |
JZS160,UZS160 IVORY,TRIM0# |
1 | ||
| 74320-30790B0 |
JZS160,UZS160 MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 74320-3A030A0 |
JZS160,UZS161 IVORY,TRIM0# |
1 | ||
| 74320-30791A0 |
JZS160,UZS160 IVORY,TRIM0# |
1 | ||
| 74320-30791B0 |
JZS160,UZS160 MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 74320-3A030B0 |
JZS160,UZS161 MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 74331 - CASE, VISOR ARM, RH | ||||
| 74331-50030A1 |
JZS160,UZS16# IVORY,TRIM0# |
1 | ||
| 74317-50010B0 |
JZS160,UZS161 MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 74331-50030B1 |
JZS160,UZS16# MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 74317-50010A0 |
JZS160,UZS161 IVORY,TRIM0# |
1 | ||
| 74334 - CASE, VISOR ARM, LH | ||||
| 74317-50010B0 |
JZS160,UZS161 MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 74331-50030B1 |
JZS160,UZS16# MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 74331-50030A1 |
JZS160,UZS16# IVORY,TRIM0# |
1 | ||
| 74317-50010A0 |
JZS160,UZS161 IVORY,TRIM0# |
1 | ||
| 74348B - HOLDER, VISOR, RH | ||||
| 74348-50020A1 |
JZS160,UZS16# IVORY,TRIM0# |
1 | ||
| 74348-50020B2 |
JZS160,UZS16# MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 74348C - HOLDER, VISOR, LH | ||||
| 74348-50020B2 |
JZS160,UZS16# MD.CHARCOAL,TRIM1#,2# |
1 | ||
| 74348-50020A1 |
JZS160,UZS16# IVORY,TRIM0# |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-30210B0 |
JZS160,UZS160 MD.CHARCOAL,TRIM1#,2# |
3 | ||
| 74610-30230B0 |
JZS160,UZS161 MD.CHARCOAL,TRIM1#,2# |
4 | ||
| 74610-30210A0 |
JZS160,UZS160 IVORY,TRIM0# |
3 | ||
| 74610-30230A0 |
JZS160,UZS161 IVORY,TRIM0# |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-30170B0 |
JZS160,UZS160 MD.CHARCOAL,TRIM1#,2# |
6 | ||
| 74612-30170A0 |
JZS160,UZS160 IVORY,TRIM0# |
6 | ||
| 74612-30171B0 |
JZS160,UZS161 MD.CHARCOAL,TRIM1#,2# |
8 | ||
| 74612-30171A0 |
JZS160,UZS161 IVORY,TRIM0# |
8 | ||
| 74631B - HOOK, COAT | ||||
| 74605-30010B0 |
JZS160,UZS16# MD.CHARCOAL,TRIM1#,2# |
2 | ||
| 74605-30010A0 |
JZS160,UZS16# IVORY,TRIM0# |
2 | ||
| Common parts | ||||
| 90151-50025 | ||||
| 90164-40103 | ||||
| 93381-16028 | ||||
| 93530-A5016 | ||||
| Linked diagrams | ||||
| 8121 | ||||
