JZS160L-BEAQFA (1997)

Toyota Lexus Gs300/400/430

Production Aug 1997 - Jan 2005
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

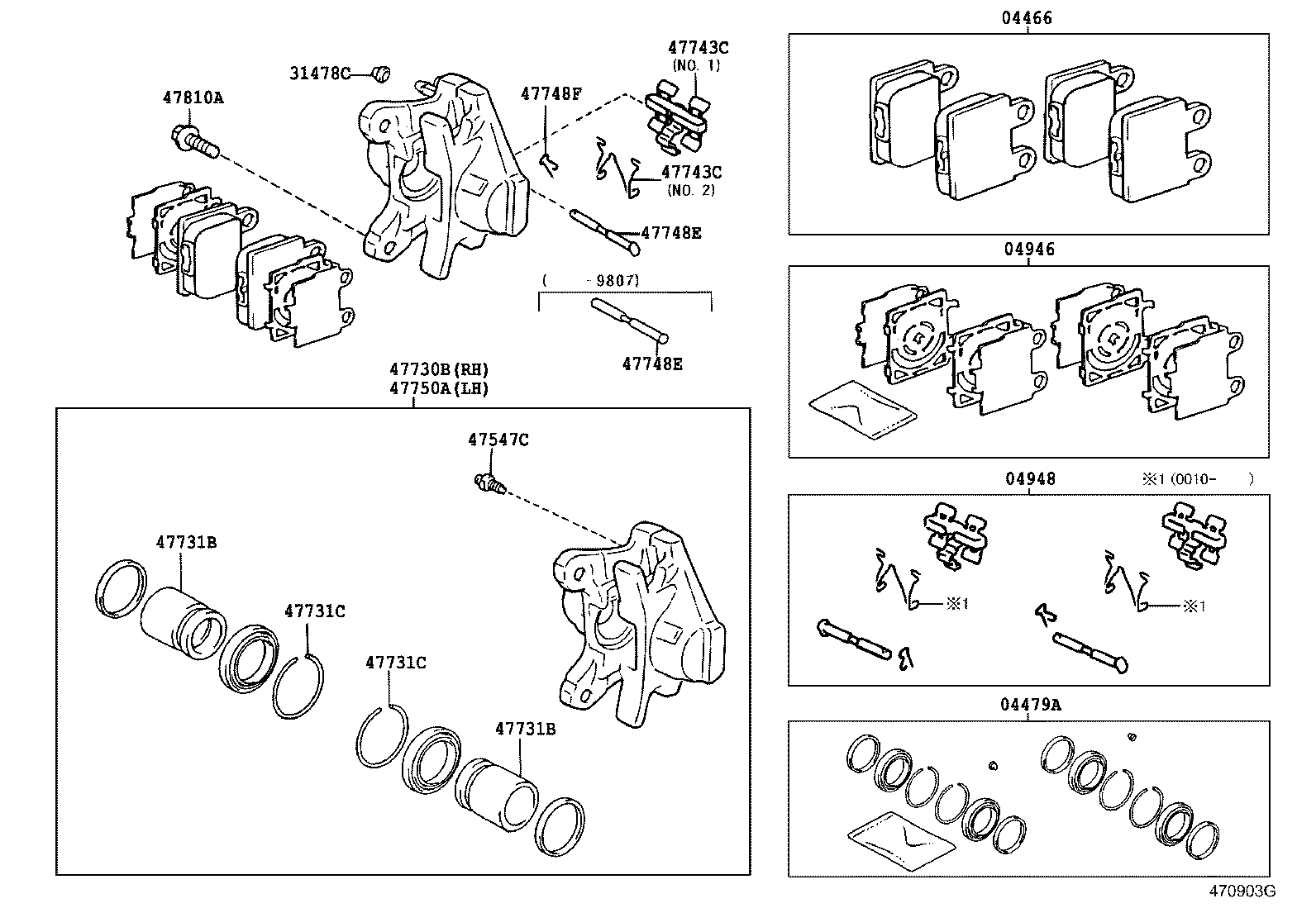

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 47547C 47730B 47731B 47731B 47731C 47731C 47743C 47743C 47748E 47748E 47748F 47750A 47810A
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-30130

JZS160,UZS160

 1
04466-30161

JZS160,UZS16#

MARK NBK PN529

 1
04466-30160

JZS160,UZS160

 1
04466-30170

JZS160,UZS161

MARK NBK PN529

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-30220

JZS160,UZS160

 1
04479-30221

JZS160,UZS16#

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-30071

JZS160,UZS16#

 1
04946-30070

JZS160,UZS160

 1
04946-53010

JZS160,UZS161

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-30070

JZS160,UZS160

 1
04948-30071

JZS160,UZS16#

 1
04948-30080

JZS160,UZS161

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

JZS160,UZS16#

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-27030

JZS160,UZS161

 2
47547-27030

JZS160,UZS161

 2
47730B - CYLINDER ASSY, REAR DISC BRAKE, RH
47730-30410

JZS160,UZS161

 1
47730-30410

JZS160,UZS161

 1
47731B - PISTON, REAR DISC BRAKE
47731-30100

JZS160,UZS161

 4
47731-30100

JZS160,UZS161

 4
47731B - PISTON, REAR DISC BRAKE
47731-30100

JZS160,UZS161

 4
47731-30100

JZS160,UZS161

 4
47731C - RING, SET(FOR REAR DISC BRAKE PISTON)
90520-52006

JZS160,UZS161

 4
90520-52006

JZS160,UZS161

 4
47731C - RING, SET(FOR REAR DISC BRAKE PISTON)
90520-52006

JZS160,UZS161

 4
90520-52006

JZS160,UZS161

 4
47743C - SPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)
47743-30050

JZS160,UZS161

NO.2

 2
47743-30030

JZS160,UZS161

NO.1

 2
47743-30050

JZS160,UZS161

NO.2

 2
47743-30030

JZS160,UZS161

NO.1

 2
47743C - SPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)
47743-30050

JZS160,UZS161

NO.2

 2
47743-30030

JZS160,UZS161

NO.1

 2
47743-30050

JZS160,UZS161

NO.2

 2
47743-30030

JZS160,UZS161

NO.1

 2
47748E - PIN, W/HOLE(FOR REAR DISC BRAKE)
47735-30011

JZS160,UZS161

 2
47735-30010

JZS160,UZS160

 2
47735-30011

JZS160,UZS161

 2
47748E - PIN, W/HOLE(FOR REAR DISC BRAKE)
47735-30011

JZS160,UZS161

 2
47735-30010

JZS160,UZS160

 2
47735-30011

JZS160,UZS161

 2
47748F - CLIP(FOR REAR DISC BRAKE)
90468-12028

JZS160,UZS161

 2
90468-12028

JZS160,UZS161

 2
47750A - CYLINDER ASSY, DISC BRAKE, REAR LH
47750-30410

JZS160,UZS161

 1
47750-30410

JZS160,UZS161

 1
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90105-12174

JZS160,UZS16#

 4
