JZS160L-BEAQFA (1997)

Toyota Lexus Gs300/400/430

Production Aug 1997 - Jan 2005
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

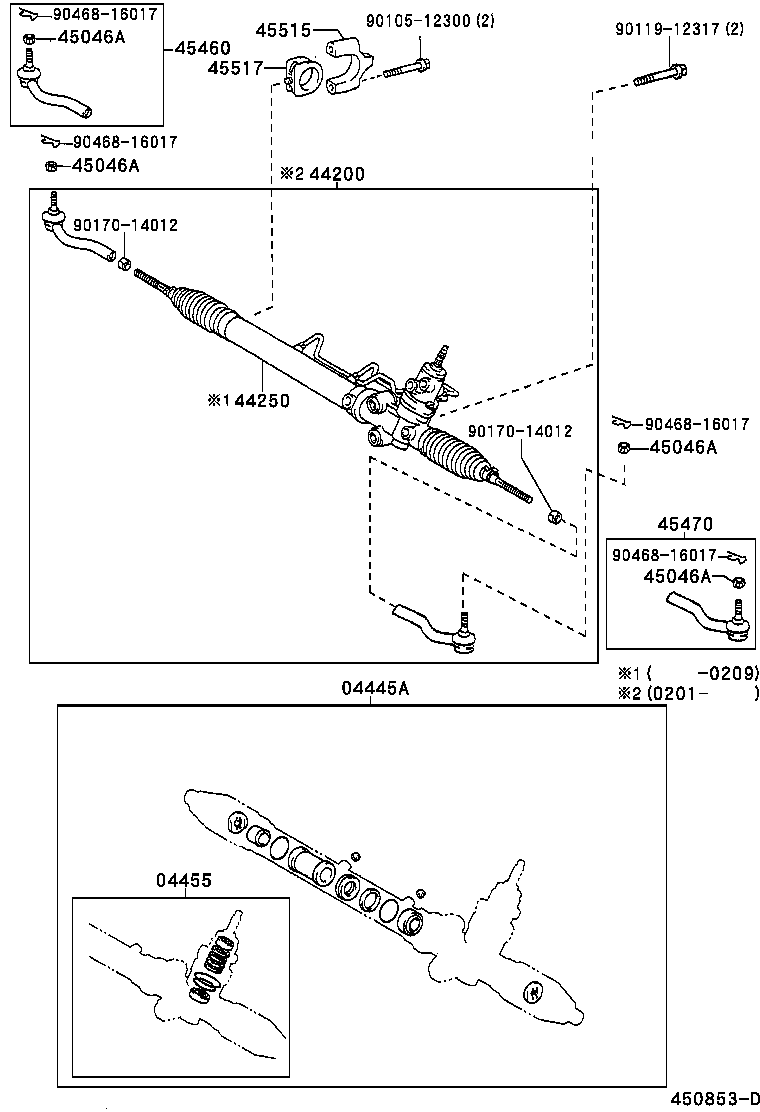

ILLUST NO. 1 OF 2(9708- )

Click highlighted areas on diagram

diagram 04445A 04455 44200 44250 45046A 45046A 45046A 45046A 45460 45470 45515 45517 9010512300 9011912317 9017014012 9017014012 9046816017 9046816017 9046816017 9046816017
Part # Description Qty Price
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-30252

JZS160,UZS161

 1
04445-30250

JZS160,UZS16#

 1
04445-30251

JZS160,UZS161

 1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-30080

JZS160,UZS16#

 1
44200 - LINK ASSY, POWER STEERING
44200-30290

JZS160,UZS161

 1
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-30180

JZS160,UZS160

 1
44250-30230

JZS160,UZS16#

 1
44250-30290

JZS160,UZS161

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12002

JZS160,UZS16#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12002

JZS160,UZS16#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12002

JZS160,UZS16#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12002

JZS160,UZS16#

 2
45460 - ROD ASSY, TIE, RH
45460-59015

JZS160,UZS16#

 1
45470 - ROD ASSY, TIE, LH
45470-59015

JZS160,UZS16#

 1
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-30080

JZS160,UZS16#

 1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-30050

JZS160,UZS16#

 1
Common parts
90105-12300
90119-12317
90170-14012
90468-16017

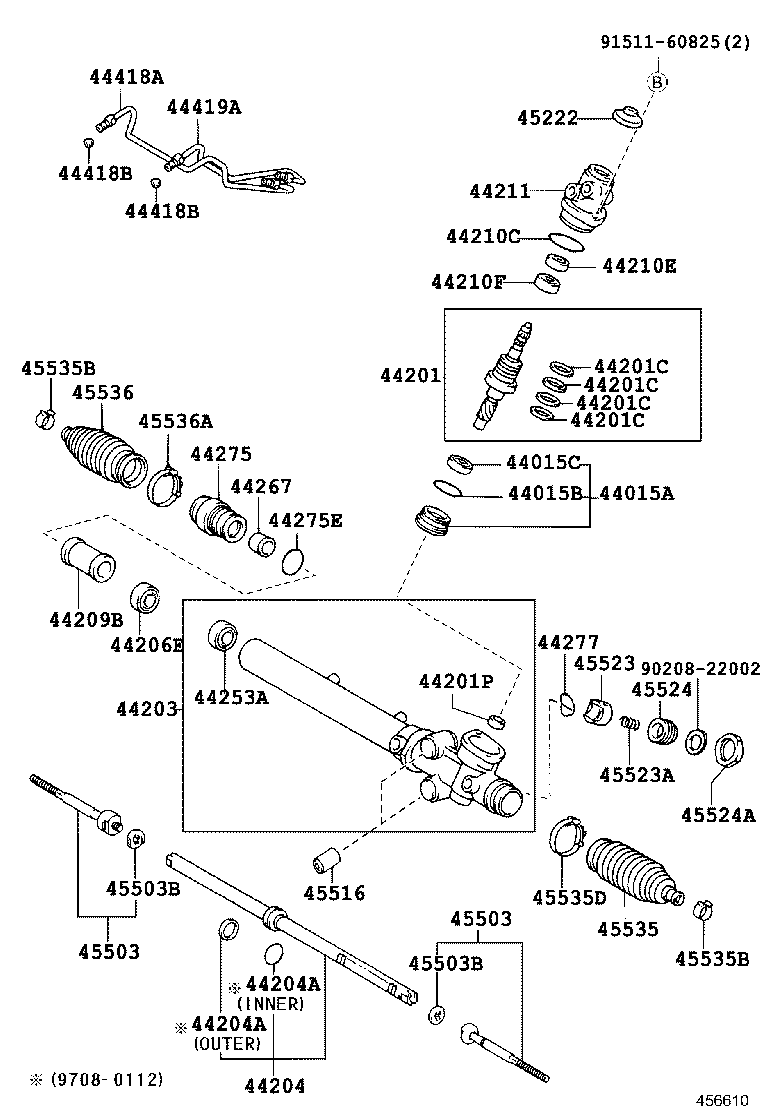

ILLUST NO. 2 OF 2(9708- )

Click highlighted areas on diagram

diagram 44015A 44015B 44015C 44201 44201C 44201C 44201C 44201C 44201P 44203 44204 44204A 44204A 44206E 44209B 44210C 44210E 44210F 44211 44253A 44267 44275 44275E 44277 44418A 44418B 44418B 44419A 45222 45503 45503 45503B 45503B 45516 45523 45523A 45524 45524A 45535 45535B 45535B 45535D 45536 45536A 9020822002 9151160825
Part # Description Qty Price
44015A - NUT SUB-ASSY, BEARING GUIDE
44015-43010

JZS160,UZS16#

 1
44015B - RING, O(FOR BEARING GUIDE NUT)
90301-43002

JZS160,UZS16#

 1
44015C - SEAL, OIL(FOR BEARING GUIDE NUT)
90310-25027

JZS160,UZS16#

 1
44201 - VALVE SUB-ASSY, POWER STEERING CONTROL
44201-30140

JZS160,UZS16#

 1
44201C - RING(FOR POWER STEERING CONTROL VALVE)
90562-33007

JZS160,UZS16#

 4
44201C - RING(FOR POWER STEERING CONTROL VALVE)
90562-33007

JZS160,UZS16#

 4
44201C - RING(FOR POWER STEERING CONTROL VALVE)
90562-33007

JZS160,UZS16#

 4
44201C - RING(FOR POWER STEERING CONTROL VALVE)
90562-33007

JZS160,UZS16#

 4
44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER)
90364-13005

JZS160,UZS16#

 1
44203 - HOUSING SUB-ASSY, POWER STEERING RACK
44203-30130

JZS160,UZS16#

 1
44204 - RACK SUB-ASSY, POWER STEERING
44204-30110

JZS160,UZS16#

 1
44204A - RING(FOR RACK STEERING PISTON)
90301-35003

JZS160,UZS16#

INNER

 1
90562-39004

JZS160,UZS161

OUTER

 1
90562-39003

JZS160,UZS16#

OUTER

 1
90301-35005

JZS160,UZS161

INNER

 1
44204A - RING(FOR RACK STEERING PISTON)
90301-35003

JZS160,UZS16#

INNER

 1
90562-39004

JZS160,UZS161

OUTER

 1
90562-39003

JZS160,UZS16#

OUTER

 1
90301-35005

JZS160,UZS161

INNER

 1
44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE)
90310-26024

JZS160,UZS16#

 1
44209B - SPACER(FOR POWER STEERING CYLINDER HOUSING)
90561-30006

JZS160,UZS16#

 1
44210C - RING, O(FOR POWER STEERING CONTROL VALVE)
90301-51001

JZS160,UZS16#

 1
44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE)
90311-19013

JZS160,UZS16#

 1
44210F - BEARING(FOR POWER STEERING CONTROL VALVE)
90363-19003

JZS160,UZS16#

 1
44211 - HOUSING, CONTROL VALVE
44211-30080

JZS160,UZS16#

 1
44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING)
90310-26024

JZS160,UZS16#

 1
44267 - GUIDE, RACK END
44267-22030

JZS160,UZS16#

 1
44275 - STOPPER, CYLINDER END
44275-30020

JZS160,UZS16#

 1
44275E - RING, O(FOR RACK END GUIDE)
90301-38003

JZS160,UZS16#

 1
44277 - SEAT, RACK GUIDE
44277-22020

JZS160,UZS16#

 1
44418A - TUBE, STEERING RIGHT TURN PRESSURE
44418-30100

JZS160,UZS16#

 1
44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE)
90410-04002

JZS160,UZS16#

 2
44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE)
90410-04002

JZS160,UZS16#

 2
44419A - TUBE, STEERING LEFT TURN PRESSURE
44419-30100

JZS160,UZS16#

 1
45222 - COVER, STEERING GEAR DUST
45222-22040

JZS160,UZS16#

 1
45503 - END SUB-ASSY, STEERING RACK
45503-39155

JZS160,UZS16#

 2
45503 - END SUB-ASSY, STEERING RACK
45503-39155

JZS160,UZS16#

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14007

JZS160,UZS16#

OD=38

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14007

JZS160,UZS16#

OD=38

 2
45516 - GROMMET, STEERING RACK HOUSING, NO.1
45516-30060

JZS160,UZS16#

 2
45516-30050

JZS160,UZS160

 2
45523 - GUIDE, RACK(FOR STEERING GEAR)
45523-22040

JZS160,UZS16#

 1
45504-30040

JZS160,UZS160

 1
45523A - SPRING(FOR STEERING GEAR RACK GUIDE)
90501-32038

JZS160,UZS160

 1
90502-32001

JZS160,UZS16#

 1
90501-30026

JZS160,UZS161

 1
45524 - CAP, STEERING RACK GUIDE SPRING
45524-20040

JZS160,UZS161

 1
45524-30010

JZS160,UZS160

 1
45524-16010

JZS160,UZS16#

 1
45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP)
90179-36002

JZS160,UZS16#

 1
45535 - BOOT, STEERING RACK, NO.1
45535-30010

JZS160,UZS16#

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019

JZS160,UZS161

 2
90467-19012

JZS160,UZS16#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019

JZS160,UZS161

 2
90467-19012

JZS160,UZS16#

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-49004

JZS160,UZS16#

 1
45536 - BOOT, STEERING RACK, NO.2
45535-30010

JZS160,UZS16#

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-49004

JZS160,UZS16#

 1
Common parts
90208-22002
91511-60825
