JZS160L-BEAQFA (1997)
Toyota Lexus Gs300/400/430
Production
Aug 1997
-
Jan 2005
Engine
2JZGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )

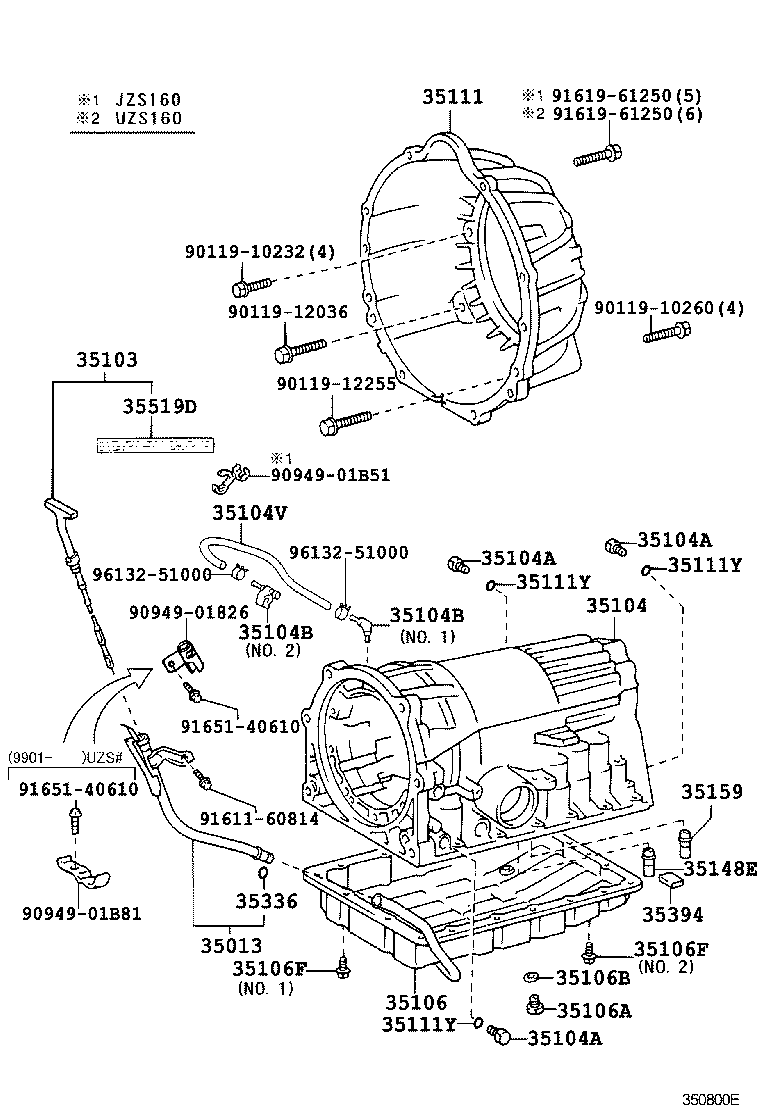

Click highlighted areas on diagram
A650E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-30490 |
JZS160 |
1 | ||
| 35013-30610 |
JZS160 |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-30760 |
JZS160 |
1 | ||
| 35103-30591 |
JZS160 |
1 | ||
| 35103-30590 |
JZS160 |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-30200 |
JZS160,UZS16# |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
JZS160,UZS16# |
3 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
JZS160,UZS16# |
3 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
JZS160,UZS16# |
3 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03149 |
JZS160,UZS16# NO.2 |
1 | ||
| 90930-03168 |
JZS160,UZS161 NO.2 |
1 | ||
| 90930-03098 |
JZS160,UZS16# NO.1 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03149 |
JZS160,UZS16# NO.2 |
1 | ||
| 90930-03168 |
JZS160,UZS161 NO.2 |
1 | ||
| 90930-03098 |
JZS160,UZS16# NO.1 |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90447-11036 |
JZS160 |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-30140 |
JZS160 |
1 | ||
| 35106-30210 |
JZS160 |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10011 |
JZS160,UZS161 |
1 | ||
| 90341-10018 |
JZS160,UZS160 |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
JZS160,UZS161 |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06513 |
JZS160,UZS16# NO.1 |
18 | ||
| 90119-06866 |
JZS160,UZS16# NO.2 |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06513 |
JZS160,UZS16# NO.1 |
18 | ||
| 90119-06866 |
JZS160,UZS16# NO.2 |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-30150 |
JZS160 |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
JZS160,UZS16# |
3 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
JZS160,UZS16# |
3 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
JZS160,UZS16# |
3 | ||
| 35148E - GASKET, BRAKE DRUM, NO.2 | ||||
| 35148-30010 |
JZS160,UZS16# |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-30020 |
JZS160,UZS16# |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
JZS160 |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
JZS160,UZS16# |
3 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-20030 |
JZS160,UZS16# |
1 | ||
| 35519-30010 |
JZS160,UZS160 |
1 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-10260 | ||||
| 90119-12036 | ||||
| 90119-12255 | ||||
| 90949-01826 | ||||
| 90949-01B51 | ||||
| 90949-01B81 | ||||
| 91611-60814 | ||||
| 91619-61250 | ||||
| 91651-40610 | ||||
| 96132-51000 | ||||
