Toyota Lexus gs300/400/430 JZS160 AIR CLEANER

JZS160L-BEAQFA (1997)

Toyota Lexus Gs300/400/430

Production Aug 1997 - Jan 2005

Engine 2JZGE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9708-0007)2JZGE

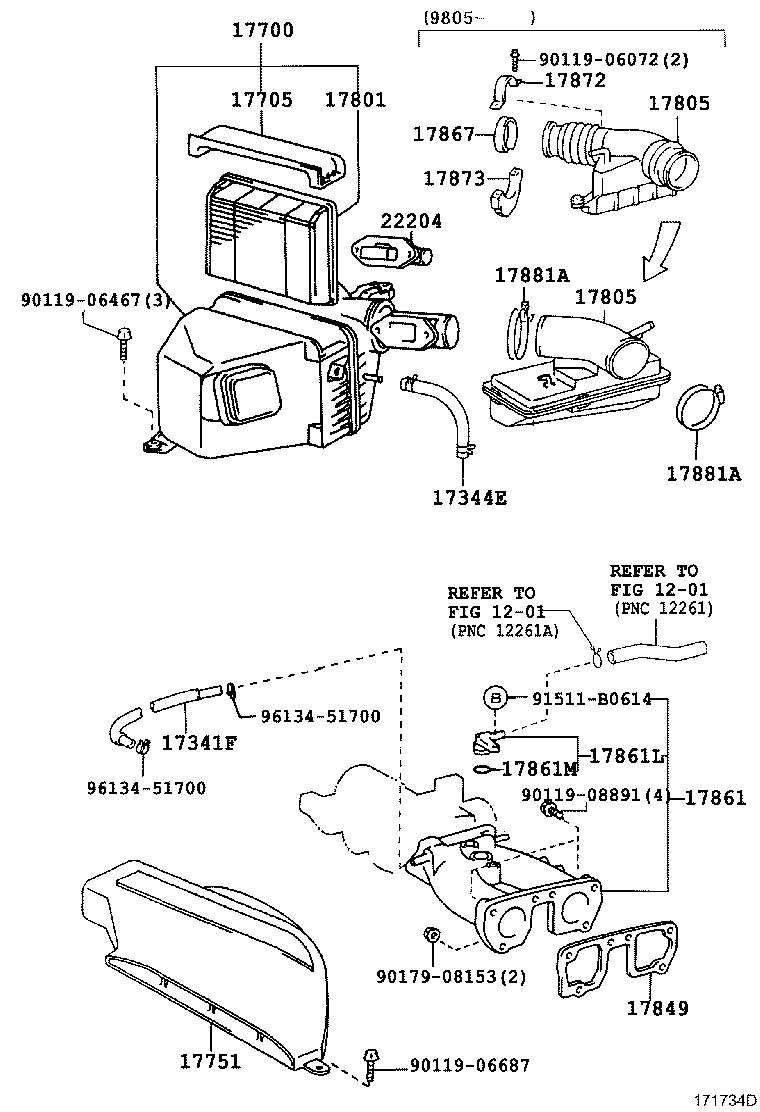

Click highlighted areas on diagram

Part #	Description	Period	Qty
17341F - HOSE, AIR, NO.1
17341-46210	2JZGE..JZS160	08/1997 - 01/2005	1
17344E - HOSE, AIR, NO.4
17344-46060	2JZGE..JZS160	08/1997 - 07/2000	1
17344-46080	2JZGE..JZS160	07/2000 - 12/2999	2
17700 - CLEANER ASSY, AIR
17700-46320	2JZGE..JZS160	08/1997 - 07/2000	1
17700-46321	2JZGE..JZS160	07/2000 - 01/2005	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-46110	2JZGE..JZS160	08/1997 - 12/2999	1
17751 - INLET, AIR CLEANER, NO.1
17751-46110	2JZGE..JZS160	08/1997 - 12/2999	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-46080	2JZGE..JZS160	08/1997 - 01/2005	1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17860-46140	2JZGE..JZS160	08/1997 - 05/1998	1
17860-46142	2JZGE..JZS160	07/2000 - 12/2999	1
17860-46141	2JZGE..JZS160	05/1998 - 07/2000	1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17860-46140	2JZGE..JZS160	08/1997 - 05/1998	1
17860-46142	2JZGE..JZS160	07/2000 - 12/2999	1
17860-46141	2JZGE..JZS160	05/1998 - 07/2000	1
17849 - GASKET, INTAKE AIR CONNECTOR
17849-46020	2JZGE..JZS160	08/1997 - 01/2005	1
17861 - CONNECTOR, INTAKE AIR
17860-46121	2JZGE..JZS160	07/1998 - 04/2000	1
17860-46120	2JZGE..JZS160	08/1997 - 07/1998	1
17860-46123	2JZGE..JZS160	04/2000 - 01/2005	1
17861L - ELBOW(FOR INTAKE AIR CONNECTOR)
90407-17003	2JZGE..JZS160	04/2000 - 01/2005	1
17861M - RING, O(FOR INTAKE AIR CONNECTOR)
96711-19017	2JZGE..JZS160	04/2000 - 01/2005	1
17867 - PATCH, INTAKE AIR CONNECTOR
17867-46010	2JZGE..JZS160	05/1998 - 12/2999	1
17872 - BRACKET, INTAKE AIR CONNECTOR
17872-46010	2JZGE..JZS160	05/1998 - 12/2999	1
17873 - BRACKET, INTAKE AIR CONNECTOR, NO.2
17873-46010	2JZGE..JZS160	05/1998 - 12/2999	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800	2JZGE..JZS160	08/1997 - 12/2999	2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800	2JZGE..JZS160	08/1997 - 12/2999	2
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-22010	2JZGE..JZS160	07/2000 - 12/2999	1
22204-20010	2JZGE..JZS160	08/1997 - 07/2000	1
Common parts
90119-06072
90119-06467
90119-06687
90119-08891
90179-08153
91511-B0614
96134-51700
Linked diagrams
1201

(0007- )2JZGE

Click highlighted areas on diagram

Part #	Description	Period	Qty
17341F - HOSE, AIR, NO.1
17341-46210	2JZGE..JZS160	08/1997 - 01/2005	1
17344E - HOSE, AIR, NO.4
17344-46060	2JZGE..JZS160	08/1997 - 07/2000	1
17344-46080	2JZGE..JZS160	07/2000 - 12/2999	2
17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4)
96132-41500	2JZGE..JZS160 NO.2	07/2000 - 12/2999	1
96132-51300	2JZGE..JZS160 NO.1	07/2000 - 12/2999	1
17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4)
96132-41500	2JZGE..JZS160 NO.2	07/2000 - 12/2999	1
96132-51300	2JZGE..JZS160 NO.1	07/2000 - 12/2999	1
17700 - CLEANER ASSY, AIR
17700-46320	2JZGE..JZS160	08/1997 - 07/2000	1
17700-46321	2JZGE..JZS160	07/2000 - 01/2005	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-46110	2JZGE..JZS160	08/1997 - 12/2999	1
17751 - INLET, AIR CLEANER, NO.1
17751-46110	2JZGE..JZS160	08/1997 - 12/2999	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-46080	2JZGE..JZS160	08/1997 - 01/2005	1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17860-46140	2JZGE..JZS160	08/1997 - 05/1998	1
17860-46142	2JZGE..JZS160	07/2000 - 12/2999	1
17860-46141	2JZGE..JZS160	05/1998 - 07/2000	1
17849 - GASKET, INTAKE AIR CONNECTOR
17849-46020	2JZGE..JZS160	08/1997 - 01/2005	1
17861 - CONNECTOR, INTAKE AIR
17860-46121	2JZGE..JZS160	07/1998 - 04/2000	1
17860-46120	2JZGE..JZS160	08/1997 - 07/1998	1
17860-46123	2JZGE..JZS160	04/2000 - 01/2005	1
17861L - ELBOW(FOR INTAKE AIR CONNECTOR)
90407-17003	2JZGE..JZS160	04/2000 - 01/2005	1
17861M - RING, O(FOR INTAKE AIR CONNECTOR)
96711-19017	2JZGE..JZS160	04/2000 - 01/2005	1
17867 - PATCH, INTAKE AIR CONNECTOR
17867-46010	2JZGE..JZS160	05/1998 - 12/2999	1
17872 - BRACKET, INTAKE AIR CONNECTOR
17872-46010	2JZGE..JZS160	05/1998 - 12/2999	1
17873 - BRACKET, INTAKE AIR CONNECTOR, NO.2
17873-46010	2JZGE..JZS160	05/1998 - 12/2999	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800	2JZGE..JZS160	08/1997 - 12/2999	2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800	2JZGE..JZS160	08/1997 - 12/2999	2
17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96132-51100	2JZGE..JZS160	07/2000 - 12/2999	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-22010	2JZGE..JZS160	07/2000 - 12/2999	1
22204-20010	2JZGE..JZS160	08/1997 - 07/2000	1
Common parts
90099-14141
90119-06072
90119-06467
90119-06687
90119-06953
90119-08891
90179-08153
90339-07016
91511-B0614
96134-51700
Linked diagrams
1201
1708

JZS160L-BEAQFA (1997)

(9708-0007)2JZGE

(0007- )2JZGE
