GSV60L-CETGKA (2015)
Toyota Lexus Es350 (Nap)
Production
Oct 2015
-
Jul 2018
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

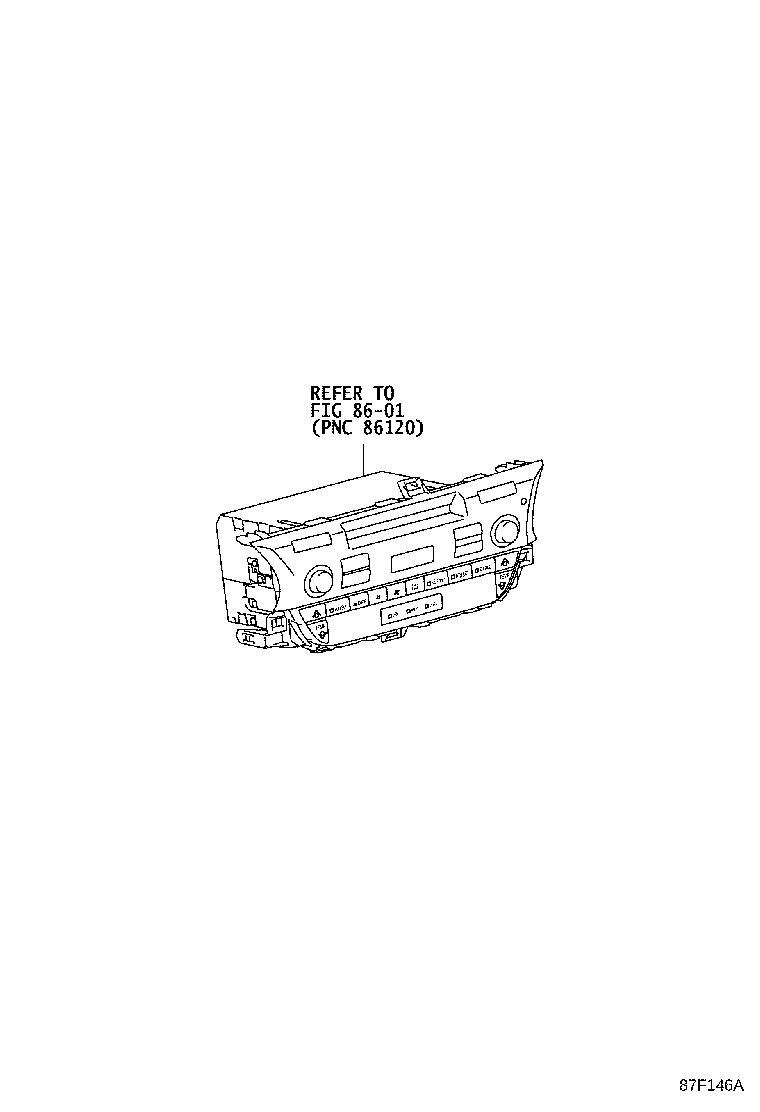

ILLUST NO. 1 OF 3(1510- )
Click highlighted areas on diagram
HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8601 | ||||

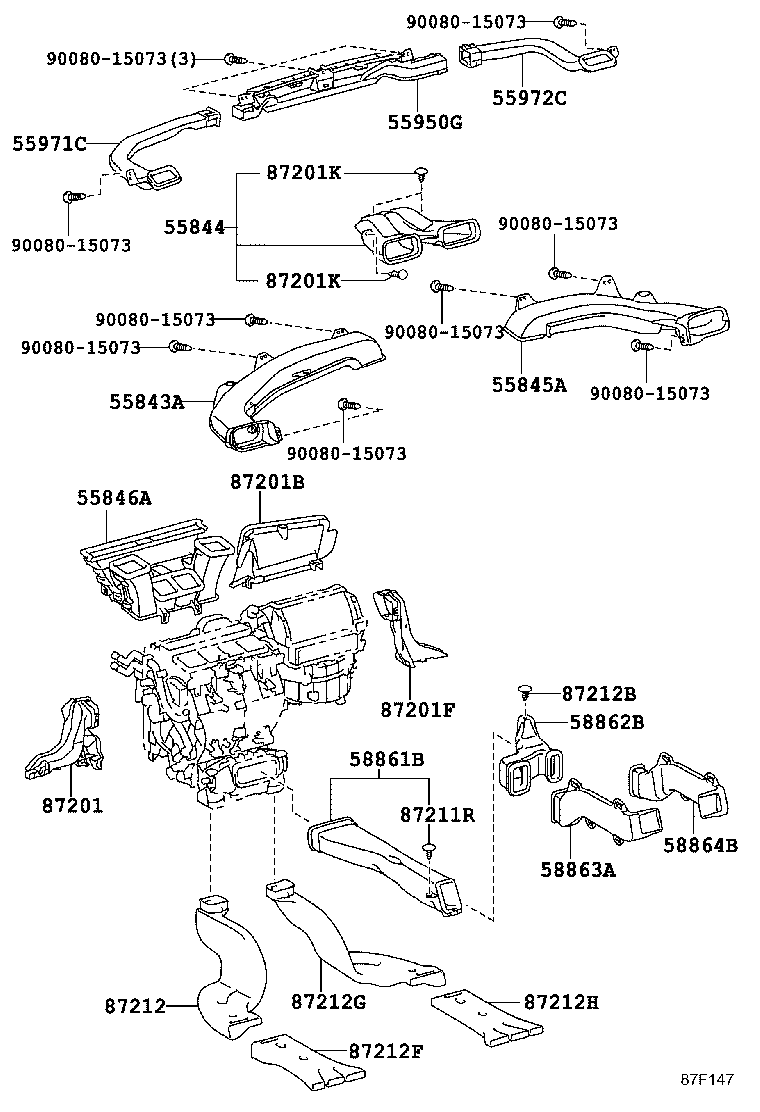

ILLUST NO. 2 OF 3(1510- )
Click highlighted areas on diagram
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-06310 |
GSV60 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-06180 |
GSV60 |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-06221 |
GSV60 |
1 | ||
| 55845-06220 |
GSV60 |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55840-06100 |
GSV60 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-06150 |
GSV60 |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-06140 |
GSV60 |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-06140 |
GSV60 |
1 | ||
| 58861B - DUCT, CONSOLE BOX, NO.1 | ||||
| 58861-06140 |
GSV60 |
1 | ||
| 58862B - DUCT, CONSOLE BOX, NO.2 | ||||
| 58862-06160 |
GSV60 |
1 | ||
| 58863A - DUCT, CONSOLE BOX, NO.3 | ||||
| 58863-06130 |
GSV60 |
1 | ||
| 58864B - DUCT, CONSOLE BOX, NO.4 | ||||
| 58864-06100 |
GSV60 |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-06630 |
GSV60 |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87201-06670 |
GSV60 |
1 | ||
| 87201F - DUCT SUB-ASSY, AIR, NO.3 | ||||
| 87201-06440 |
GSV60 |
1 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-0504522 |
GSV60 BLACK |
3 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-0504522 |
GSV60 BLACK |
3 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90467-A0001B0 |
GSV60 LT.GRAY |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87213-06080 |
GSV60 |
1 | ||
| 87212B - CLIP, AIR DUCT | ||||
| 90467-A0001C0 |
GSV60 BLACK |
1 | ||
| 90467-A0001C1 |
GSV60 BLACK |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87216-06030 |
GSV60 |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87212-06080 |
GSV60 |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87215-06030 |
GSV60 |
1 | ||
| Common parts | ||||
| 90080-15073 | ||||

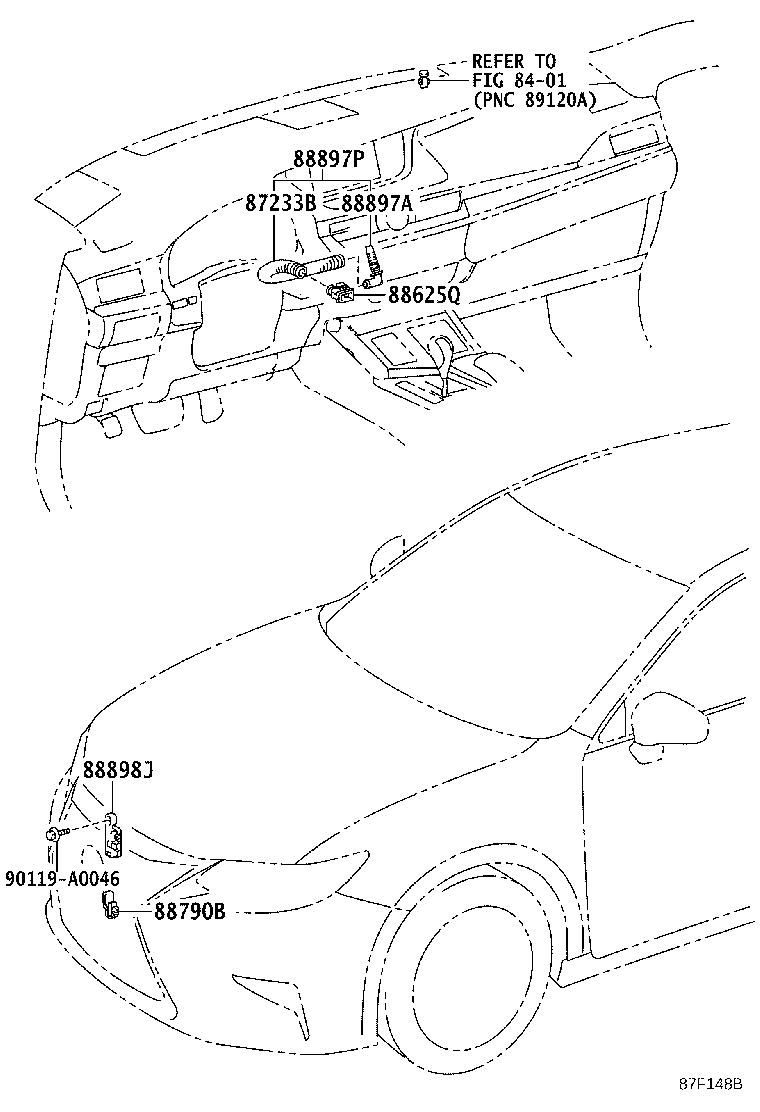

ILLUST NO. 3 OF 3(1510- )
Click highlighted areas on diagram
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87233B - HOSE, AIR | ||||
| 87233-06010 |
GSV60 |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-06040 |
GSV60 |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-06020 |
GSV60 |
1 | ||
| 88897A - PIPE, ASPIRATOR | ||||
| 88897-07010 |
GSV60 |
1 | ||
| 88897P - ASPIRATOR | ||||
| 87201-06730 |
GSV60 |
1 | ||
| 88898J - SENSOR, SMOG VENTILATION | ||||
| 88898-50031 |
GSV60 |
1 | ||
| Common parts | ||||
| 90119-A0046 | ||||
| Linked diagrams | ||||
| 8401 | ||||
