GSV60L-CETGKA (2015)
Toyota Lexus Es350 (Nap)

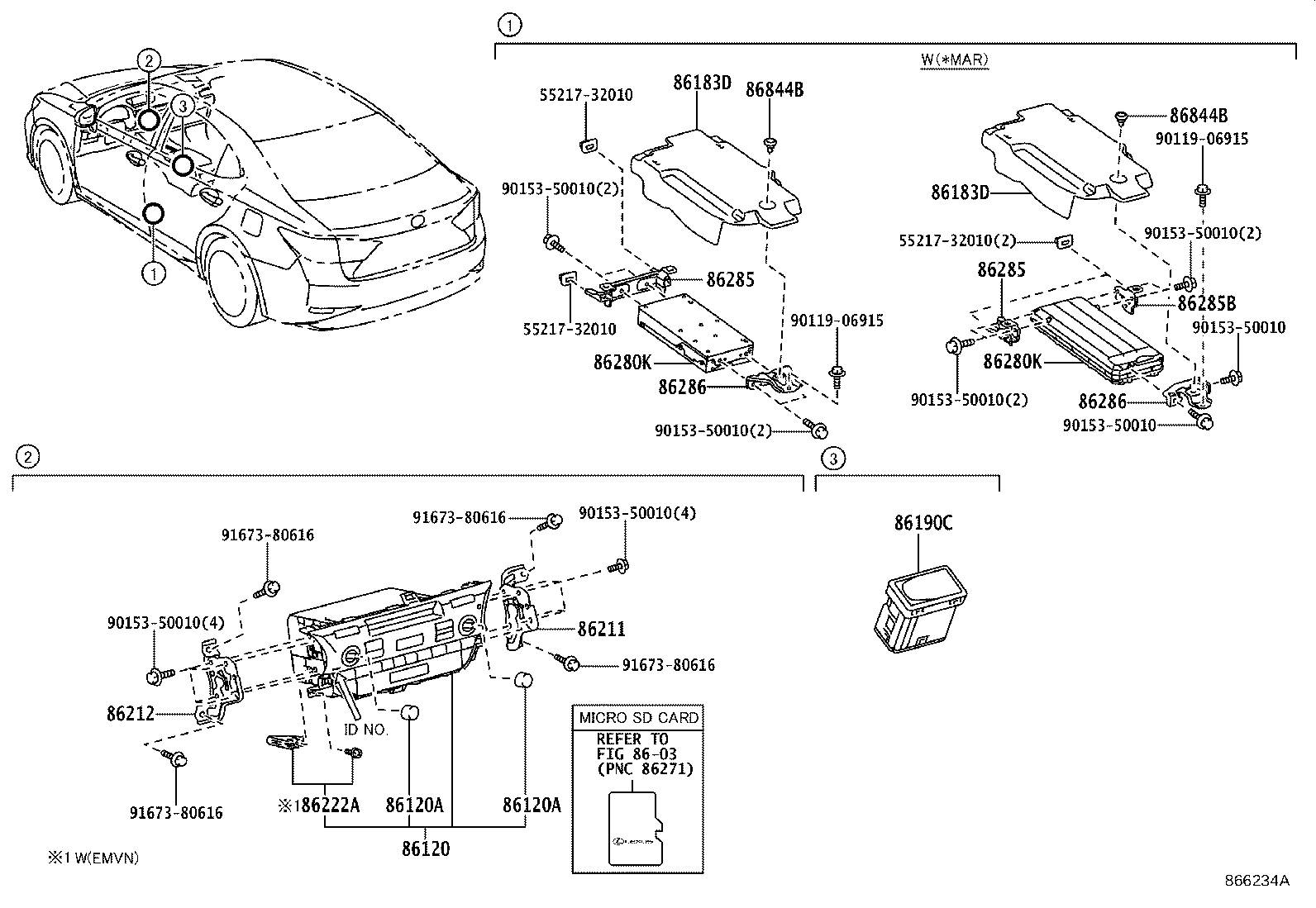

ILLUST NO. 1 OF 2(1510- )
RECEIVER & AMPLIFIER & JACK ADAPTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86140-33620 |
GSV60 FUJITSU TEN,ID100623,CANADA SPEC |
1 | ||
| 86804-33880 |
GSV60 FUJITSU TEN,ID100478,CANADA SPEC&AUDIO-EMVN & 8SPEAKER |
1 | ||
| 86804-33870 |
GSV60 FUJITSU TEN,ID100475,AUDIO-EMVN & *MAR & 15SPEAKER |
1 | ||
| 86140-33730 |
GSV60 FUJITSU TEN,ID100663 |
1 | ||
| 86140-33610 |
GSV60 FUJITSU TEN,ID100622 |
1 | ||
| 86804-33C90 |
GSV60 FUJITSU TEN,ID100660,CANADA SPEC&AUDIO-EMVN & 8SPEAKER |
1 | ||
| 86804-33C70 |
GSV60 FUJITSU TEN,ID100658,AUDIO-EMVN & 8SPEAKER |
1 | ||
| 86804-33860 |
GSV60 FUJITSU TEN,ID100476,AUDIO-EMVN & 8SPEAKER |
1 | ||
| 86804-33F00 |
GSV60 FUJITSU TEN,ID100824,CANADA SPEC&AUDIO-EMVN & 8SPEAKER |
1 | ||
| 86804-33890 |
GSV60 FUJITSU TEN,ID100477,CANADA SPEC&AUDIO-EMVN & *MAR & 15SPEAKER |
1 | ||
| 86804-33D00 |
GSV60 FUJITSU TEN,ID100659,CANADA SPEC&AUDIO-EMVN & *MAR & 15SPEAKER |
1 | ||
| 86140-33740 |
GSV60 FUJITSU TEN,ID100664,CANADA SPEC |
1 | ||
| 86804-33F10 |
GSV60 FUJITSU TEN,ID100823,CANADA SPEC&AUDIO-EMVN & *MAR & 15SPEAKER |
1 | ||
| 86804-33C80 |
GSV60 FUJITSU TEN,ID100657,AUDIO-EMVN & *MAR & 15SPEAKER |
1 | ||
| 86804-33E90 |
GSV60 FUJITSU TEN,ID100821,AUDIO-EMVN & *MAR & 15SPEAKER |
1 | ||
| 86804-33E80 |
GSV60 FUJITSU TEN,ID100822,AUDIO-EMVN & 8SPEAKER |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-23038 |
GSV60 |
2 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-23038 |
GSV60 |
2 | ||
| 86183D - COVER, AUDIO AMPLIFIER | ||||
| 86183-33070E2 |
GSV60 NOBLE BROWN,TRIM0#,4#,5# |
1 | ||
| 86183-33070C0 |
GSV60 BLACK,TRIM1#,2# |
1 | ||
| 86183D - COVER, AUDIO AMPLIFIER | ||||
| 86183-33070E2 |
GSV60 NOBLE BROWN,TRIM0#,4#,5# |
1 | ||
| 86183-33070C0 |
GSV60 BLACK,TRIM1#,2# |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-0E100 |
GSV60 |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-33300 |
GSV60 |
1 | ||
| 86211-33310 |
GSV60 AUDIO-EMVN & *MAR & 15SPEAKER |
1 | ||
| 86211-33310 |
GSV60 AUDIO-EMVN & 8SPEAKER |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-33310 |
GSV60 AUDIO-EMVN & 8SPEAKER |
1 | ||
| 86212-33300 |
GSV60 |
1 | ||
| 86212-33310 |
GSV60 AUDIO-EMVN & *MAR & 15SPEAKER |
1 | ||
| 86222A - CLIP, RADIO RECEIVER BRACKET NO.1 | ||||
| 86222-33020 |
GSV60 CANADA SPEC&AUDIO-EMVN & 8SPEAKER |
1 | ||
| 86222-33020 |
GSV60 CANADA SPEC&AUDIO-EMVN & *MAR & 15SPEAKER |
1 | ||
| 86222-33020 |
GSV60 AUDIO-EMVN & 8SPEAKER |
1 | ||
| 86222-33020 |
GSV60 AUDIO-EMVN & *MAR & 15SPEAKER |
1 | ||
| 86280K - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-06150 |
GSV60 AUDIO-EMVN & 8SPEAKER |
1 | ||
| 86280-06160 |
GSV60 |
1 | ||
| 86280-0WB80 |
GSV60 AUDIO-EMVN & *MAR & 15SPEAKER |
1 | ||
| 86280-06200 |
GSV60 AUDIO-EMVN & 8SPEAKER |
1 | ||
| 86280-06210 |
GSV60 |
1 | ||
| 86280-0WD20 |
GSV60 AUDIO-EMVN & *MAR & 15SPEAKER |
1 | ||
| 86280K - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-06150 |
GSV60 AUDIO-EMVN & 8SPEAKER |
1 | ||
| 86280-06160 |
GSV60 |
1 | ||
| 86280-0WB80 |
GSV60 AUDIO-EMVN & *MAR & 15SPEAKER |
1 | ||
| 86280-06200 |
GSV60 AUDIO-EMVN & 8SPEAKER |
1 | ||
| 86280-06210 |
GSV60 |
1 | ||
| 86280-0WD20 |
GSV60 AUDIO-EMVN & *MAR & 15SPEAKER |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-33150 |
GSV60 AUDIO-EMVN & *MAR & 15SPEAKER |
1 | ||
| 86285-33140 |
GSV60 |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-33150 |
GSV60 AUDIO-EMVN & *MAR & 15SPEAKER |
1 | ||
| 86285-33140 |
GSV60 |
1 | ||
| 86285B - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-33160 |
GSV60 AUDIO-EMVN & *MAR & 15SPEAKER |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-33150 |
GSV60 AUDIO-EMVN & *MAR & 15SPEAKER |
1 | ||
| 86286-33140 |
GSV60 |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-33150 |
GSV60 AUDIO-EMVN & *MAR & 15SPEAKER |
1 | ||
| 86286-33140 |
GSV60 |
1 | ||
| 86844B - RETAINER, AUDIO AMPLIFIER COVER | ||||
| 86844-33010C0 |
GSV60 BLACK,TRIM1#,2# |
1 | ||
| 86844-33010E2 |
GSV60 NOBLE BROWN,TRIM0#,4#,5# |
1 | ||
| 86844B - RETAINER, AUDIO AMPLIFIER COVER | ||||
| 86844-33010C0 |
GSV60 BLACK,TRIM1#,2# |
1 | ||
| 86844-33010E2 |
GSV60 NOBLE BROWN,TRIM0#,4#,5# |
1 | ||
| Common parts | ||||
| 55217-32010 | None epc.PartDetail.None | |||
| 90119-06915 | None epc.PartDetail.None | |||
| 90153-50010 | None epc.PartDetail.None | |||
| 91673-80616 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 8603 | ||||

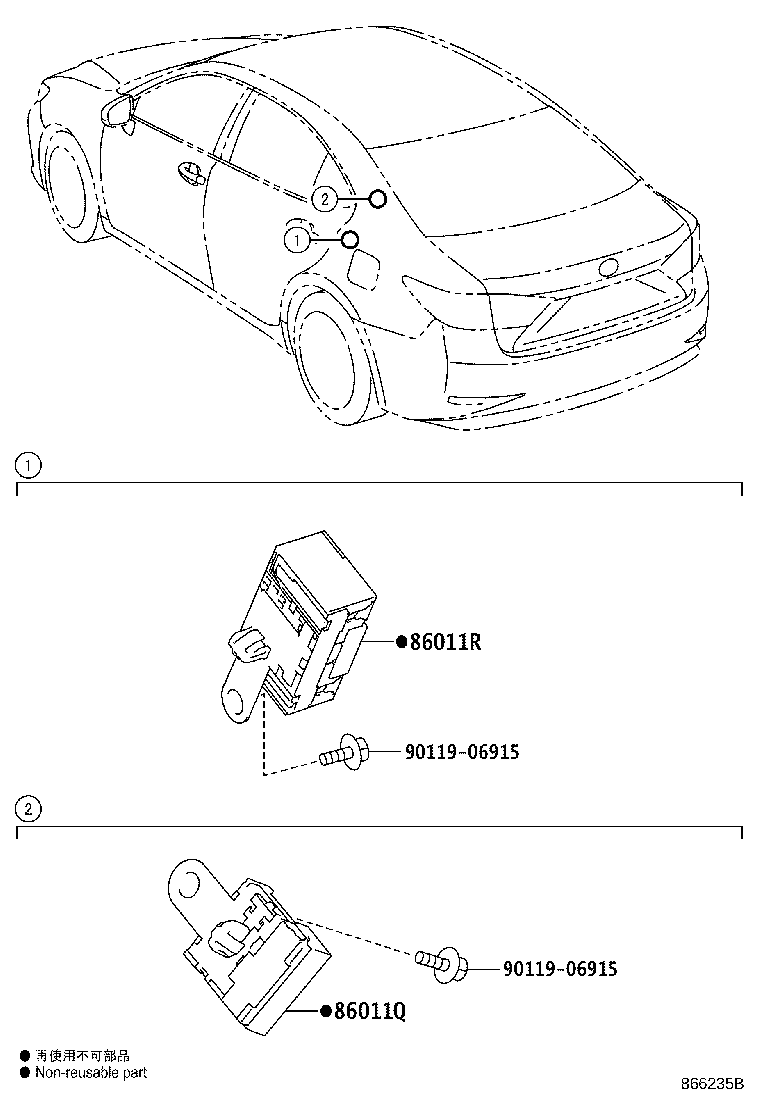

ILLUST NO. 2 OF 2(1510- )
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04189 |
GSV60 |
1 | ||
| 86011R - CONDENSER, RADIO SETTING | ||||
| 90980-04204 |
GSV60 |
1 | ||
| Common parts | ||||
| 90119-06915 | None epc.PartDetail.None | |||
