GSV60L-CETGKA (2015)

Toyota Lexus Es350 (Nap)

Production Oct 2015 - Jul 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )

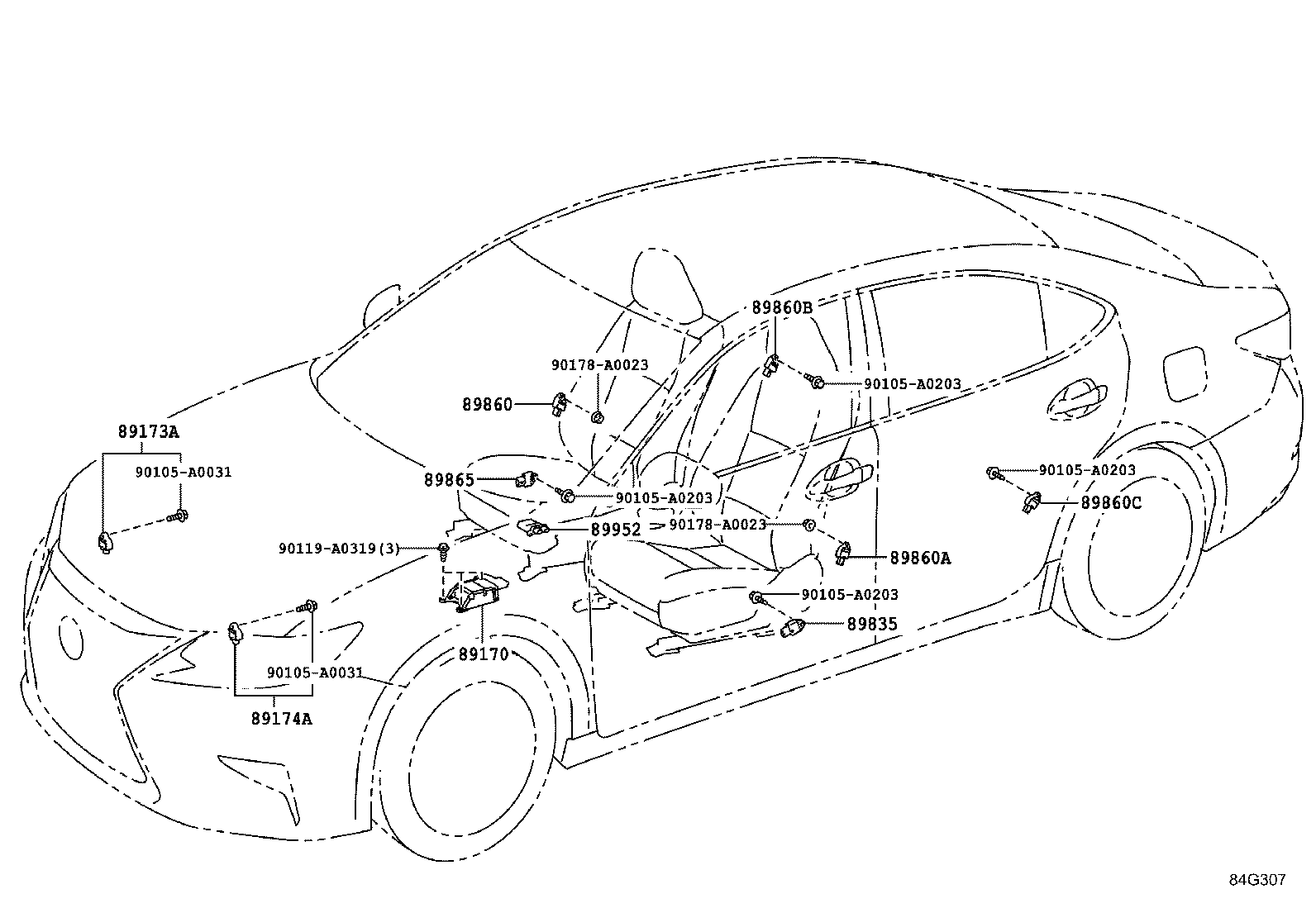

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89835 89860 89860A 89860B 89860C 89865 89952 90105A0031 90105A0031 90105A0203 90105A0203 90105A0203 90105A0203 90119A0319 90178A0023 90178A0023
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-06590

GSV60

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-09070

GSV60

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-09070

GSV60

 1
89835 - SENSOR, DOOR SIDE AIR BAG, LH
89831-0R080

GSV60

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-0R070

GSV60

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-0R070

GSV60

 1
89860B - SENSOR ASSY, SIDE AIR BAG, RH, NO.2
89831-0R070

GSV60

 1
89860C - SENSOR ASSY, SIDE AIR BAG, LH, NO.2
89831-0R070

GSV60

 1
89865 - SENSOR, DOOR SIDE AIR BAG, RH
89831-0R080

GSV60

 1
89952 - COMPUTER, OCCUPANT DETECTION
89952-06020

GSV60

 1
Common parts
90105-A0031
90105-A0203
90119-A0319
90178-A0023
