GSV60L-CETGKA (2015)
Toyota Lexus Es350 (Nap)
Production
Oct 2015
-
Jul 2018
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

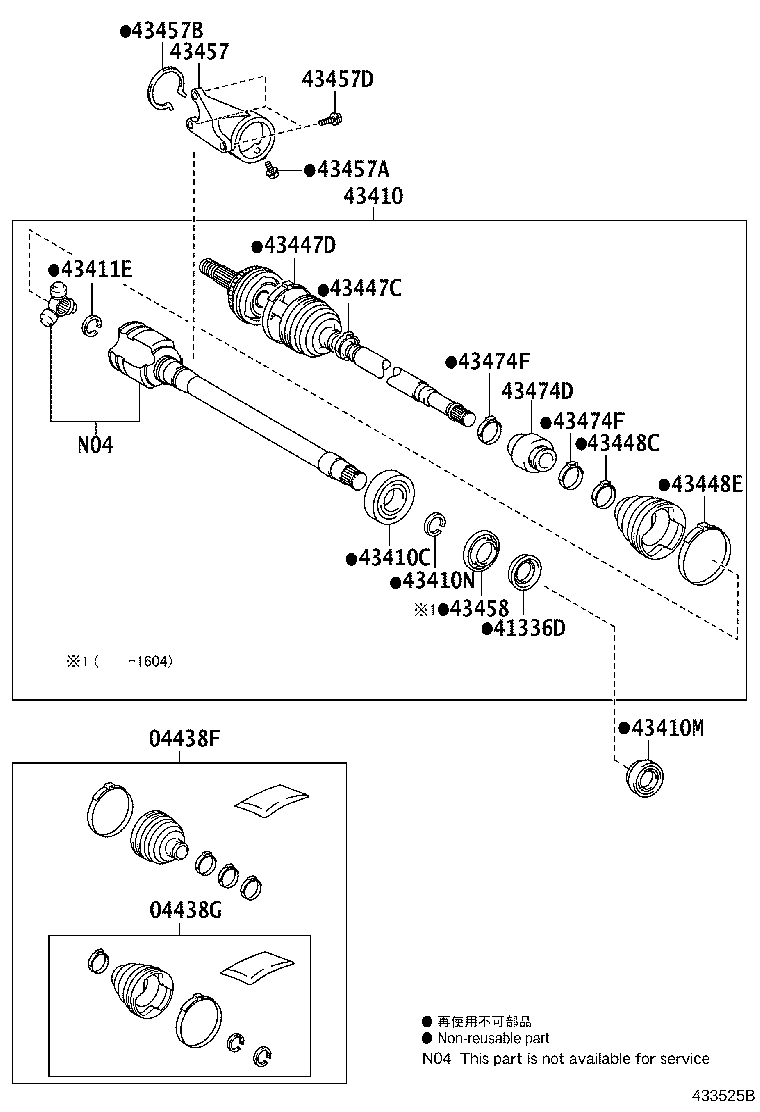

ILLUST NO. 1 OF 2(1510- )
Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04427-06540 |
GSV60 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-08050 |
GSV60 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-06020 |
GSV60 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-06A50 |
GSV60 |
1 | ||
| 43410-06B80 |
GSV60 |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90080-36133 |
GSV60 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-A0029 |
GSV60 *325 |
1 | ||
| 90311-40038 |
GSV60 *324 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90080-52013 |
GSV60 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-08040 |
GSV60 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-04030 |
GSV60 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-06250 |
GSV60 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-08070 |
GSV60 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-06240 |
GSV60 |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-07010 |
GSV60 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90119-10461 |
GSV60 *10-1.25PX19.8-8.3 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-78002 |
GSV60 |
1 | ||
| 43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) | ||||
| 90080-10087 |
GSV60 |
3 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-06020 |
GSV60 |
1 | ||
| 43474D - DAMPER, FRONT DRIVE SHAFT, RH | ||||
| 43474-06300 |
GSV60 |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-06790 |
GSV60 |
2 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-06790 |
GSV60 |
2 | ||

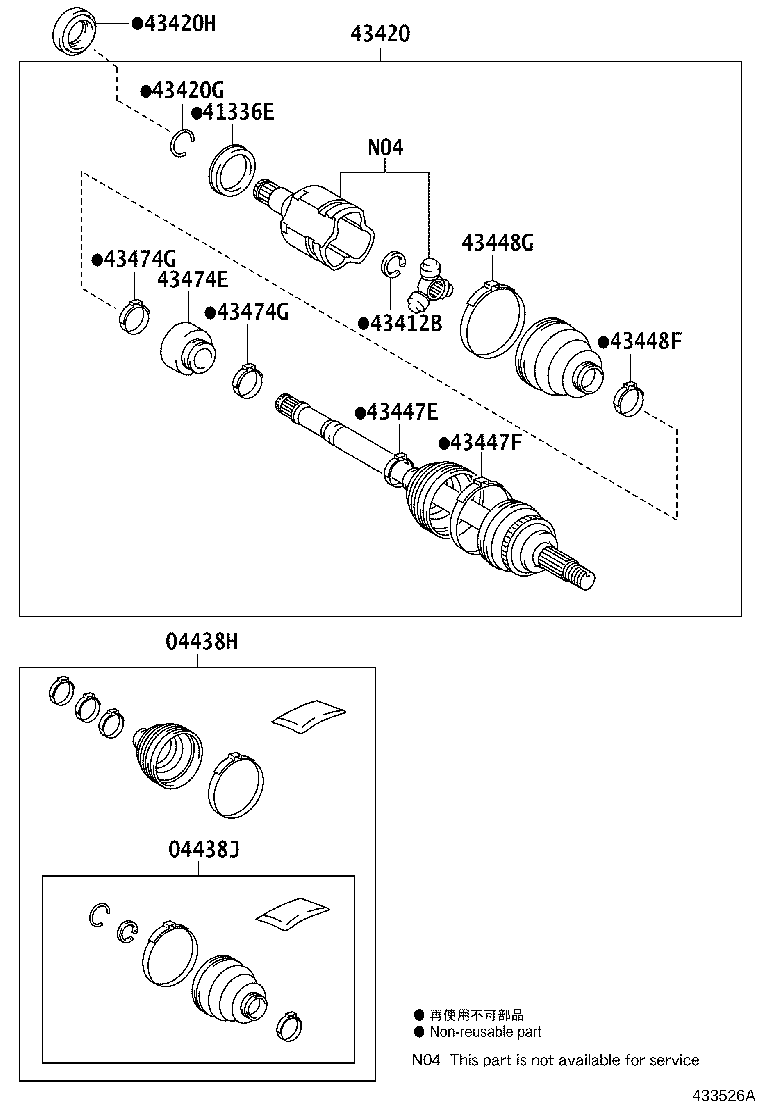

ILLUST NO. 2 OF 2(1510- )
Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04428-06570 |
GSV60 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-08130 |
GSV60 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-06060 |
GSV60 |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-08040 |
GSV60 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-06B00 |
GSV60 |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90080-52017 |
GSV60 |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-A0021 |
GSV60 *325 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-04030 |
GSV60 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-06250 |
GSV60 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-08070 |
GSV60 |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-06240 |
GSV60 |
1 | ||
| 43474E - DAMPER, FRONT DRIVE SHAFT, LH | ||||
| 43474-06310 |
GSV60 |
1 | ||
| 43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) | ||||
| 42345-06790 |
GSV60 |
2 | ||
| 43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) | ||||
| 42345-06790 |
GSV60 |
2 | ||
