GSV60L-CETGKA (2015)

Toyota Lexus Es350 (Nap)

Production Oct 2015 - Jul 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )

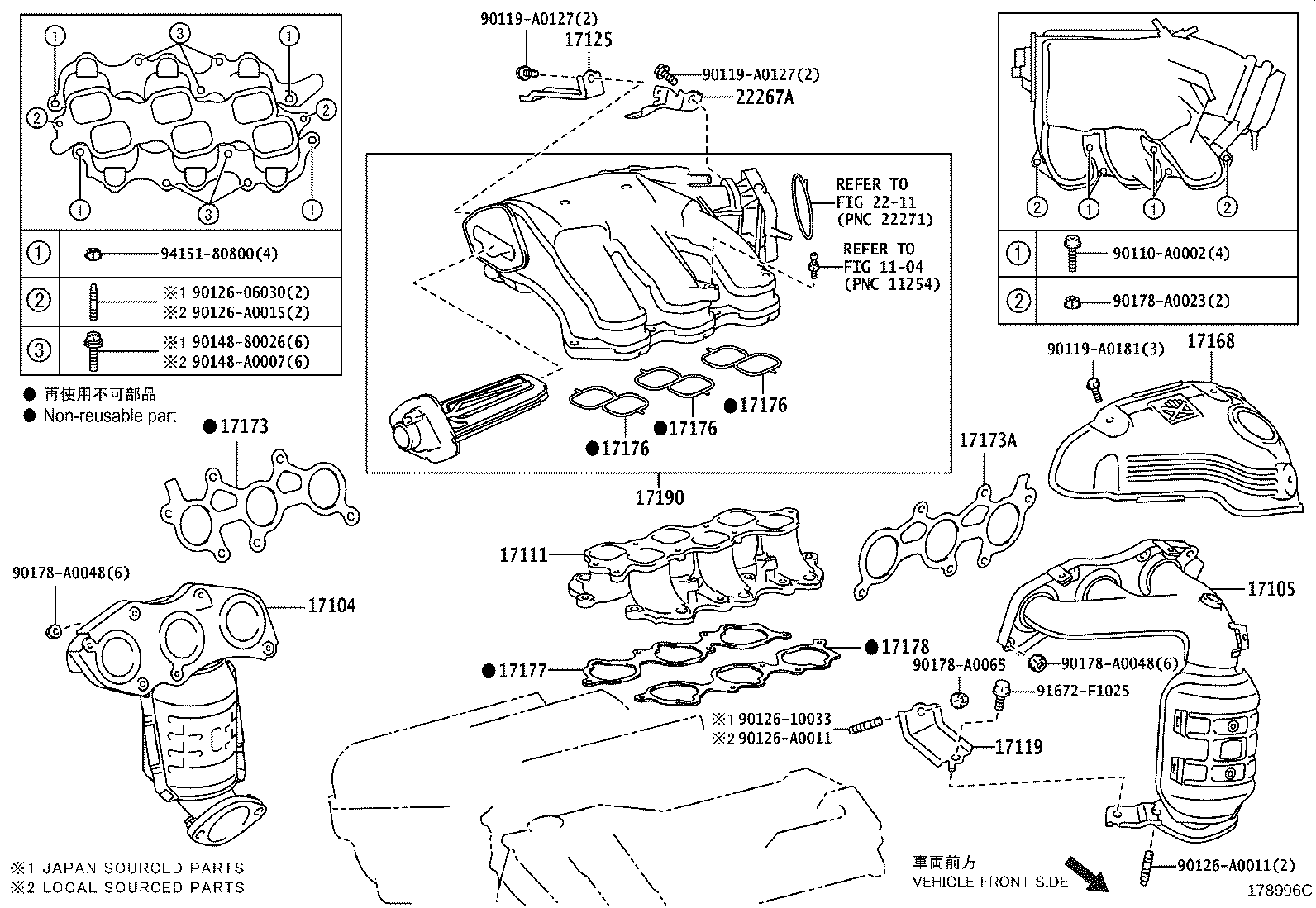

Click highlighted areas on diagram

diagram 1104 17104 17105 17111 17119 17125 17168 17173 17173A 17176 17176 17176 17177 17178 17190 2211 22267A 90110A0002 90119A0127 90119A0127 90119A0181 9012606030 9012610033 90126A0011 90126A0011 90126A0015 9014880026 90148A0007 90178A0023 90178A0048 90178A0048 90178A0065 91672F1025 9415180800
Part # Description Qty Price
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17140-0P220

2GRFE..GSV60

 1
17105 - MANIFOLD SUB-ASSY, EXHAUST, LH
17150-0P300

2GRFE..GSV60

 1
17111 - MANIFOLD, INTAKE
17111-31141

2GRFE..GSV60

(J)

 1
17111-0P030

2GRFE..GSV60

(L)

 1
17119 - STAY, MANIFOLD, NO.2
17119-0P030

2GRFE..GSV60

 1
17125 - STAY, SURGE TANK, NO.1
17125-0P020

2GRFE..GSV60

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-0P020

2GRFE..GSV60

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0P020

2GRFE..GSV60

 1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-0P020

2GRFE..GSV60

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-0P021

2GRFE..GSV60

 3
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-0P021

2GRFE..GSV60

 3
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-0P021

2GRFE..GSV60

 3
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-31040

2GRFE..GSV60

(J)

 1
17177-0P021

2GRFE..GSV60

(L)

 1
17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17178-31030

2GRFE..GSV60

(J)

 1
17178-0P021

2GRFE..GSV60

(L)

 1
17190 - TANK ASSY, INTAKE AIR SURGE
17190-0P032

2GRFE..GSV60

 1
22267A - BRACKET, THROTTLE BODY
22267-0P020

2GRFE..GSV60

 1
Common parts
90110-A0002
90119-A0127
90119-A0181
90126-06030
90126-10033
90126-A0011
90126-A0015
90148-80026
90148-A0007
90178-A0023
90178-A0048
90178-A0065
91672-F1025
94151-80800
Linked diagrams
1104
2211
