GSZ10L-AEZGBA (2018)

Toyota Lexus Es350/300h(Jpp

Production Jun 2018 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )

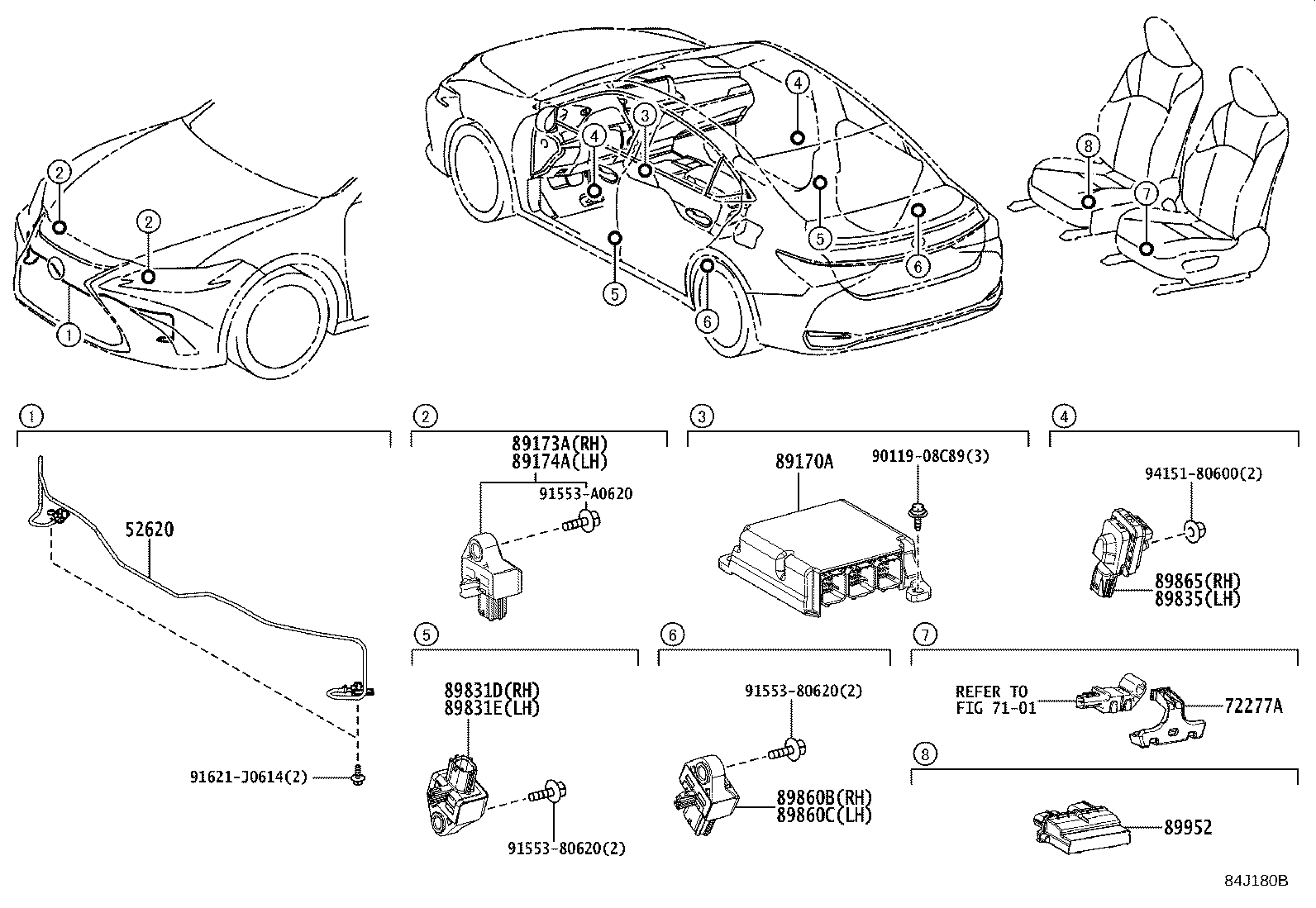

Click highlighted areas on diagram

diagram 52620 7101 72277A 89170A 89173A 89174A 89831D 89831E 89835 89860B 89860C 89865 89952 9011908C89 9155380620 9155380620 91553A0620 91621J0614 9415180600
Part # Description Qty Price
72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR
72277-47050

AXZH1#,GSZ10

 1
89170A - COMPUTER ASSY, AIR BAG
89170-33B90

GSZ10

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-49495

AXZH1#,GSZ10

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-49495

AXZH1#,GSZ10

 1
89831D - SENSOR, FLOOR SIDE AIR BAG, RH
89831-47050

AXZH1#,GSZ10

 1
89831E - SENSOR, FLOOR SIDE AIR BAG, LH
89831-47050

AXZH1#,GSZ10

 1
89835 - SENSOR, DOOR SIDE AIR BAG, LH
8983A-33010

AXZH1#,GSZ10

 1
8983A-33011

AXZH1#,GSZ10

 1
89860B - SENSOR ASSY, SIDE AIR BAG, RH, NO.2
89831-28030

AXZH1#,GSZ10

 1
89860C - SENSOR ASSY, SIDE AIR BAG, LH, NO.2
89831-28030

AXZH1#,GSZ10

 1
89865 - SENSOR, DOOR SIDE AIR BAG, RH
8983A-33010

AXZH1#,GSZ10

 1
8983A-33011

AXZH1#,GSZ10

 1
89952 - COMPUTER, OCCUPANT DETECTION
89952-33040

AXZH1#,GSZ10

 1
Common parts
90119-08C89
91553-80620
91553-A0620
91621-J0614
94151-80600
Linked diagrams
7101
