GSV60L-BETGKA (2015)
Toyota Lexus Es350/300h(Jpp
ILLUST NO. 5 OF10(1206-1507)

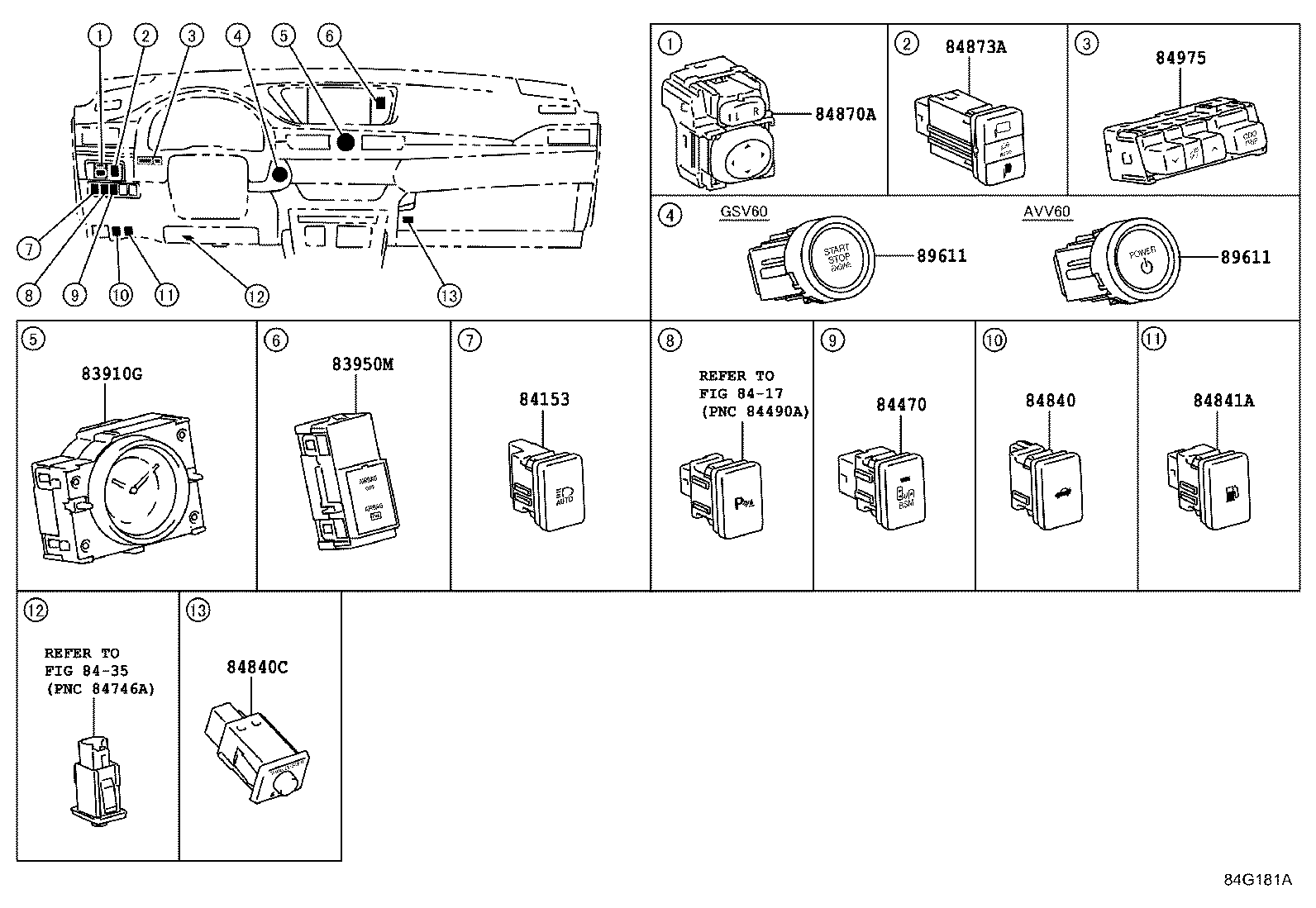

INSTRUMENT PANEL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-33230 |
AVV60,GSV60 |
1 | ||
| 83910-33231 |
AVV60,GSV60 |
1 | ||
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-33020 |
AVV60,GSV60 KOREA SPEC |
1 | ||
| 83950-33020 |
AVV60,GSV60 |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-53011 |
AVV60,GSV60 HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 84153-53011 |
AVV60,GSV60 HEAD LAMP-HI(HALOGEN) & WITH(*AHB) |
1 | ||
| 84153-53011 |
AVV60,GSV60 HEAD LAMP-HI(LED) & WITH(AFS & *AHB) |
1 | ||
| 84153-53011 |
AVV60,GSV60 HEAD LAMP-HI(LED) |
1 | ||
| 84153-53011 |
AVV60,GSV60 |
1 | ||
| 84153-53011 |
AVV60,GSV60 HEAD LAMP-HI(HALOGEN) |
1 | ||
| 84470 - SWITCH ASSY, WARNING CANCELING | ||||
| 84470-33031 |
AVV60,GSV60 BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-33111 |
AVV60,GSV60 |
1 | ||
| 84840C - SWITCH ASSY, LUGGAGE DOOR OPENING, CANCEL | ||||
| 84840-51020 |
AVV60,GSV60 |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-33021 |
AVV60,GSV60 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-33010 |
AVV60,GSV60 |
1 | ||
| 84872-33020 |
AVV60,GSV60 KOREA SPEC&B PACKAGE |
1 | ||
| 84872-33020 |
AVV60,GSV60 KOREA SPEC&D PACKAGE |
1 | ||
| 84872-33020 |
AVV60,GSV60 KOREA SPEC&C PACKAGE |
1 | ||
| 84872-33020 |
AVV60,GSV60 KOREA SPEC |
1 | ||
| 84872-33020 |
AVV60,GSV60 C PACKAGE |
1 | ||
| 84872-33020 |
AVV60,GSV60 D PACKAGE |
1 | ||
| 84872-33020 |
GSV60 SPECIAL EDITION |
1 | ||
| 84872-33020 |
AVV60,GSV60 B PACKAGE |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-33060 |
AVV60,GSV60 KOREA SPEC&D PACKAGE |
1 | ||
| 84873-33060 |
AVV60,GSV60 KOREA SPEC |
1 | ||
| 84873-33060 |
AVV60,GSV60 KOREA SPEC&B PACKAGE |
1 | ||
| 84873-33060 |
AVV60,GSV60 KOREA SPEC&C PACKAGE |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-33030 |
AVV60,GSV60 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30123 |
GSV60 |
1 | ||
| 89611-30122 |
GSV60 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30123 |
GSV60 |
1 | ||
| 89611-30122 |
GSV60 |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
| 8435 | ||||
ILLUST NO. 6 OF10(1206- )

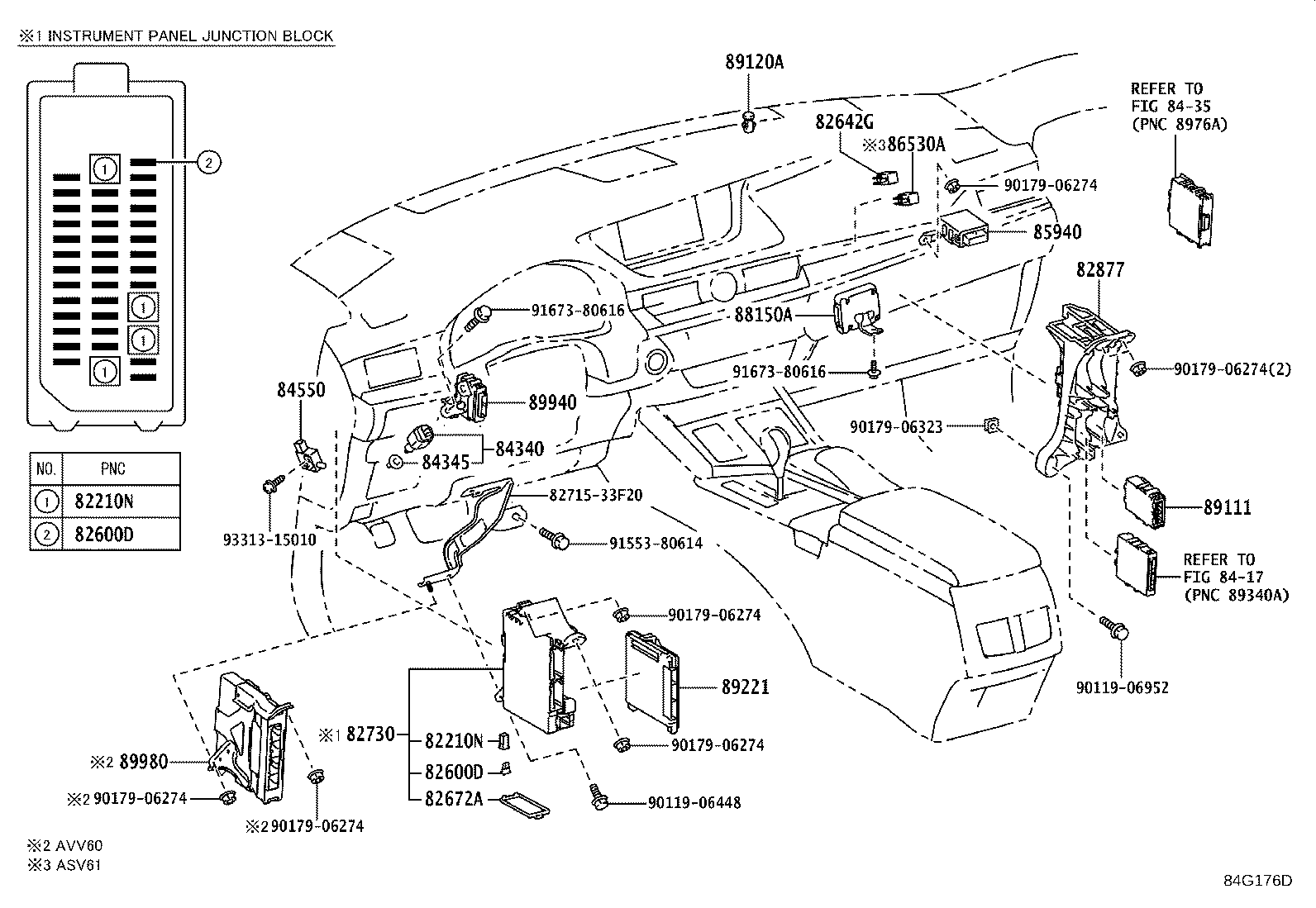

INSTRUMENT PANEL 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-33010F0 |
GSV60 TOPAZ BROWN,TRIM41,5# |
1 | ||
| 84010-33010C0 |
GSV60 BLACK,TRIM1#,2#,40 |
1 | ||
| 84010-33010A1 |
GSV60 IVORY,TRIM0# |
1 | ||
| 84752 - SWITCH, REFRESHING SEAT | ||||
| 84752-33051 |
AVV60,GSV60 SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LH |
1 | ||
| 84752-33051 |
AVV60,GSV60 SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),LH |
1 | ||
| 84752-33061 |
AVV60,GSV60 SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),RH |
1 | ||
| 84752-33061 |
AVV60,GSV60 SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),RH |
1 | ||
| 84752 - SWITCH, REFRESHING SEAT | ||||
| 84752-33051 |
AVV60,GSV60 SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LH |
1 | ||
| 84752-33051 |
AVV60,GSV60 SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),LH |
1 | ||
| 84752-33061 |
AVV60,GSV60 SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),RH |
1 | ||
| 84752-33061 |
AVV60,GSV60 SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),RH |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-33040 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&SUN SHADE-WITH(BACK WINDOW) |
1 | ||
| 84970-33020 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84970-33030 |
AVV60,GSV60 SUN SHADE-WITH(BACK WINDOW) |
1 | ||
| 84970-33030 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
1 | ||
| 84970-33040 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&SUN SHADE-WITH(BACK WINDOW &REAR DOOR WINDOW) |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-33040 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&SUN SHADE-WITH(BACK WINDOW) |
1 | ||
| 84970-33020 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84970-33030 |
AVV60,GSV60 SUN SHADE-WITH(BACK WINDOW) |
1 | ||
| 84970-33030 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
1 | ||
| 84970-33040 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&SUN SHADE-WITH(BACK WINDOW &REAR DOOR WINDOW) |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-33040 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&SUN SHADE-WITH(BACK WINDOW) |
1 | ||
| 84970-33020 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84970-33030 |
AVV60,GSV60 SUN SHADE-WITH(BACK WINDOW) |
1 | ||
| 84970-33030 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
1 | ||
| 84970-33040 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&SUN SHADE-WITH(BACK WINDOW &REAR DOOR WINDOW) |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
AVV60,GSV60 |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-42010 |
AVV60,GSV60 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-35080C0 |
AVV60,GSV60 BLACK |
1 | ||
| 85535-44050C1 |
AVV60,GSV60 BLACK |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-76010 |
AVV60,GSV60 |
1 | ||
| 85535-33090 |
AVV60,GSV60 |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
AVV60,GSV60 |
1 | ||
| 85539C - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
AVV60,GSV60 |
1 | ||
| Common parts | ||||
| 93568-55014 | None epc.PartDetail.None | |||
ILLUST NO. 7 OF10(1206-1507)

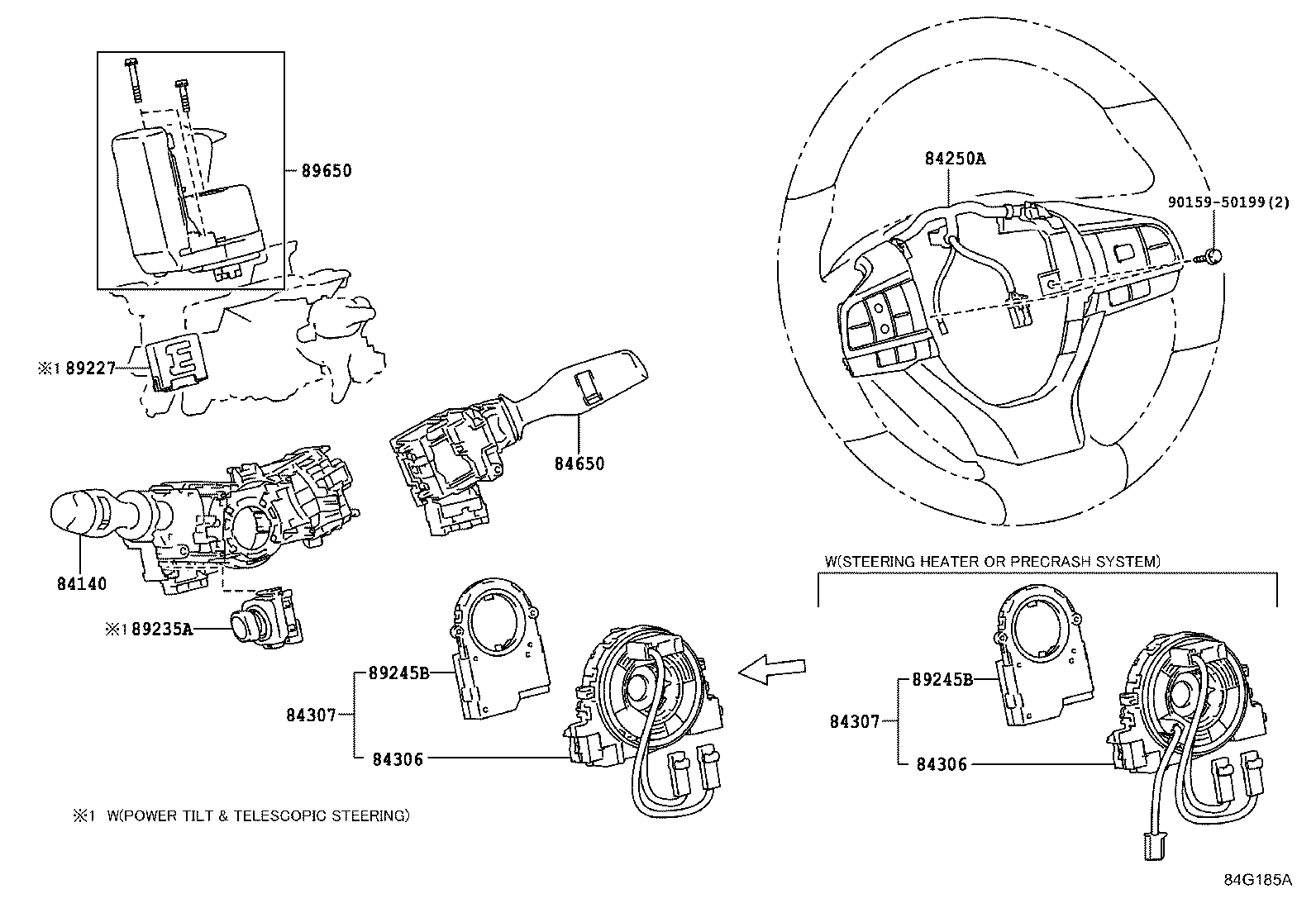

STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-33270 |
AVV60,GSV60 KOREA SPEC |
1 | ||
| 84140-33280 |
AVV60,GSV60 |
1 | ||
| 84140-33270 |
AVV60,GSV60 CANADA SPEC |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-48450 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84250-48430 |
AVV60,GSV60 |
1 | ||
| 84250-33520 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84250-48431 |
AVV60,GSV60 |
1 | ||
| 84250-33510 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 84250-48451 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84250-33510 |
AVV60,GSV60 |
1 | ||
| 84250-33520 |
AVV60,GSV60 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-30010 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84308-48040 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84308-48040 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84308-30010 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84308-33010 |
AVV60,GSV60 |
1 | ||
| 84308-48040 |
AVV60,GSV60 |
1 | ||
| 84308-33020 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 84308-48040 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84308-30010 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84308-33020 |
AVV60,GSV60 |
1 | ||
| 84308-48040 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-30010 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84308-48040 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84308-48040 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84308-30010 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84308-33010 |
AVV60,GSV60 |
1 | ||
| 84308-48040 |
AVV60,GSV60 |
1 | ||
| 84308-33020 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 84308-48040 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84308-30010 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84308-33020 |
AVV60,GSV60 |
1 | ||
| 84308-48040 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-48121 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84307-48131 |
AVV60,GSV60 |
1 | ||
| 84307-48121 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84307-48121 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84307-48150 |
AVV60,GSV60 |
1 | ||
| 84307-48160 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84307-48150 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 84307-48160 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84307-48160 |
AVV60,GSV60 |
1 | ||
| 84307-48160 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84307-48160 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-48121 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84307-48131 |
AVV60,GSV60 |
1 | ||
| 84307-48121 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84307-48121 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84307-48150 |
AVV60,GSV60 |
1 | ||
| 84307-48160 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84307-48150 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 84307-48160 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84307-48160 |
AVV60,GSV60 |
1 | ||
| 84307-48160 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84307-48160 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-33510 |
AVV60,GSV60 KOREA SPEC&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT) |
1 | ||
| 84652-33520 |
AVV60,GSV60 CANADA SPEC |
1 | ||
| 84652-33550 |
AVV60,GSV60 |
1 | ||
| 84652-33540 |
AVV60,GSV60 |
1 | ||
| 84652-33520 |
AVV60,GSV60 KOREA SPEC&INTERMITTENT WIPER-WITH |
1 | ||
| 84652-33510 |
AVV60,GSV60 CANADA SPEC&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT) |
1 | ||
| 84652-33510 |
AVV60,GSV60 CANADA SPEC |
1 | ||
| 84652-33510 |
AVV60,GSV60 KOREA SPEC |
1 | ||
| 84652-33520 |
AVV60,GSV60 KOREA SPEC |
1 | ||
| 84652-33540 |
AVV60,GSV60 INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT) |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-33040 |
AVV60,GSV60 C PACKAGE |
1 | ||
| 89227-33040 |
AVV60,GSV60 D PACKAGE |
1 | ||
| 89227-33040 |
GSV60 SPECIAL EDITION |
1 | ||
| 89227-33040 |
AVV60,GSV60 B PACKAGE |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-33010 |
GSV60 SPECIAL EDITION |
1 | ||
| 89235-33010 |
AVV60,GSV60 D PACKAGE |
1 | ||
| 89235-33010 |
AVV60,GSV60 C PACKAGE |
1 | ||
| 89235-33010 |
AVV60,GSV60 B PACKAGE |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-58010 |
AVV60,GSV60 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-58010 |
AVV60,GSV60 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-33740 |
GSV60 |
1 | ||
| Common parts | ||||
| 90159-50199 | None epc.PartDetail.None | |||
ILLUST NO. 8 OF10(1206- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84290 - SWITCH ASSY, LIMIT | ||||
| 84290-33010 |
AVV60,GSV60 |
1 | ||
| 84290D - SWITCH ASSY, LIMIT | ||||
| 84290-33020 |
AVV60,GSV60 |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-50280A2 |
AVV60,GSV60 FRONT POWER SEAT-WITH(*DRS 10WAY & *PAS SHOULDER SWITCH),IVORY,TRIM0# |
1 | ||
| 84920-50280E3 |
AVV60,GSV60 FRONT POWER SEAT-WITH(*DRS 10WAY & *PAS SHOULDER SWITCH),NOBLE BROWN,TRIM51,52,53 |
1 | ||
| 84920-50280B2 |
AVV60,GSV60 FRONT POWER SEAT-WITH(*DRS 10WAY & *PAS SHOULDER SWITCH),MOON STONE,TRIM11,12,13 |
1 | ||
| 84920-50280C0 |
AVV60,GSV60 FRONT POWER SEAT-WITH(*DRS 10WAY & *PAS SHOULDER SWITCH),BLACK,TRIM11,12,13,2#,51,52,53 |
1 | ||
| 84920C - SWITCH ASSY, POWER SEAT FRONT, RH | ||||
| 84920-33070E1 |
GSV60 NOBLE BROWN,TRIM0#,4#,5# |
1 | ||
| 84920-33070C0 |
AVV60,GSV60 BLACK,TRIM1#,2# |
1 | ||
| 84920D - SWITCH ASSY, POWER SEAT FRONT, LH | ||||
| 84920-33080E1 |
GSV60 NOBLE BROWN,TRIM0#,4#,5# |
1 | ||
| 84920-33080C0 |
AVV60,GSV60 BLACK,TRIM1#,2# |
1 | ||
| 84921C - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-33150C0 |
AVV60,GSV60 BLACK,TRIM1#,2# |
1 | ||
| 84921-33150E1 |
GSV60 NOBLE BROWN,TRIM0#,4#,5# |
1 | ||
| 84921-33150E1 |
GSV60 D PACKAGE&FRONT POWER SEAT-WITH(*DRS 10WAY & *PAS SHOULDER SWITCH),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84921-33150E1 |
GSV60 D PACKAGE&FRONT POWER SEAT-WITH(*DRS 10WAY),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-33160C0 |
AVV60,GSV60 BLACK,TRIM1#,2# |
1 | ||
| 84921-33160E1 |
GSV60 D PACKAGE&FRONT POWER SEAT-WITH(*DRS 10WAY & *PAS SHOULDER SWITCH),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84921-33160E1 |
GSV60 D PACKAGE&FRONT POWER SEAT-WITH(*DRS 10WAY),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84921-33160E1 |
GSV60 NOBLE BROWN,TRIM0#,4#,5# |
1 | ||
| 84921J - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-33130C0 |
AVV60,GSV60 BLACK,TRIM1#,2# |
1 | ||
| 84921-33130E1 |
GSV60 D PACKAGE&FRONT POWER SEAT-WITH(*DRS 10WAY & *PAS SHOULDER SWITCH),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84921-33130E1 |
GSV60 NOBLE BROWN,TRIM0#,4#,5# |
1 | ||
| 84921-33130E1 |
GSV60 D PACKAGE&FRONT POWER SEAT-WITH(*DRS 10WAY),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84921K - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-33140E1 |
GSV60 NOBLE BROWN,TRIM0#,4#,5# |
1 | ||
| 84921-33140E1 |
GSV60 D PACKAGE&FRONT POWER SEAT-WITH(*DRS 10WAY),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84921-33140E1 |
GSV60 D PACKAGE&FRONT POWER SEAT-WITH(*DRS 10WAY & *PAS SHOULDER SWITCH),NOBLE BROWN,TRIM0#,5# |
1 | ||
| 84921-33140C0 |
AVV60,GSV60 BLACK,TRIM1#,2# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84070-33130 |
AVV60,GSV60 D PACKAGE&FRONT POWER SEAT-WITH(*DRS 10WAY) |
1 | ||
| 84070-33130 |
AVV60,GSV60 D PACKAGE&FRONT POWER SEAT-WITH(*DRS 10WAY & *PAS SHOULDER SWITCH) |
1 | ||
| 84922-60190 |
AVV60,GSV60 |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84070-53011 |
AVV60,GSV60 C PACKAGE |
1 | ||
| 84070-53011 |
AVV60,GSV60 B PACKAGE |
1 | ||
| 84070-53011 |
AVV60,GSV60 D PACKAGE&FRONT POWER SEAT-WITH(*DRS 10WAY) |
1 | ||
| 84070-53011 |
AVV60,GSV60 D PACKAGE&FRONT POWER SEAT-WITH(*DRS 10WAY & *PAS SHOULDER SWITCH) |
1 | ||
| 84922-60180 |
AVV60,GSV60 |
1 | ||
| 84070-53011 |
GSV60 SPECIAL EDITION |
1 | ||
| 84923F - SWITCH, REAR CONTROL | ||||
| 84660-33091 |
AVV60,GSV60 SUN SHADE-WITH(BACK WINDOW)&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))&AUDIO-EMVN & DVD & *MAR & 15SPEAKER & DAB |
1 | ||
| 84660-33091 |
AVV60,GSV60 SUN SHADE-WITH(BACK WINDOW)&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))&AUDIO-EMVN & DVD & 8SPEAKER & DAB |
1 | ||
| 84660-33091 |
AVV60,GSV60 SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))&AUDIO-EMVN & DVD & 8SPEAKER & DAB |
1 | ||
| 84660-33091 |
AVV60,GSV60 SUN SHADE-WITH(BACK WINDOW)&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))&AUDIO-*DA & DVD & 8SPEAKER |
1 | ||
| 84660-33091 |
AVV60,GSV60 SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))&AUDIO-EMVN & DVD & *MAR& 15SPEAKER & DAB |
1 | ||
| 84660-33091 |
AVV60,GSV60 SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))&AUDIO-*DA & DVD & 8SPEAKER |
1 | ||
| 84928 - SWITCH, SEAT VARIABLE CUSHION | ||||
| 84928-33020E1 |
GSV60 FRONT POWER SEAT-WITH(*DRS 10WAY),NOBLE BROWN,TRIM0#,4#,5# |
1 | ||
| 84928-33020C0 |
AVV60,GSV60 FRONT POWER SEAT-WITH(*DRS 10WAY),BLACK,TRIM1#,2# |
1 | ||
| 84928-33020C0 |
AVV60,GSV60 FRONT POWER SEAT-WITH(*DRS 10WAY & *PAS SHOULDER SWITCH),BLACK,TRIM1#,2# |
1 | ||
| 84928-33020E1 |
GSV60 FRONT POWER SEAT-WITH(*DRS 10WAY & *PAS SHOULDER SWITCH),NOBLE BROWN,TRIM0#,4#,5# |
1 | ||
| Common parts | ||||
| 69749-32020 | None epc.PartDetail.None | |||
| 93269-15008 | None epc.PartDetail.None | |||
| 93560-14010 | None epc.PartDetail.None | |||
ILLUST NO. 9 OF10(1206- )
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-33091 |
AVV60,GSV60 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-30380 |
AVV60,GSV60 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-30380 |
AVV60,GSV60 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-50190 |
AVV60,GSV60 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-50190 |
AVV60,GSV60 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-33130 |
AVV60,GSV60 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33130 |
AVV60,GSV60 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33130 |
AVV60,GSV60 |
2 | ||
| 84927B - SWITCH, SEAT MEMORY, RH | ||||
| 84927-33100 |
AVV60,GSV60 D PACKAGE |
1 | ||
| 84927B - SWITCH, SEAT MEMORY, RH | ||||
| 84927-33100 |
AVV60,GSV60 D PACKAGE |
1 | ||
| 84927C - SWITCH, SEAT MEMORY, LH | ||||
| 84927-33110 |
AVV60,GSV60 B PACKAGE |
1 | ||
| 84927-33110 |
GSV60 SPECIAL EDITION |
1 | ||
| 84927-33110 |
AVV60,GSV60 D PACKAGE |
1 | ||
| 84927-33110 |
AVV60,GSV60 C PACKAGE |
1 | ||
| 84927C - SWITCH, SEAT MEMORY, LH | ||||
| 84927-33110 |
AVV60,GSV60 B PACKAGE |
1 | ||
| 84927-33110 |
GSV60 SPECIAL EDITION |
1 | ||
| 84927-33110 |
AVV60,GSV60 D PACKAGE |
1 | ||
| 84927-33110 |
AVV60,GSV60 C PACKAGE |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-33120 |
AVV60,GSV60 |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-33220 |
AVV60,GSV60 KOREA SPEC&B PACKAGE,RH |
1 | ||
| 89430-33230 |
AVV60,GSV60 KOREA SPEC&B PACKAGE,LH |
1 | ||
| 89430-33220 |
AVV60,GSV60 C PACKAGE,RH |
1 | ||
| 89430-33220 |
AVV60,GSV60 D PACKAGE,RH |
1 | ||
| 89430-33230 |
AVV60,GSV60 KOREA SPEC&D PACKAGE,LH |
1 | ||
| 89430-33220 |
AVV60,GSV60 KOREA SPEC,RH |
1 | ||
| 89430-33230 |
AVV60,GSV60 KOREA SPEC&C PACKAGE,LH |
1 | ||
| 89430-33270 |
AVV60,GSV60 KOREA SPEC&C PACKAGE,RH |
1 | ||
| 89430-33220 |
AVV60,GSV60 KOREA SPEC&C PACKAGE,RH |
1 | ||
| 89430-33230 |
AVV60,GSV60 B PACKAGE,LH |
1 | ||
| 89430-33270 |
AVV60,GSV60 KOREA SPEC&B PACKAGE,RH |
1 | ||
| 89430-33230 |
AVV60,GSV60 D PACKAGE,LH |
1 | ||
| 89430-33270 |
AVV60,GSV60 C PACKAGE,RH |
1 | ||
| 89430-33220 |
AVV60,GSV60 KOREA SPEC&D PACKAGE,RH |
1 | ||
| 89430-33270 |
AVV60,GSV60 KOREA SPEC&D PACKAGE,RH |
1 | ||
| 89430-33270 |
AVV60,GSV60 KOREA SPEC,RH |
1 | ||
| 89430-33280 |
AVV60,GSV60 KOREA SPEC,LH |
1 | ||
| 89430-33280 |
AVV60,GSV60 C PACKAGE,LH |
1 | ||
| 89430-33270 |
AVV60,GSV60 B PACKAGE,RH |
1 | ||
| 89430-33220 |
AVV60,GSV60 B PACKAGE,RH |
1 | ||
| 89430-33230 |
AVV60,GSV60 KOREA SPEC,LH |
1 | ||
| 89430-33280 |
AVV60,GSV60 KOREA SPEC&C PACKAGE,LH |
1 | ||
| 89430-33230 |
AVV60,GSV60 C PACKAGE,LH |
1 | ||
| 89430-33270 |
GSV60 SPECIAL EDITION,RH |
1 | ||
| 89430-33270 |
AVV60,GSV60 D PACKAGE,RH |
1 | ||
| 89430-33280 |
GSV60 SPECIAL EDITION,LH |
1 | ||
| 89430-33280 |
AVV60,GSV60 D PACKAGE,LH |
1 | ||
| 89430-33280 |
AVV60,GSV60 KOREA SPEC&B PACKAGE,LH |
1 | ||
| 89430-33280 |
AVV60,GSV60 B PACKAGE,LH |
1 | ||
| 89430-33280 |
AVV60,GSV60 KOREA SPEC&D PACKAGE,LH |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-33220 |
AVV60,GSV60 KOREA SPEC&B PACKAGE,RH |
1 | ||
| 89430-33230 |
AVV60,GSV60 KOREA SPEC&B PACKAGE,LH |
1 | ||
| 89430-33220 |
AVV60,GSV60 C PACKAGE,RH |
1 | ||
| 89430-33220 |
AVV60,GSV60 D PACKAGE,RH |
1 | ||
| 89430-33230 |
AVV60,GSV60 KOREA SPEC&D PACKAGE,LH |
1 | ||
| 89430-33220 |
AVV60,GSV60 KOREA SPEC,RH |
1 | ||
| 89430-33230 |
AVV60,GSV60 KOREA SPEC&C PACKAGE,LH |
1 | ||
| 89430-33270 |
AVV60,GSV60 KOREA SPEC&C PACKAGE,RH |
1 | ||
| 89430-33220 |
AVV60,GSV60 KOREA SPEC&C PACKAGE,RH |
1 | ||
| 89430-33230 |
AVV60,GSV60 B PACKAGE,LH |
1 | ||
| 89430-33270 |
AVV60,GSV60 KOREA SPEC&B PACKAGE,RH |
1 | ||
| 89430-33230 |
AVV60,GSV60 D PACKAGE,LH |
1 | ||
| 89430-33270 |
AVV60,GSV60 C PACKAGE,RH |
1 | ||
| 89430-33220 |
AVV60,GSV60 KOREA SPEC&D PACKAGE,RH |
1 | ||
| 89430-33270 |
AVV60,GSV60 KOREA SPEC&D PACKAGE,RH |
1 | ||
| 89430-33270 |
AVV60,GSV60 KOREA SPEC,RH |
1 | ||
| 89430-33280 |
AVV60,GSV60 KOREA SPEC,LH |
1 | ||
| 89430-33280 |
AVV60,GSV60 C PACKAGE,LH |
1 | ||
| 89430-33270 |
AVV60,GSV60 B PACKAGE,RH |
1 | ||
| 89430-33220 |
AVV60,GSV60 B PACKAGE,RH |
1 | ||
| 89430-33230 |
AVV60,GSV60 KOREA SPEC,LH |
1 | ||
| 89430-33280 |
AVV60,GSV60 KOREA SPEC&C PACKAGE,LH |
1 | ||
| 89430-33230 |
AVV60,GSV60 C PACKAGE,LH |
1 | ||
| 89430-33270 |
GSV60 SPECIAL EDITION,RH |
1 | ||
| 89430-33270 |
AVV60,GSV60 D PACKAGE,RH |
1 | ||
| 89430-33280 |
GSV60 SPECIAL EDITION,LH |
1 | ||
| 89430-33280 |
AVV60,GSV60 D PACKAGE,LH |
1 | ||
| 89430-33280 |
AVV60,GSV60 KOREA SPEC&B PACKAGE,LH |
1 | ||
| 89430-33280 |
AVV60,GSV60 B PACKAGE,LH |
1 | ||
| 89430-33280 |
AVV60,GSV60 KOREA SPEC&D PACKAGE,LH |
1 | ||
| Common parts | ||||
| 90159-60303 | None epc.PartDetail.None | |||
| 90164-40103 | None epc.PartDetail.None | |||
| 90166-70001 | None epc.PartDetail.None | |||
| 90189-06227 | None epc.PartDetail.None | |||
ILLUST NO.10 OF10(1206- )
FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-33141 |
AVV60,GSV60 |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84930-50050 |
AVV60,GSV60 AUTO & EASY CLOSER DOOR-WITH |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84930-50050 |
AVV60,GSV60 AUTO & EASY CLOSER DOOR-WITH |
1 | ||
| 85911D - RELAY, REAR SUNSHADE | ||||
| 85911-30020 |
AVV60,GSV60 SUN SHADE-WITH(BACK WINDOW) |
1 | ||
| 85911-30020 |
AVV60,GSV60 SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-0W530 |
AVV60,GSV60 BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88162-0W350 |
AVV60,GSV60 BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88162-0W531 |
AVV60,GSV60 BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-0W350 |
AVV60,GSV60 BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88162-0W531 |
AVV60,GSV60 BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88162-0W530 |
AVV60,GSV60 BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
AVV60,GSV60 BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| Common parts | ||||
| 90159-50311 | None epc.PartDetail.None | |||
| 90179-06178 | None epc.PartDetail.None | |||
| 90189-05003 | None epc.PartDetail.None | |||
ILLUST NO. 4 OF10(1206-1507)
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
AVV60,GSV60 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
AVV60,GSV60 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
AVV60,GSV60 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
AVV60,GSV60 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
AVV60,GSV60 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
AVV60,GSV60 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
AVV60,GSV60 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
AVV60,GSV60 25A,MINI FUSE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
AVV60,GSV60 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
AVV60,GSV60 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
AVV60,GSV60 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
AVV60,GSV60 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
AVV60,GSV60 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
AVV60,GSV60 25A,MINI FUSE |
1 | ||
| 82642G - RELAY, PANEL | ||||
| 90987-02027 |
AVV60,GSV60 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-33452 |
AVV60,GSV60 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-33G91 |
AVV60,GSV60 |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-33020 |
AVV60,GSV60 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-39025 |
AVV60,GSV60 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
AVV60,GSV60 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-47010 |
AVV60,GSV60 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-33170 |
AVV60,GSV60 INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT) |
1 | ||
| 85940-33170 |
AVV60,GSV60 |
1 | ||
| 85940-33170 |
AVV60,GSV60 INTERMITTENT WIPER-WITH |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-33151 |
GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 88150-33152 |
GSV60 KOREA SPEC |
1 | ||
| 88150-33150 |
GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 88150-33152 |
GSV60 |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-33102 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 89111-33101 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 89111-33101 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 89111-33102 |
AVV60,GSV60 KOREA SPEC |
1 | ||
| 89111-33102 |
AVV60,GSV60 |
1 | ||
| 89111-33102 |
AVV60,GSV60 BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 89111-33101 |
AVV60,GSV60 BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 89111-33102 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 89111-33102 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-50020 |
AVV60,GSV60 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-33A90 |
AVV60,GSV60 HAWAII SPEC&HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33A90 |
AVV60,GSV60 HAWAII SPEC&HEAD LAMP-HI(LED) & WITH(*AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33B10 |
AVV60,GSV60 USA POSSESSIONS SPEC&HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33B00 |
AVV60,GSV60 HAWAII SPEC |
1 | ||
| 89220-33B10 |
AVV60,GSV60 USA POSSESSIONS SPEC&HEAD LAMP-HI(LED) & WITH(*AHB)&DOOR TRIM ORNAMENT PANEL-WOODPANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33B20 |
AVV60,GSV60 PUERTO RICO SPEC |
1 | ||
| 89220-33B30 |
AVV60,GSV60 CANADA SPEC&HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33B10 |
AVV60,GSV60 PUERTO RICO SPEC&HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33A90 |
AVV60,GSV60 HAWAII SPEC&HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33A90 |
AVV60,GSV60 HAWAII SPEC&HEAD LAMP-HI(LED) & WITH(AFS)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33B20 |
AVV60,GSV60 USA POSSESSIONS SPEC |
1 | ||
| 89220-33B40 |
AVV60,GSV60 CANADA SPEC |
1 | ||
| 89220-33B80 |
AVV60,GSV60 |
1 | ||
| 89220-33B70 |
AVV60,GSV60 HEAD LAMP-HI(LED) & WITH(*AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33B60 |
AVV60,GSV60 KOREA SPEC |
1 | ||
| 89220-33B30 |
AVV60,GSV60 CANADA SPEC&HEAD LAMP-HI(LED) & WITH(*AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33B10 |
AVV60,GSV60 PUERTO RICO SPEC&HEAD LAMP-HI(LED) & WITH(*AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33B70 |
AVV60,GSV60 HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K00 |
AVV60,GSV60 HAWAII SPEC&HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33B50 |
AVV60,GSV60 KOREA SPEC&HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33B70 |
AVV60,GSV60 HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K20 |
AVV60,GSV60 PUERTO RICO SPEC&HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K00 |
AVV60,GSV60 HAWAII SPEC&HEAD LAMP-HI(LED) & WITH(*AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K80 |
AVV60,GSV60 HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K40 |
AVV60,GSV60 CANADA SPEC&HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K00 |
AVV60,GSV60 HAWAII SPEC&HEAD LAMP-HI(LED) & WITH(AFS)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33B70 |
AVV60,GSV60 HEAD LAMP-HI(LED) & WITH(AFS)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K30 |
AVV60,GSV60 USA POSSESSIONS SPEC |
1 | ||
| 89220-33K00 |
AVV60,GSV60 HAWAII SPEC&HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K10 |
AVV60,GSV60 HAWAII SPEC |
1 | ||
| 89220-33K70 |
AVV60,GSV60 KOREA SPEC |
1 | ||
| 89220-33K20 |
AVV60,GSV60 PUERTO RICO SPEC&HEAD LAMP-HI(LED) & WITH(*AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K60 |
AVV60,GSV60 KOREA SPEC&HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K20 |
AVV60,GSV60 USA POSSESSIONS SPEC&HEAD LAMP-HI(LED) & WITH(*AHB)&DOOR TRIM ORNAMENT PANEL-WOODPANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K80 |
AVV60,GSV60 HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K70 |
AVV60,GSV60 KOREA SPEC&HEAD LAMP-HI(HALOGEN) |
1 | ||
| 89220-33K80 |
AVV60,GSV60 HEAD LAMP-HI(LED) & WITH(AFS)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K20 |
AVV60,GSV60 USA POSSESSIONS SPEC&HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K80 |
AVV60,GSV60 HEAD LAMP-HI(LED) & WITH(*AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K90 |
AVV60,GSV60 |
1 | ||
| 89220-33K30 |
AVV60,GSV60 PUERTO RICO SPEC |
1 | ||
| 89220-33K50 |
AVV60,GSV60 CANADA SPEC |
1 | ||
| 89220-33K40 |
AVV60,GSV60 CANADA SPEC&HEAD LAMP-HI(LED) & WITH(*AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K70 |
AVV60,GSV60 KOREA SPEC&HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL |
1 | ||
| Common parts | ||||
| 82715-33F20 | None epc.PartDetail.None | |||
| 90119-06448 | None epc.PartDetail.None | |||
| 90119-06952 | None epc.PartDetail.None | |||
| 90179-06274 | None epc.PartDetail.None | |||
| 90179-06323 | None epc.PartDetail.None | |||
| 91553-80614 | None epc.PartDetail.None | |||
| 91673-80616 | None epc.PartDetail.None | |||
| 93313-15010 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 8417 | ||||
| 8435 | ||||

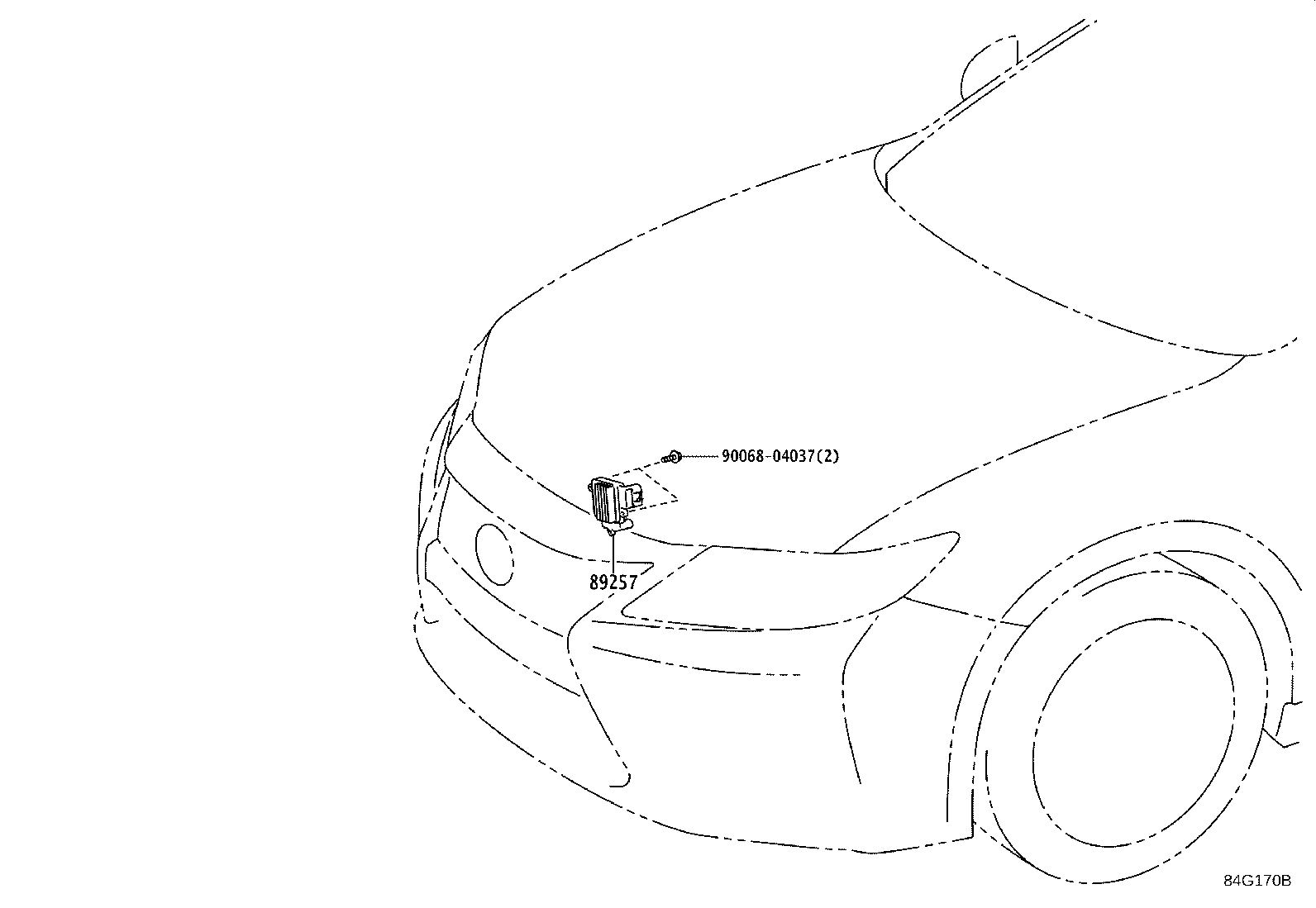

ILLUST NO. 2 OF10(1206-1507)GSV60
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30060 |
GSV60 |
1 | ||
| Common parts | ||||
| 90068-04037 | None epc.PartDetail.None | |||
ILLUST NO. 1 OF10(1206- )GSV60
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
AVV60,GSV60 YAZAKI |
1 | ||
| 83530-28020 |
AVV60,GSV60 DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-33010 |
GSV60 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-33600 |
GSV60 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-33610 |
GSV60 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-48280 |
GSV60 |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-33260 |
GSV60 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-48010 |
GSV60 |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-33340 |
GSV60 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GSV60 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GSV60 |
2 | ||
| Common parts | ||||
| 82715-33B50 | None epc.PartDetail.None | |||
| 82715-33G70 | None epc.PartDetail.None | |||
| 82715-33J40 | None epc.PartDetail.None | |||
| 87616-42020 | None epc.PartDetail.None | |||
| 91551-80825 | None epc.PartDetail.None | |||
| 91551-80830 | None epc.PartDetail.None | |||
| 91621-B0616 | None epc.PartDetail.None | |||
| 91651-40620 | None epc.PartDetail.None | |||
| 91671-80612 | None epc.PartDetail.None | |||
ILLUST NO. 2 OF10(1507- )GSV60
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30060 |
GSV60 |
1 | ||
| Common parts | ||||
| 90068-04037 | None epc.PartDetail.None | |||
ILLUST NO. 4 OF10(1507- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
AVV60,GSV60 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
AVV60,GSV60 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
AVV60,GSV60 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
AVV60,GSV60 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
AVV60,GSV60 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
AVV60,GSV60 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
AVV60,GSV60 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
AVV60,GSV60 25A,MINI FUSE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
AVV60,GSV60 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
AVV60,GSV60 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
AVV60,GSV60 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
AVV60,GSV60 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
AVV60,GSV60 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
AVV60,GSV60 25A,MINI FUSE |
1 | ||
| 82642G - RELAY, PANEL | ||||
| 90987-02027 |
AVV60,GSV60 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-33452 |
AVV60,GSV60 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-33G91 |
AVV60,GSV60 |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-33020 |
AVV60,GSV60 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-39025 |
AVV60,GSV60 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
AVV60,GSV60 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-47010 |
AVV60,GSV60 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-33170 |
AVV60,GSV60 INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT) |
1 | ||
| 85940-33170 |
AVV60,GSV60 |
1 | ||
| 85940-33170 |
AVV60,GSV60 INTERMITTENT WIPER-WITH |
1 | ||
| 86530A - RELAY, HORN | ||||
| 90987-02027 |
AVV60,GSV60 |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-33151 |
GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 88150-33152 |
GSV60 KOREA SPEC |
1 | ||
| 88150-33150 |
GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 88150-33152 |
GSV60 |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-33102 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 89111-33101 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 89111-33101 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 89111-33102 |
AVV60,GSV60 KOREA SPEC |
1 | ||
| 89111-33102 |
AVV60,GSV60 |
1 | ||
| 89111-33102 |
AVV60,GSV60 BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 89111-33101 |
AVV60,GSV60 BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 89111-33102 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 89111-33102 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-50020 |
AVV60,GSV60 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-33A90 |
AVV60,GSV60 HAWAII SPEC&HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33A90 |
AVV60,GSV60 HAWAII SPEC&HEAD LAMP-HI(LED) & WITH(*AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33B10 |
AVV60,GSV60 USA POSSESSIONS SPEC&HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33B00 |
AVV60,GSV60 HAWAII SPEC |
1 | ||
| 89220-33B10 |
AVV60,GSV60 USA POSSESSIONS SPEC&HEAD LAMP-HI(LED) & WITH(*AHB)&DOOR TRIM ORNAMENT PANEL-WOODPANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33B20 |
AVV60,GSV60 PUERTO RICO SPEC |
1 | ||
| 89220-33B30 |
AVV60,GSV60 CANADA SPEC&HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33B10 |
AVV60,GSV60 PUERTO RICO SPEC&HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33A90 |
AVV60,GSV60 HAWAII SPEC&HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33A90 |
AVV60,GSV60 HAWAII SPEC&HEAD LAMP-HI(LED) & WITH(AFS)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33B20 |
AVV60,GSV60 USA POSSESSIONS SPEC |
1 | ||
| 89220-33B40 |
AVV60,GSV60 CANADA SPEC |
1 | ||
| 89220-33B80 |
AVV60,GSV60 |
1 | ||
| 89220-33B70 |
AVV60,GSV60 HEAD LAMP-HI(LED) & WITH(*AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33B60 |
AVV60,GSV60 KOREA SPEC |
1 | ||
| 89220-33B30 |
AVV60,GSV60 CANADA SPEC&HEAD LAMP-HI(LED) & WITH(*AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33B10 |
AVV60,GSV60 PUERTO RICO SPEC&HEAD LAMP-HI(LED) & WITH(*AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33B70 |
AVV60,GSV60 HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K00 |
AVV60,GSV60 HAWAII SPEC&HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33B50 |
AVV60,GSV60 KOREA SPEC&HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33B70 |
AVV60,GSV60 HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K20 |
AVV60,GSV60 PUERTO RICO SPEC&HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K00 |
AVV60,GSV60 HAWAII SPEC&HEAD LAMP-HI(LED) & WITH(*AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K80 |
AVV60,GSV60 HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K40 |
AVV60,GSV60 CANADA SPEC&HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K00 |
AVV60,GSV60 HAWAII SPEC&HEAD LAMP-HI(LED) & WITH(AFS)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33B70 |
AVV60,GSV60 HEAD LAMP-HI(LED) & WITH(AFS)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K30 |
AVV60,GSV60 USA POSSESSIONS SPEC |
1 | ||
| 89220-33K00 |
AVV60,GSV60 HAWAII SPEC&HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K10 |
AVV60,GSV60 HAWAII SPEC |
1 | ||
| 89220-33K70 |
AVV60,GSV60 KOREA SPEC |
1 | ||
| 89220-33K20 |
AVV60,GSV60 PUERTO RICO SPEC&HEAD LAMP-HI(LED) & WITH(*AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K60 |
AVV60,GSV60 KOREA SPEC&HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K20 |
AVV60,GSV60 USA POSSESSIONS SPEC&HEAD LAMP-HI(LED) & WITH(*AHB)&DOOR TRIM ORNAMENT PANEL-WOODPANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K80 |
AVV60,GSV60 HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K70 |
AVV60,GSV60 KOREA SPEC&HEAD LAMP-HI(HALOGEN) |
1 | ||
| 89220-33K80 |
AVV60,GSV60 HEAD LAMP-HI(LED) & WITH(AFS)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K20 |
AVV60,GSV60 USA POSSESSIONS SPEC&HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K80 |
AVV60,GSV60 HEAD LAMP-HI(LED) & WITH(*AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K90 |
AVV60,GSV60 |
1 | ||
| 89220-33K30 |
AVV60,GSV60 PUERTO RICO SPEC |
1 | ||
| 89220-33K50 |
AVV60,GSV60 CANADA SPEC |
1 | ||
| 89220-33K40 |
AVV60,GSV60 CANADA SPEC&HEAD LAMP-HI(LED) & WITH(*AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP) |
1 | ||
| 89220-33K70 |
AVV60,GSV60 KOREA SPEC&HEAD LAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL |
1 | ||
| 89940 - COMPUTER ASSY, HEADLAMP SWIVEL | ||||
| 89940-33290 |
AVV60,GSV60 HEAD LAMP-HI(LED) |
1 | ||
| 89940-33290 |
AVV60,GSV60 HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 89940-33290 |
AVV60,GSV60 KOREA SPEC |
1 | ||
| 89940-33290 |
AVV60,GSV60 KOREA SPEC&HEAD LAMP-HI(LED) |
1 | ||
| 89940-33290 |
AVV60,GSV60 KOREA SPEC&HEAD LAMP-HI(HALOGEN) |
1 | ||
| 89940-33280 |
AVV60,GSV60 HEAD LAMP-HI(LED) & WITH(AFS & *AHB) |
1 | ||
| 89940-33280 |
AVV60,GSV60 HEAD LAMP-HI(LED) & WITH(AFS) |
1 | ||
| Common parts | ||||
| 82715-33F20 | None epc.PartDetail.None | |||
| 90119-06448 | None epc.PartDetail.None | |||
| 90119-06952 | None epc.PartDetail.None | |||
| 90179-06274 | None epc.PartDetail.None | |||
| 90179-06323 | None epc.PartDetail.None | |||
| 91553-80614 | None epc.PartDetail.None | |||
| 91673-80616 | None epc.PartDetail.None | |||
| 93313-15010 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 8417 | ||||
| 8435 | ||||
ILLUST NO. 5 OF10(1507- )
INSTRUMENT PANEL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-33230 |
AVV60,GSV60 |
1 | ||
| 83910-33231 |
AVV60,GSV60 |
1 | ||
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-33020 |
AVV60,GSV60 KOREA SPEC |
1 | ||
| 83950-33020 |
AVV60,GSV60 |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-53011 |
AVV60,GSV60 HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 84153-53011 |
AVV60,GSV60 HEAD LAMP-HI(HALOGEN) & WITH(*AHB) |
1 | ||
| 84153-53011 |
AVV60,GSV60 HEAD LAMP-HI(LED) & WITH(AFS & *AHB) |
1 | ||
| 84153-53011 |
AVV60,GSV60 HEAD LAMP-HI(LED) |
1 | ||
| 84153-53011 |
AVV60,GSV60 |
1 | ||
| 84153-53011 |
AVV60,GSV60 HEAD LAMP-HI(HALOGEN) |
1 | ||
| 84470 - SWITCH ASSY, WARNING CANCELING | ||||
| 84470-33031 |
AVV60,GSV60 BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-33111 |
AVV60,GSV60 |
1 | ||
| 84840C - SWITCH ASSY, LUGGAGE DOOR OPENING, CANCEL | ||||
| 84840-51020 |
AVV60,GSV60 |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-33021 |
AVV60,GSV60 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-33010 |
AVV60,GSV60 |
1 | ||
| 84872-33020 |
AVV60,GSV60 KOREA SPEC&B PACKAGE |
1 | ||
| 84872-33020 |
AVV60,GSV60 KOREA SPEC&D PACKAGE |
1 | ||
| 84872-33020 |
AVV60,GSV60 KOREA SPEC&C PACKAGE |
1 | ||
| 84872-33020 |
AVV60,GSV60 KOREA SPEC |
1 | ||
| 84872-33020 |
AVV60,GSV60 C PACKAGE |
1 | ||
| 84872-33020 |
AVV60,GSV60 D PACKAGE |
1 | ||
| 84872-33020 |
GSV60 SPECIAL EDITION |
1 | ||
| 84872-33020 |
AVV60,GSV60 B PACKAGE |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-33060 |
AVV60,GSV60 KOREA SPEC&D PACKAGE |
1 | ||
| 84873-33060 |
AVV60,GSV60 KOREA SPEC |
1 | ||
| 84873-33060 |
AVV60,GSV60 KOREA SPEC&B PACKAGE |
1 | ||
| 84873-33060 |
AVV60,GSV60 KOREA SPEC&C PACKAGE |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-33030 |
AVV60,GSV60 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30123 |
GSV60 |
1 | ||
| 89611-30122 |
GSV60 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30123 |
GSV60 |
1 | ||
| 89611-30122 |
GSV60 |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
| 8435 | ||||
ILLUST NO. 7 OF10(1507- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-33270 |
AVV60,GSV60 KOREA SPEC |
1 | ||
| 84140-33280 |
AVV60,GSV60 |
1 | ||
| 84140-33270 |
AVV60,GSV60 CANADA SPEC |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-48450 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84250-48430 |
AVV60,GSV60 |
1 | ||
| 84250-33520 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84250-48431 |
AVV60,GSV60 |
1 | ||
| 84250-33510 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 84250-48451 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84250-33510 |
AVV60,GSV60 |
1 | ||
| 84250-33520 |
AVV60,GSV60 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-30010 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84308-48040 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84308-48040 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84308-30010 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84308-33010 |
AVV60,GSV60 |
1 | ||
| 84308-48040 |
AVV60,GSV60 |
1 | ||
| 84308-33020 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 84308-48040 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84308-30010 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84308-33020 |
AVV60,GSV60 |
1 | ||
| 84308-48040 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-30010 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84308-48040 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84308-48040 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84308-30010 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84308-33010 |
AVV60,GSV60 |
1 | ||
| 84308-48040 |
AVV60,GSV60 |
1 | ||
| 84308-33020 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 84308-48040 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84308-30010 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84308-33020 |
AVV60,GSV60 |
1 | ||
| 84308-48040 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-48121 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84307-48131 |
AVV60,GSV60 |
1 | ||
| 84307-48121 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84307-48121 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84307-48150 |
AVV60,GSV60 |
1 | ||
| 84307-48160 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84307-48150 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 84307-48160 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84307-48160 |
AVV60,GSV60 |
1 | ||
| 84307-48160 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84307-48160 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-48121 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84307-48131 |
AVV60,GSV60 |
1 | ||
| 84307-48121 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84307-48121 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84307-48150 |
AVV60,GSV60 |
1 | ||
| 84307-48160 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84307-48150 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 84307-48160 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84307-48160 |
AVV60,GSV60 |
1 | ||
| 84307-48160 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84307-48160 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-33510 |
AVV60,GSV60 KOREA SPEC&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT) |
1 | ||
| 84652-33520 |
AVV60,GSV60 CANADA SPEC |
1 | ||
| 84652-33550 |
AVV60,GSV60 |
1 | ||
| 84652-33540 |
AVV60,GSV60 |
1 | ||
| 84652-33520 |
AVV60,GSV60 KOREA SPEC&INTERMITTENT WIPER-WITH |
1 | ||
| 84652-33510 |
AVV60,GSV60 CANADA SPEC&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT) |
1 | ||
| 84652-33510 |
AVV60,GSV60 CANADA SPEC |
1 | ||
| 84652-33510 |
AVV60,GSV60 KOREA SPEC |
1 | ||
| 84652-33520 |
AVV60,GSV60 KOREA SPEC |
1 | ||
| 84652-33540 |
AVV60,GSV60 INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT) |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-33040 |
AVV60,GSV60 C PACKAGE |
1 | ||
| 89227-33040 |
AVV60,GSV60 D PACKAGE |
1 | ||
| 89227-33040 |
GSV60 SPECIAL EDITION |
1 | ||
| 89227-33040 |
AVV60,GSV60 B PACKAGE |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-33010 |
GSV60 SPECIAL EDITION |
1 | ||
| 89235-33010 |
AVV60,GSV60 D PACKAGE |
1 | ||
| 89235-33010 |
AVV60,GSV60 C PACKAGE |
1 | ||
| 89235-33010 |
AVV60,GSV60 B PACKAGE |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-58010 |
AVV60,GSV60 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-58010 |
AVV60,GSV60 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-33740 |
GSV60 |
1 | ||
| Common parts | ||||
| 90159-50199 | None epc.PartDetail.None | |||
ILLUST NO. 3 OF10(1206-1507)GSV60
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
2GRFE..GSV60 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
AVV60,GSV60 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
AVV60,GSV60 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
AVV60,GSV60 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
AVV60,GSV60 25A,MINI FUSE |
1 | ||
| 90982-09020 |
AVV60,GSV60 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
AVV60,GSV60 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
AVV60,GSV60 30A,MINI FUSE,GRN |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
AVV60,GSV60 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
AVV60,GSV60 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
AVV60,GSV60 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
AVV60,GSV60 25A,MINI FUSE |
1 | ||
| 90982-09020 |
AVV60,GSV60 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
AVV60,GSV60 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
AVV60,GSV60 30A,MINI FUSE,GRN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-33090 |
AVV60,GSV60 |
1 | ||
| 82610C - BLOCK ASSY, FUSE | ||||
| 82610-33100 |
AVV60,GSV60 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
AVV60,GSV60 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33050 |
AVV60,GSV60 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33070 |
AVV60,GSV60 |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33080 |
GSV60 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-33160 |
GSV60 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-48030 |
AVV60,GSV60 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-33050 |
GSV60 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-33530 |
GSV60 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-33A00 |
GSV60 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-33110 |
GSV60 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-33200 |
GSV60 |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-33170 |
AVV60,GSV60 |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-33392 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 B PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(AFS & *AHB) |
1 | ||
| 82720-33392 |
GSV60 PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(HALOGEN) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 D PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(AFS & *AHB) |
1 | ||
| 82720-33392 |
GSV60 HAWAII SPEC&D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER &WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 HAWAII SPEC&D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER &WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(AFS & *AHB) |
1 | ||
| 82720-33392 |
GSV60 D PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 HAWAII SPEC&D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER &WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 HAWAII SPEC&D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER &WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 B PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 D PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 USA POSSESSIONS SPEC&D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 PUERTO RICO SPEC&D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 D PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 B PACKAGE&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(HALOGEN) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(AFS & *AHB) |
1 | ||
| 82720-33392 |
GSV60 USA POSSESSIONS SPEC&D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(HALOGEN) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 B PACKAGE&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) &WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) &WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) &WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) &WITH(AFS & *AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 PUERTO RICO SPEC&D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) &WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) &WITH(AFS & *AHB) |
1 | ||
| 82720-33392 |
GSV60 D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) &WITH(AFS & *AHB) |
1 | ||
| 82720-33381 |
GSV60 |
1 | ||
| 82720-33392 |
GSV60 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(HALOGEN) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 B PACKAGE |
1 | ||
| 82720-33392 |
GSV60 B PACKAGE&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(HALOGEN) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 B PACKAGE&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 HAWAII SPEC&D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 B PACKAGE&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 USA POSSESSIONS SPEC&D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 HAWAII SPEC&D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 PUERTO RICO SPEC&D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 HAWAII SPEC&D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) &WITH(AFS & *AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 HAWAII SPEC&D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED) & WITH(AFS & *AHB) |
1 | ||
| 82720-33392 |
GSV60 PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(HALOGEN) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 USA POSSESSIONS SPEC&D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 B PACKAGE&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 PUERTO RICO SPEC&D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 B PACKAGE&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&HEAD LAMP-HI(LED) & WITH(AFS & *AHB) |
1 | ||
| 82720-33392 |
GSV60 SPECIAL EDITION&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED) & WITH(AFS & *AHB) |
1 | ||
| 82720-33392 |
GSV60 D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33381 |
GSV60 KOREA SPEC&C PACKAGE&PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-3-SPOKE, LEATHER& WOOD, WITH(HEATER)&HEAD LAMP-HI(LED)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33381 |
GSV60 KOREA SPEC&B PACKAGE&PRE-COLLISION SYSTEM-WITHOUT&HEAD LAMP-HI(HALOGEN)&CLEARANCE& BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&HEAD LAMP-HI(LED) & WITH(AFS & *AHB) |
1 | ||
| 82720-33381 |
GSV60 KOREA SPEC&D PACKAGE&PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-3-SPOKE, LEATHER& WOOD, WITH(HEATER)&HEAD LAMP-HI(LED)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33381 |
GSV60 KOREA SPEC&C PACKAGE&PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-3-SPOKE, LEATHER& WOOD&HEAD LAMP-HI(LED)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33381 |
GSV60 KOREA SPEC&PRE-COLLISION SYSTEM-WITHOUT&HEAD LAMP-HI(HALOGEN)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-33030 |
GSV60 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-33030 |
GSV60 KOREA SPEC&D PACKAGE&HEAD LAMP-HI(LED)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82742-33030 |
GSV60 KOREA SPEC&C PACKAGE&HEAD LAMP-HI(LED)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82742-33030 |
GSV60 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82742-33030 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82742-33030 |
GSV60 B PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82742-33030 |
GSV60 B PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82742-33030 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82742-33030 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82742-33030 |
GSV60 PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(HALOGEN) & WITH(*AHB) |
1 | ||
| 82742-33030 |
GSV60 D PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82742-33030 |
GSV60 D PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(AFS & *AHB) |
1 | ||
| 82742-33030 |
GSV60 PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(HALOGEN) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82742-33030 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(AFS & *AHB) |
1 | ||
| 82742-33030 |
GSV60 D PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82742-33030 |
GSV60 D PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82742-33030 |
GSV60 |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
AVV60,GSV60 INTERMITTENT WIPER-WITH |
1 | ||
| 90987-02027 |
AVV60,GSV60 INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT) |
1 | ||
| 90987-02027 |
AVV60,GSV60 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
AVV60,GSV60 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
AVV60,GSV60 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
AVV60,GSV60 |
1 | ||
| 86530A - RELAY, HORN | ||||
| 90987-02027 |
AVV60,GSV60 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
2 | ||
| Common parts | ||||
| 90178-06018 | None epc.PartDetail.None | |||
| 91631-B0616 | None epc.PartDetail.None | |||
ILLUST NO. 3 OF10(1507- )GSV60
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
2GRFE..GSV60 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
AVV60,GSV60 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
AVV60,GSV60 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
AVV60,GSV60 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
AVV60,GSV60 25A,MINI FUSE |
1 | ||
| 90982-09020 |
AVV60,GSV60 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
AVV60,GSV60 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
AVV60,GSV60 30A,MINI FUSE,GRN |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
AVV60,GSV60 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
AVV60,GSV60 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
AVV60,GSV60 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
AVV60,GSV60 25A,MINI FUSE |
1 | ||
| 90982-09020 |
AVV60,GSV60 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
AVV60,GSV60 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
AVV60,GSV60 30A,MINI FUSE,GRN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-33090 |
AVV60,GSV60 |
1 | ||
| 82610C - BLOCK ASSY, FUSE | ||||
| 82610-33100 |
AVV60,GSV60 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
AVV60,GSV60 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33050 |
AVV60,GSV60 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33070 |
AVV60,GSV60 |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33080 |
GSV60 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-33160 |
GSV60 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-48030 |
AVV60,GSV60 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-33050 |
GSV60 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-33530 |
GSV60 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-33A00 |
GSV60 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-33110 |
GSV60 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-33200 |
GSV60 |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-33170 |
AVV60,GSV60 |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-33392 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 B PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(AFS & *AHB) |
1 | ||
| 82720-33392 |
GSV60 PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(HALOGEN) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 D PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(AFS & *AHB) |
1 | ||
| 82720-33392 |
GSV60 HAWAII SPEC&D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER &WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 HAWAII SPEC&D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER &WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(AFS & *AHB) |
1 | ||
| 82720-33392 |
GSV60 D PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 HAWAII SPEC&D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER &WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 HAWAII SPEC&D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER &WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 B PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 D PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 USA POSSESSIONS SPEC&D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 PUERTO RICO SPEC&D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 D PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 B PACKAGE&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(HALOGEN) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(AFS & *AHB) |
1 | ||
| 82720-33392 |
GSV60 USA POSSESSIONS SPEC&D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(HALOGEN) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 B PACKAGE&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) &WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) &WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) &WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) &WITH(AFS & *AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 PUERTO RICO SPEC&D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) &WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) &WITH(AFS & *AHB) |
1 | ||
| 82720-33392 |
GSV60 D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) &WITH(AFS & *AHB) |
1 | ||
| 82720-33381 |
GSV60 |
1 | ||
| 82720-33392 |
GSV60 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(HALOGEN) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 B PACKAGE |
1 | ||
| 82720-33392 |
GSV60 B PACKAGE&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(HALOGEN) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 B PACKAGE&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 HAWAII SPEC&D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 B PACKAGE&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 USA POSSESSIONS SPEC&D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 HAWAII SPEC&D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 PUERTO RICO SPEC&D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 HAWAII SPEC&D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 D PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(LED) &WITH(AFS & *AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 HAWAII SPEC&D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED) & WITH(AFS & *AHB) |
1 | ||
| 82720-33392 |
GSV60 PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-HI(HALOGEN) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 USA POSSESSIONS SPEC&D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 B PACKAGE&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 PUERTO RICO SPEC&D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 B PACKAGE&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&HEAD LAMP-HI(LED) & WITH(AFS & *AHB) |
1 | ||
| 82720-33392 |
GSV60 SPECIAL EDITION&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&HEAD LAMP-HI(LED) & WITH(AFS & *AHB) |
1 | ||
| 82720-33392 |
GSV60 D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33381 |
GSV60 KOREA SPEC&C PACKAGE&PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-3-SPOKE, LEATHER& WOOD, WITH(HEATER)&HEAD LAMP-HI(LED)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33381 |
GSV60 KOREA SPEC&B PACKAGE&PRE-COLLISION SYSTEM-WITHOUT&HEAD LAMP-HI(HALOGEN)&CLEARANCE& BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&HEAD LAMP-HI(LED) & WITH(AFS & *AHB) |
1 | ||
| 82720-33381 |
GSV60 KOREA SPEC&D PACKAGE&PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-3-SPOKE, LEATHER& WOOD, WITH(HEATER)&HEAD LAMP-HI(LED)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33381 |
GSV60 KOREA SPEC&C PACKAGE&PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-3-SPOKE, LEATHER& WOOD&HEAD LAMP-HI(LED)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33381 |
GSV60 KOREA SPEC&PRE-COLLISION SYSTEM-WITHOUT&HEAD LAMP-HI(HALOGEN)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82720-33392 |
GSV60 C PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82720-33392 |
GSV60 |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-33030 |
GSV60 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-33030 |
GSV60 KOREA SPEC&D PACKAGE&HEAD LAMP-HI(LED)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82742-33030 |
GSV60 KOREA SPEC&C PACKAGE&HEAD LAMP-HI(LED)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82742-33030 |
GSV60 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82742-33030 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82742-33030 |
GSV60 B PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82742-33030 |
GSV60 B PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82742-33030 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82742-33030 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82742-33030 |
GSV60 PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(HALOGEN) & WITH(*AHB) |
1 | ||
| 82742-33030 |
GSV60 D PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(AFS & *AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82742-33030 |
GSV60 D PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(AFS & *AHB) |
1 | ||
| 82742-33030 |
GSV60 PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(HALOGEN) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82742-33030 |
GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(AFS & *AHB) |
1 | ||
| 82742-33030 |
GSV60 D PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB) |
1 | ||
| 82742-33030 |
GSV60 D PACKAGE&PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HI(LED) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82742-33030 |
GSV60 |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
AVV60,GSV60 INTERMITTENT WIPER-WITH |
1 | ||
| 90987-02027 |
AVV60,GSV60 INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT) |
1 | ||
| 90987-02027 |
AVV60,GSV60 |
1 | ||
| 85912D - RELAY | ||||
| 90987-02027 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 90987-02027 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 90987-02027 |
AVV60,GSV60 |
1 | ||
| 90987-02027 |
AVV60,GSV60 PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90987-02027 |
AVV60,GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
1 | ||
| 85916C - RELAY, BACK UP LAMP | ||||
| 90987-02027 |
GSV60 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
AVV60,GSV60 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
AVV60,GSV60 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
AVV60,GSV60 |
1 | ||
| 86530A - RELAY, HORN | ||||
| 90987-02027 |
AVV60,GSV60 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
2 | ||
| Common parts | ||||
| 90178-06018 | None epc.PartDetail.None | |||
| 91631-B0616 | None epc.PartDetail.None | |||
Part Price Details
Loading price information...
Part Number:
Price:
