GSV60L-BETGKA (2012)
Toyota Lexus Es350/300h(Jpp
Production
Jun 2012
-
Jul 2015
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 3(1206- )
Click highlighted areas on diagram

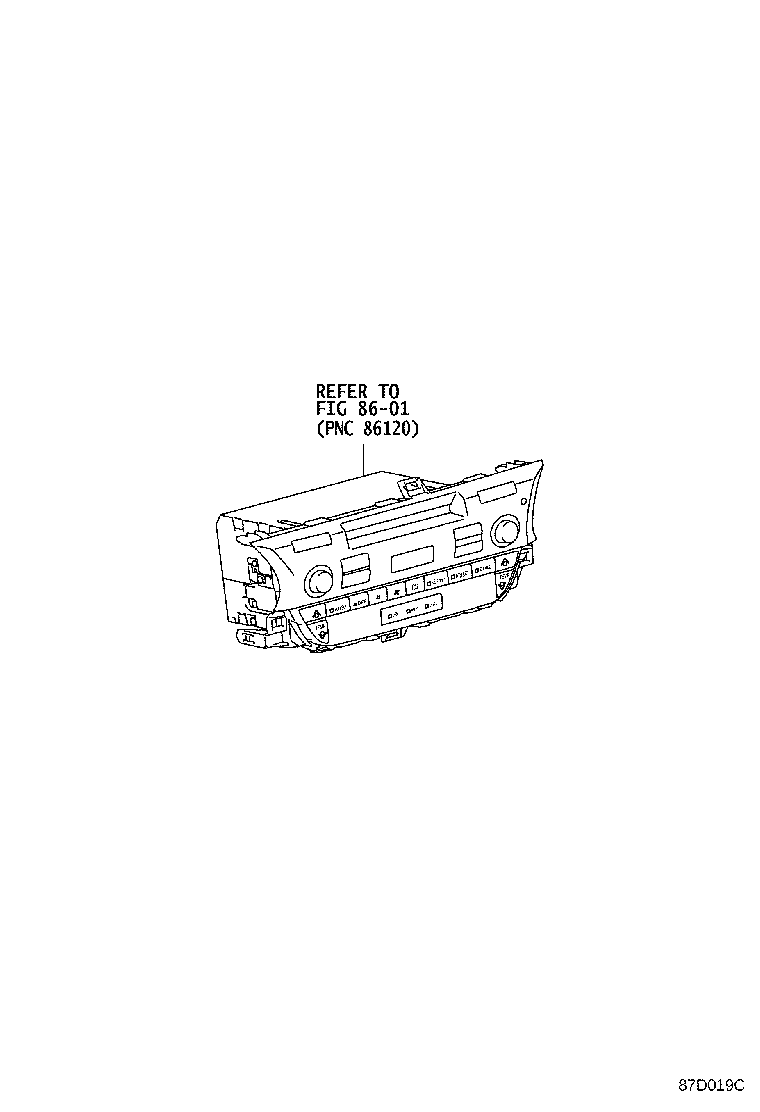

HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8601 | ||||
ILLUST NO. 3 OF 3(1206- )
Click highlighted areas on diagram

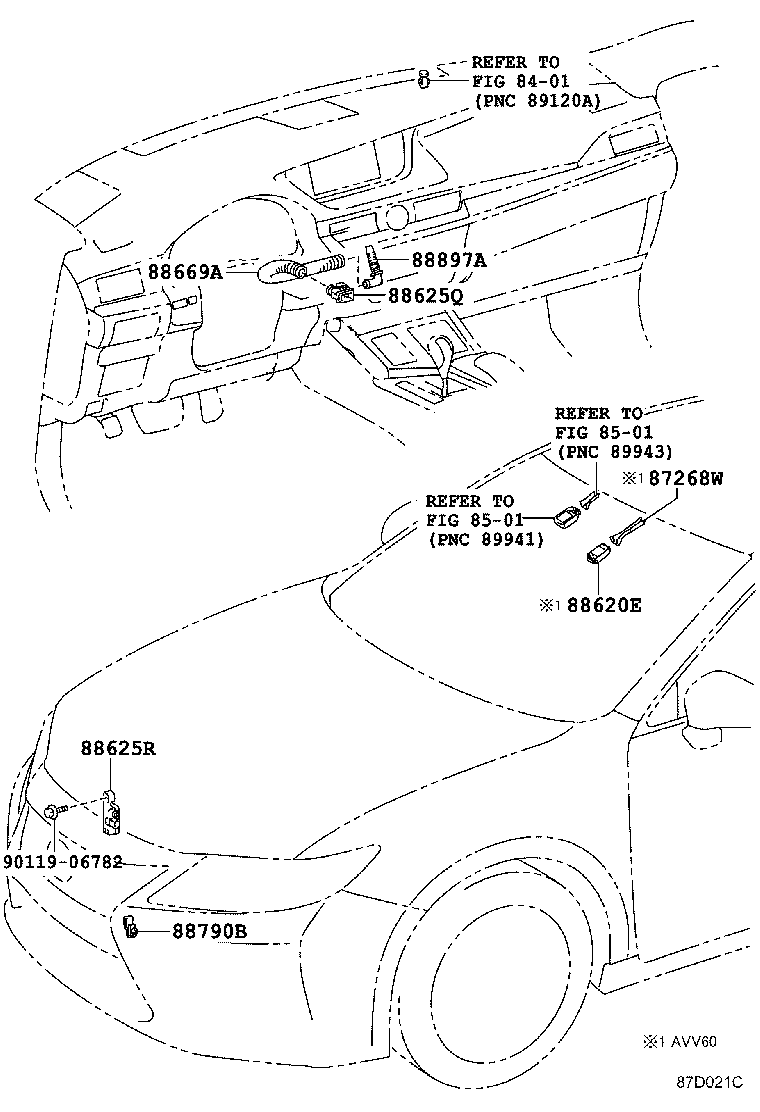

SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
AVV60,GSV60 |
1 | ||
| 88625R - THERMISTOR, COOLER (SENSOR, SMOG VENTILATION) | ||||
| 88898-50031 |
AVV60,GSV60 |
1 | ||
| 88669A - HOSE (FOR COOLER THERMISTOR) | ||||
| 88669-33110 |
AVV60,GSV60 |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
AVV60,GSV60 |
1 | ||
| 88897A - PIPE, ASPIRATOR | ||||
| 88897-33030 |
AVV60,GSV60 |
1 | ||
| Common parts | ||||
| 90119-06782 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8501 | ||||
ILLUST NO. 2 OF 3(1206- )
Click highlighted areas on diagram

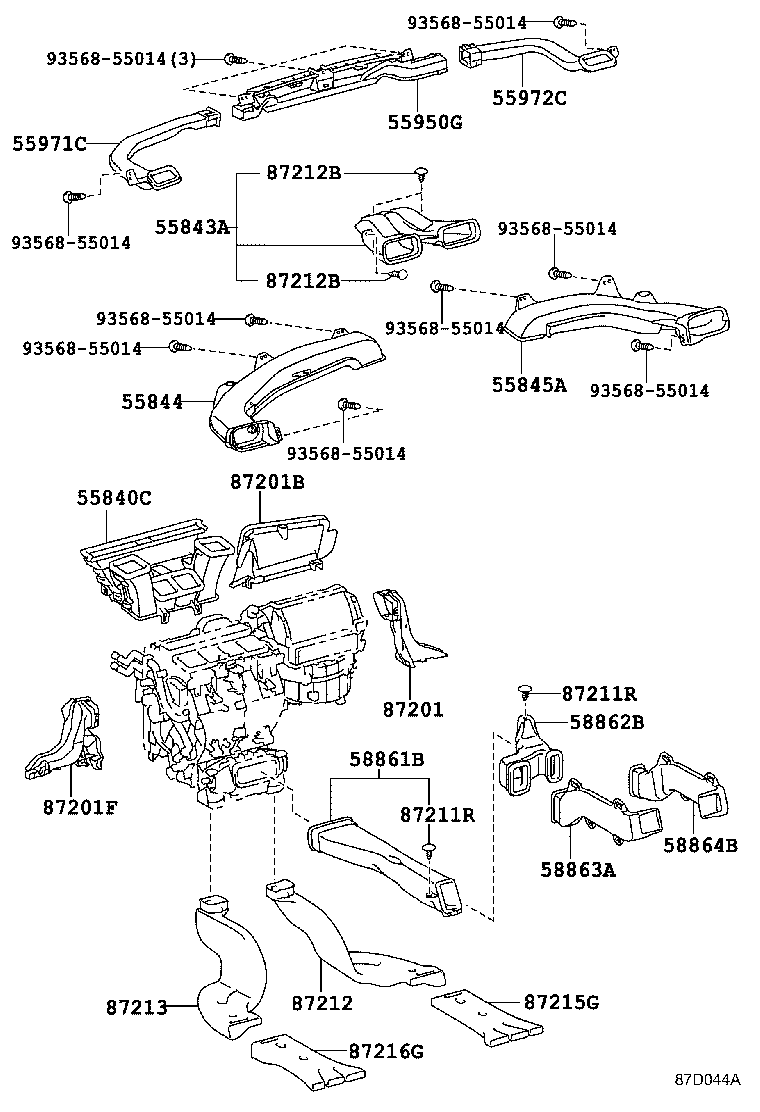

AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55840C - DUCT ASSY, HEATER TO REGISTER, NO.6 | ||||
| 55840-33040 |
AVV60,GSV60 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55844-33180 |
AVV60,GSV60 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55843-33200 |
AVV60,GSV60 |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-33170 |
AVV60,GSV60 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-33110 |
AVV60,GSV60 |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-33130 |
AVV60,GSV60 |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-33130 |
AVV60,GSV60 |
1 | ||
| 58861B - DUCT, CONSOLE BOX, NO.1 | ||||
| 58861-33070 |
AVV60,GSV60 |
1 | ||
| 58862B - DUCT, CONSOLE BOX, NO.2 | ||||
| 58862-33070 |
AVV60,GSV60 |
1 | ||
| 58863A - DUCT, CONSOLE BOX, NO.3 | ||||
| 58863-33050 |
AVV60,GSV60 |
1 | ||
| 58863-33051 |
AVV60,GSV60 |
1 | ||
| 58864B - DUCT, CONSOLE BOX, NO.4 | ||||
| 58864-33040 |
AVV60,GSV60 |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-33290 |
AVV60,GSV60 |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87201-33350 |
AVV60,GSV60 |
1 | ||
| 87201F - DUCT SUB-ASSY, AIR, NO.3 | ||||
| 87201-33430 |
AVV60,GSV60 |
1 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90467-05161A5 |
AVV60,GSV60 IVORY |
1 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90467-05161A5 |
AVV60,GSV60 IVORY |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-33040 |
AVV60,GSV60 |
1 | ||
| 87212B - CLIP, AIR DUCT | ||||
| 90467-0504522 |
AVV60,GSV60 BLACK |
3 | ||
| 87212B - CLIP, AIR DUCT | ||||
| 90467-0504522 |
AVV60,GSV60 BLACK |
3 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-33050 |
AVV60,GSV60 |
1 | ||
| 87215G - GUIDE, AIR DUCT, REAR RH | ||||
| 87215-33010 |
AVV60,GSV60 |
1 | ||
| 87216G - GUIDE, AIR DUCT, REAR LH | ||||
| 87216-33010 |
AVV60,GSV60 |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||
