GSV60L-BETGKA (2012)
Toyota Lexus Es350/300h(Jpp
Production
Jun 2012
-
Jul 2015
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1206- )

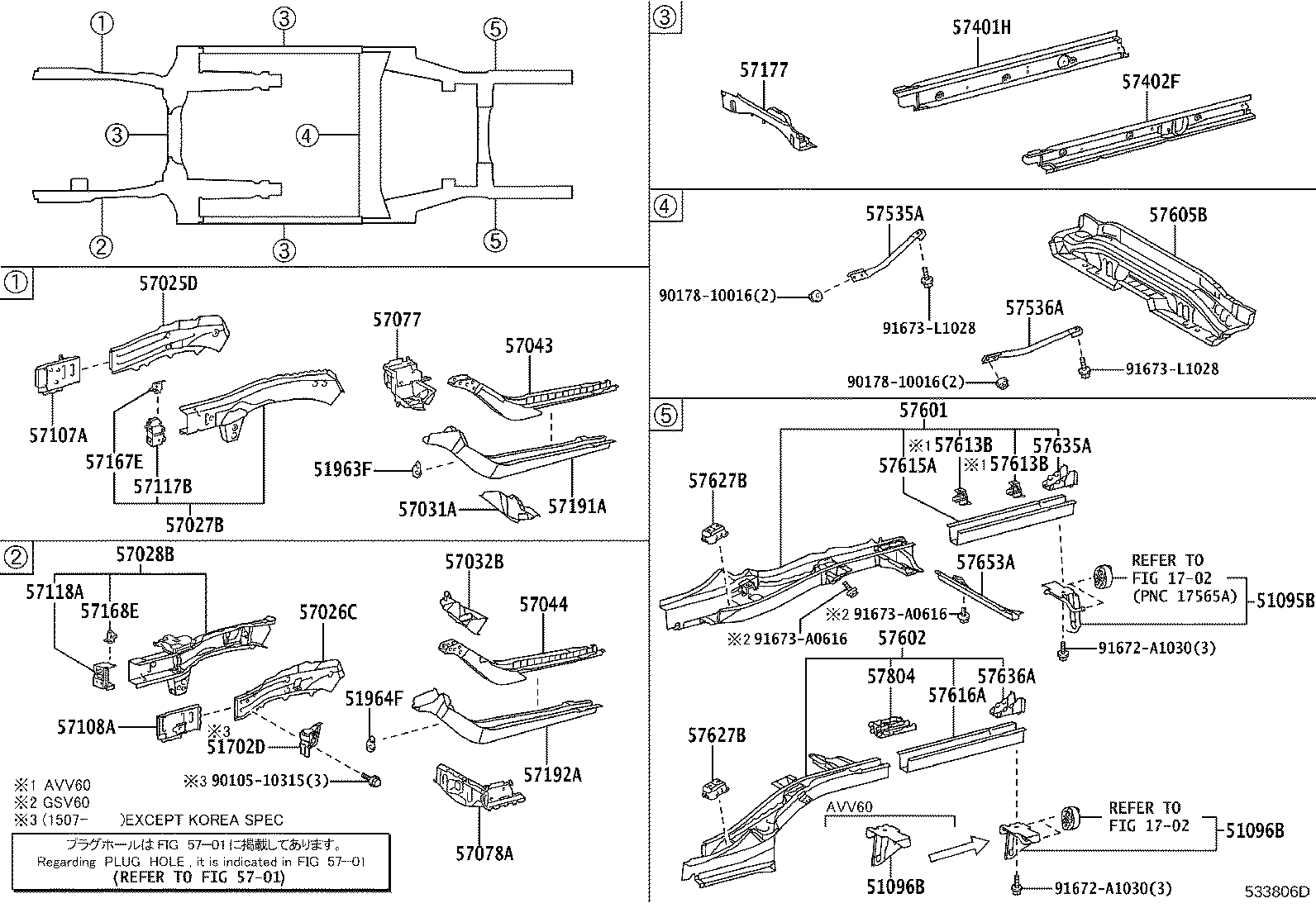

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51095B - HOOK SUB-ASSY, TRANSPORT, REAR RH | ||||
| 51095-33010 |
AVV60,GSV60 |
1 | ||
| 51096B - HOOK SUB-ASSY, TRANSPORT, REAR LH | ||||
| 51096-33010 |
GSV60 |
1 | ||
| 51096B - HOOK SUB-ASSY, TRANSPORT, REAR LH | ||||
| 51096-33010 |
GSV60 |
1 | ||
| 51963F - HOOK, TRANSPORT | ||||
| 51963-33020 |
AVV60,GSV60 |
1 | ||
| 51964F - HOOK, TRANSPORT, LH | ||||
| 51964-33010 |
AVV60,GSV60 |
1 | ||
| 57025D - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH | ||||
| 57025-33020 |
AVV60,GSV60 |
1 | ||
| 57026C - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH | ||||
| 57026-33020 |
AVV60,GSV60 |
1 | ||
| 57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH | ||||
| 57027-33011 |
AVV60,GSV60 |
1 | ||
| 57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH | ||||
| 57028-33060 |
AVV60,GSV60 |
1 | ||
| 57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57031-33011 |
AVV60,GSV60 |
1 | ||
| 57031-33010 |
AVV60,GSV60 |
1 | ||
| 57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57032-33011 |
AVV60,GSV60 |
1 | ||
| 57032-33010 |
AVV60,GSV60 |
1 | ||
| 57043 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-33020 |
AVV60,GSV60 |
1 | ||
| 57044 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-33020 |
AVV60,GSV60 |
1 | ||
| 57077 - BOX SUB-ASSY, TORQUE, FRONT RH | ||||
| 57077-33040 |
AVV60,GSV60 |
1 | ||
| 57078A - BOX SUB-ASSY, TORQUE, FRONT LH | ||||
| 57078-33040 |
AVV60,GSV60 |
1 | ||
| 57078-33041 |
AVV60,GSV60 |
1 | ||
| 57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57107-33032 |
AVV60,GSV60 |
1 | ||
| 57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57108-33032 |
AVV60,GSV60 |
1 | ||
| 57117B - REINFORCEMENT, FRONT BUMPER MOUNTING, RH | ||||
| 57117-33050 |
AVV60,GSV60 |
1 | ||
| 57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH | ||||
| 57118-33050 |
AVV60,GSV60 |
1 | ||
| 57167E - GUSSET, FRONT CROSSMEMBER SIDE, RH | ||||
| 57167-33020 |
AVV60,GSV60 |
1 | ||
| 57168E - GUSSET, FRONT CROSSMEMBER SIDE, LH | ||||
| 57168-33020 |
AVV60,GSV60 |
1 | ||
| 57177 - CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL | ||||
| 57103-33051 |
AVV60,GSV60 |
1 | ||
| 57103-33073 |
AVV60,GSV60 |
1 | ||
| 57103-33070 |
AVV60,GSV60 |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-33010 |
AVV60,GSV60 |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-33010 |
AVV60,GSV60 |
1 | ||
| 57401H - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57401-33130 |
AVV60,GSV60 |
1 | ||
| 57402F - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57402-33130 |
AVV60,GSV60 |
1 | ||
| 57535A - BRACE, FRONT FLOOR, RH | ||||
| 65031-33010 |
AVV60,GSV60 |
1 | ||
| 57536A - BRACE, FRONT FLOOR, LH | ||||
| 65032-33010 |
AVV60,GSV60 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-33220 |
GSV60 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-33200 |
AVV60,GSV60 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-33121 |
AVV60,GSV60 |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-33080 |
GSV60 |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-33070 |
AVV60,GSV60 |
1 | ||
| 57627B - COVER, REAR FLOOR SIDE MEMBER | ||||
| 57627-33030 |
AVV60,GSV60 |
2 | ||
| 57627B - COVER, REAR FLOOR SIDE MEMBER | ||||
| 57627-33030 |
AVV60,GSV60 |
2 | ||
| 57635A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH | ||||
| 57625-33010 |
AVV60,GSV60 |
1 | ||
| 57636A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH | ||||
| 57626-33010 |
AVV60,GSV60 |
1 | ||
| 57653A - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-33090 |
AVV60,GSV60 |
1 | ||
| 57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH | ||||
| 57804-33010 |
AVV60,GSV60 |
1 | ||
| Common parts | ||||
| 90105-10315 | ||||
| 90178-10016 | ||||
| 91672-A1030 | ||||
| 91673-A0616 | ||||
| 91673-L1028 | ||||
| Linked diagrams | ||||
| 1702 | ||||
| 5701 | ||||
