GSV60L-BETGKA (2012)
Toyota Lexus Es350/300h(Jpp
Production
Jun 2012
-
Jul 2015
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1206- )

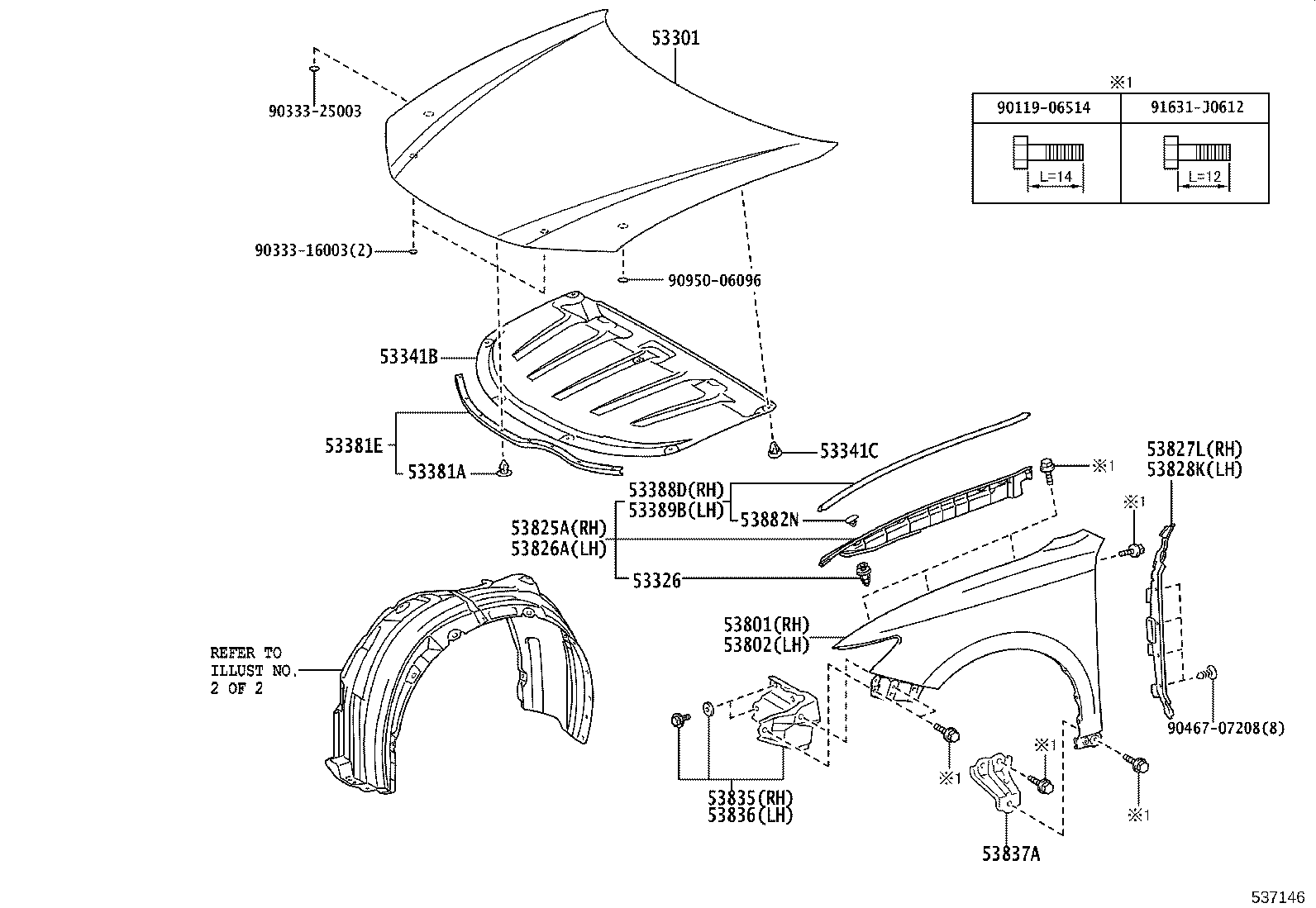

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-33160 |
AVV60,GSV60 |
1 | ||
| 53326 - CLIP, HOOD PROTECTOR | ||||
| 90467-10167 |
AVV60,GSV60 |
8 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-33200 |
AVV60,GSV60 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
AVV60,GSV60 |
11 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
AVV60,GSV60 |
8 | ||
| 53381E - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-33100 |
AVV60,GSV60 |
1 | ||
| 53388D - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-33070 |
AVV60,GSV60 |
1 | ||
| 53389B - SEAL, HOOD TO FRONT FENDER, LH | ||||
| 53389-33080 |
AVV60,GSV60 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-33230 |
AVV60,GSV60 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-33230 |
AVV60,GSV60 |
1 | ||
| 53825A - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53805-33040 |
AVV60,GSV60 |
1 | ||
| 53826A - PROTECTOR, FRONT FENDER, UPPER LH | ||||
| 53806-33050 |
AVV60,GSV60 |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-33070 |
AVV60,GSV60 |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-33070 |
AVV60,GSV60 |
1 | ||
| 53835 - BRACE, FRONT FENDER TO EXTENSION, RH | ||||
| 53835-33100 |
AVV60,GSV60 |
1 | ||
| 53836 - BRACE, FRONT FENDER TO EXTENSION, LH | ||||
| 53804-33040 |
AVV60,GSV60 |
1 | ||
| 53837A - BRACKET, FRONT SIDE PANEL, NO.2 | ||||
| 53837-33010 |
AVV60,GSV60 |
2 | ||
| 53882N - CLIP(FOR FRONT FENDER SEAL) | ||||
| 65487-60010 |
AVV60,GSV60 |
14 | ||
| Common parts | ||||
| 90119-06514 | ||||
| 90333-16003 | ||||
| 90333-25003 | ||||
| 90467-07208 | ||||
| 90950-06096 | ||||
| 91631-J0612 | ||||

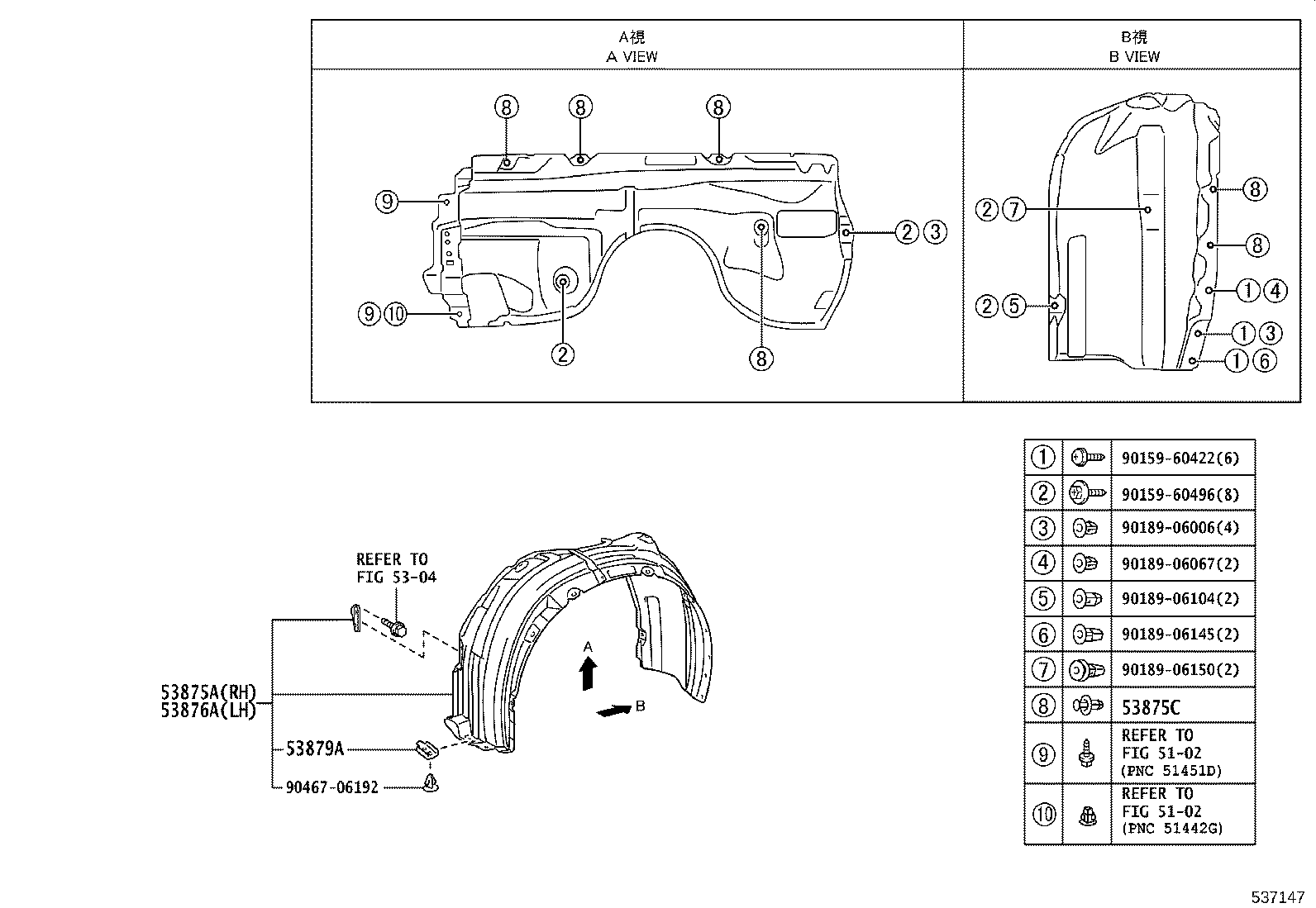

ILLUST NO. 2 OF 2(1206- )
Click highlighted areas on diagram
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-33200 |
AVV60,GSV60 |
1 | ||
| 53875C - CLIP, FRONT FENDER LINER | ||||
| 90467-07214 |
AVV60,GSV60 |
12 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-33200 |
AVV60,GSV60 |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-28040 |
AVV60,GSV60 |
2 | ||
| Common parts | ||||
| 90159-60422 | ||||
| 90159-60496 | ||||
| 90189-06006 | ||||
| 90189-06067 | ||||
| 90189-06104 | ||||
| 90189-06145 | ||||
| 90189-06150 | ||||
| 90467-06192 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5304 | ||||
