GSV60L-BETGKA (2012)
Toyota Lexus Es350/300h(Jpp
Production
Jun 2012
-
Jul 2015
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1206- )

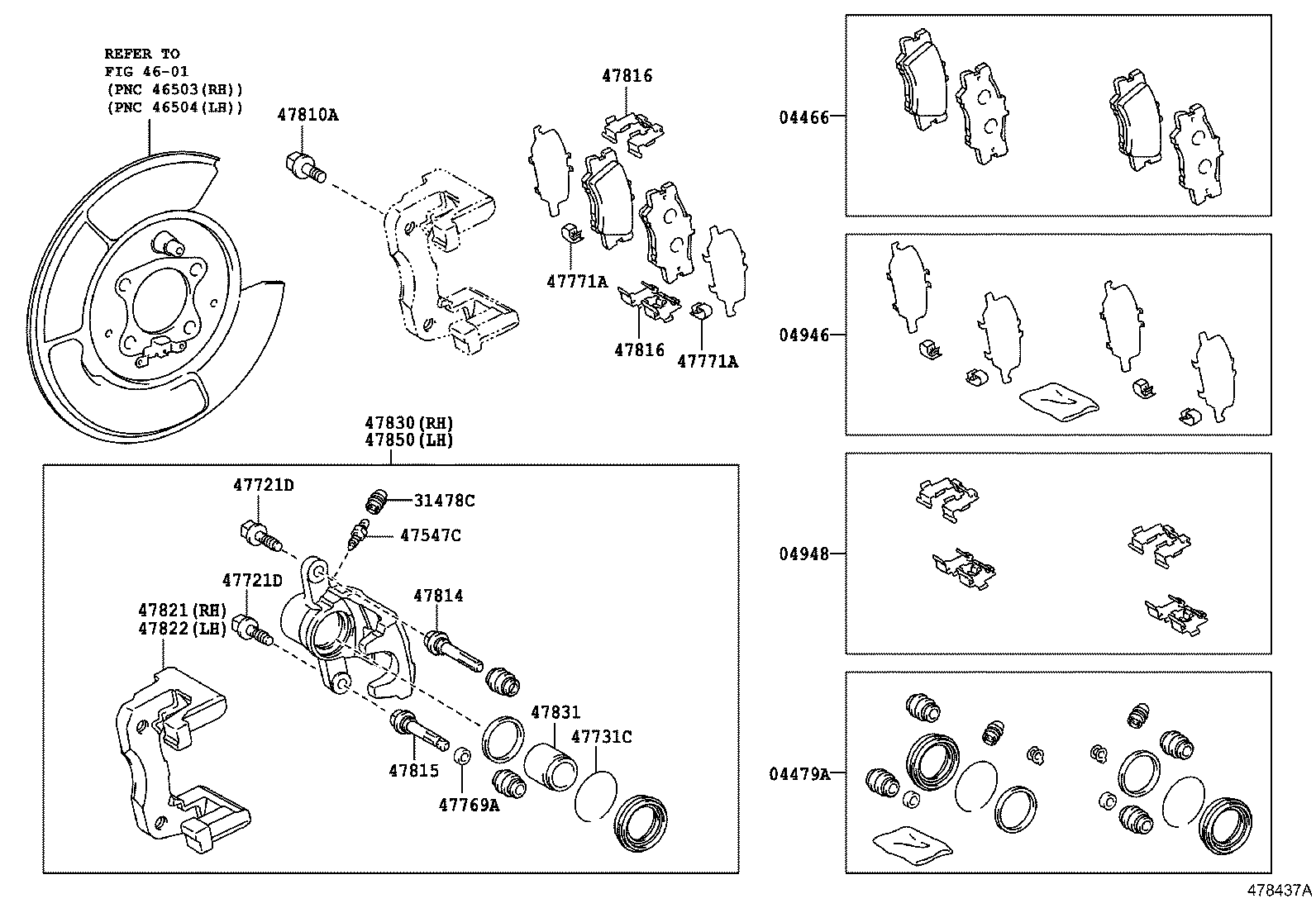

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-33200 |
AVV60,GSV60 MARK NBK D6247 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-33340 |
AVV60,GSV60 |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-33070 |
AVV60,GSV60 |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-33040 |
AVV60,GSV60 |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-50020 |
AVV60,GSV60 |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
AVV60,GSV60 |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90105-08164 |
AVV60,GSV60 *8-1.00PX23-15 |
4 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90105-08164 |
AVV60,GSV60 *8-1.00PX23-15 |
4 | ||
| 47731C - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90520-52006 |
AVV60,GSV60 |
2 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47879-33240 |
AVV60,GSV60 |
2 | ||
| 47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) | ||||
| 47771-72010 |
AVV60,GSV60 |
4 | ||
| 47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) | ||||
| 47771-72010 |
AVV60,GSV60 |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90105-12174 |
AVV60,GSV60 |
4 | ||
| 47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47814-33240 |
AVV60,GSV60 |
2 | ||
| 47815 - PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47815-33240 |
AVV60,GSV60 |
2 | ||
| 47816 - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47816-33211 |
AVV60,GSV60 |
4 | ||
| 47816 - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47816-33211 |
AVV60,GSV60 |
4 | ||
| 47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-33250 |
AVV60,GSV60 |
1 | ||
| 47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47822-33250 |
AVV60,GSV60 |
1 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-33250 |
AVV60,GSV60 |
1 | ||
| 47831 - PISTON, REAR DISC BRAKE | ||||
| 47831-33210 |
AVV60,GSV60 |
2 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-33250 |
AVV60,GSV60 |
1 | ||
| Linked diagrams | ||||
| 4601 | ||||
