GSV60L-BETGKA (2012)

Toyota Lexus Es350/300h(Jpp

Production Jun 2012 - Jul 2015
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1206- )GSV60

Click highlighted areas on diagram

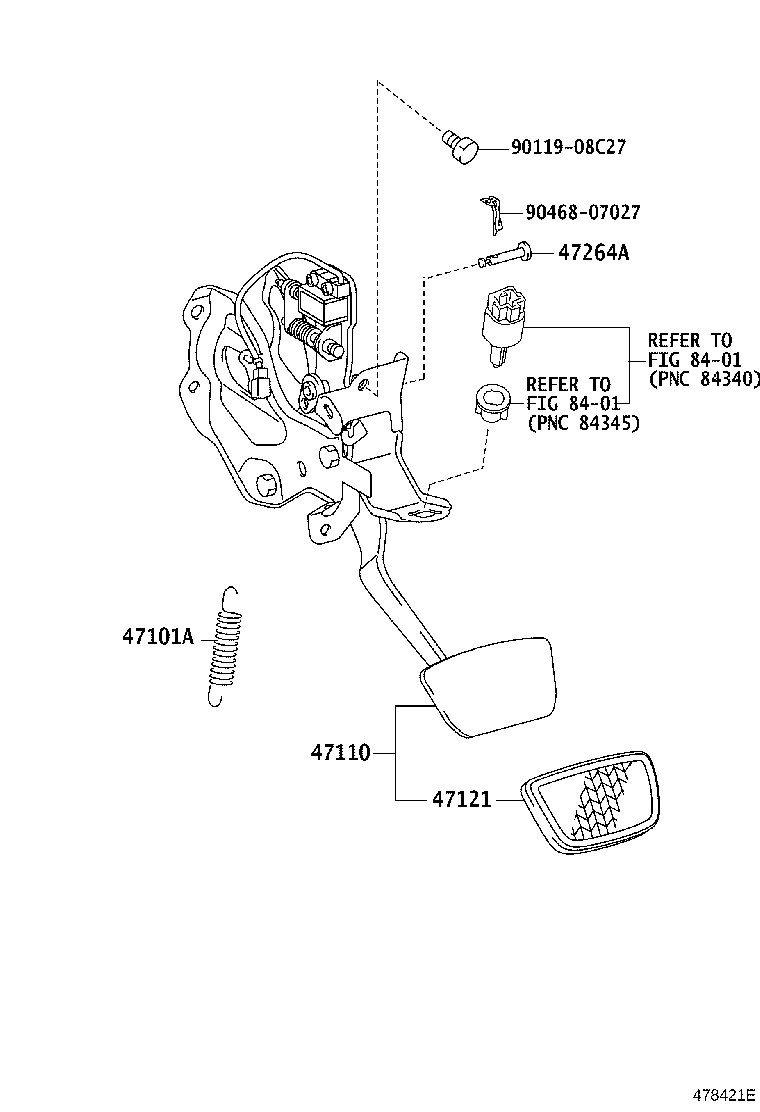

diagram 47101A 47110 47121 47264A 8401 8401 9011908C27 9046807027
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-12046

AVV60,GSV60

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-33430

GSV60

 1
47121 - PAD, BRAKE PEDAL
47121-50020

AVV60,GSV60

 1
47264A - PIN(FOR PUSH ROD)
90249-06180

GSV60

 1
Common parts
90119-08C27
90468-07027
Linked diagrams
8401
