GSV60L-BETGKA (2012)

Toyota Lexus Es350/300h(Jpp

Production Jun 2012 - Jul 2015
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

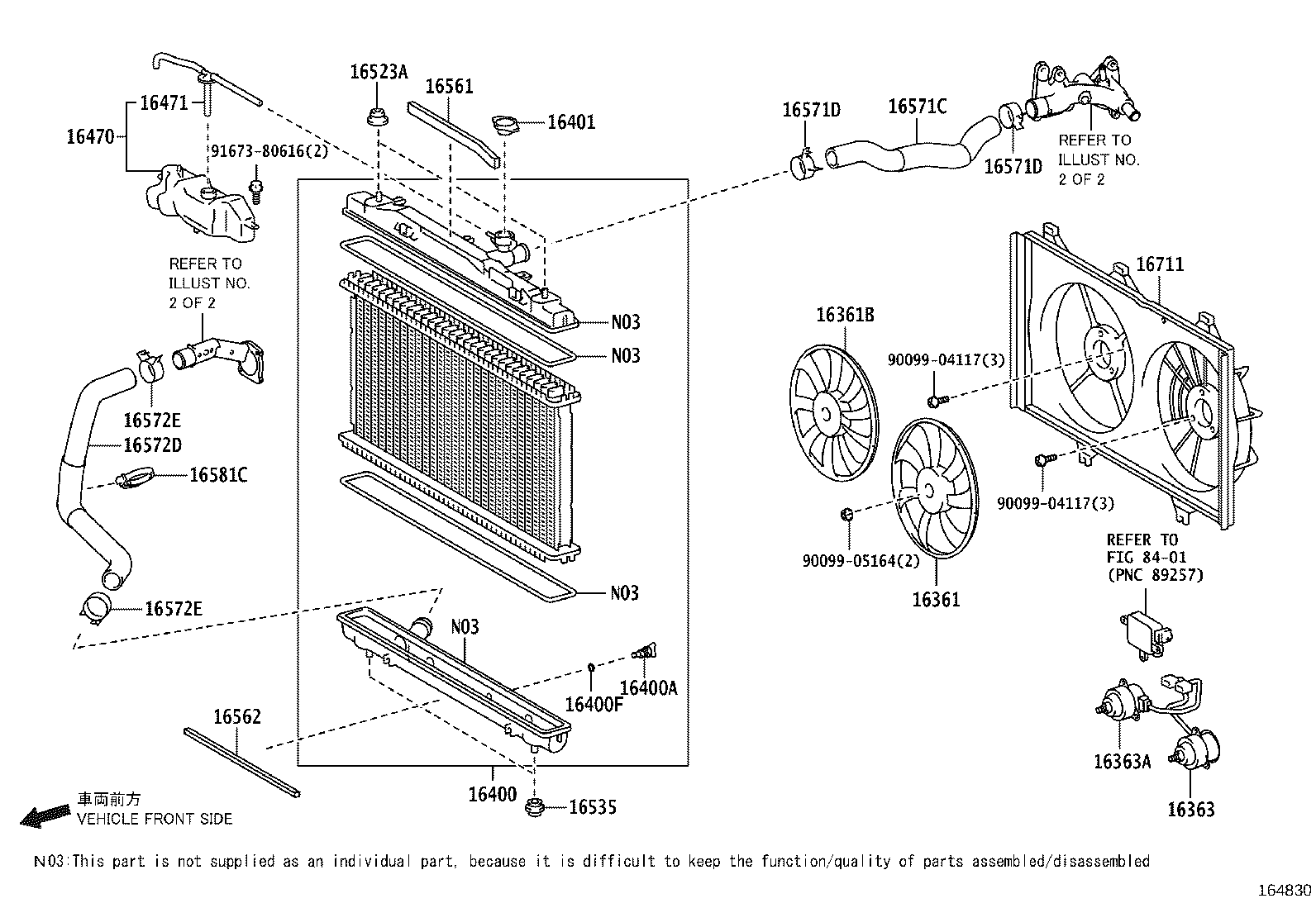

ILLUST NO. 1 OF 2(1206- )2GRFE

Click highlighted areas on diagram

diagram 16361 16361B 16363 16363A 16400 16400A 16400F 16401 16470 16471 16523A 16535 16561 16562 16571C 16571D 16571D 16572D 16572E 16572E 16581C 16711 8401 9009904117 9009904117 9009905164 9167380616
Part # Description Qty Price
16361 - FAN
16361-31390

2GRFE..GSV60

 1
16361B - FAN, NO.2
16361-31400

2GRFE..GSV60

 1
16363 - MOTOR, COOLING FAN
16363-31080

2GRFE..GSV60

 1
16363A - MOTOR, COOLING FAN, NO.2
16363-31090

2GRFE..GSV60

 1
16400 - RADIATOR ASSY
16400-31850

2GRFE..GSV60

 1
16400A - COCK SUB-ASSY, RADIATOR DRAIN
16417-21280

2GRFE..GSV60

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

2GRFE..GSV60

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-31520

2GRFE..GSV60

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-36010

2GRFE..GSV60

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-36010

2GRFE..GSV60

 1
16523A - CUSHION, RADIATOR SUPPORT
16523-20020

2GRFE..GSV60

 2
16535 - SUPPORT, RADIATOR, LOWER
16535-20010

2GRFE..GSV60

 2
16561 - SEAL, RADIATOR TO SUPPORT, NO.1
16561-36020

2GRFE..GSV60

 1
16562 - SEAL, RADIATOR TO SUPPORT, NO.2
16562-36010

2GRFE..GSV60

 1
16571C - HOSE, RADIATOR, NO.1
16571-31310

2GRFE..GSV60

 1
16571D - CLIP, RADIATOR HOSE, NO.1
90466-35001

2GRFE..GSV60

 2
16571D - CLIP, RADIATOR HOSE, NO.1
90466-35001

2GRFE..GSV60

 2
16572D - HOSE, RADIATOR, NO.2
16572-31390

2GRFE..GSV60

 1
16572E - CLIP, RADIATOR HOSE, NO.2
90466-35001

2GRFE..GSV60

 2
16572E - CLIP, RADIATOR HOSE, NO.2
90466-35001

2GRFE..GSV60

 2
16581C - CLAMP, HOSE(FOR RADIATOR HOSE NO.2)
16581-31030

2GRFE..GSV60

 1
16711 - SHROUD, FAN
16711-31540

2GRFE..GSV60

 1
Common parts
90099-04117
90099-05164
91673-80616
Linked diagrams
8401

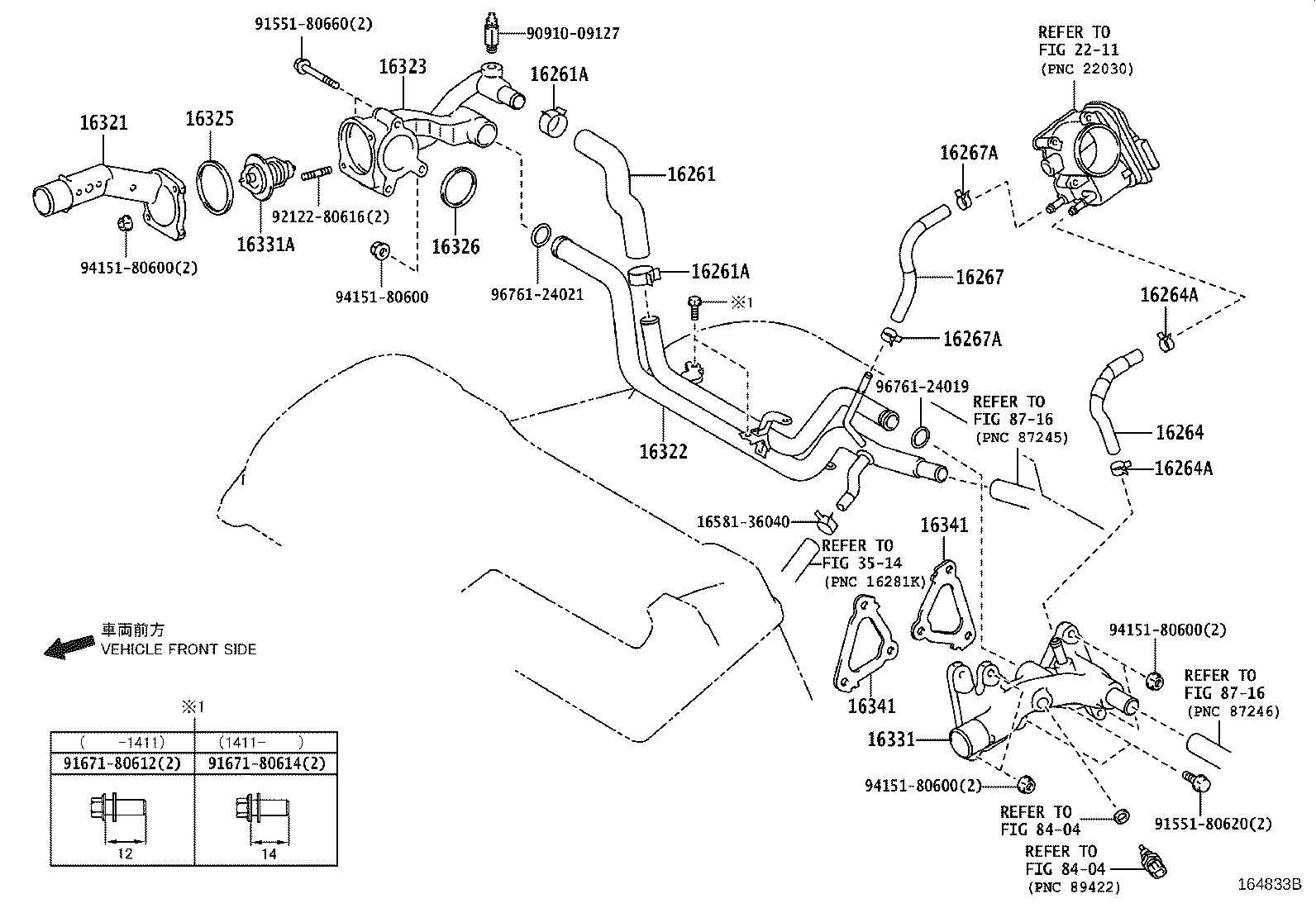

ILLUST NO. 2 OF 2(1206- )2GRFE

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16264 16264A 16264A 16267 16267A 16267A 16321 16322 16323 16325 16326 16331 16331A 16341 16341 1658136040 2211 3514 8404 8404 8716 8716 9091009127 9155180620 9155180660 9167180612 9167180614 9212280616 9415180600 9415180600 9415180600 9415180600 9676124019 9676124021
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-31050

2GRFE..GSV60

 1
16261-31050

2GRFE..GSV60

KOREA SPEC

 1
16261-31050

2GRFE..GSV60

MEXICO SPEC

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96136-42701

2GRFE..GSV60

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96136-42701

2GRFE..GSV60

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-31081

2GRFE..GSV60

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96137-41501

2GRFE..GSV60

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96137-41501

2GRFE..GSV60

 2
16267 - HOSE, WATER BY-PASS, NO.3
16267-31040

2GRFE..GSV60

MEXICO SPEC

 1
16267-31040

2GRFE..GSV60

KOREA SPEC

 1
16267-31040

2GRFE..GSV60

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96137-41501

2GRFE..GSV60

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96137-41501

2GRFE..GSV60

 1
16321 - INLET, WATER
16321-31030

2GRFE..GSV60

 1
16322 - PIPE, WATER INLET
16322-31030

2GRFE..GSV60

MEXICO SPEC

 1
16322-31030

2GRFE..GSV60

KOREA SPEC

 1
16322-31070

2GRFE..GSV60

 1
16323 - HOUSING, WATER INLET
16323-31040

2GRFE..GSV60

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-62010

2GRFE..GSV60

 1
16326 - GASKET, WATER INLET HOUSING, NO.2
16325-31010

2GRFE..GSV60

 1
16331 - OUTLET, WATER
16331-31140

2GRFE..GSV60

 1
16331A - THERMOSTAT
90916-03140

2GRFE..GSV60

*WAX 82-95

 1
16341 - GASKET, WATER OUTLET
16341-31010

2GRFE..GSV60

 2
16341 - GASKET, WATER OUTLET
16341-31010

2GRFE..GSV60

 2
Common parts
16581-36040
90910-09127
91551-80620
91551-80660
91671-80612
91671-80614
92122-80616
94151-80600
96761-24019
96761-24021
Linked diagrams
2211
3514
8404
8716
