GSV60L-BETGKA (2012)

Toyota Lexus Es350/300h(Jpp

Production Jun 2012 - Jul 2015
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1206- )2GRFE

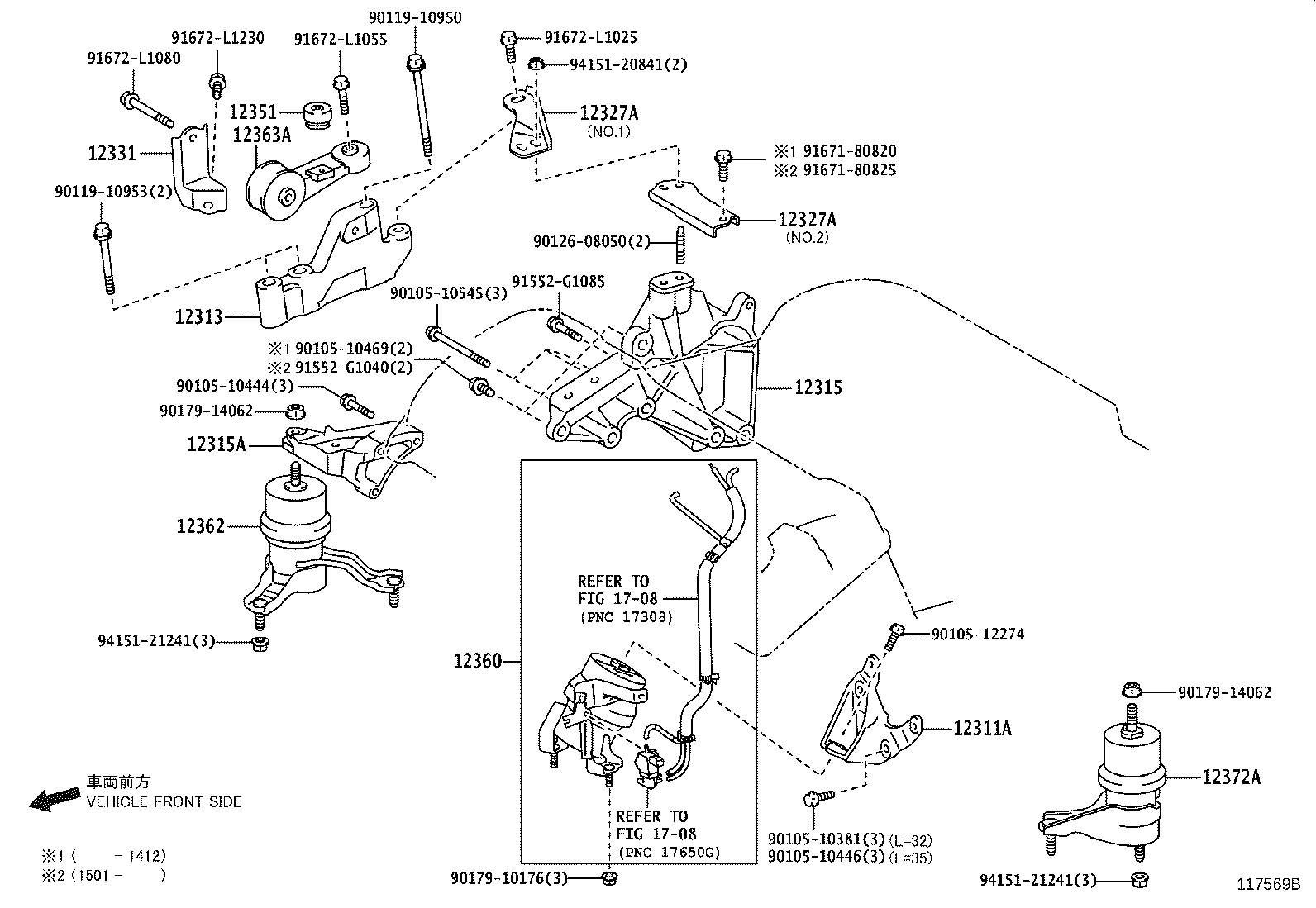

Click highlighted areas on diagram

diagram 12311A 12313 12315 12315A 12327A 12327A 12331 12351 12360 12362 12363A 12372A 1708 1708 9010510381 9010510444 9010510446 9010510469 9010510545 9010512274 9011910950 9011910953 9012608050 9017910176 9017914062 9017914062 91552G1040 91552G1085 9167180820 9167180825 91672L1025 91672L1055 91672L1080 91672L1230 9415120841 9415121241 9415121241
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-31150

2GRFE..GSV60

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-31010

2GRFE..GSV60

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-31091

2GRFE..GSV60

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-31100

2GRFE..GSV60

 1
12327A - STAY, ENGINE MOUNTING, NO.2 RH
12327-31020

2GRFE..GSV60

NO.1

 1
12327-31010

2GRFE..GSV60

NO.2

 1
12327-31120

2GRFE..GSV60

NO.2

 1
12327A - STAY, ENGINE MOUNTING, NO.2 RH
12327-31010

2GRFE..GSV60

NO.2

 1
12327-31120

2GRFE..GSV60

NO.2

 1
12327-31020

2GRFE..GSV60

NO.1

 1
12331 - STAY, ENGINE MOUNTING, NO.3 RH
12331-31010

2GRFE..GSV60

 1
12351 - DAMPER, ENGINE MOUNTING
12351-31010

2GRFE..GSV60

 1
12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT
12360-31060

2GRFE..GSV60

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-31080

2GRFE..GSV60

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-31033

2GRFE..GSV60

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-31010

2GRFE..GSV60

 1
Common parts
90105-10381
90105-10444
90105-10446
90105-10469
90105-10545
90105-12274
90119-10950
90119-10953
90126-08050
90179-10176
90179-14062
91552-G1040
91552-G1085
91671-80820
91671-80825
91672-L1025
91672-L1055
91672-L1080
91672-L1230
94151-20841
94151-21241
Linked diagrams
1708
