AXZH10L-AEXGBA (2018)

Toyota Lexus Es350/300h(Jpp

Production Jul 2018 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1807- )AXZH1#

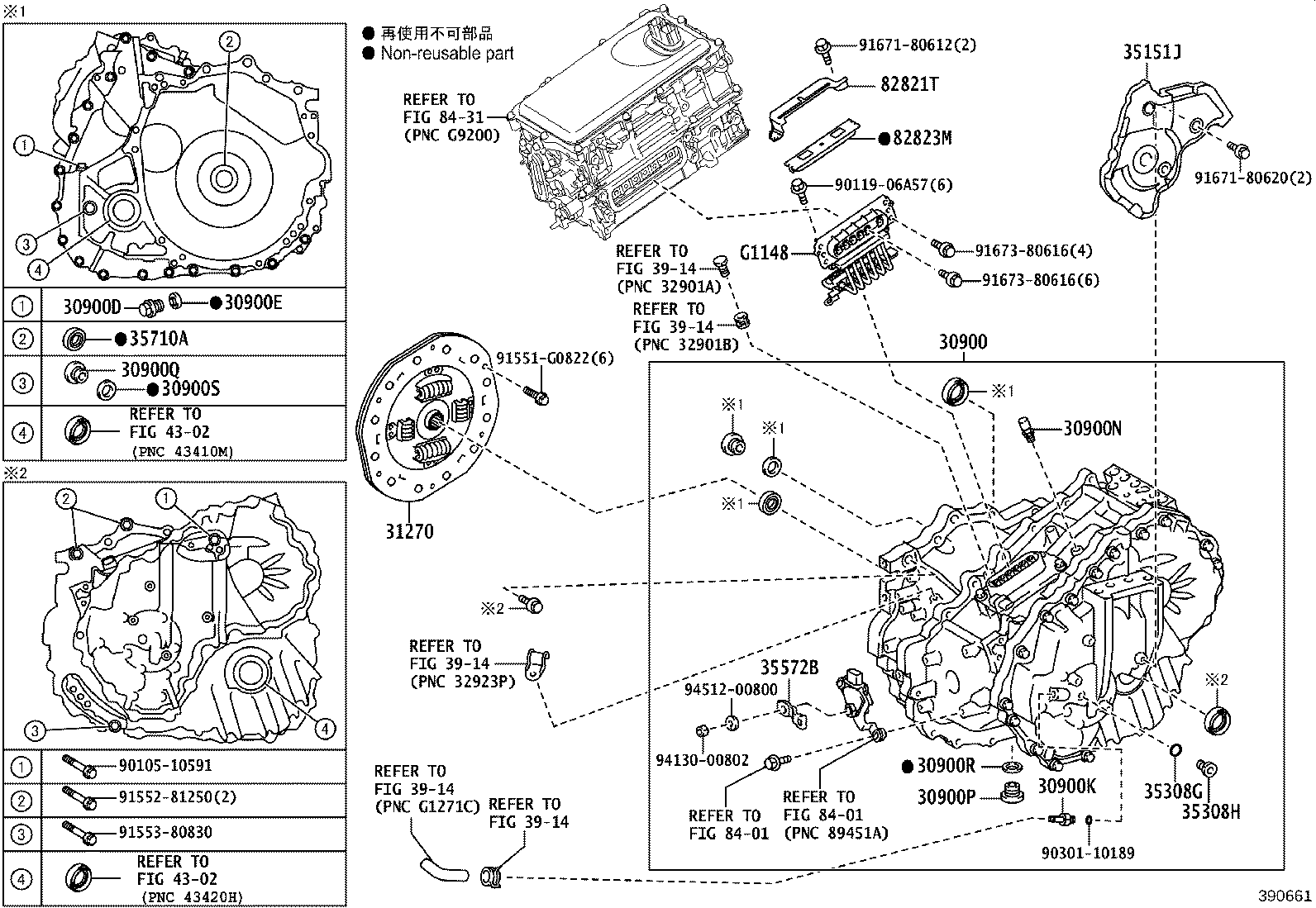

Click highlighted areas on diagram

diagram 30900 30900D 30900E 30900K 30900N 30900P 30900Q 30900R 30900S 31270 35151J 35308G 35308H 35572B 35710A 3914 3914 3914 3914 3914 4302 4302 82821T 82823M 8401 8401 8431 9010510591 9011906A57 9030110189 91551G0822 9155281250 9155380830 9167180612 9167180620 9167380616 9167380616 9413000802 9451200800 G1148
Part # Description Qty Price
30900 - TRANSAXLE ASSY, HYBRID VEHICLE
30900-33110

AXZH1#

 1
30900-33060

AXZH10

 1
30900D - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CAS
90341-18060

AXZH1#

 1
30900E - GASKET(FOR TRANSAXLE HOUSING & CASE)
90430-18008

AXZH1#

 1
30900K - CONNECTOR, TUBE(FOR TRANSAXLE HOUSING)
90404-13010

AXZH1#

 1
30900N - PLUG, BREATHER(FOR TRANSAXLE)
90930-03201

AXZH1#

 1
30900P - PLUG, DRAIN(HV)
90341-18016

AXZH1#

 1
30900Q - PLUG, FILLER(HV)
90341-18016

AXZH1#

 1
30900R - GASKET, DRAIN PLUG(HV)
90430-18008

AXZH1#

 1
30900S - GASKET, FILLER PLUG(HV)
90430-18008

AXZH1#

 1
31270 - DAMPER ASSY, TRANSMISSION INPUT
31270-33030

AXZH1#

 1
35151J - COVER, AUTOMATIC TRANSMISSION CASE
35151-33150

AXZH1#

 1
35308G - RING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
90301-06196

AXZH1#

 1
35308H - PLUG (FOR TRANSMISSION OIL PUMP COVER)
90341-08001

AXZH1#

 1
35572B - LEVER, TRANSMISSION, OUTER
35572-33070

AXZH1#

 1
35710A - SEAL, TYPE T OIL(FOR INPUT SHAFT)
90311-27011

AXZH1#

 1
82821T - COVER, CONNECTOR
82821-47240

AXZH1#

 1
82823M - CAP, TERMINAL
82823-47040

AXZH1#

 1
G1148 - CABLE, MOTOR
G1148-33050

AXZH1#

 1
Common parts
90105-10591
90119-06A57
90301-10189
91551-G0822
91552-81250
91553-80830
91671-80612
91671-80620
91673-80616
94130-00802
94512-00800
Linked diagrams
3914
4302
8401
8431
