AVV60L-BEXGBA (2012)
Toyota Lexus Es350/300h(Jpp
Production
Jun 2012
-
Jul 2015
Engine
2ARFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

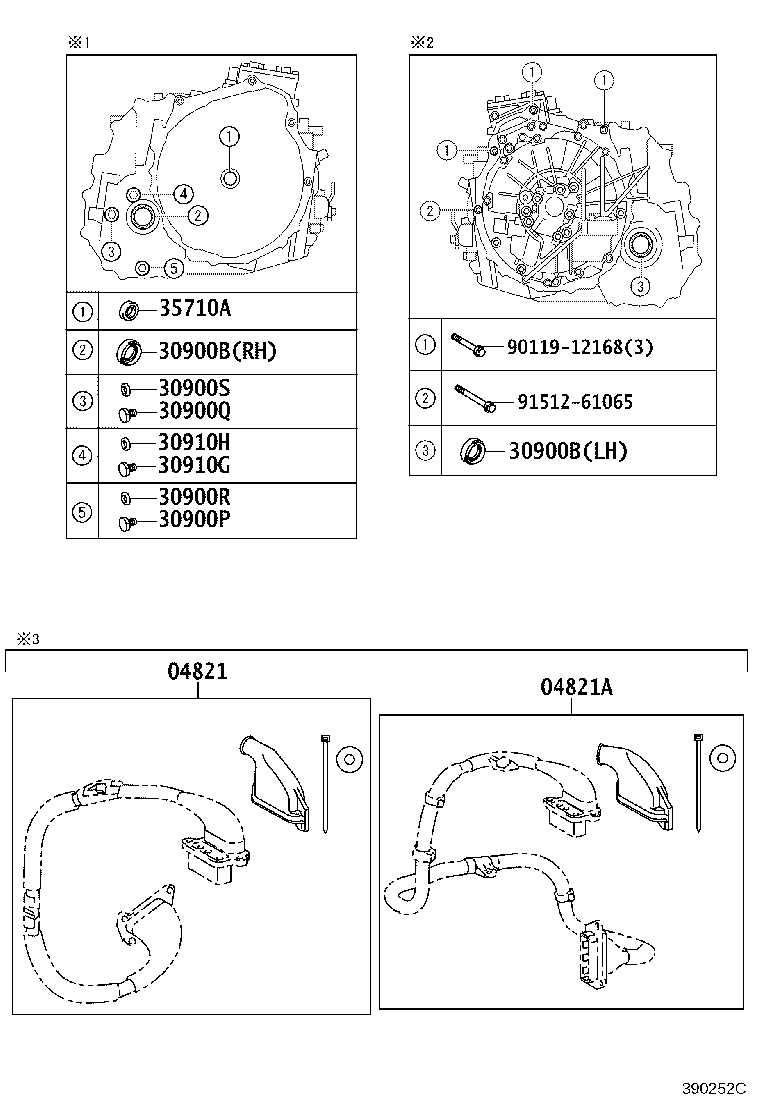

ILLUST NO. 2 OF 2(1206- )AVV60
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04821 - BOOT KIT, WIRE HARNESS | ||||
| 04821-33010 |
AVV60 |
1 | ||
| 04821A - BOOT KIT, WIRE HARNESS | ||||
| 04821-33020 |
AVV60 |
1 | ||
| 30900B - SEAL, TYPE T OIL(FOR HYBRID VEHICLE TRANSAXLE ASSY) | ||||
| 90311-50031 |
AVV60 LH |
1 | ||
| 90311-40039 |
AVV60 RH |
1 | ||
| 90311-40029 |
AVV60 RH |
1 | ||
| 90311-50053 |
AVV60 LH |
1 | ||
| 30900B - SEAL, TYPE T OIL(FOR HYBRID VEHICLE TRANSAXLE ASSY) | ||||
| 90311-50031 |
AVV60 LH |
1 | ||
| 90311-40039 |
AVV60 RH |
1 | ||
| 90311-40029 |
AVV60 RH |
1 | ||
| 90311-50053 |
AVV60 LH |
1 | ||
| 30900P - PLUG, DRAIN(HV) | ||||
| 90341-18016 |
AVV60 |
1 | ||
| 30900Q - PLUG, FILLER(HV) | ||||
| 90341-18016 |
AVV60 |
1 | ||
| 30900R - GASKET, DRAIN PLUG(HV) | ||||
| 90430-18008 |
AVV60 |
1 | ||
| 30900S - GASKET, FILLER PLUG(HV) | ||||
| 90430-18008 |
AVV60 |
1 | ||
| 30910G - PLUG, STRAIGHT SCREW W/HEAD(FOR TRANSMISSION CASE) | ||||
| 90341-18078 |
AVV60 |
1 | ||
| 90341-18016 |
AVV60 |
1 | ||
| 30910H - GASKET(FOR TRANSMISSION CASE) | ||||
| 90430-18008 |
AVV60 |
1 | ||
| 35710A - SEAL, TYPE T OIL(FOR INPUT SHAFT) | ||||
| 90311-25027 |
AVV60 |
1 | ||
| Common parts | ||||
| 90119-12168 | ||||
| 91512-61065 | ||||

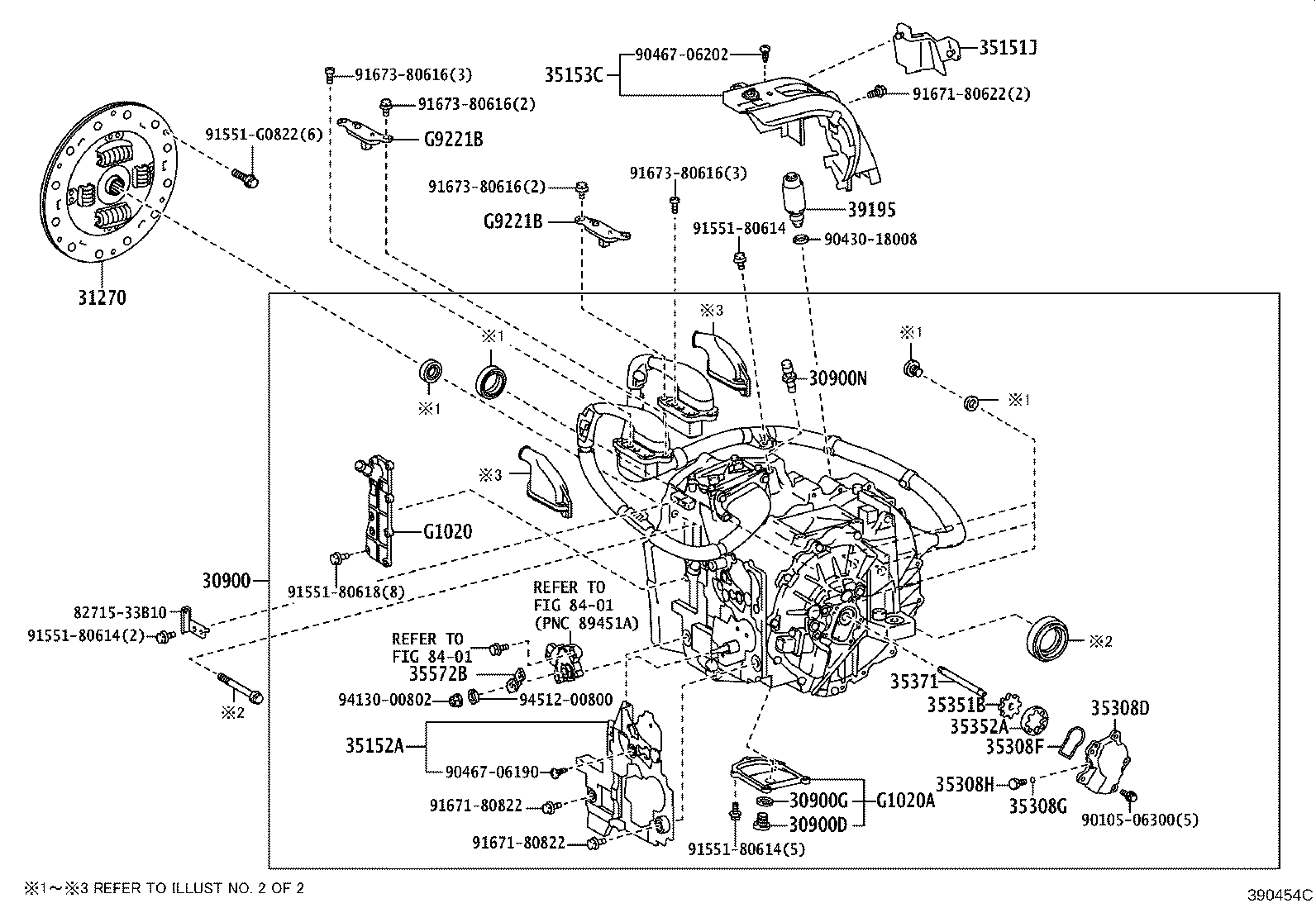

ILLUST NO. 1 OF 2(1206- )AVV60
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30900 - TRANSAXLE ASSY, HYBRID VEHICLE | ||||
| 30900-33051 |
AVV60 |
1 | ||
| 30900-33053 |
AVV60 |
1 | ||
| 30900-33050 |
AVV60 |
1 | ||
| 30900D - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CAS | ||||
| 90341-18016 |
AVV60 |
1 | ||
| 30900G - GASKET, NO.2(FOR TRANSAXLE HOUSING & CASE) | ||||
| 90430-18008 |
AVV60 |
1 | ||
| 30900N - PLUG, BREATHER(FOR TRANSAXLE) | ||||
| 90930-03201 |
AVV60 |
1 | ||
| 31270 - DAMPER ASSY, TRANSMISSION INPUT | ||||
| 31270-33020 |
AVV60 |
1 | ||
| 31270-30010 |
AVV60 |
1 | ||
| 35151J - COVER, AUTOMATIC TRANSMISSION CASE | ||||
| 35151-33090 |
AVV60 |
1 | ||
| 35152A - COVER, AUTOMATIC TRANSMISSION CASE, NO.2 | ||||
| 35151-33100 |
AVV60 |
1 | ||
| 35153C - COVER, AUTOMATIC TRANSMISSION CASE, NO.3 | ||||
| 35153-33030 |
AVV60 |
1 | ||
| 35308D - COVER SUB-ASSY, TRANSMISSION OIL PUMP | ||||
| 35308-33030 |
AVV60 |
1 | ||
| 35308F - RING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90301-72006 |
AVV60 |
1 | ||
| 35308G - RING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90301-06196 |
AVV60 |
1 | ||
| 35308H - PLUG (FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90341-08001 |
AVV60 |
1 | ||
| 35351B - ROTOR, TRANSAXLE OIL PUMP DRIVE | ||||
| 35351-33010 |
AVV60 |
1 | ||
| 35352A - ROTOR, TRANSMISSION OIL PUMP DRIVEN | ||||
| 35352-33010 |
AVV60 |
1 | ||
| 35371 - SHAFT, OIL PUMP DRIVE | ||||
| 35371-33060 |
AVV60 |
1 | ||
| 35572B - LEVER, TRANSMISSION, OUTER | ||||
| 35572-33030 |
AVV60 |
1 | ||
| 39195 - DAMPER, HV TRANSAXLE MASS | ||||
| 39195-33020 |
AVV60 |
1 | ||
| G1020 - COVER ASSY, MOTOR WATER JACKET, NO.1 | ||||
| G1020-33010 |
AVV60 |
1 | ||
| G1020A - COVER ASSY, MOTOR WATER JACKET, NO.2 | ||||
| G1020-48030 |
AVV60 |
1 | ||
| G9221B - COVER, INVERTER, UPR | ||||
| G9221-33010 |
AVV60 |
2 | ||
| G9221B - COVER, INVERTER, UPR | ||||
| G9221-33010 |
AVV60 |
2 | ||
| Common parts | ||||
| 82715-33B10 | ||||
| 90105-06300 | ||||
| 90430-18008 | ||||
| 90467-06190 | ||||
| 90467-06202 | ||||
| 91551-80614 | ||||
| 91551-80618 | ||||
| 91551-G0822 | ||||
| 91671-80622 | ||||
| 91671-80822 | ||||
| 91673-80616 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
