VCV10L-BTPGKK (1991)
Toyota Lexus Es300
Production
Jul 1991
-
Aug 1993
Engine
3VZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

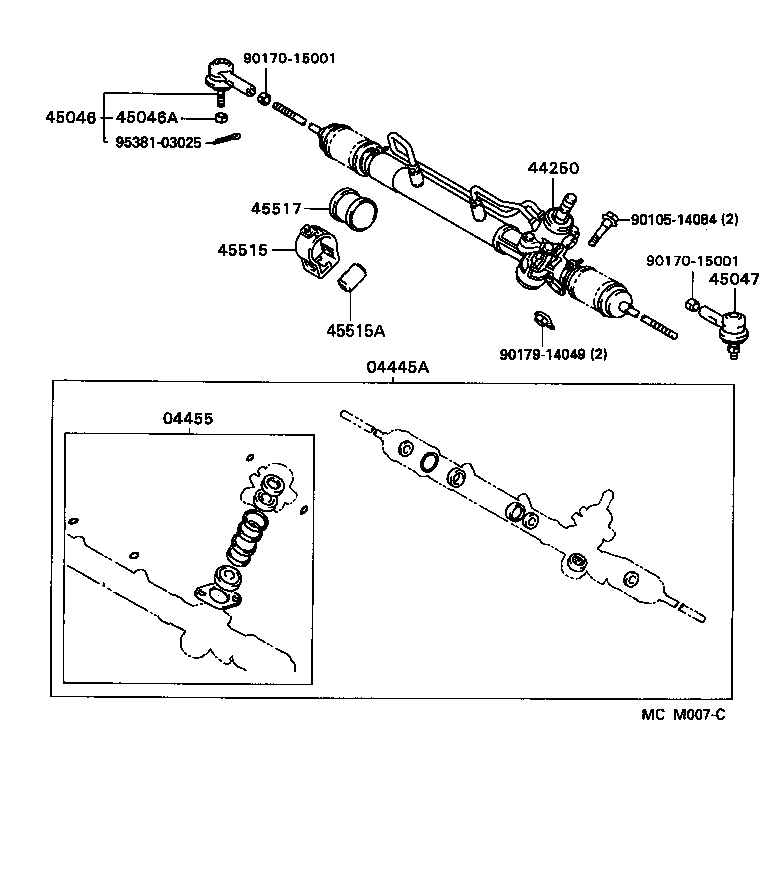

ILLUST NO. 1 OF 2(9107- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-33021 |
VCV10 |
1 | ||
| 04445-33022 |
VCV10 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-33010 |
MCV10,VCV10 |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-33051 |
VCV10 |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29255 |
MCV10,VCV10 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
MCV10,VCV10 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29255 |
MCV10,VCV10 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-33011 |
MCV10,VCV10 |
1 | ||
| 45515A - COLLAR, STEERING RACK HOUSING BRACKET | ||||
| 90386-15004 |
MCV10,VCV10 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-33010 |
MCV10,VCV10 |
1 | ||
| Common parts | ||||
| 90105-14084 | ||||
| 90170-15001 | ||||
| 90179-14049 | ||||
| 95381-03025 | ||||

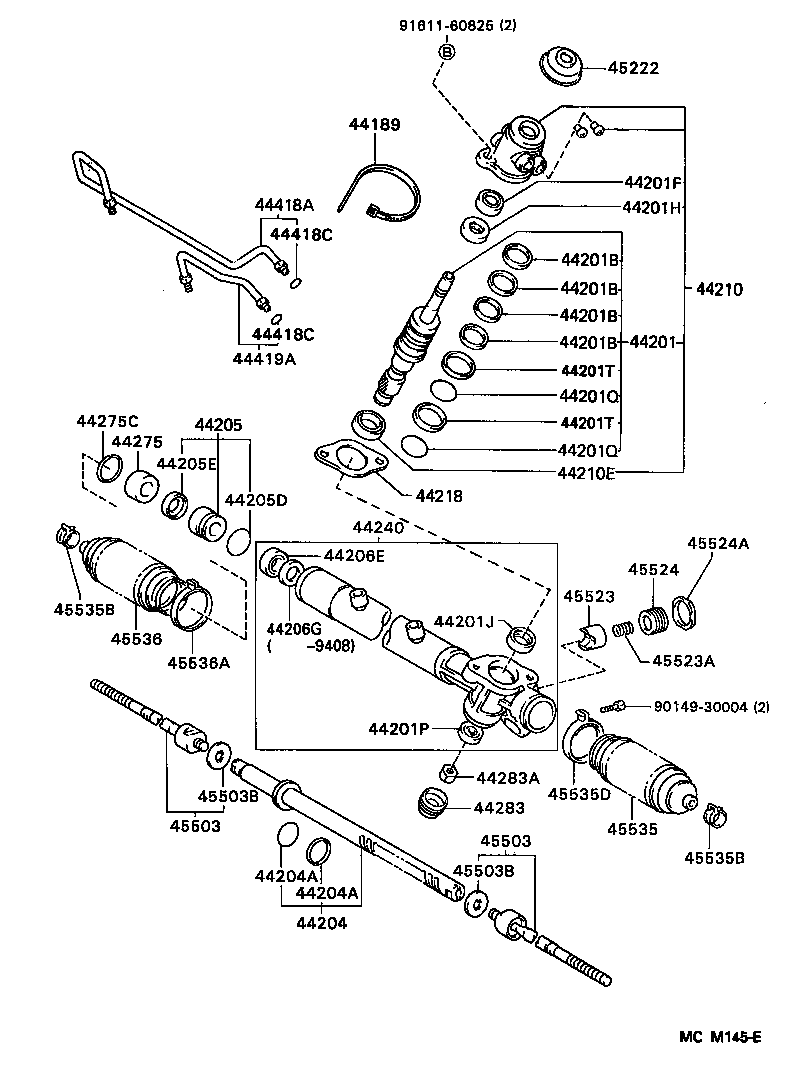

ILLUST NO. 2 OF 2(9107- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-33060 |
MCV10,VCV10 |
1 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33005 |
MCV10,VCV10 UPR |
4 | ||
| 90560-35011 |
MCV10,VCV10 LWR |
2 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33005 |
MCV10,VCV10 UPR |
4 | ||
| 90560-35011 |
MCV10,VCV10 LWR |
2 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33005 |
MCV10,VCV10 UPR |
4 | ||
| 90560-35011 |
MCV10,VCV10 LWR |
2 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33005 |
MCV10,VCV10 UPR |
4 | ||
| 90560-35011 |
MCV10,VCV10 LWR |
2 | ||
| 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19010 |
MCV10,VCV10 |
1 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90365-19001 |
MCV10,VCV10 |
1 | ||
| 44201J - BEARING(FOR POWER STEERING CONTROL VALVE CENTER) | ||||
| 90364-25014 |
MCV10,VCV10 |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90363-12013 |
MCV10,VCV10 |
1 | ||
| 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-32004 |
MCV10,VCV10 |
2 | ||
| 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-32004 |
MCV10,VCV10 |
2 | ||
| 44201T - SPRING, CONICAL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90501-23097 |
VCV10 |
1 | ||
| 44201T - SPRING, CONICAL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90501-23097 |
VCV10 |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-33030 |
MCV10,VCV10 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-39002 |
VCV10 OUTER |
1 | ||
| 90301-36008 |
MCV10,VCV10 INNER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-39002 |
VCV10 OUTER |
1 | ||
| 90301-36008 |
MCV10,VCV10 INNER |
1 | ||
| 44205 - STOPPER SUB-ASSY, CYLINDER END | ||||
| 44205-33010 |
MCV10,VCV10 |
1 | ||
| 44205D - RING, O(FOR POWER STEERING RACK BUSH) | ||||
| 90301-36009 |
MCV10,VCV10 |
1 | ||
| 44205E - SEAL, OIL(FOR POWER STEERING RACK BUSH) | ||||
| 90311-27001 |
MCV10,VCV10 |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90311-27002 |
VCV10 |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90561-28003 |
MCV10,VCV10 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-33070 |
MCV10,VCV10 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-26003 |
MCV10,VCV10 |
1 | ||
| 44218 - GASKET, VALVE HOUSING | ||||
| 44218-12020 |
MCV10,VCV10 |
1 | ||
| 44240 - HOUSING ASSY, POWER STEERING RACK | ||||
| 44240-33010 |
MCV10,VCV10 |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-33010 |
MCV10,VCV10 |
1 | ||
| 44275C - WIRE(FOR CYLINDER END STOPPER) | ||||
| 90580-20238 |
MCV10,VCV10 |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 44283-33010 |
MCV10,VCV10 |
1 | ||
| 44283A - NUT(FOR RACK HOUSING CAP) | ||||
| 90179-10048 |
MCV10,VCV10 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-33020 |
MCV10,VCV10 |
1 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-03001 |
MCV10,VCV10 |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-03001 |
MCV10,VCV10 |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-33020 |
MCV10,VCV10 |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-33010 |
MCV10,VCV10 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29355 |
MCV10,VCV10 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29355 |
MCV10,VCV10 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14007 |
MCV10,VCV10 OD=38 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14007 |
MCV10,VCV10 OD=38 |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-33010 |
MCV10,VCV10 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19017 |
MCV10,VCV10 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19017 |
MCV10,VCV10 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90461-08688 |
MCV10,VCV10 |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-33010 |
MCV10,VCV10 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90461-08688 |
MCV10,VCV10 |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91611-60825 | ||||
