VCV10L-BTMGKK (1991)
Toyota Lexus Es300
Production
Jul 1991
-
Aug 1993
Engine
3VZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 3(9107-9608)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-32030 |
VCV10 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-33010 |
VCV10 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-33020 |
VCV10 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
MCV10,VCV10 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
VCV10 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-33010 |
VCV10 |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
ILLUST NO. 3 OF 3(9107-9608)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-33020 |
VCV10 |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04958 |
VCV10 |
5 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-32010 |
MCV10,VCV10 FRONT |
1 | ||
| 88322-32040 |
VCV10 REAR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-32010 |
MCV10,VCV10 FRONT |
1 | ||
| 88322-32040 |
VCV10 REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-22010 |
MCV10,VCV10 REAR |
1 | ||
| 88341-22010 |
MCV10,VCV10 FRONT |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-22010 |
MCV10,VCV10 REAR |
1 | ||
| 88341-22010 |
MCV10,VCV10 FRONT |
1 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14020 |
MCV10,VCV10 |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14020 |
MCV10,VCV10 |
2 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 90099-08058 |
MCV10,VCV10 |
4 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 90099-08058 |
MCV10,VCV10 |
4 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 90099-08058 |
MCV10,VCV10 |
4 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 90099-08058 |
MCV10,VCV10 |
4 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 90099-04924 |
MCV10,VCV10 |
4 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-32010 |
VCV10 |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-33020 |
VCV10 |
1 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
MCV10,VCV10 |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
MCV10,VCV10 |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
MCV10,VCV10 |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-14030 |
VCV10 |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-33020 |
VCV10 |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22020 |
VCV10 DISCHARGE |
1 | ||
| 88376-17020 |
VCV10 SUCTION |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22020 |
VCV10 DISCHARGE |
1 | ||
| 88376-17020 |
VCV10 SUCTION |
1 | ||
| Common parts | ||||
| 88569-20010 | ||||
| 88569-33090 | ||||
| 90091-00584 | ||||
| 90291-00582 | ||||
| 93319-15008 | ||||

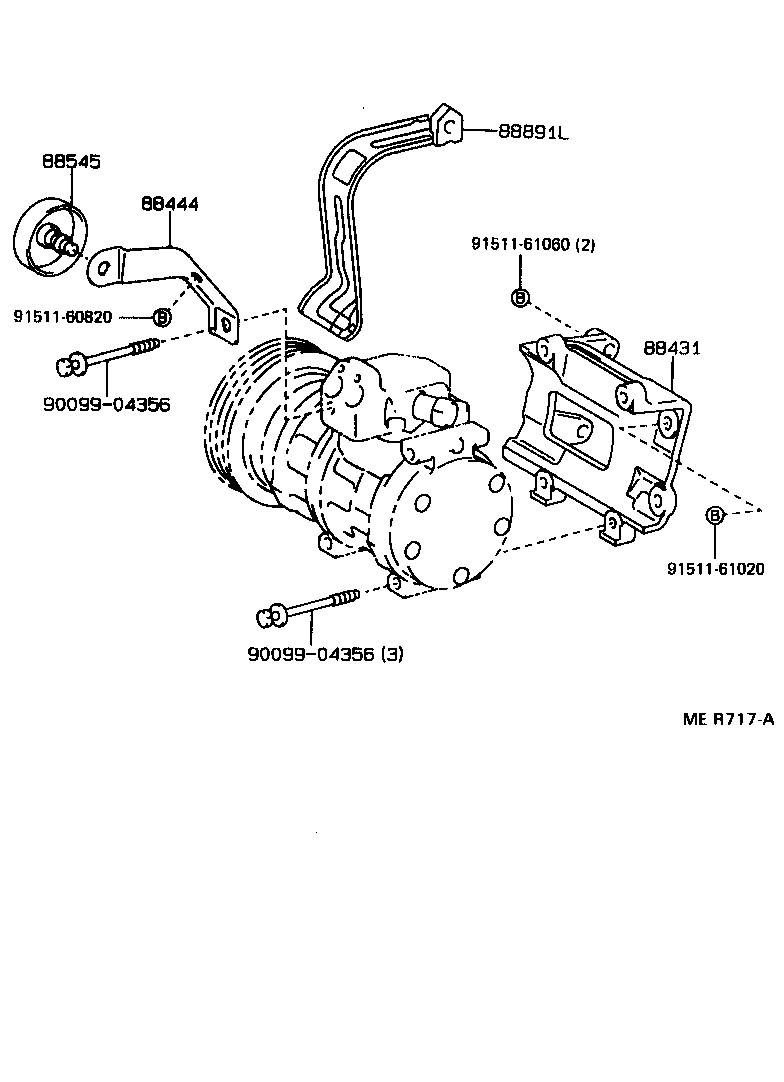

ILLUST NO. 1 OF 3(9107-9308)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-33010 |
VCV10 |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-33010 |
VCV10 |
1 | ||
| 88444-33011 |
VCV10 |
1 | ||
| 88444-33012 |
VCV10 |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-33010 |
VCV10 |
1 | ||
| 88891L - COVER, COOLER, NO.1 | ||||
| 88891-33041 |
VCV10 |
1 | ||
| 88891-33040 |
VCV10 |
1 | ||
| Common parts | ||||
| 90099-04356 | ||||
| 91511-60820 | ||||
| 91511-61020 | ||||
| 91511-61060 | ||||
