VCV10L-BTMGKA (1991)

Toyota Lexus Es300

Production Jul 1991 - Aug 1993

Engine 3VZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9107-9608)

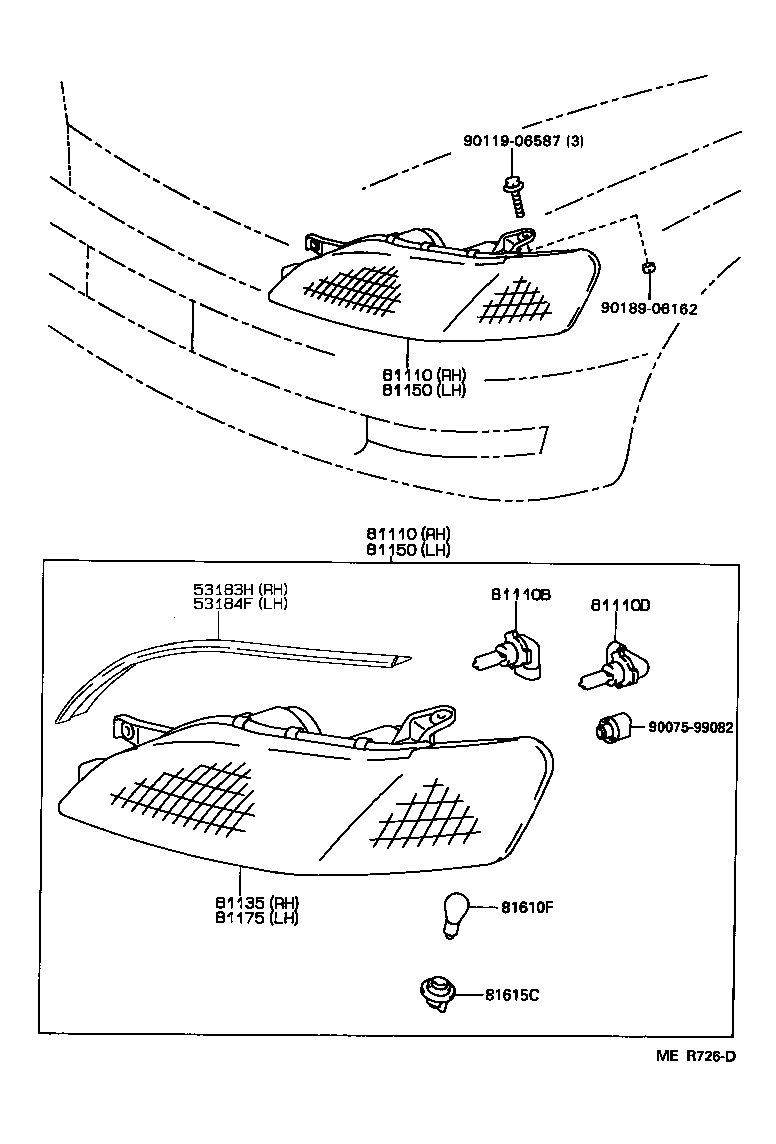

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
53183H - SEAL, HEADLAMP COVER, RH
53183-33020	MCV10,VCV10	07/1991 - 08/1994	1
53184F - SEAL, HEADLAMP COVER, LH
53184-33020	MCV10,VCV10	07/1991 - 08/1994	1
81110 - HEADLAMP ASSY, RH
81110-33070	VCV10	07/1991 - 06/1992	1
81110 - HEADLAMP ASSY, RH
81110-33070	VCV10	07/1991 - 06/1992	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046	MCV10,VCV10 12V65W(SAE),60W(ECE)	07/1991 - 10/1993	2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13047	MCV10,VCV10 12V 51W,HALOGEN	07/1991 - 10/1993	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-33070	VCV10	07/1991 - 06/1992	1
81150 - HEADLAMP ASSY, LH
81150-33070	VCV10	07/1991 - 06/1992	1
81150 - HEADLAMP ASSY, LH
81150-33070	VCV10	07/1991 - 06/1992	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-33070	VCV10	07/1991 - 06/1992	1
81610F - BULB(FOR CLEARANCE LAMP)
90981-15008	MCV10,VCV10 12V 27/8W	07/1991 - 08/1996	2
81615C - SOCKET & WIRE, CLEARANCE LAMP
90075-99069	MCV10,VCV10	07/1991 - 08/1994	2
Common parts
90075-99082
90119-06587
90189-06162
