VCV10L-BTMGKA (1991)

Toyota Lexus Es300

Production Jul 1991 - Aug 1993
Engine 3VZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9107- )

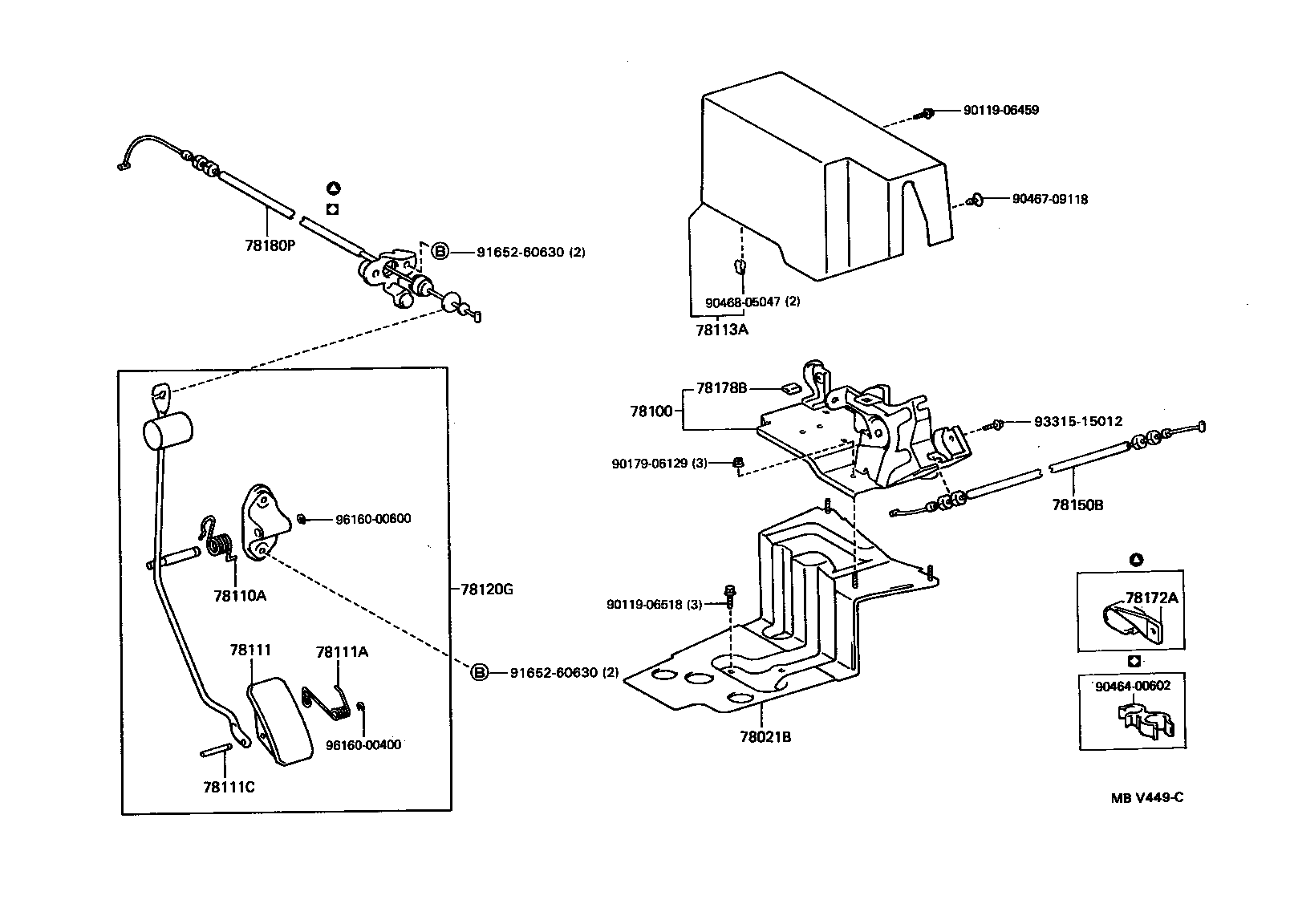

Click highlighted areas on diagram

diagram 78021B 78100 78110A 78111 78111A 78111C 78113A 78120G 78150B 78172A 78178B 78180P 9011906459 9011906518 9017906129 9046400602 9046709118 9046805047 9165260630 9165260630 9331515012 9616000400 9616000600
Part # Description Qty Price
78021B - BRACKET SUB-ASSY, ACCEL CONTROL BELLCRANK
78021-33010

MCV10,VCV10

 1
78100 - LINK ASSY, ACCELERATOR
78100-33010

MCV10,VCV10

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26062

VCV10..MTM

 1
78111 - PEDAL, ACCELERATOR
78111-32010

MCV10,VCV10

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18046

VCV10

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

MCV10,VCV10

 1
78113A - COVER, AUTO DRIVE ACCELERATOR LINK
78113-33010

MCV10,VCV10

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-33020

VCV10..MTM

 1
78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE
78150-33050

MCV10,VCV10

 1
78172A - BRACKET, ACCELERATOR CONTROL NO.2 ROD, LH
78172-33010

MCV10,VCV10

 1
78178B - DAMPER, ACCEL CONTROL NO.4 ROD BRACKET
78178-14010

MCV10,VCV10

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-33100

MCV10,VCV10

 1
Common parts
90119-06459
90119-06518
90179-06129
90464-00602
90467-09118
90468-05047
91652-60630
93315-15012
96160-00400
96160-00600
