VCV10L-BTMGKA (1991)

Toyota Lexus Es300

Production Jul 1991 - Aug 1993
Engine 3VZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9107- )

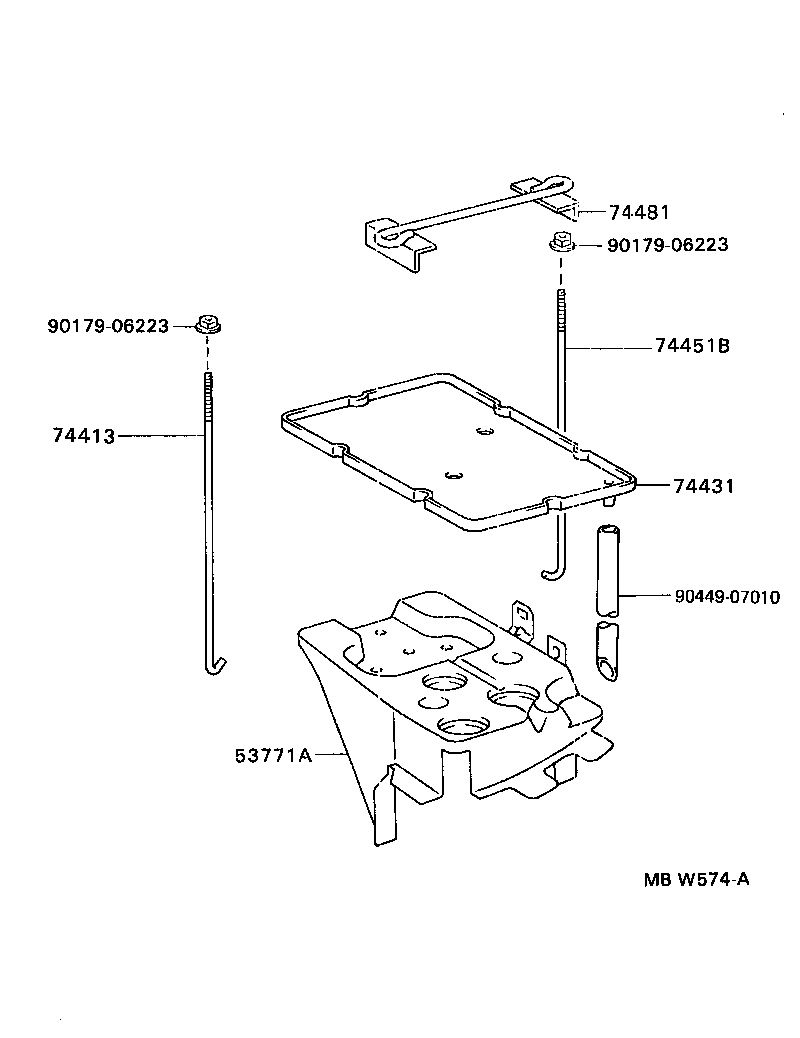

Click highlighted areas on diagram

diagram 53771A 74413 74431 74451B 74481 9017906223 9017906223 9044907010
Part # Description Qty Price
53771A - SUPPORT, BATTERY CARRIER
53704-33010

MCV10,VCV10

 1
74413 - BOLT, BATTERY CLAMP
74451-33010

MCV10,VCV10

 1
74431 - TRAY, BATTERY
74431-33020

VCV10

 1
74451B - BOLT, BATTERY CLAMP
74452-33010

MCV10,VCV10

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-33010

VCV10..USA

 1
Common parts
90179-06223
90449-07010
