VCV10L-BTMGKA (1991)

Toyota Lexus Es300

Production Jul 1991 - Aug 1993
Engine 3VZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9107- )

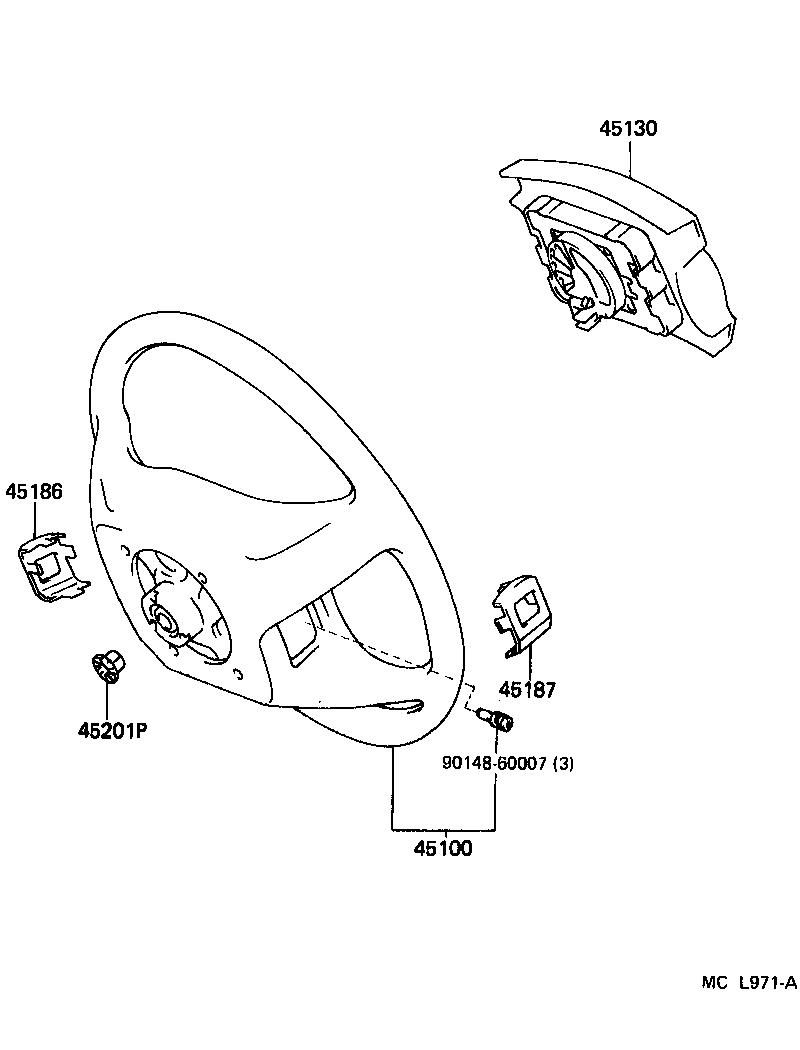

Click highlighted areas on diagram

diagram 45100 45130 45186 45187 45201P 9014860007
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-33040K0

VCV10

4-SPOKE,LEATHER PACKAGE,TAUPE,TRIM9#

 2
45100-33040E2

VCV10

4-SPOKE,LEATHER PACKAGE,GREIGE,TRIM0#

 1
45100-33040W3

VCV10

4-SPOKE,LEATHER PACKAGE,DARK BLUE,TRIM8#

 2
45100-33020W3

VCV10

4-SPOKE,URETHANE,DARK BLUE,TRIM8#

 1
45100-33120C0

MCV10,VCV10

4-SPOKE,LEATHER,LEATHER PACKAGE,BLACK,TRIM2#

 1
45100-33020K0

VCV10

4-SPOKE,URETHANE,TAUPE,TRIM9#

 1
45100-3304022

VCV10

4-SPOKE,LEATHER PACKAGE,BLACK,TRIM2#

 1
45100-3302022

VCV10

4-SPOKE,URETHANE,BLACK,TRIM2#

 1
45130 - BUTTON ASSY, HORN
45130-3304022

VCV10

BLACK,TRIM2#

 1
45130-33040K0

VCV10

TAUPE,TRIM9#

 1
45130-33040E2

VCV10

GREIGE,TRIM0#

 1
45130-33040W3

VCV10

DARK BLUE,TRIM8#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-33020E2

VCV10

GREIGE,TRIM0#

 1
45186-33020K0

MCV10,VCV10

TAUPE,TRIM9#

 1
45186-3302022

MCV10,VCV10

BLACK,TRIM2#

 1
45186-33020W3

MCV10,VCV10

DARK BLUE,TRIM8#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-33010W3

MCV10,VCV10

DARK BLUE,TRIM8#

 1
45187-33010K0

MCV10,VCV10

TAUPE,TRIM9#

 1
45187-33010E2

VCV10

GREIGE,TRIM0#

 1
45187-3301022

MCV10,VCV10

BLACK,TRIM2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

VCV10

 1
Common parts
90148-60007
