MCV20L-BTPGKA (1996)
Toyota Lexus Es300
Production
Aug 1996
-
Jul 2001
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9608- )

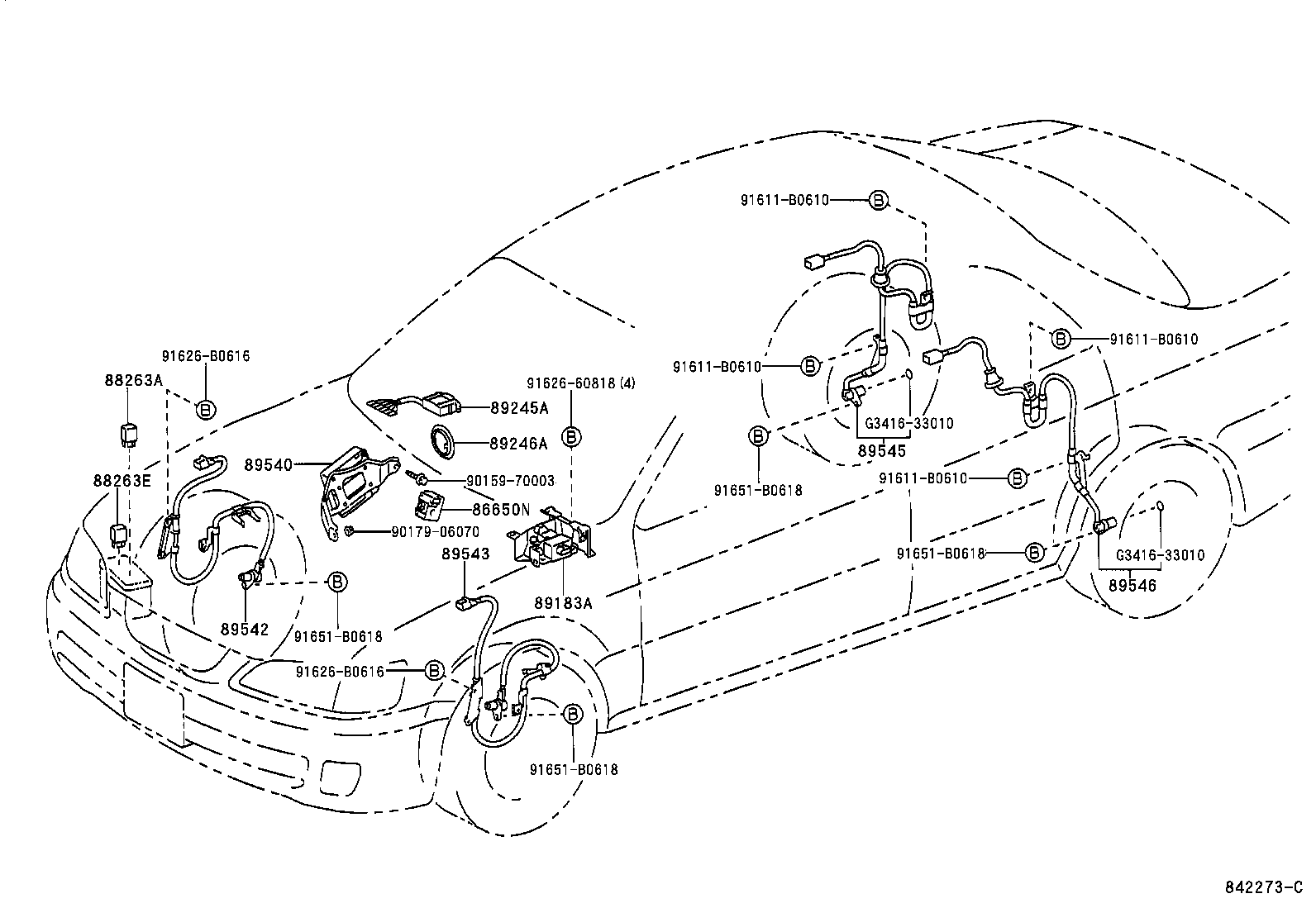

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86650N - BUZZER ASSY | ||||
| 86650-30180 |
MCV20 |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-14110 |
MCV20 |
1 | ||
| 88263-24020 |
MCV20 W(VSC) |
1 | ||
| 88263E - RELAY, SKID CONTROL NO.2 | ||||
| 88263-24030 |
MCV20 |
1 | ||
| 89183A - SENSOR, YAWRATE | ||||
| 89180-33010 |
MCV20 |
1 | ||
| 89245A - SENSOR, STEERING | ||||
| 89245-50010 |
MCV20 |
1 | ||
| 89245-30020 |
MCV20 |
1 | ||
| 89246A - DISC, SENSOR STEERING | ||||
| 89246-50010 |
MCV20 |
1 | ||
| 89246-30010 |
MCV20 |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89540-33030 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 89540-33130 |
MCV20 |
1 | ||
| 89540-33270 |
MCV20 |
1 | ||
| 89540-33120 |
MCV20..USA CALIFORNIA SPEC |
1 | ||
| 89540-33170 |
MCV20..USA BRAZIL SPEC |
1 | ||
| 89540-33280 |
MCV20 W(VSC) |
1 | ||
| 89540-33031 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 89540-33041 |
MCV20..USA |
1 | ||
| 89540-33200 |
MCV20..USA BRAZIL SPEC |
1 | ||
| 89540-33110 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 89540-33140 |
MCV20 W(VSC) |
1 | ||
| 89540-33090 |
MCV20..USA |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-33030 |
MCV20 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-33030 |
MCV20 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-33020 |
MCV20 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-33020 |
MCV20 |
1 | ||
| Common parts | ||||
| 90159-70003 | ||||
| 90179-06070 | ||||
| 91611-B0610 | ||||
| 91626-60818 | ||||
| 91626-B0616 | ||||
| 91651-B0618 | ||||
| G3416-33010 | ||||
