MCV20L-BTPGKA (1996)

Toyota Lexus Es300

Production Aug 1996 - Jul 2001
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9608-9808) ; (9808- )USA

Click highlighted areas on diagram

(9808- )BRAZIL SPEC

diagram 82125A 8271533160 8271533170 84722 85420 85420D 85420D 89411C 9010505004 9030111008 9030121009 9161160620 9161160820
Part # Description Qty Price
82125A - WIRE, TRANSMISSION
82125-21030

MCV20

 1
82125-33010

MCV20

 1
82125-33010

MCV20..USA

BRAZIL SPEC

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-33060G0

MCV20

SAGE,TRIM6#

 1
84722-33060C0

MCV20..USA

BRAZIL SPEC,BLACK,TRIM2#

 1
84722-33060C0

MCV20

BLACK,TRIM2#

 1
84722-33060E0

MCV20..USA

BRAZIL SPEC,IVORY,TRIM0#

 1
84722-33060G0

MCV20..USA

BRAZIL SPEC,SAGE,TRIM6#

 1
84722-33090G0

MCV20

DK.SAGE,TRIM6#

 1
84722-33090E0

MCV20

OAK,TRIM0#

 1
84722-33060E0

MCV20

IVORY,TRIM0#

 1
84722-33090C0

MCV20

BLACK,TRIM2#

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-33010

MCV20..USA

BRAZIL SPEC

 1
85420-33010

MCV20

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

MCV20

 2
90301-06004

MCV20..USA

BRAZIL SPEC

 2
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

MCV20

 2
90301-06004

MCV20..USA

BRAZIL SPEC

 2
89411C - SENSOR, SPEED
89411-33010

MCV20..USA

BRAZIL SPEC,TOYOTA

 1
89413-24010

MCV20..USA

BRAZIL SPEC,AISIN

 1
89413-24010

MCV20

AISIN

 2
89411-33010

MCV20

TOYOTA

 2
89413-24010

MCV20

AISIN

 1
89411-33010

MCV20

TOYOTA

 1
Common parts
82715-33160
82715-33170
90105-05004
90301-11008
90301-21009
91611-60620
91611-60820

(9808- )

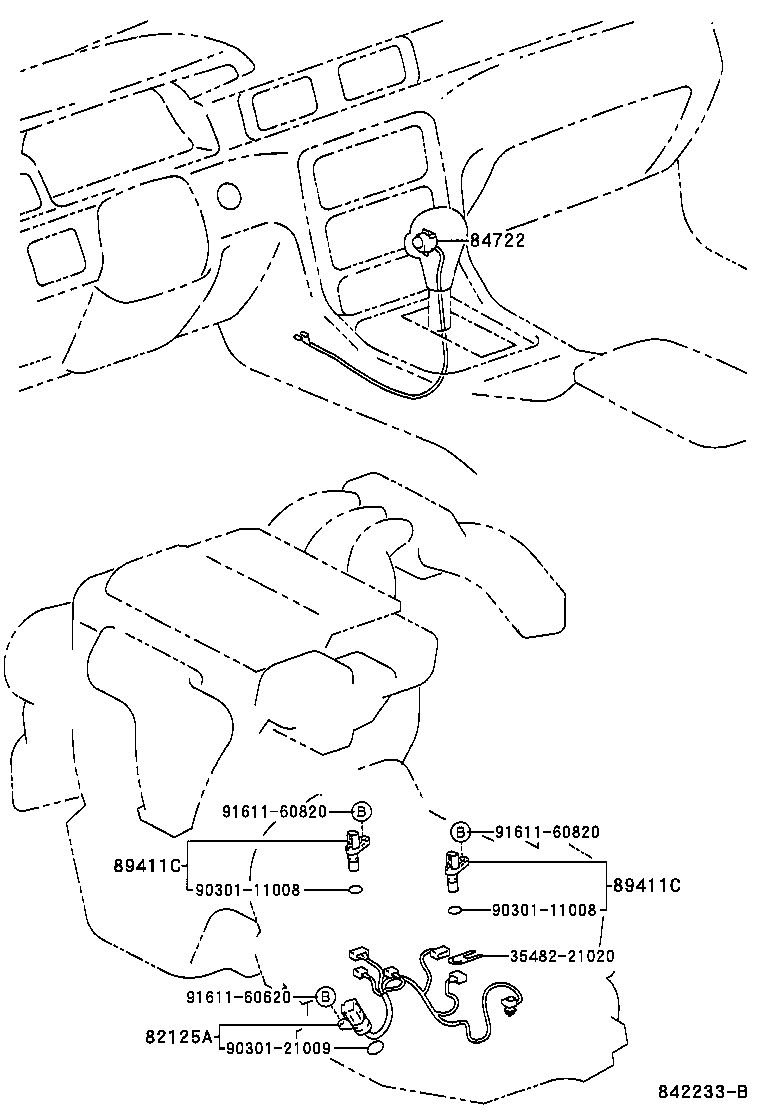

Click highlighted areas on diagram

diagram 3548221020 82125A 84722 89411C 89411C 9030111008 9030111008 9030121009 9161160620 9161160820 9161160820
Part # Description Qty Price
82125A - WIRE, TRANSMISSION
82125-21030

MCV20

 1
82125-33010

MCV20

 1
82125-33010

MCV20..USA

BRAZIL SPEC

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-33060G0

MCV20

SAGE,TRIM6#

 1
84722-33060C0

MCV20..USA

BRAZIL SPEC,BLACK,TRIM2#

 1
84722-33060C0

MCV20

BLACK,TRIM2#

 1
84722-33060E0

MCV20..USA

BRAZIL SPEC,IVORY,TRIM0#

 1
84722-33060G0

MCV20..USA

BRAZIL SPEC,SAGE,TRIM6#

 1
84722-33090G0

MCV20

DK.SAGE,TRIM6#

 1
84722-33090E0

MCV20

OAK,TRIM0#

 1
84722-33060E0

MCV20

IVORY,TRIM0#

 1
84722-33090C0

MCV20

BLACK,TRIM2#

 1
89411C - SENSOR, SPEED
89411-33010

MCV20..USA

BRAZIL SPEC,TOYOTA

 1
89413-24010

MCV20..USA

BRAZIL SPEC,AISIN

 1
89413-24010

MCV20

AISIN

 2
89411-33010

MCV20

TOYOTA

 2
89413-24010

MCV20

AISIN

 1
89411-33010

MCV20

TOYOTA

 1
89411C - SENSOR, SPEED
89411-33010

MCV20..USA

BRAZIL SPEC,TOYOTA

 1
89413-24010

MCV20..USA

BRAZIL SPEC,AISIN

 1
89413-24010

MCV20

AISIN

 2
89411-33010

MCV20

TOYOTA

 2
89413-24010

MCV20

AISIN

 1
89411-33010

MCV20

TOYOTA

 1
Common parts
35482-21020
90301-11008
90301-21009
91611-60620
91611-60820
