MCV20L-BTPGKA (1996)

Toyota Lexus Es300

Production Aug 1996 - Jul 2001
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

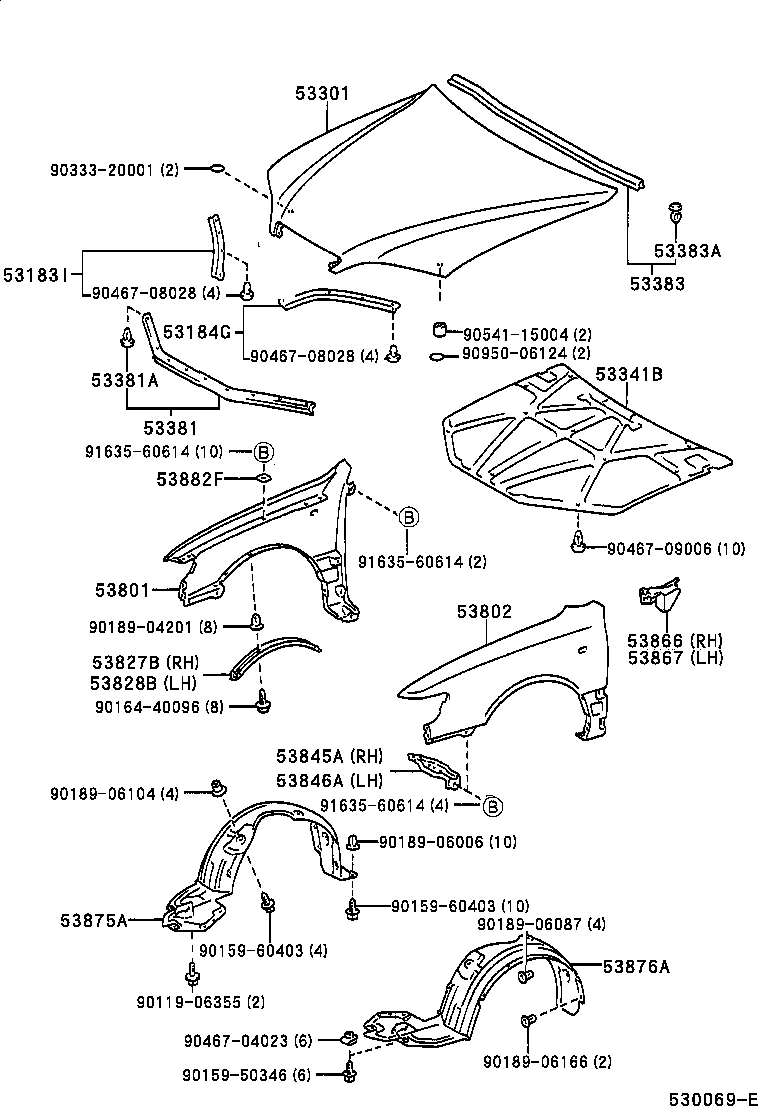

Click highlighted areas on diagram

diagram 53183I 53184G 53301 53341B 53381 53381A 53383 53383A 53801 53802 53827B 53828B 53845A 53846A 53866 53867 53875A 53876A 53882F 9011906355 9015950346 9015960403 9015960403 9016440096 9018904201 9018906006 9018906087 9018906104 9018906166 9033320001 9046704023 9046708028 9046708028 9046709006 9054115004 9095006124 9163560614 9163560614 9163560614
Part # Description Qty Price
53183I - SEAL, HEADLAMP COVER, RH
53183-33050

MCV20

 1
53184G - SEAL, HEADLAMP COVER, LH
53184-33050

MCV20

 1
53301 - HOOD SUB-ASSY
53301-33040

MCV20

 1
53341B - INSULATOR, HOOD
53341-33030

MCV20

 1
53341-33031

MCV20

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-33030

MCV20

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

MCV20

 10
53383 - SEAL, HOOD TO COWL TOP
53383-33040

MCV20

 1
53383A - CLIP(FOR HOOD TO COWL TOP SEAL)
90467-08101

MCV20

 8
53801 - FENDER SUB-ASSY, FRONT RH
53801-33070

MCV20

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-33070

MCV20

 1
53827B - PROTECTOR, FRONT FENDER SIDE PANEL
53827-33030

MCV20

 1
53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-33030

MCV20

 1
53845A - BRACE, FRONT WHEEL OPENING APRON, RH
53845-33050

MCV20

 1
53846A - BRACE, FRONT WHEEL OPENING APRON, LH
53846-33040

MCV20

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-33030

MCV20

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-33030

MCV20

 1
53875A - LINER, FRONT FENDER, RH
53875-33080

MCV20

 1
53876A - LINER, FRONT FENDER, LH
53876-33080

MCV20

 1
53882F - SEAL, FRONT FENDER
53882-16030

MCV20

 10
Common parts
90119-06355
90159-50346
90159-60403
90164-40096
90189-04201
90189-06006
90189-06087
90189-06104
90189-06166
90333-20001
90467-04023
90467-08028
90467-09006
90541-15004
90950-06124
91635-60614
