MCV20L-BTPGKA (1996)
Toyota Lexus Es300
Production
Aug 1996
-
Jul 2001
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

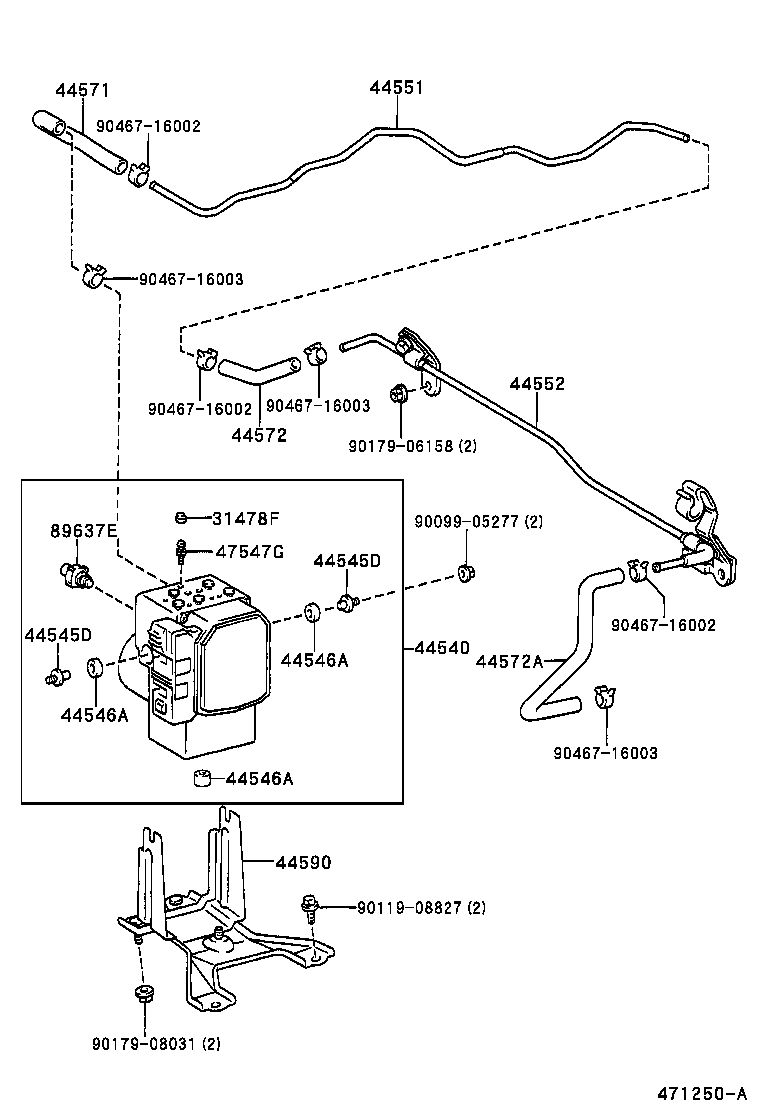

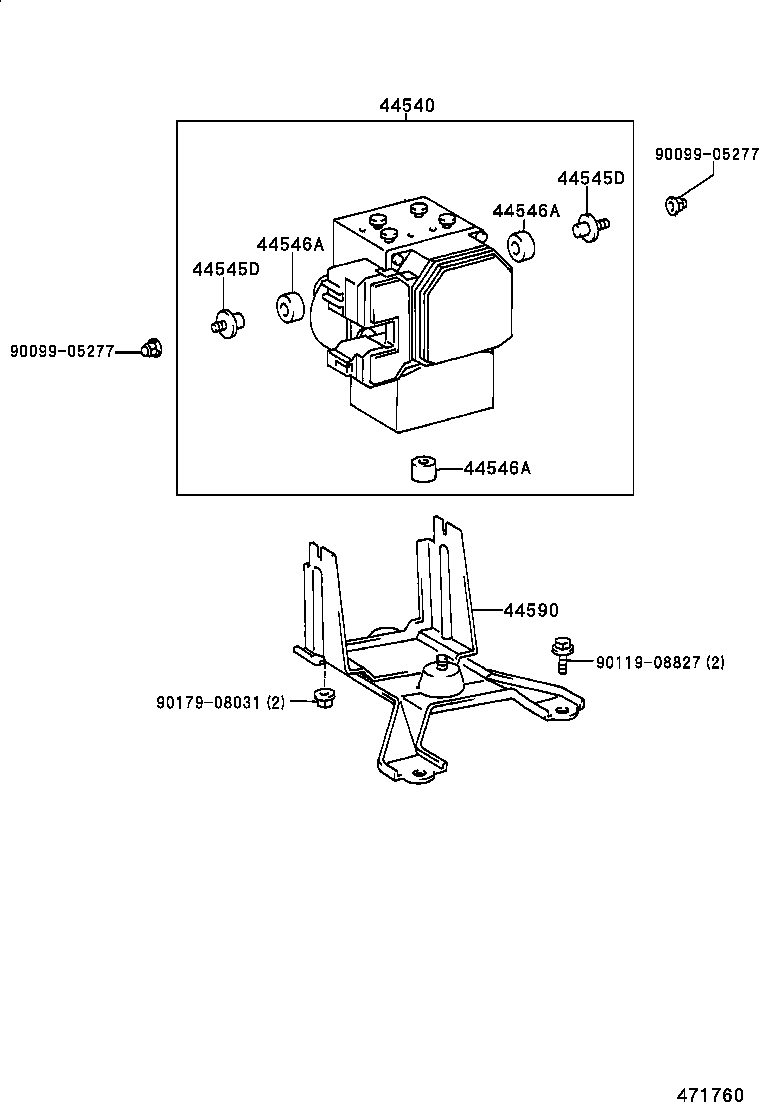

ILLUST NO. 2 OF 2(9608- )USA
Click highlighted areas on diagram
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-33020 |
MCV20..USA |
1 | ||
| 44510-33070 |
MCV20..USA |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
MCV20 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
MCV20 |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
MCV20 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
MCV20 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
MCV20 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-33030 |
MCV20 |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90119-08827 | ||||
| 90179-08031 | ||||

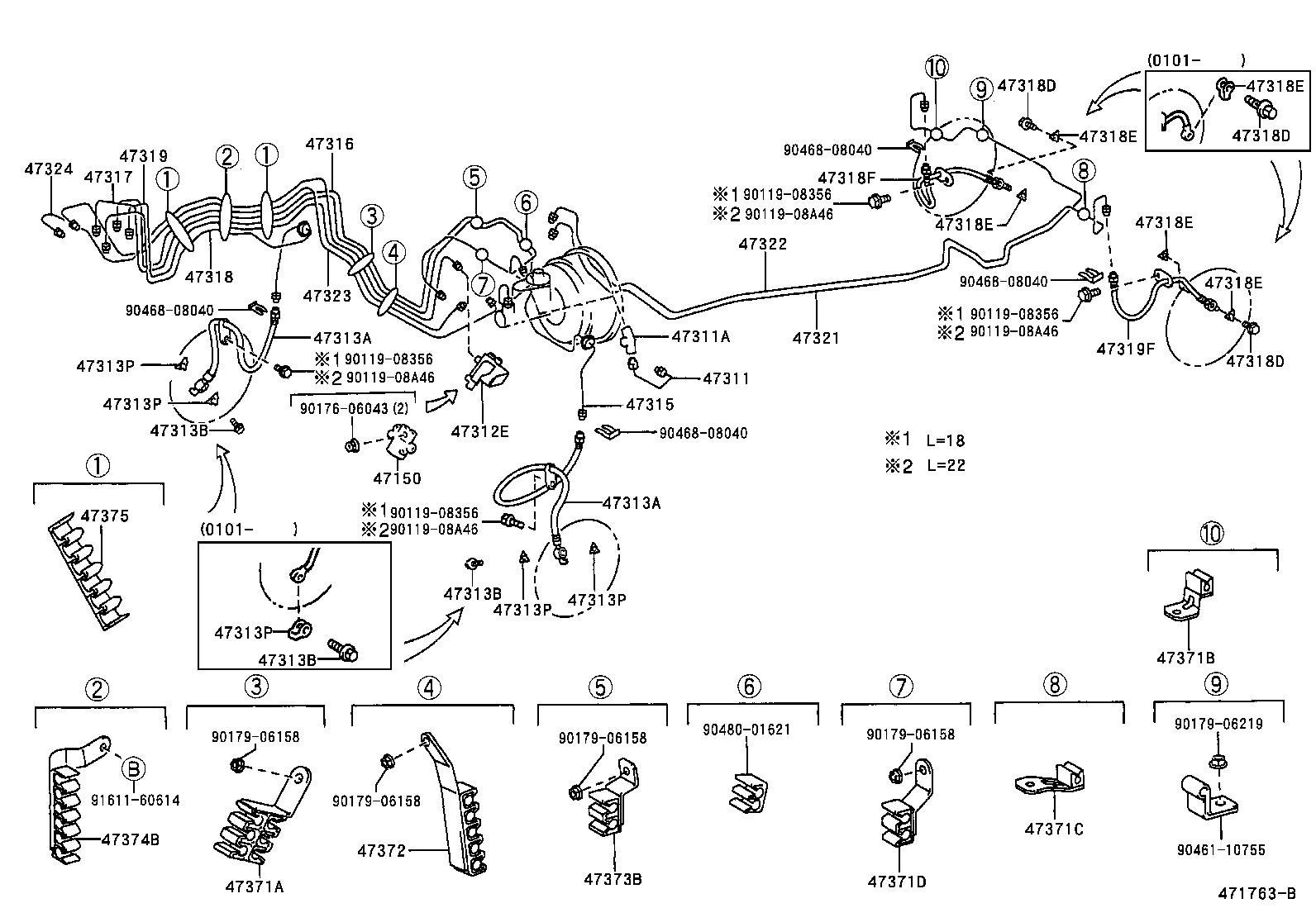

ILLUST NO. 1 OF 2(9608- )USA
Click highlighted areas on diagram
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-33020 |
MCV20 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-33030 |
MCV20..USA |
1 | ||
| 47311-33050 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47311-33060 |
MCV20 W(VSC) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90904-12025 |
MCV20 |
1 | ||
| 90904-12039 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 90904-12025 |
MCV20..USA |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-12038 |
MCV20 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02876 |
MCV20 LH |
1 | ||
| 90947-02875 |
MCV20 RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02876 |
MCV20 LH |
1 | ||
| 90947-02875 |
MCV20 RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
MCV20 |
2 | ||
| 90401-10015 |
MCV20 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
MCV20 |
2 | ||
| 90401-10015 |
MCV20 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
MCV20 |
2 | ||
| 90401-10015 |
MCV20 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
MCV20 |
2 | ||
| 47389-30010 |
MCV20 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
MCV20 |
2 | ||
| 47389-30010 |
MCV20 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
MCV20 |
2 | ||
| 47389-30010 |
MCV20 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
MCV20 |
2 | ||
| 47389-30010 |
MCV20 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
MCV20 |
2 | ||
| 47389-30010 |
MCV20 |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-33060 |
MCV20 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-33070 |
MCV20..USA |
1 | ||
| 47316-33130 |
MCV20 W(VSC) |
1 | ||
| 47316-33100 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-33060 |
MCV20..USA |
1 | ||
| 47317-33120 |
MCV20 W(VSC) |
1 | ||
| 47317-33090 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-33060 |
MCV20 W(VSC) |
1 | ||
| 47318-33040 |
MCV20..USA |
1 | ||
| 47318-33050 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
MCV20 |
2 | ||
| 90401-10015 |
MCV20 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
MCV20 |
2 | ||
| 90401-10015 |
MCV20 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
MCV20 |
2 | ||
| 90401-10015 |
MCV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20 |
4 | ||
| 47389-50020 |
MCV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20 |
4 | ||
| 47389-50020 |
MCV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20 |
4 | ||
| 47389-50020 |
MCV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20 |
4 | ||
| 47389-50020 |
MCV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20 |
4 | ||
| 47389-50020 |
MCV20 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02877 |
MCV20 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-33100 |
MCV20 W(VSC) |
1 | ||
| 47319-33080 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47319-33030 |
MCV20..USA |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02878 |
MCV20 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-33120 |
MCV20 |
1 | ||
| 47321-33020 |
MCV20 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-33020 |
MCV20 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-33130 |
MCV20 W(VSC) |
1 | ||
| 47323-33040 |
MCV20..USA |
1 | ||
| 47323-33090 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-33130 |
MCV20 W(VSC) |
1 | ||
| 47324-33040 |
MCV20..USA |
1 | ||
| 47324-33090 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-33110 |
MCV20 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-32130 |
MCV20 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-32140 |
MCV20 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47371-33090 |
MCV20 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-33120 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47371-33240 |
MCV20 |
1 | ||
| 47371-33240 |
MCV20..USA |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-33130 |
MCV20 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-33270 |
MCV20 W(VSC) |
1 | ||
| 47371-33100 |
MCV20 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01A60 |
MCV20 |
2 | ||
| 47372-33010 |
MCV20 W(VSC) |
2 | ||
| Common parts | ||||
| 90119-08356 | ||||
| 90119-08A46 | ||||
| 90176-06043 | ||||
| 90179-06158 | ||||
| 90179-06219 | ||||
| 90461-10755 | ||||
| 90468-08040 | ||||
| 90480-01621 | ||||
| 91611-60614 | ||||

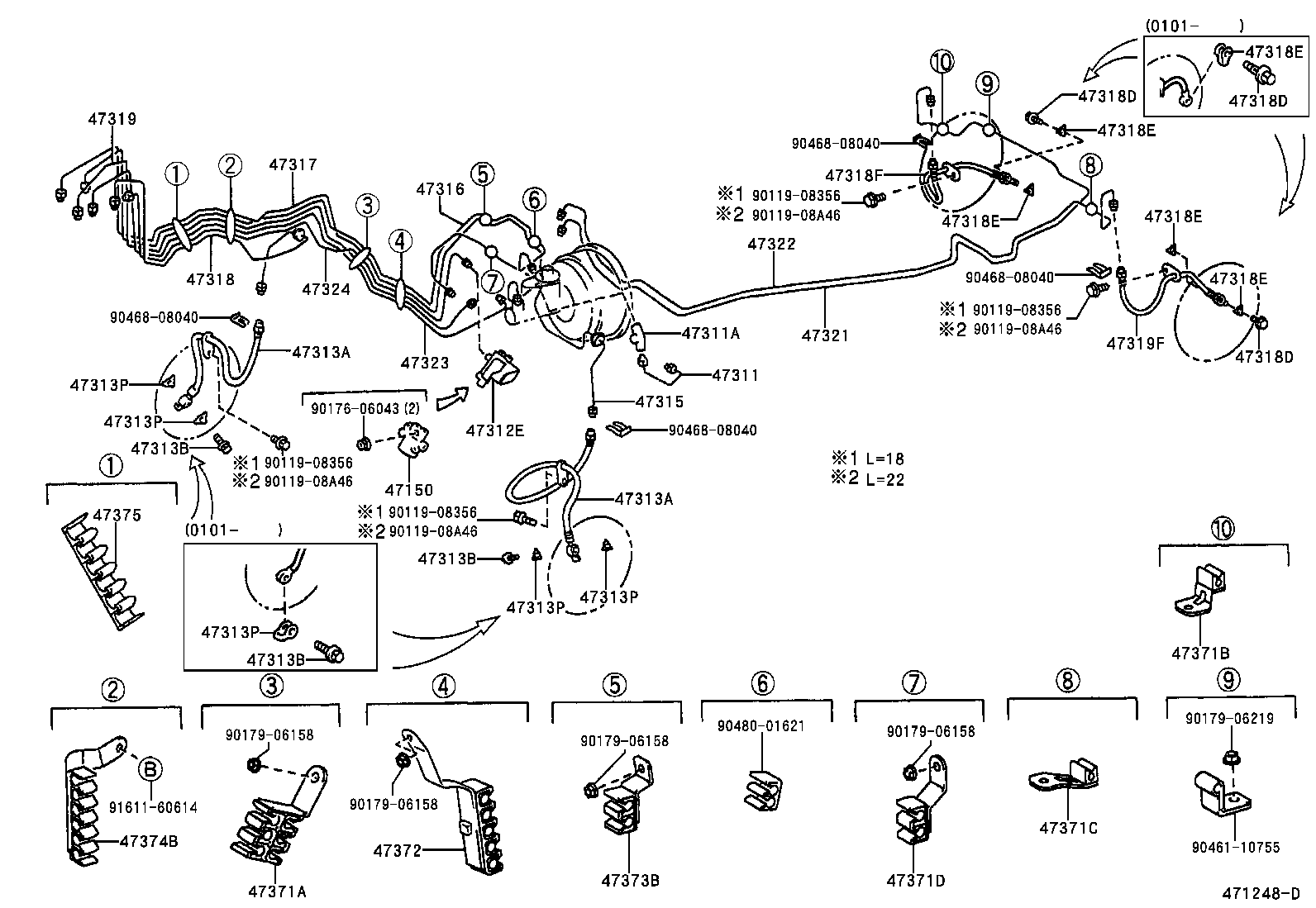

ILLUST NO. 1 OF 2(9808- )
Click highlighted areas on diagram
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-33020 |
MCV20 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-33030 |
MCV20..USA |
1 | ||
| 47311-33050 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47311-33060 |
MCV20 W(VSC) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90904-12025 |
MCV20 |
1 | ||
| 90904-12039 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 90904-12025 |
MCV20..USA |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-12038 |
MCV20 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02876 |
MCV20 LH |
1 | ||
| 90947-02875 |
MCV20 RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02876 |
MCV20 LH |
1 | ||
| 90947-02875 |
MCV20 RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
MCV20 |
2 | ||
| 90401-10015 |
MCV20 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
MCV20 |
2 | ||
| 90401-10015 |
MCV20 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
MCV20 |
2 | ||
| 90401-10015 |
MCV20 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
MCV20 |
2 | ||
| 47389-30010 |
MCV20 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
MCV20 |
2 | ||
| 47389-30010 |
MCV20 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
MCV20 |
2 | ||
| 47389-30010 |
MCV20 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
MCV20 |
2 | ||
| 47389-30010 |
MCV20 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
MCV20 |
2 | ||
| 47389-30010 |
MCV20 |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-33060 |
MCV20 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-33070 |
MCV20..USA |
1 | ||
| 47316-33130 |
MCV20 W(VSC) |
1 | ||
| 47316-33100 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-33060 |
MCV20..USA |
1 | ||
| 47317-33120 |
MCV20 W(VSC) |
1 | ||
| 47317-33090 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-33060 |
MCV20 W(VSC) |
1 | ||
| 47318-33040 |
MCV20..USA |
1 | ||
| 47318-33050 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
MCV20 |
2 | ||
| 90401-10015 |
MCV20 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
MCV20 |
2 | ||
| 90401-10015 |
MCV20 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
MCV20 |
2 | ||
| 90401-10015 |
MCV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20 |
4 | ||
| 47389-50020 |
MCV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20 |
4 | ||
| 47389-50020 |
MCV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20 |
4 | ||
| 47389-50020 |
MCV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20 |
4 | ||
| 47389-50020 |
MCV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20 |
4 | ||
| 47389-50020 |
MCV20 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02877 |
MCV20 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-33100 |
MCV20 W(VSC) |
1 | ||
| 47319-33080 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47319-33030 |
MCV20..USA |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02878 |
MCV20 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-33120 |
MCV20 |
1 | ||
| 47321-33020 |
MCV20 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-33020 |
MCV20 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-33130 |
MCV20 W(VSC) |
1 | ||
| 47323-33040 |
MCV20..USA |
1 | ||
| 47323-33090 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-33130 |
MCV20 W(VSC) |
1 | ||
| 47324-33040 |
MCV20..USA |
1 | ||
| 47324-33090 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-33110 |
MCV20 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-32130 |
MCV20 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-32140 |
MCV20 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47371-33090 |
MCV20 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-33120 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47371-33240 |
MCV20 |
1 | ||
| 47371-33240 |
MCV20..USA |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-33130 |
MCV20 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-33270 |
MCV20 W(VSC) |
1 | ||
| 47371-33100 |
MCV20 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01A60 |
MCV20 |
2 | ||
| 47372-33010 |
MCV20 W(VSC) |
2 | ||
| Common parts | ||||
| 90119-08356 | ||||
| 90119-08A46 | ||||
| 90176-06043 | ||||
| 90179-06158 | ||||
| 90179-06219 | ||||
| 90461-10755 | ||||
| 90468-08040 | ||||
| 90480-01621 | ||||
| 91611-60614 | ||||
ILLUST NO. 2 OF 2(9808- )
Click highlighted areas on diagram
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478F - CAP, BLEEDER PLUG(FOR BRAKE TRACTION ACTUATOR) | ||||
| 31478-30010 |
MCV20 |
1 | ||
| 44540 - ACTUATOR ASSY, ABS & TRACTION | ||||
| 44540-33010 |
MCV20 |
1 | ||
| 44050-33030 |
MCV20 |
1 | ||
| 44050-33040 |
MCV20 W(VSC) |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
MCV20 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
MCV20 |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
MCV20 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
MCV20 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
MCV20 |
3 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-33020 |
MCV20 |
1 | ||
| 44552 - TUBE, BRAKE ACTUATOR, NO.2 | ||||
| 44552-33010 |
MCV20 |
1 | ||
| 44571 - HOSE, BRAKE ACTUATOR | ||||
| 44571-33010 |
MCV20 |
1 | ||
| 44572 - HOSE, BRAKE ACTUATOR, NO.2 | ||||
| 44571-33030 |
MCV20 |
1 | ||
| 44572A - HOSE, BRAKE ACTUATOR, NO.3 | ||||
| 44571-33040 |
MCV20 |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-33030 |
MCV20 |
1 | ||
| 47547G - PLUG, BLEEDER(FOR BRAKE TRACTION ACTUATOR) | ||||
| 47547-27030 |
MCV20 |
1 | ||
| 89637E - SENSOR, OIL PRESSURE | ||||
| 89637-33010 |
MCV20 |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90119-08827 | ||||
| 90179-06158 | ||||
| 90179-08031 | ||||
| 90467-16002 | ||||
| 90467-16003 | ||||
ILLUST NO. 2 OF 2(9608- )
Click highlighted areas on diagram
W(TRACTION CONTROL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44540 - ACTUATOR ASSY, ABS & TRACTION | ||||
| 44540-33010 |
MCV20 |
1 | ||
| 44050-33030 |
MCV20 |
1 | ||
| 44050-33040 |
MCV20 W(VSC) |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
MCV20 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
MCV20 |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
MCV20 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
MCV20 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
MCV20 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-33030 |
MCV20 |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90119-08827 | ||||
| 90179-08031 | ||||
ILLUST NO. 1 OF 2(9608- )
Click highlighted areas on diagram
W(TRACTION CONTROL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-33020 |
MCV20 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-33030 |
MCV20..USA |
1 | ||
| 47311-33050 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47311-33060 |
MCV20 W(VSC) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90904-12025 |
MCV20 |
1 | ||
| 90904-12039 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 90904-12025 |
MCV20..USA |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-12038 |
MCV20 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02876 |
MCV20 LH |
1 | ||
| 90947-02875 |
MCV20 RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02876 |
MCV20 LH |
1 | ||
| 90947-02875 |
MCV20 RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
MCV20 |
2 | ||
| 90401-10015 |
MCV20 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
MCV20 |
2 | ||
| 90401-10015 |
MCV20 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
MCV20 |
2 | ||
| 90401-10015 |
MCV20 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
MCV20 |
2 | ||
| 47389-30010 |
MCV20 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
MCV20 |
2 | ||
| 47389-30010 |
MCV20 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
MCV20 |
2 | ||
| 47389-30010 |
MCV20 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
MCV20 |
2 | ||
| 47389-30010 |
MCV20 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
MCV20 |
2 | ||
| 47389-30010 |
MCV20 |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-33060 |
MCV20 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-33070 |
MCV20..USA |
1 | ||
| 47316-33130 |
MCV20 W(VSC) |
1 | ||
| 47316-33100 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-33060 |
MCV20..USA |
1 | ||
| 47317-33120 |
MCV20 W(VSC) |
1 | ||
| 47317-33090 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-33060 |
MCV20 W(VSC) |
1 | ||
| 47318-33040 |
MCV20..USA |
1 | ||
| 47318-33050 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
MCV20 |
2 | ||
| 90401-10015 |
MCV20 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
MCV20 |
2 | ||
| 90401-10015 |
MCV20 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
MCV20 |
2 | ||
| 90401-10015 |
MCV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20 |
4 | ||
| 47389-50020 |
MCV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20 |
4 | ||
| 47389-50020 |
MCV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20 |
4 | ||
| 47389-50020 |
MCV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20 |
4 | ||
| 47389-50020 |
MCV20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
MCV20 |
4 | ||
| 47389-50020 |
MCV20 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02877 |
MCV20 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-33100 |
MCV20 W(VSC) |
1 | ||
| 47319-33080 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47319-33030 |
MCV20..USA |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02878 |
MCV20 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-33120 |
MCV20 |
1 | ||
| 47321-33020 |
MCV20 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-33020 |
MCV20 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-33130 |
MCV20 W(VSC) |
1 | ||
| 47323-33040 |
MCV20..USA |
1 | ||
| 47323-33090 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-33130 |
MCV20 W(VSC) |
1 | ||
| 47324-33040 |
MCV20..USA |
1 | ||
| 47324-33090 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-33110 |
MCV20 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-32130 |
MCV20 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-32140 |
MCV20 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47371-33090 |
MCV20 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-33120 |
MCV20 W(TRACTION CONTROL) |
1 | ||
| 47371-33240 |
MCV20 |
1 | ||
| 47371-33240 |
MCV20..USA |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-33130 |
MCV20 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-33270 |
MCV20 W(VSC) |
1 | ||
| 47371-33100 |
MCV20 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01A60 |
MCV20 |
2 | ||
| 47372-33010 |
MCV20 W(VSC) |
2 | ||
| Common parts | ||||
| 90119-08356 | ||||
| 90119-08A46 | ||||
| 90176-06043 | ||||
| 90179-06158 | ||||
| 90179-06219 | ||||
| 90461-10755 | ||||
| 90468-08040 | ||||
| 90480-01621 | ||||
| 91611-60614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
