MCV20L-BTPGKA (1996)
Toyota Lexus Es300
Production
Aug 1996
-
Jul 2001
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9608- )

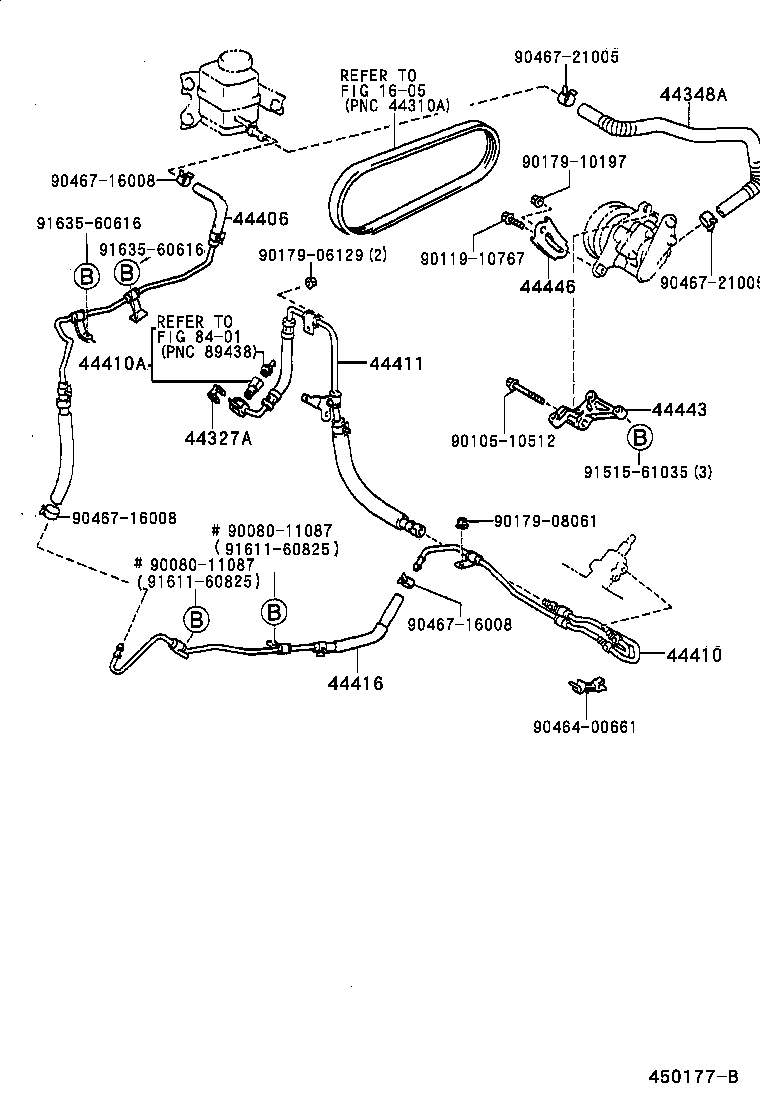

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
MCV20 |
1 | ||
| 44327-12010 |
MCV20 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-33130 |
MCV20 |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-33061 |
MCV20 |
1 | ||
| 44406-33060 |
MCV20 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-33140 |
MCV20 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 44338-33090 |
MCV20 |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-33070 |
MCV20 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-33090 |
MCV20 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-33040 |
MCV20 |
1 | ||
| 44443-33041 |
MCV20 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-33010 |
MCV20 |
1 | ||
| Common parts | ||||
| 90080-11087 | ||||
| 90105-10512 | ||||
| 90119-10767 | ||||
| 90179-06129 | ||||
| 90179-08061 | ||||
| 90179-10197 | ||||
| 90464-00661 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91515-61035 | ||||
| 91611-60825 | ||||
| 91635-60616 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 8401 | ||||
