Toyota Lexus es300 MCV20 DISC WHEEL & WHEEL CAP

MCV20L-BTPGKA (1996)

Toyota Lexus Es300

Production Aug 1996 - Jul 2001

Engine 1MZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

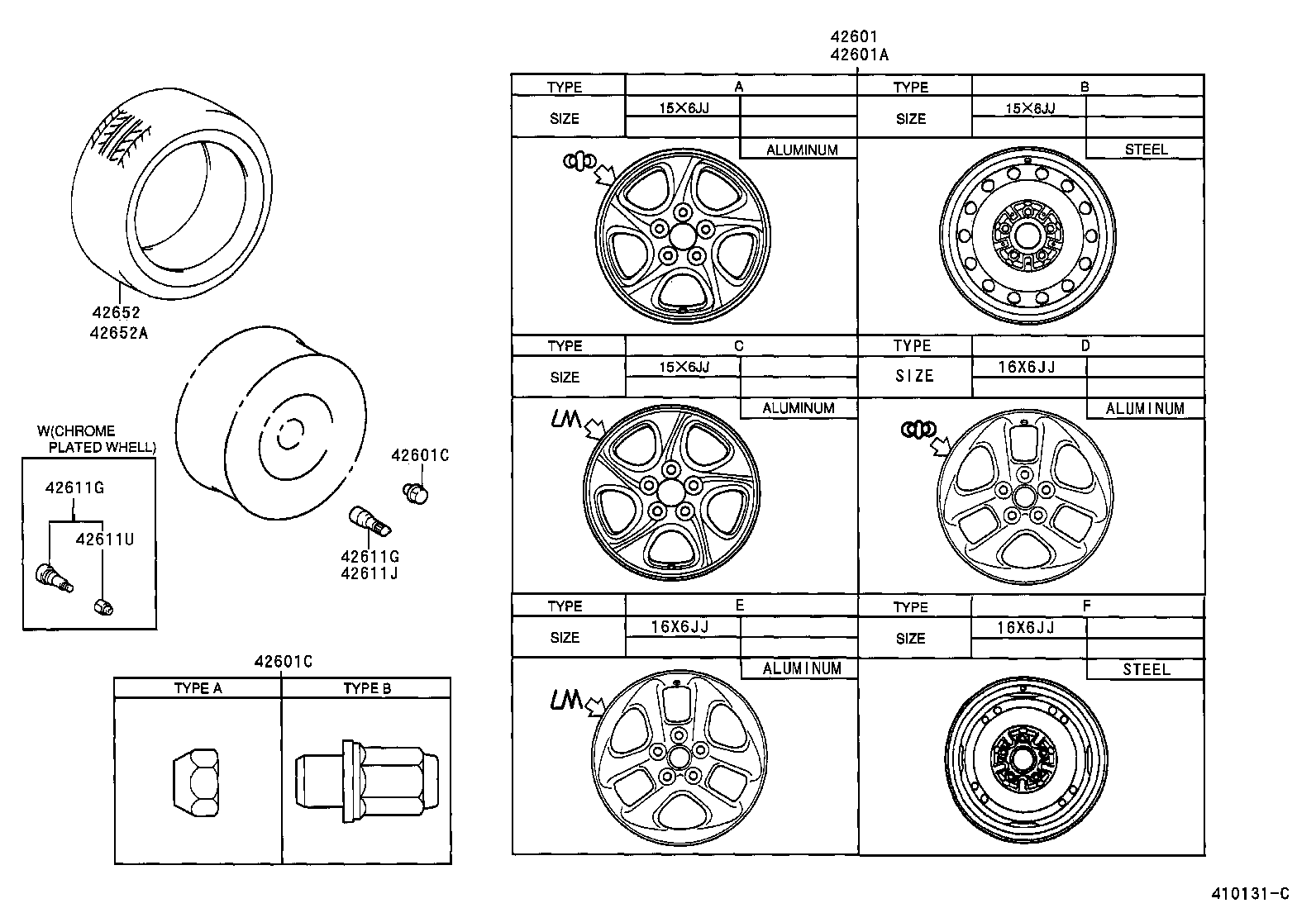

ILLUST NO. 1 OF 3(9608- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-33120	MCV20 15X6JJ,OFFSET 45,TYPE A:REFER TO ILLUSTRATION	08/1996 - 12/2999	4
42611-33180	MCV20 15X6JJ,CHROME PLATED,TYPE A:REFER TO ILLUSTRATION	08/1996 - 08/1999	4
42611-33010	MCV20..USA 15X6JJ,OFFSET 45,#,COACH EDITION FOR USA & HAWAII, TYPE B:REFER TO ILLUSTRATION	02/1999 - 04/1999	4
42611-33240	MCV20 16X6JJ,OFFSET 45,TYPE E:REFER TO ILLUSTRATION	08/1999 - 12/2999	4
42611-33150	MCV20 15X6JJ,TYPE C:REFER TO ILLUSTRATION	08/1996 - 12/2999	4
42611-33230	MCV20 16X6JJ,OFFSET 45,TYPE D:REFER TO ILLUSTRATION	08/1999 - 12/2999	4
42611-33280	MCV20 16X6JJ,CHROME PLATED,TYPE E:REFER TO ILLUSTRATION	08/1999 - 12/2999	4
42601A - WHEEL, DISC (FOR SPARE)
42611-33290	MCV20 16X6JJ,0FFSET 45,TYPE F:REFER TO ILLUSTRATION	08/1999 - 12/2999	1
42611-3301001	MCV20 15X6JJ,OFFSET 45,#,TYPE B:REFER TO ILLUSTRATION,BLACK	08/1996 - 12/2999	1
42601C - NUT, HUB (FOR AXLE)
90942-01058	MCV20	08/1996 - 12/2999	20
42601C - NUT, HUB (FOR AXLE)
90942-01058	MCV20	08/1996 - 12/2999	20
42611G - VALVE (FOR TUBELESS TIRE)
90942-05028	MCV20 W(CHROME PLATED WHEEL)	08/1996 - 08/1999	4
90942-05009	MCV20	08/1996 - 12/2999	4
90942-05028	MCV20 W(CHROME PLATED WHEEL)	08/1999 - 12/2999	4
42611G - VALVE (FOR TUBELESS TIRE)
90942-05028	MCV20 W(CHROME PLATED WHEEL)	08/1996 - 08/1999	4
90942-05009	MCV20	08/1996 - 12/2999	4
90942-05028	MCV20 W(CHROME PLATED WHEEL)	08/1999 - 12/2999	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	MCV20	08/1996 - 12/2999	1
42611U - CAP, TIRE VALVE
90942-05029	MCV20	08/1999 - 12/2999	4
90942-05029	MCV20 W(CHROME PLATED WHEEL)	08/1996 - 08/1999	4
42652 - TIRE
42652-33350	MCV20 205/65R15 92V,*D/L,NO.1	08/1996 - 09/1996	4
42652-33350	MCV20 205/65R15 92V,*D/L	04/1997 - 12/2999	4
42652-33340	MCV20..USA 205/65R15 92V,*B/S	08/1996 - 08/1999	4
42652-33350	MCV20..USA 205/65R15 92V,*D/L	09/1996 - 04/1997	4
42652-33340	MCV20 205/65R15 92V,*B/S	08/1999 - 12/2999	4
42652-33330	MCV20 205/60R15 92V	08/1999 - 12/2999	4
42652-33320	MCV20 205/60R16 91V,*B/S	08/1999 - 12/2999	4
42652A - TIRE (FOR SPARE)
42652-33330	MCV20 205/60R15 92V	08/1999 - 12/2999	1
42652-33350	MCV20..USA 205/65R15 92V,*D/L	09/1996 - 08/1999	1
42652-33350	MCV20 205/65R15 92V,*D/L,NO.1	08/1996 - 09/1996	1
42652-33350	MCV20 205/65R15 92V,*D/L	08/1999 - 12/2999	1
42652-33320	MCV20 205/60R16 91V,*B/S	08/1999 - 12/2999	1
42652-33340	MCV20 205/65R15 92V,*B/S	08/1999 - 12/2999	1
42652-33310	MCV20 205/60R16,MICHELIN	08/2000 - 12/2999	1

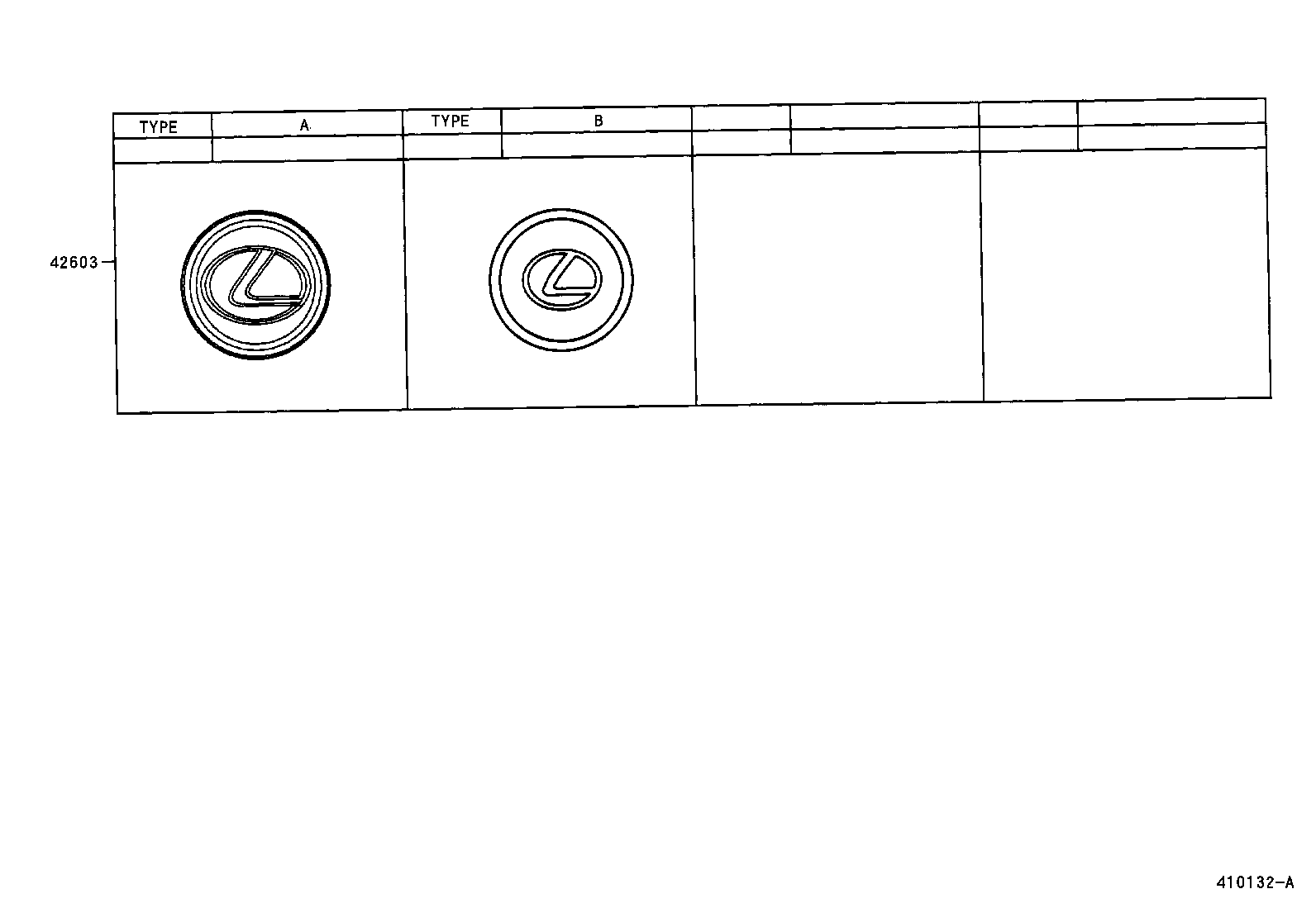

42652-33340	MCV20..USA 205/65R15 92V,*B/S	08/1996 - 08/1999	1

ILLUST NO. 2 OF 3(9608- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-30360	MCV20 *CHR,LEXUS 10TH ANNIVERSARY EDITION(USA/HAWAII/P.RICO/CANADA),TYPE B:REFER TO ILLUSTRATION	01/2000 - 07/2000	4
42603-33080	MCV20 *ALU,TYPE A:REFER TO ILLUSTRATION	08/1996 - 12/2999	4

Part #

Description

Qty

Price

42603 - ORNAMENT SUB-ASSY, WHEEL HUB

42603-30360

MCV20

*CHR,LEXUS 10TH ANNIVERSARY EDITION(USA/HAWAII/P.RICO/CANADA),TYPE B:REFER TO ILLUSTRATION

42603-33080

MCV20

*ALU,TYPE A:REFER TO ILLUSTRATION

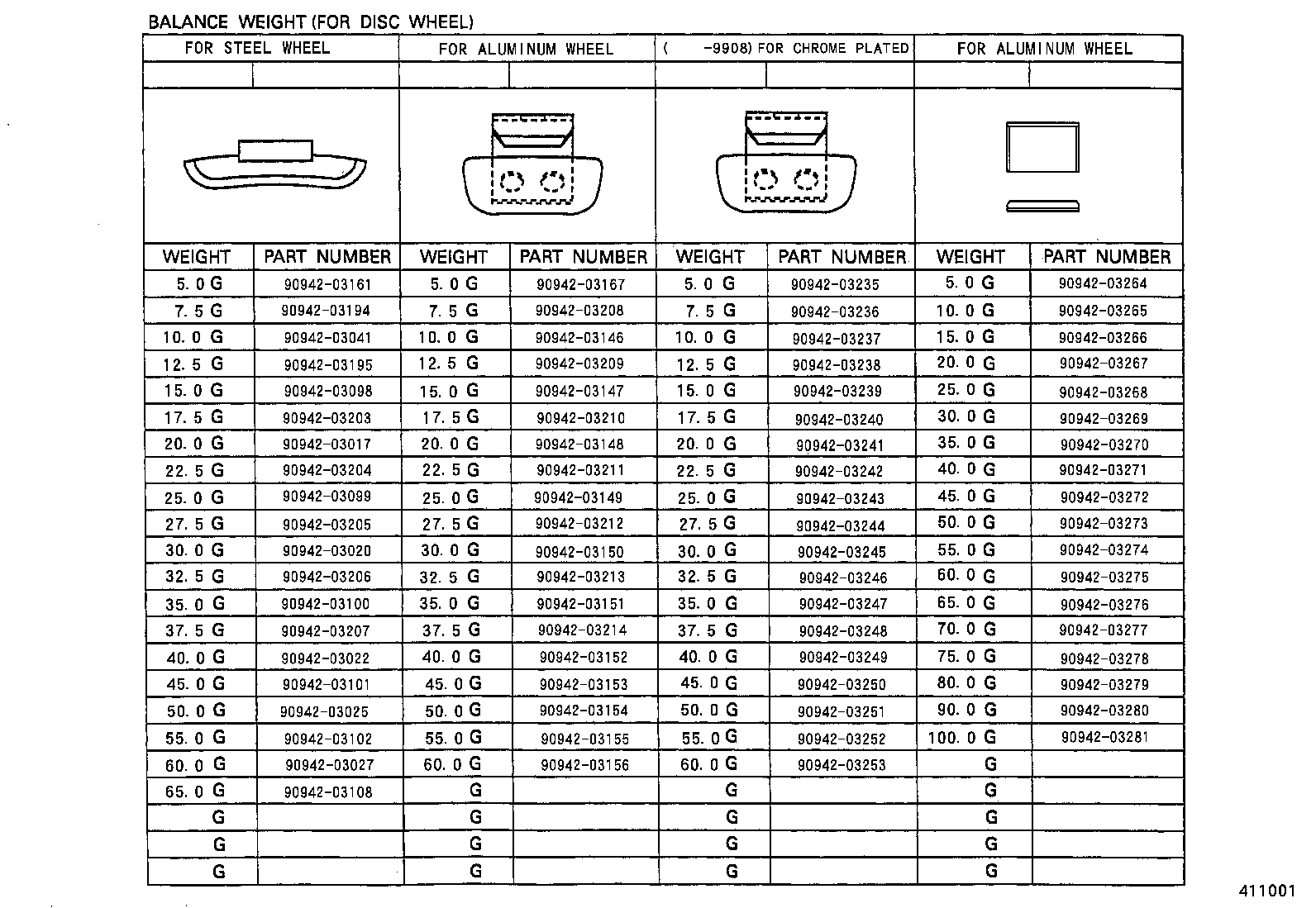

ILLUST NO. 3 OF 3(9608- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03102
90942-03108
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03161
90942-03167
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03235
90942-03236
90942-03237
90942-03238
90942-03239
90942-03240
90942-03241
90942-03242
90942-03243
90942-03244
90942-03245
90942-03246
90942-03247
90942-03248
90942-03249
90942-03250
90942-03251
90942-03252
90942-03253
90942-03264
90942-03265
90942-03266
90942-03267
90942-03268
90942-03269
90942-03270
90942-03271
90942-03272
90942-03273
90942-03274
90942-03275
90942-03276
90942-03277
90942-03278
90942-03279
90942-03280
90942-03281
