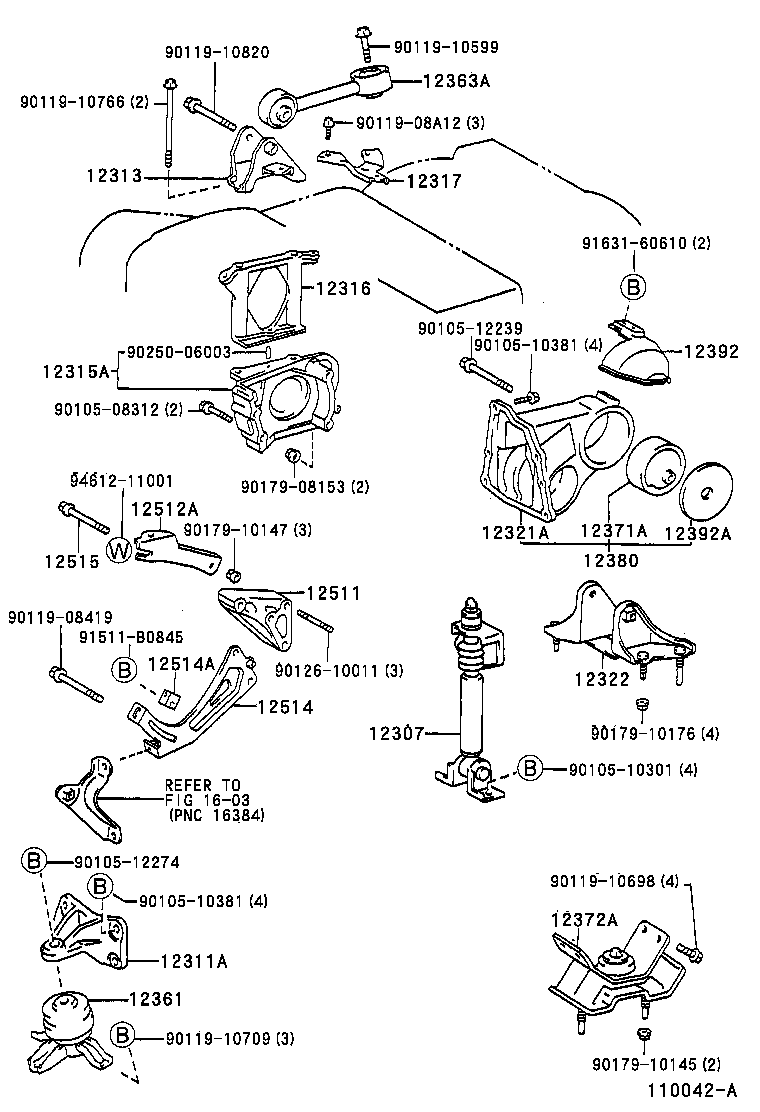

MCV20L-BTPGKA (1996)
Toyota Lexus Es300
(9608- )
BRAZIL SPEC & W/O(VVT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12307 - ABSORBER SUB-ASSY, ENGINE MOUNTING | ||||
| 12307-20021 |
1MZFE..MCV20 |
1 | ||
| 12307-20020 |
1MZFE..MCV20 |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-20040 |
1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
1 | ||
| 12311-20050 |
1MZFE..MCV20 |
1 | ||
| 12311-20040 |
1MZFE..MCV20 |
1 | ||
| 12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) | ||||
| 12313-20020 |
1MZFE..MCV20 |
1 | ||
| 12313-20040 |
1MZFE..MCV20 |
1 | ||
| 12313-20020 |
1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-20020 |
1MZFE..MCV20 |
1 | ||
| 12316 - BRACKET, ENGINE MOUNTING, NO.2 RH | ||||
| 12316-62020 |
1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
1 | ||
| 12316-20030 |
1MZFE..MCV20 |
1 | ||
| 12316-20010 |
1MZFE..MCV20 |
1 | ||
| 12316-62020 |
1MZFE..MCV20 |
1 | ||
| 12317 - STAY, ENGINE MOUNTING, RH | ||||
| 12317-20010 |
1MZFE..MCV20..USA |
1 | ||
| 12317-20010 |
1MZFE..MCV20 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-20080 |
1MZFE..MCV20 |
1 | ||
| 12321-20020 |
1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
1 | ||
| 12321-20020 |
1MZFE..MCV20 |
1 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12322-20020 |
1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
1 | ||
| 12322-20030 |
1MZFE..MCV20 |
1 | ||
| 12322-20020 |
1MZFE..MCV20 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-20070 |
1MZFE..MCV20 |
1 | ||
| 12361-20040 |
1MZFE..MCV20 |
1 | ||
| 12361-20040 |
1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-20020 |
1MZFE..MCV20 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-20030 |
1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
1 | ||
| 12371-20030 |
1MZFE..MCV20 |
1 | ||
| 12371-20070 |
1MZFE..MCV20 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-20010 |
1MZFE..MCV20 |
1 | ||
| 12372-20010 |
1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
1 | ||
| 12372-20040 |
1MZFE..MCV20 |
1 | ||
| 12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR | ||||
| 12380-20040 |
1MZFE..MCV20 |
1 | ||
| 12380-20030 |
1MZFE..MCV20 |
1 | ||
| 12380-20030 |
1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
1 | ||
| 12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH | ||||
| 12392-62010 |
1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
1 | ||
| 12392-62010 |
1MZFE..MCV20 |
1 | ||
| 12392-20020 |
1MZFE..MCV20 |
1 | ||
| 12392A - INSULATOR, ENGINE MOUNTING HEAT, REAR | ||||
| 12392-20040 |
1MZFE..MCV20 |
1 | ||
| 12392-20010 |
1MZFE..MCV20 |
1 | ||
| 12392-20010 |
1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-20020 |
1MZFE..MCV20 |
1 | ||
| 12512A - BRACKET, ALTERNATOR, NO.2 | ||||
| 12512-20010 |
1MZFE..MCV20 |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 12514-20010 |
1MZFE..MCV20 |
1 | ||
| 12514A - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-20010 |
1MZFE..MCV20 |
1 | ||
| 12515 - BOLT, ALTERNATOR THROUGH | ||||
| 12515-20010 |
1MZFE..MCV20 |
1 | ||
| Common parts | ||||
| 90105-08312 | ||||
| 90105-10301 | ||||
| 90105-10381 | ||||
| 90105-12239 | ||||
| 90105-12274 | ||||
| 90119-08419 | ||||
| 90119-08A12 | ||||
| 90119-10599 | ||||
| 90119-10698 | ||||
| 90119-10709 | ||||
| 90119-10766 | ||||
| 90119-10820 | ||||
| 90126-10011 | ||||
| 90179-08153 | ||||
| 90179-10145 | ||||
| 90179-10147 | ||||
| 90179-10176 | ||||
| 90250-06003 | ||||
| 91511-B0845 | ||||
| 91631-60610 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 1603 | ||||

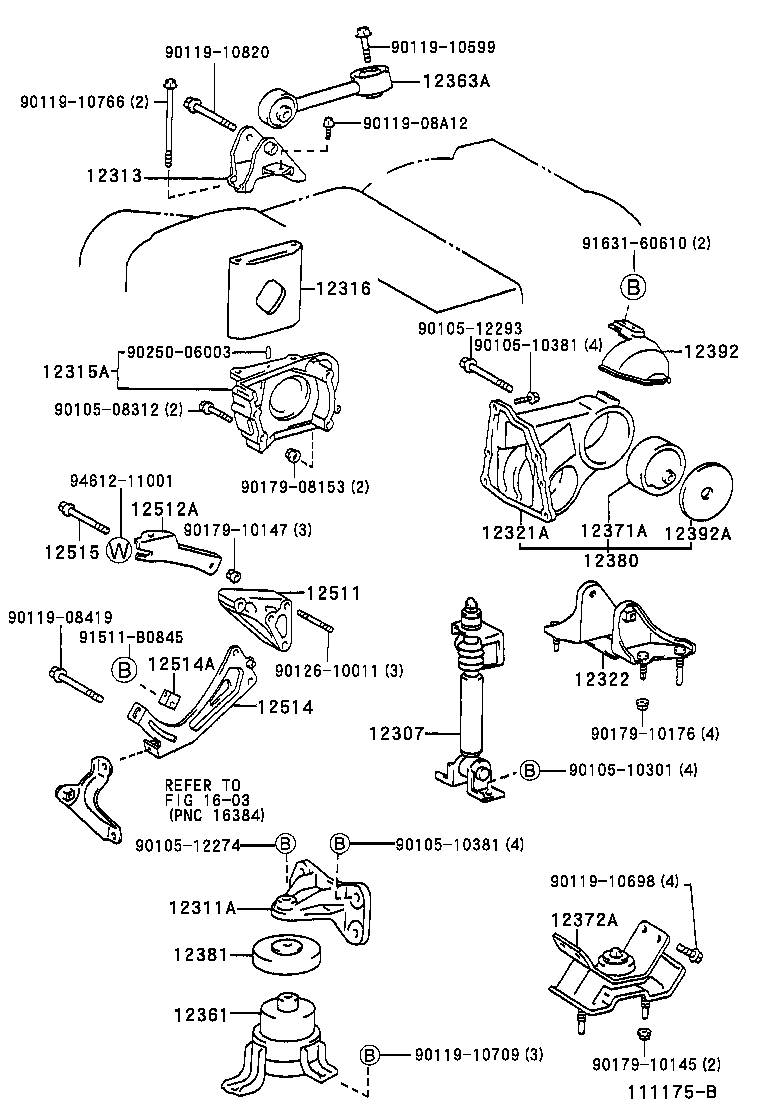

(9808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12307 - ABSORBER SUB-ASSY, ENGINE MOUNTING | ||||
| 12307-20021 |
1MZFE..MCV20 |
1 | ||
| 12307-20020 |
1MZFE..MCV20 |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-20040 |
1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
1 | ||
| 12311-20050 |
1MZFE..MCV20 |
1 | ||
| 12311-20040 |
1MZFE..MCV20 |
1 | ||
| 12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) | ||||
| 12313-20020 |
1MZFE..MCV20 |
1 | ||
| 12313-20040 |
1MZFE..MCV20 |
1 | ||
| 12313-20020 |
1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-20020 |
1MZFE..MCV20 |
1 | ||
| 12316 - BRACKET, ENGINE MOUNTING, NO.2 RH | ||||
| 12316-62020 |
1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
1 | ||
| 12316-20030 |
1MZFE..MCV20 |
1 | ||
| 12316-20010 |
1MZFE..MCV20 |
1 | ||
| 12316-62020 |
1MZFE..MCV20 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-20080 |
1MZFE..MCV20 |
1 | ||
| 12321-20020 |
1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
1 | ||
| 12321-20020 |
1MZFE..MCV20 |
1 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12322-20020 |
1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
1 | ||
| 12322-20030 |
1MZFE..MCV20 |
1 | ||
| 12322-20020 |
1MZFE..MCV20 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-20070 |
1MZFE..MCV20 |
1 | ||
| 12361-20040 |
1MZFE..MCV20 |
1 | ||
| 12361-20040 |
1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-20020 |
1MZFE..MCV20 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-20030 |
1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
1 | ||
| 12371-20030 |
1MZFE..MCV20 |
1 | ||
| 12371-20070 |
1MZFE..MCV20 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-20010 |
1MZFE..MCV20 |
1 | ||
| 12372-20010 |
1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
1 | ||
| 12372-20040 |
1MZFE..MCV20 |
1 | ||
| 12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR | ||||
| 12380-20040 |
1MZFE..MCV20 |
1 | ||
| 12380-20030 |
1MZFE..MCV20 |
1 | ||
| 12380-20030 |
1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-20030 |
1MZFE..MCV20 |
1 | ||
| 12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH | ||||
| 12392-62010 |
1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
1 | ||
| 12392-62010 |
1MZFE..MCV20 |
1 | ||
| 12392-20020 |
1MZFE..MCV20 |
1 | ||
| 12392A - INSULATOR, ENGINE MOUNTING HEAT, REAR | ||||
| 12392-20040 |
1MZFE..MCV20 |
1 | ||
| 12392-20010 |
1MZFE..MCV20 |
1 | ||
| 12392-20010 |
1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-20020 |
1MZFE..MCV20 |
1 | ||
| 12512A - BRACKET, ALTERNATOR, NO.2 | ||||
| 12512-20010 |
1MZFE..MCV20 |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 12514-20010 |
1MZFE..MCV20 |
1 | ||
| 12514A - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-20010 |
1MZFE..MCV20 |
1 | ||
| 12515 - BOLT, ALTERNATOR THROUGH | ||||
| 12515-20010 |
1MZFE..MCV20 |
1 | ||
| Common parts | ||||
| 90105-08312 | ||||
| 90105-10301 | ||||
| 90105-10381 | ||||
| 90105-12274 | ||||
| 90105-12293 | ||||
| 90119-08419 | ||||
| 90119-08A12 | ||||
| 90119-10599 | ||||
| 90119-10698 | ||||
| 90119-10709 | ||||
| 90119-10766 | ||||
| 90119-10820 | ||||
| 90126-10011 | ||||
| 90179-08153 | ||||
| 90179-10145 | ||||
| 90179-10147 | ||||
| 90179-10176 | ||||
| 90250-06003 | ||||
| 91511-B0845 | ||||
| 91631-60610 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 1603 | ||||
