MCV10L-BTPGKK (1993)

Toyota Lexus Es300

Production Aug 1993 - Aug 1996
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9107-9608)

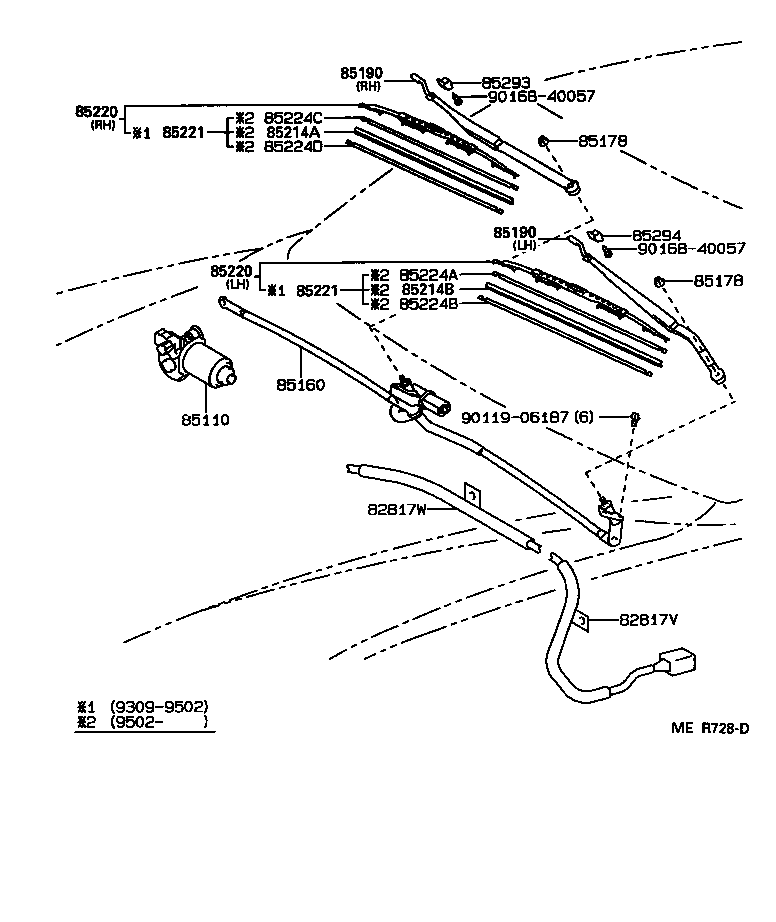

Click highlighted areas on diagram

diagram 82817V 82817W 85110 85160 85178 85178 85190 85190 85214A 85214B 85220 85220 85221 85221 85224A 85224B 85224C 85224D 85293 85294 9011906187 9016840057 9016840057
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-33010

MCV10,VCV10

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-33010

MCV10,VCV10

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08051

MCV10

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08051

MCV10

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85221-33040

MCV10,VCV10

LH

 1
85211-33030

MCV10,VCV10

RH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85221-33040

MCV10,VCV10

LH

 1
85211-33030

MCV10,VCV10

RH

 1
85214A - RUBBER, WIPER, RH
85214-33020

MCV10

 1
85214B - RUBBER, WIPER, LH
85214-33050

MCV10

 1
85224A - PLATE, WIPER RUBBER BACKING, NO.1
85224-28080

MCV10

 1
85224B - PLATE, WIPER RUBBER BACKING, NO.2
85224-28090

MCV10

 1
85224C - PLATE, WIPER RUBBER BACKING, NO.3
85224-33050

MCV10

 1
85224D - PLATE, WIPER RUBBER BACKING, NO.4
85224-33050

MCV10

 1
85293 - STEP, LINEAR WIPER, RH
85293-33010

MCV10,VCV10

 1
85294 - STEP, LINEAR WIPER, LH
85294-33010

MCV10,VCV10

 1
Common parts
90119-06187
90168-40057
