MCV10L-BTPGKK (1993)
Toyota Lexus Es300

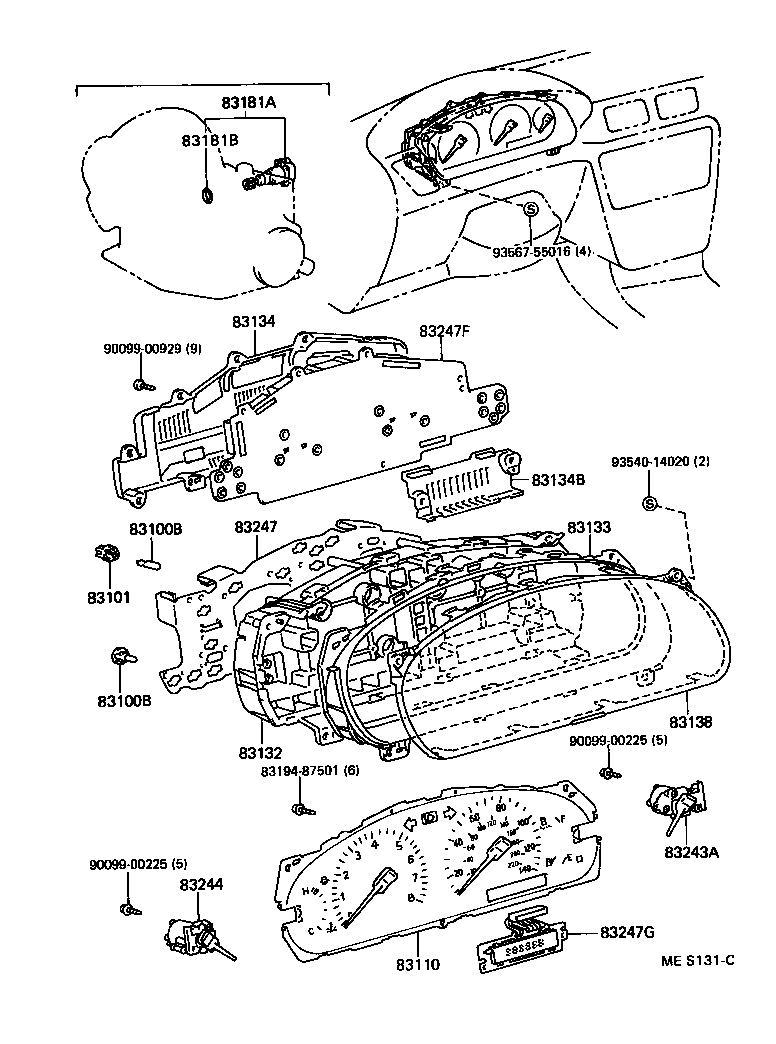

ILLUST NO. 1 OF 2(9107-9608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24570 |
MCV10,VCV10 14V 3.0W,BLUE CAP |
8 | ||
| 83119-50050 |
MCV10,VCV10..ATM 14V 3.0W,LONG LIFE |
3 | ||
| 83119-32010 |
MCV10 14V 3.0W |
7 | ||
| 90981-11018 |
MCV10..CND 12V 1.2W W/O SOCKET |
15 | ||
| 83101-20080 |
MCV10,VCV10 12V 1.4W,W(SOCKET) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24570 |
MCV10,VCV10 14V 3.0W,BLUE CAP |
8 | ||
| 83119-50050 |
MCV10,VCV10..ATM 14V 3.0W,LONG LIFE |
3 | ||
| 83119-32010 |
MCV10 14V 3.0W |
7 | ||
| 90981-11018 |
MCV10..CND 12V 1.2W W/O SOCKET |
15 | ||
| 83101-20080 |
MCV10,VCV10 12V 1.4W,W(SOCKET) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
MCV10..CND;VCV10..ATM OD=12.2 BLUE |
7 | ||
| 83101-32020 |
MCV10 OD=12.2 BLUE |
7 | ||
| 83101-14040 |
MCV10..CND OD=11.3 BLACK |
17 | ||
| 83101-24010 |
MCV10,VCV10 OD=12.5 GREEN |
8 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-33280 |
MCV10..CND |
1 | ||
| 83110-33281 |
MCV10..CND |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-33470 |
MCV10 |
1 | ||
| 83132-33151 |
MCV10 |
1 | ||
| 83132-33150 |
MCV10 |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-33010 |
MCV10,VCV10 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-33010 |
MCV10,VCV10 |
1 | ||
| 83134B - COVER, COMBINATION METER, NO.2 | ||||
| 83134-33030 |
MCV10,VCV10 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-33090 |
MCV10 |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12040 |
MCV10 |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24018 |
MCV10 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-33010 |
MCV10,VCV10 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-33010 |
MCV10,VCV10 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-33610 |
MCV10 |
1 | ||
| 83247F - PLATE, METER CIRCUIT, NO.1 (FOR COMPUTER) | ||||
| 83247-33590 |
MCV10..CND |
1 | ||
| 83247G - PLATE, METER CIRCUIT, NO.2 (FOR COMPUTER) | ||||
| 83247-33050 |
MCV10,VCV10 |
1 | ||
| Common parts | ||||
| 83194-87501 | ||||
| 90099-00225 | ||||
| 90099-00929 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||

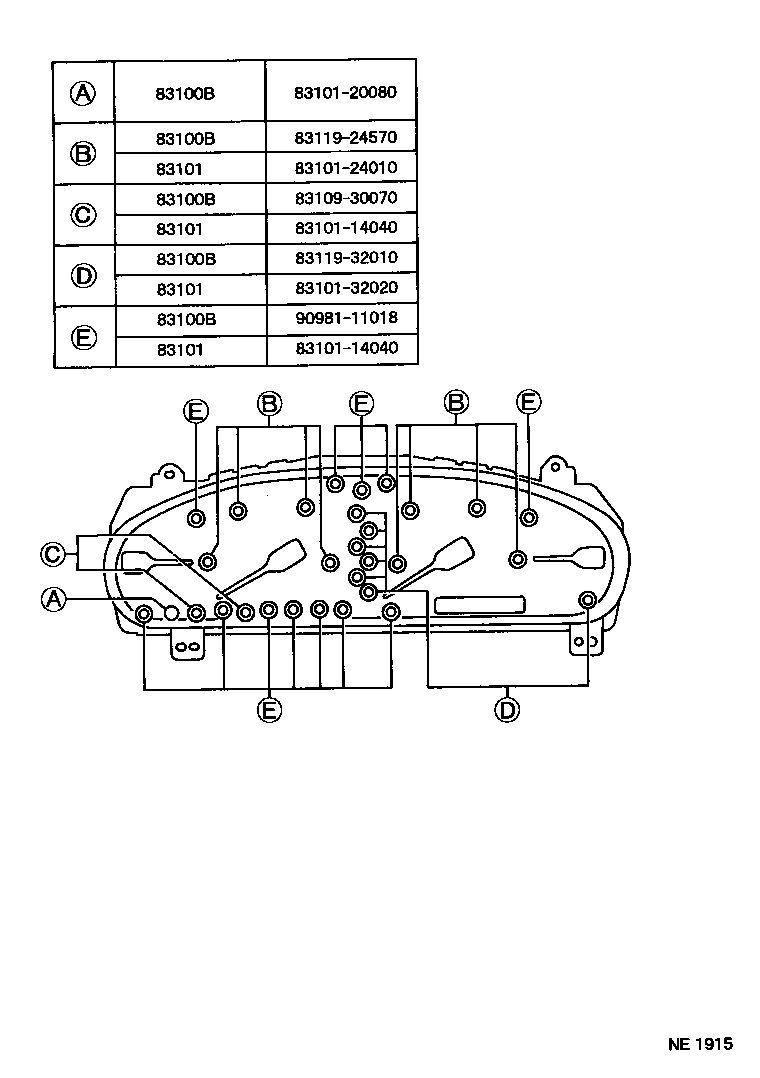

ILLUST NO. 2 OF 2(9107-9608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24570 |
MCV10,VCV10 14V 3.0W,BLUE CAP |
8 | ||
| 83119-50050 |
MCV10,VCV10..ATM 14V 3.0W,LONG LIFE |
3 | ||
| 83119-32010 |
MCV10 14V 3.0W |
7 | ||
| 90981-11018 |
MCV10..CND 12V 1.2W W/O SOCKET |
15 | ||
| 83101-20080 |
MCV10,VCV10 12V 1.4W,W(SOCKET) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24570 |
MCV10,VCV10 14V 3.0W,BLUE CAP |
8 | ||
| 83119-50050 |
MCV10,VCV10..ATM 14V 3.0W,LONG LIFE |
3 | ||
| 83119-32010 |
MCV10 14V 3.0W |
7 | ||
| 90981-11018 |
MCV10..CND 12V 1.2W W/O SOCKET |
15 | ||
| 83101-20080 |
MCV10,VCV10 12V 1.4W,W(SOCKET) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24570 |
MCV10,VCV10 14V 3.0W,BLUE CAP |
8 | ||
| 83119-50050 |
MCV10,VCV10..ATM 14V 3.0W,LONG LIFE |
3 | ||
| 83119-32010 |
MCV10 14V 3.0W |
7 | ||
| 90981-11018 |
MCV10..CND 12V 1.2W W/O SOCKET |
15 | ||
| 83101-20080 |
MCV10,VCV10 12V 1.4W,W(SOCKET) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24570 |
MCV10,VCV10 14V 3.0W,BLUE CAP |
8 | ||
| 83119-50050 |
MCV10,VCV10..ATM 14V 3.0W,LONG LIFE |
3 | ||
| 83119-32010 |
MCV10 14V 3.0W |
7 | ||
| 90981-11018 |
MCV10..CND 12V 1.2W W/O SOCKET |
15 | ||
| 83101-20080 |
MCV10,VCV10 12V 1.4W,W(SOCKET) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24570 |
MCV10,VCV10 14V 3.0W,BLUE CAP |
8 | ||
| 83119-50050 |
MCV10,VCV10..ATM 14V 3.0W,LONG LIFE |
3 | ||
| 83119-32010 |
MCV10 14V 3.0W |
7 | ||
| 90981-11018 |
MCV10..CND 12V 1.2W W/O SOCKET |
15 | ||
| 83101-20080 |
MCV10,VCV10 12V 1.4W,W(SOCKET) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
MCV10..CND;VCV10..ATM OD=12.2 BLUE |
7 | ||
| 83101-32020 |
MCV10 OD=12.2 BLUE |
7 | ||
| 83101-14040 |
MCV10..CND OD=11.3 BLACK |
17 | ||
| 83101-24010 |
MCV10,VCV10 OD=12.5 GREEN |
8 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
MCV10..CND;VCV10..ATM OD=12.2 BLUE |
7 | ||
| 83101-32020 |
MCV10 OD=12.2 BLUE |
7 | ||
| 83101-14040 |
MCV10..CND OD=11.3 BLACK |
17 | ||
| 83101-24010 |
MCV10,VCV10 OD=12.5 GREEN |
8 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
MCV10..CND;VCV10..ATM OD=12.2 BLUE |
7 | ||
| 83101-32020 |
MCV10 OD=12.2 BLUE |
7 | ||
| 83101-14040 |
MCV10..CND OD=11.3 BLACK |
17 | ||
| 83101-24010 |
MCV10,VCV10 OD=12.5 GREEN |
8 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
MCV10..CND;VCV10..ATM OD=12.2 BLUE |
7 | ||
| 83101-32020 |
MCV10 OD=12.2 BLUE |
7 | ||
| 83101-14040 |
MCV10..CND OD=11.3 BLACK |
17 | ||
| 83101-24010 |
MCV10,VCV10 OD=12.5 GREEN |
8 | ||
| Common parts | ||||
| 83101-14040 | ||||
| 83101-20080 | ||||
| 83101-24010 | ||||
| 83101-32020 | ||||
| 83109-30070 | ||||
| 83119-24570 | ||||
| 83119-32010 | ||||
| 90981-11018 | ||||
