MCV10L-BTPGKK (1993)
Toyota Lexus Es300

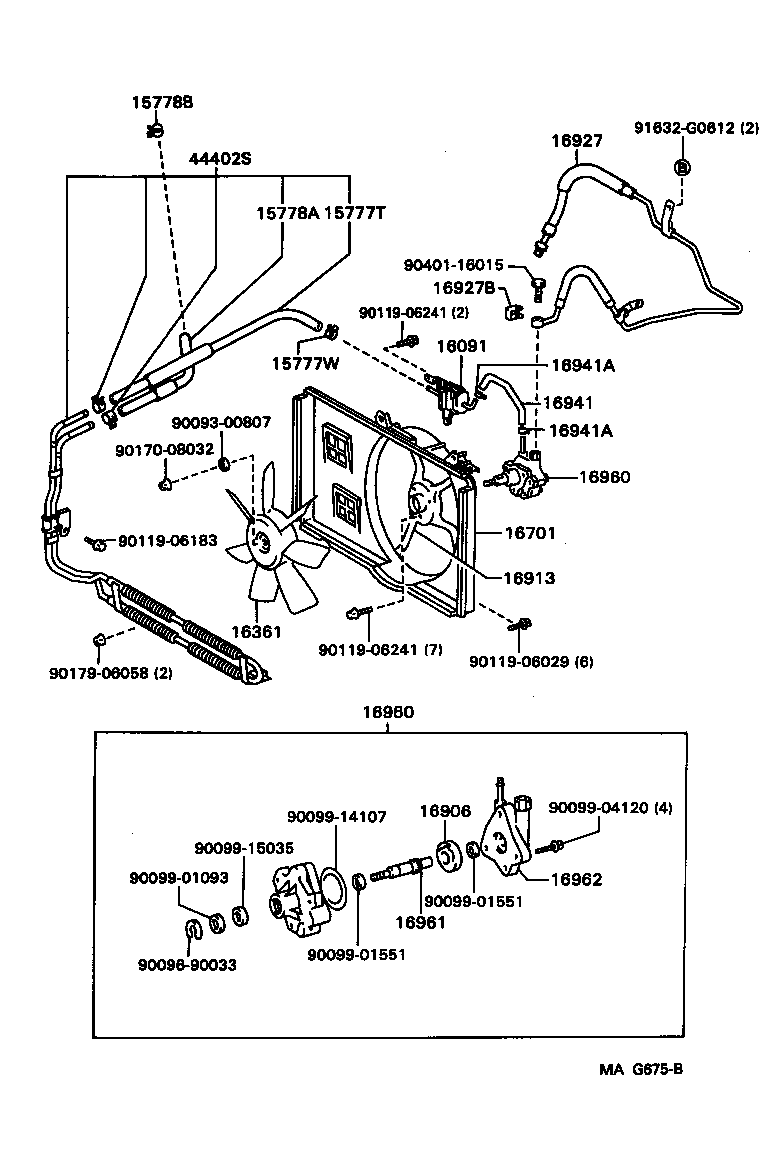

ILLUST NO. 2 OF 3(9308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15777W - CLIP(FOR OIL RETURN HOSE) | ||||
| 90467-16008 |
1MZFE..MCV10 |
1 | ||
| 15778B - CLIP(FOR OIL RETURN HOSE) | ||||
| 90467-16007 |
1MZFE..MCV10 |
1 | ||
| 16091 - FILTER SUB-ASSY, HYDRAULIC MOTER OIL | ||||
| 16091-20010 |
1MZFE..MCV10 |
1 | ||
| 16361 - FAN | ||||
| 16911-64010 |
1MZFE..MCV10 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16912-20010 |
1MZFE..MCV10 |
1 | ||
| 16906 - GEAR SET, HYDRAULIC | ||||
| 16906-50020 |
1MZFE..MCV10 MARK 2 |
1 | ||
| 16906-50010 |
1MZFE..MCV10 MARK 1 |
1 | ||
| 16906-50030 |
1MZFE..MCV10 MARK 3 |
1 | ||
| 16913 - STAY, HYDRAULIC MOTOR FAN SHROUD | ||||
| 16913-62020 |
1MZFE..MCV10 |
1 | ||
| 16927 - HOSE, HYDRAULIC MOTOR PRESSURE | ||||
| 16927-20010 |
1MZFE..MCV10 |
1 | ||
| 16927B - GASKET(FOR PRESSURE HOSE) | ||||
| 44327-30030 |
1MZFE..MCV10 |
1 | ||
| 44327-12010 |
1MZFE..MCV10 |
1 | ||
| 16941 - HOSE, HYDRAULIC MOTOR RETURN, NO.1 | ||||
| 16941-62020 |
1MZFE..MCV10 |
1 | ||
| 16960 - MOTOR ASSY, HYDRAULIC GEAR | ||||
| 16960-62010 |
1MZFE..MCV10 |
1 | ||
| 16960 - MOTOR ASSY, HYDRAULIC GEAR | ||||
| 16960-62010 |
1MZFE..MCV10 |
1 | ||
| 16961 - SHAFT, HYDRAULIC GEAR MOTOR | ||||
| 16961-50010 |
1MZFE..MCV10 |
1 | ||
| 16962 - COVER, HYDRAULIC GEAR MOTOR | ||||
| 16962-62010 |
1MZFE..MCV10 |
1 | ||
| 44402S - COOLER SUB-ASSY, OIL | ||||
| 44402-33010 |
MCV10 |
1 | ||
| Common parts | ||||
| 90093-00807 | ||||
| 90096-90033 | ||||
| 90099-01093 | ||||
| 90099-01551 | ||||
| 90099-04120 | ||||
| 90099-14107 | ||||
| 90099-15035 | ||||
| 90119-06029 | ||||
| 90119-06183 | ||||
| 90119-06241 | ||||
| 90170-08032 | ||||
| 90179-06058 | ||||
| 90401-16015 | ||||
| 91632-G0612 | ||||

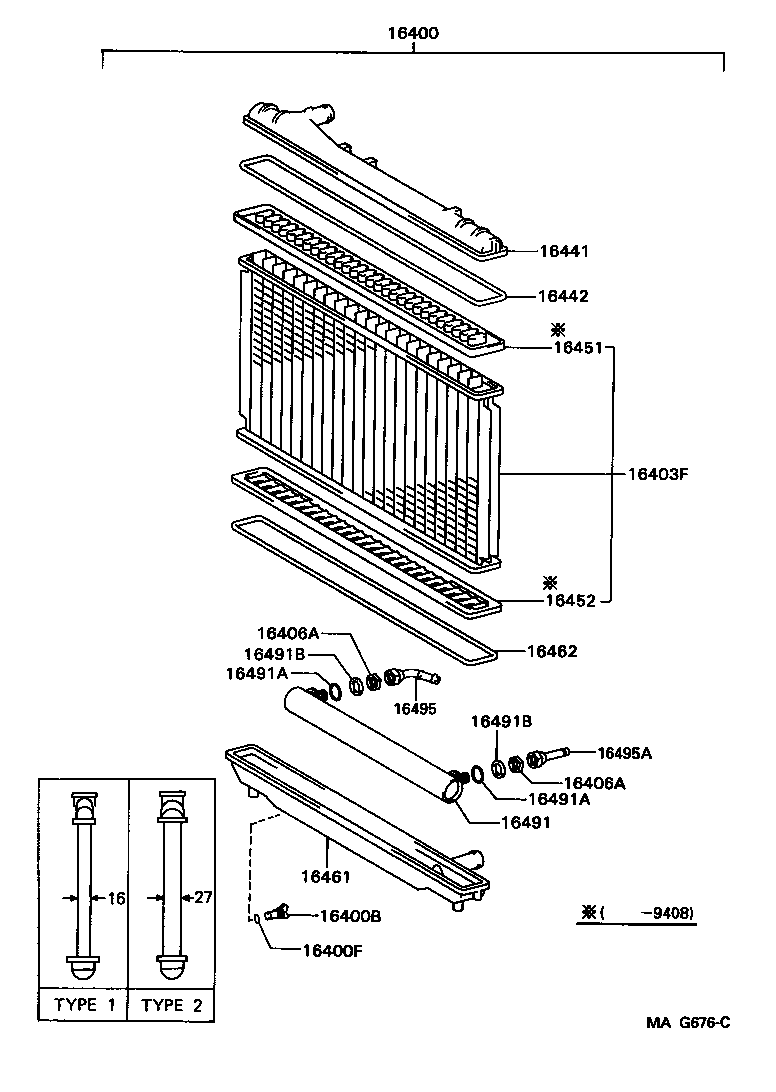

ILLUST NO. 3 OF 3(9308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-20050 |
1MZFE..MCV10 TYPE 2 |
1 | ||
| 16400-20040 |
1MZFE..MCV10 TYPE 1 |
1 | ||
| 16400-20060 |
1MZFE..MCV10 TYPE 2 |
1 | ||
| 16400-20040 |
1MZFE..MCV10 TYPE 1 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1MZFE..MCV10 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
1MZFE..MCV10 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-74760 |
1MZFE..MCV10 TYPE 1 |
1 | ||
| 16403-62110 |
1MZFE..MCV10 TYPE 2 |
1 | ||
| 16403-74760 |
1MZFE..MCV10 TYPE 1 |
1 | ||
| 16403-20060 |
1MZFE..MCV10 TYPE 2 |
1 | ||
| 16403-46390 |
1MZFE..MCV10 TYPE 2 |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
1MZFE..MCV10 |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
1MZFE..MCV10 |
2 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-20060 |
1MZFE..MCV10 TYPE 2 |
1 | ||
| 16441-62160 |
1MZFE..MCV10 TYPE 2 |
1 | ||
| 16441-62150 |
1MZFE..MCV10 TYPE 1 |
1 | ||
| 16441-62150 |
1MZFE..MCV10 TYPE 1 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-74760 |
1MZFE..MCV10 TYPE 1 |
1 | ||
| 16442-74760 |
1MZFE..MCV10 TYPE 1 |
1 | ||
| 16462-46040 |
1MZFE..MCV10 TYPE 2 |
1 | ||
| 16462-46040 |
1MZFE..MCV10 TYPE 2 |
1 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-74760 |
1MZFE..MCV10 |
1 | ||
| 16452-46040 |
1MZFE..MCV10 TYPE 2 |
1 | ||
| 16451-74760 |
1MZFE..MCV10 TYPE 1 |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-46040 |
1MZFE..MCV10 |
1 | ||
| 16452-74760 |
1MZFE..MCV10 TYPE 1 |
1 | ||
| 16452-74760 |
1MZFE..MCV10 |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-20040 |
1MZFE..MCV10 TYPE 1 |
1 | ||
| 16461-20060 |
1MZFE..MCV10 TYPE 2 |
1 | ||
| 16461-20040 |
1MZFE..MCV10 TYPE 1 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-46040 |
1MZFE..MCV10 |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-54790 |
1MZFE..MCV10 |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-50020 |
1MZFE..MCV10 |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-50020 |
1MZFE..MCV10 |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
1MZFE..MCV10 |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
1MZFE..MCV10 |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-74760 |
1MZFE..MCV10 |
1 | ||
| 16495A - NUT, FLARE, NO.2(FOR ATM OIL COOLER) | ||||
| 16495-50020 |
1MZFE..MCV10 |
1 | ||

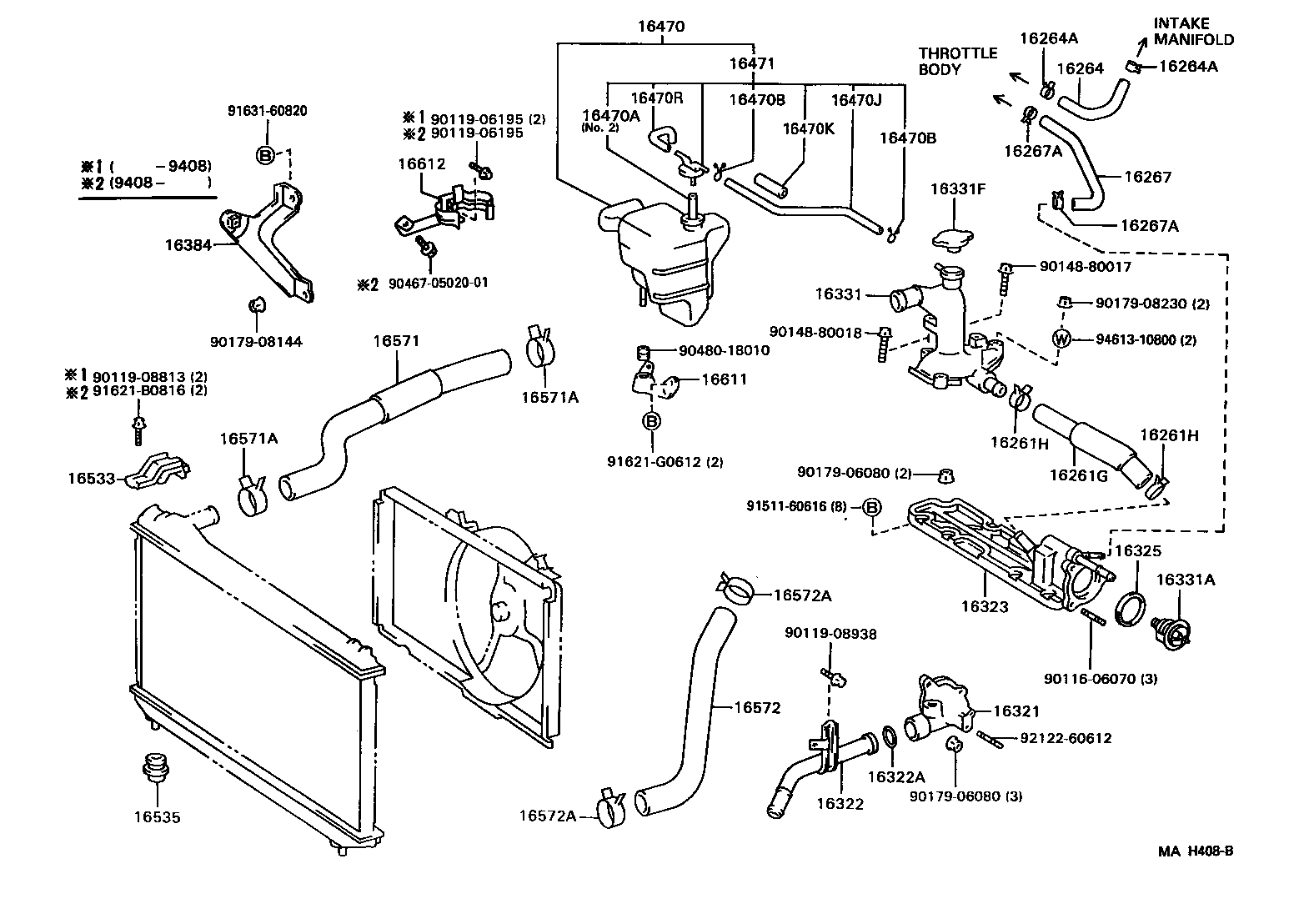

ILLUST NO. 1 OF 3(9308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-20010 |
1MZFE..MCV10 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-28008 |
1MZFE..MCV10 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-28008 |
1MZFE..MCV10 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-20010 |
1MZFE..MCV10 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
1MZFE..MCV10 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
1MZFE..MCV10 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-20010 |
1MZFE..MCV10 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-41300 |
1MZFE..MCV10 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-41300 |
1MZFE..MCV10 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-20010 |
1MZFE..MCV10 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-20010 |
1MZFE..MCV10 |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96761-35031 |
1MZFE..MCV10 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-20010 |
1MZFE..MCV10 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1MZFE..MCV10 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-20020 |
1MZFE..MCV10 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03084 |
1MZFE..MCV10 *WAX 82-95 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-62090 |
1MZFE..MCV10 |
1 | ||
| 16384 - BRACKET, FAN BELT ADJUSTING BAR | ||||
| 16384-20010 |
1MZFE..MCV10 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-20020 |
1MZFE..MCV10 |
1 | ||
| 16470-20020 |
1MZFE..MCV10 *ND |
1 | ||
| 16470-0A010 |
1MZFE..MCV10 SALGA |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1MZFE..MCV10 L=600 |
1 | ||
| 90445-12078 |
1MZFE..MCV10 L=600,*ND |
1 | ||
| 16472-03010 |
1MZFE..MCV10 SALGA |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1MZFE..MCV10 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1MZFE..MCV10 |
2 | ||
| 16470J - HOSE, NO.3(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1MZFE..MCV10 L=600 |
1 | ||
| 90445-12078 |
1MZFE..MCV10 L=600,*ND |
1 | ||
| 16472-0A020 |
1MZFE..MCV10 SALGA |
1 | ||
| 16470K - HOSE, NO.4(FOR RADIATOR RESERVE TANK) | ||||
| 85338-70070 |
1MZFE..MCV10 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 16477-74180 |
1MZFE..MCV10 |
1 | ||
| 16472-0A010 |
1MZFE..MCV10 SALGA |
1 | ||
| 16477-74180 |
1MZFE..MCV10 *ND |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-20010 |
1MZFE..MCV10 |
1 | ||
| 16405-0A010 |
1MZFE..MCV10 SALGA |
1 | ||
| 16405-20010 |
1MZFE..MCV10 *ND |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-62020 |
1MZFE..MCV10 TYPE 2 |
2 | ||
| 16533-74190 |
1MZFE..MCV10 TYPE 1 |
2 | ||
| 16533-74190 |
1MZFE..MCV10 TYPE 1 |
2 | ||
| 16533-62020 |
1MZFE..MCV10 TYPE 2 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-20010 |
1MZFE..MCV10 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37004 |
1MZFE..MCV10 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37004 |
1MZFE..MCV10 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-20010 |
1MZFE..MCV10 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
1MZFE..MCV10 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
1MZFE..MCV10 |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-74080 |
1MZFE..MCV10 |
1 | ||
| 16612 - BRACKET, RADIATOR RESERVE TANK, NO.2 | ||||
| 16612-74020 |
1MZFE..MCV10 |
1 | ||
| Common parts | ||||
| 90116-06070 | ||||
| 90119-06195 | ||||
| 90119-08813 | ||||
| 90119-08938 | ||||
| 90148-80017 | ||||
| 90148-80018 | ||||
| 90179-06080 | ||||
| 90179-08144 | ||||
| 90179-08230 | ||||
| 90467-0502001 | ||||
| 90480-18010 | ||||
| 91511-60616 | ||||
| 91621-B0816 | ||||
| 91621-G0612 | ||||
| 91631-60820 | ||||
| 92122-60612 | ||||
| 94613-10800 | ||||
