MCV10L-BTPGKA (1993)
Toyota Lexus Es300
Production
Aug 1993
-
Aug 1996
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9107-9608)

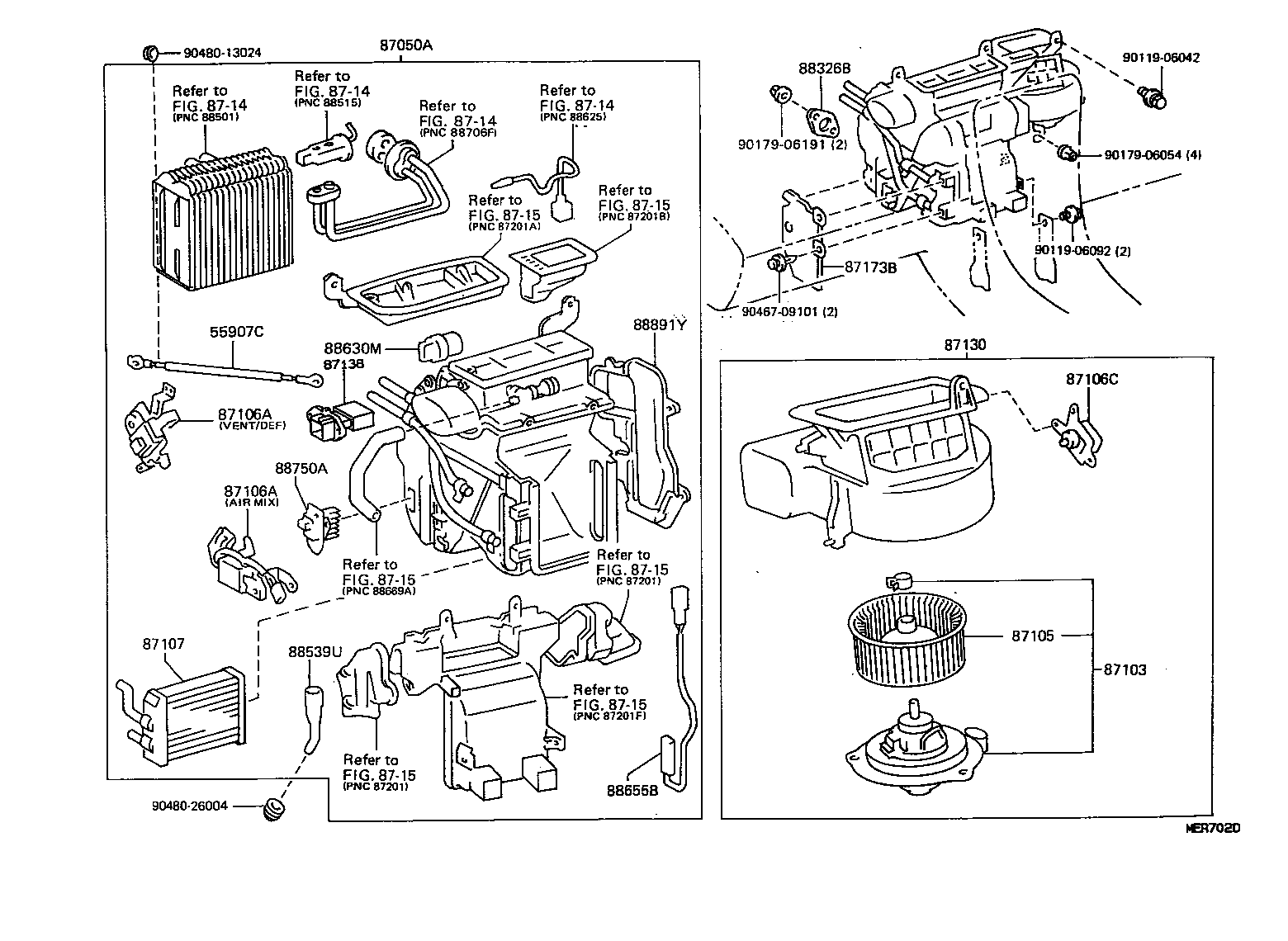

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55907C - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 87286-33010 |
MCV10,VCV10 |
1 | ||
| 87050A - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-33340 |
MCV10 |
1 | ||
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-33021 |
MCV10 |
1 | ||
| 87103-33020 |
MCV10,VCV10 |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-33020 |
MCV10,VCV10 |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-33030 |
MCV10,VCV10 VENT/DEF |
1 | ||
| 87106-33050 |
MCV10,VCV10 AIR MIX |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-33030 |
MCV10,VCV10 VENT/DEF |
1 | ||
| 87106-33050 |
MCV10,VCV10 AIR MIX |
1 | ||
| 87106C - SERVO SUB-ASSY, DAMPER(FOR BLOWER) | ||||
| 87106-33080 |
MCV10,VCV10 |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-33020 |
MCV10,VCV10 |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-33050 |
MCV10,VCV10 |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-50010 |
MCV10 |
1 | ||
| 87173B - PROTECTOR, HEATER | ||||
| 87173-33010 |
MCV10,VCV10 |
1 | ||
| 88326B - PLATE, COVER | ||||
| 88326-33010 |
MCV10,VCV10 |
1 | ||
| 88539U - HOSE, COOLER DRAIN | ||||
| 88539-33010 |
MCV10,VCV10 |
1 | ||
| 88655B - SWITCH, WATER TEMPERATURE | ||||
| 88790-33010 |
MCV10,VCV10 |
1 | ||
| 88750A - TRANSISTOR ASSY, BLOWER RESISTOR | ||||
| 88750-33010 |
MCV10,VCV10 |
1 | ||
| 88891Y - COVER, COOLER,NO.1 | ||||
| 88891-33030 |
MCV10 |
1 | ||
| 88891-33021 |
MCV10 |
1 | ||
| Common parts | ||||
| 90119-06042 | ||||
| 90119-06092 | ||||
| 90179-06054 | ||||
| 90179-06191 | ||||
| 90467-09101 | ||||
| 90480-13024 | ||||
| 90480-26004 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8715 | ||||
