MCV10L-BTPGKA (1993)

Toyota Lexus Es300

Production Aug 1993 - Aug 1996
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9308-9608)

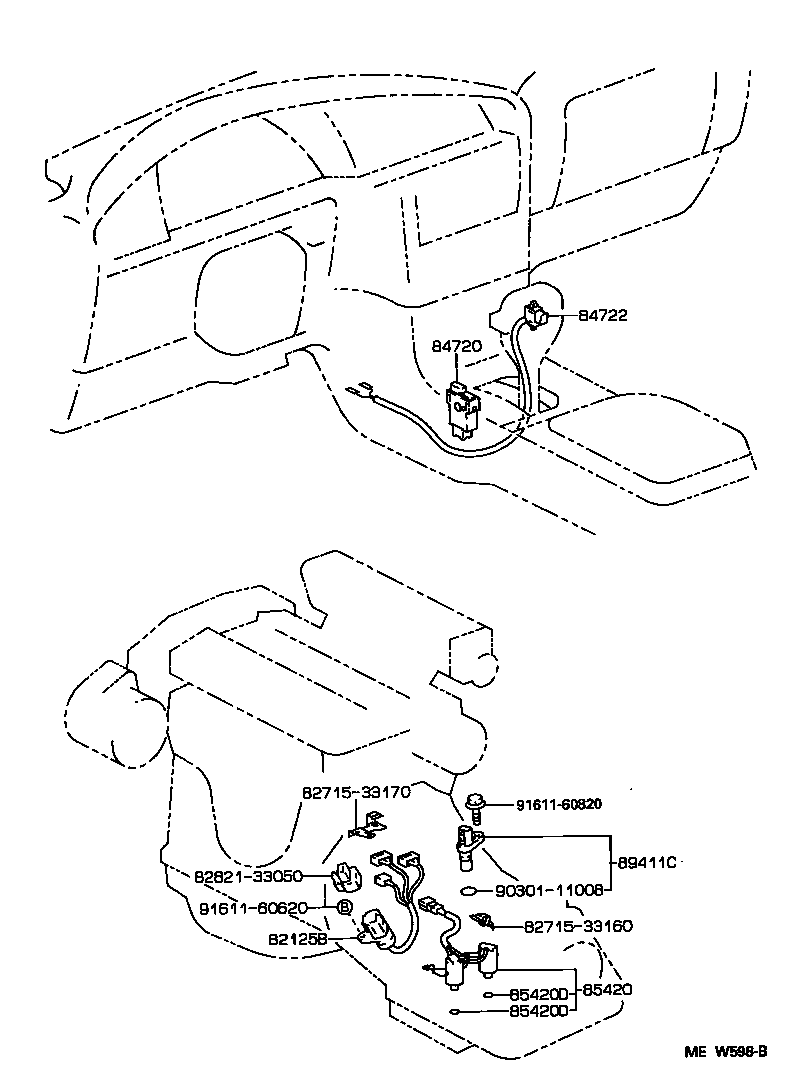

Click highlighted areas on diagram

diagram 82125B 8271533160 8271533170 8282133050 84720 84722 85420 85420D 85420D 89411C 9030111008 9161160620 9161160820
Part # Description Qty Price
82125B - WIRE, TRANSMISSION
82125-33010

MCV10

 1
82125-33010

MCV10

 1
84720 - SWITCH ASSY, PATTERN SELECT
84720-33050

MCV10,VCV10..ATM

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-3302004

MCV10,VCV10..ATM

DARK BLUE,TRIM8#

 1
84722-33020C0

MCV10

BLACK,TRIM2#

 1
84722-3302002

MCV10,VCV10..ATM

TAUPE,TRIM9#

 1
84722-33020K0

MCV10

TAUPE,TRIM9#

 1
84722-33020E0

MCV10

OAK,TRIM4#

 1
84722-33010C0

MCV10

BLACK,TRIM2#

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-33010

MCV10

 1
85420-33010

MCV10

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

MCV10

 2
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

MCV10

 2
89411C - SENSOR, SPEED
89411-33010

MCV10

TOYOTA

 1
89413-24010

MCV10

AISIN

 1
Common parts
82715-33160
82715-33170
82821-33050
90301-11008
91611-60620
91611-60820
