MCV30L-BEAGKA (2001)

Toyota Lexus Es300/330

Production Jul 2001 - Jul 2003
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0107- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

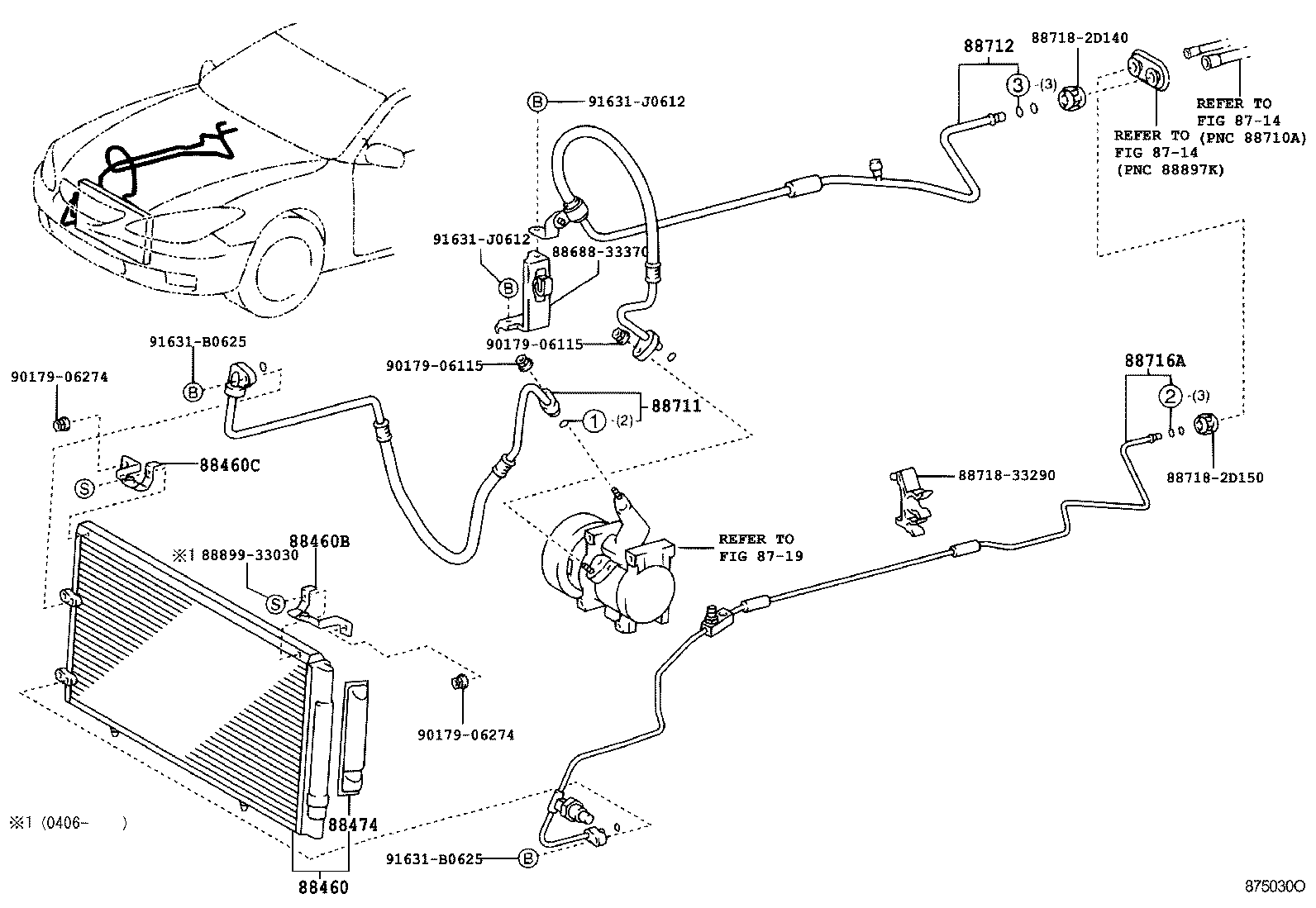

ILLUST NO. 1 OF 2(0107- )

Click highlighted areas on diagram

diagram 8714 8714 8719 88460 88460B 88460C 88474 8868833370 88711 88712 88716A 887182D140 887182D150 8871833290 8889933030 9017906115 9017906115 9017906274 9017906274 91631B0625 91631B0625 91631J0612 91631J0612
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-06140

MCV3#

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-06120

MCV3#

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-06140

MCV3#

 1
88474 - DRYER, COOLER
88474-47010

MCV3#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-33161

MCV30

 1
88703-33160

MCV30

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-33270

MCV3#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-33260

MCV3#

 1
Common parts
88688-33370
88718-2D140
88718-2D150
88718-33290
88899-33030
90179-06115
90179-06274
91631-B0625
91631-J0612
