MCV30L-BEAGKA (2001)

Toyota Lexus Es300/330

Production Jul 2001 - Jul 2003
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )

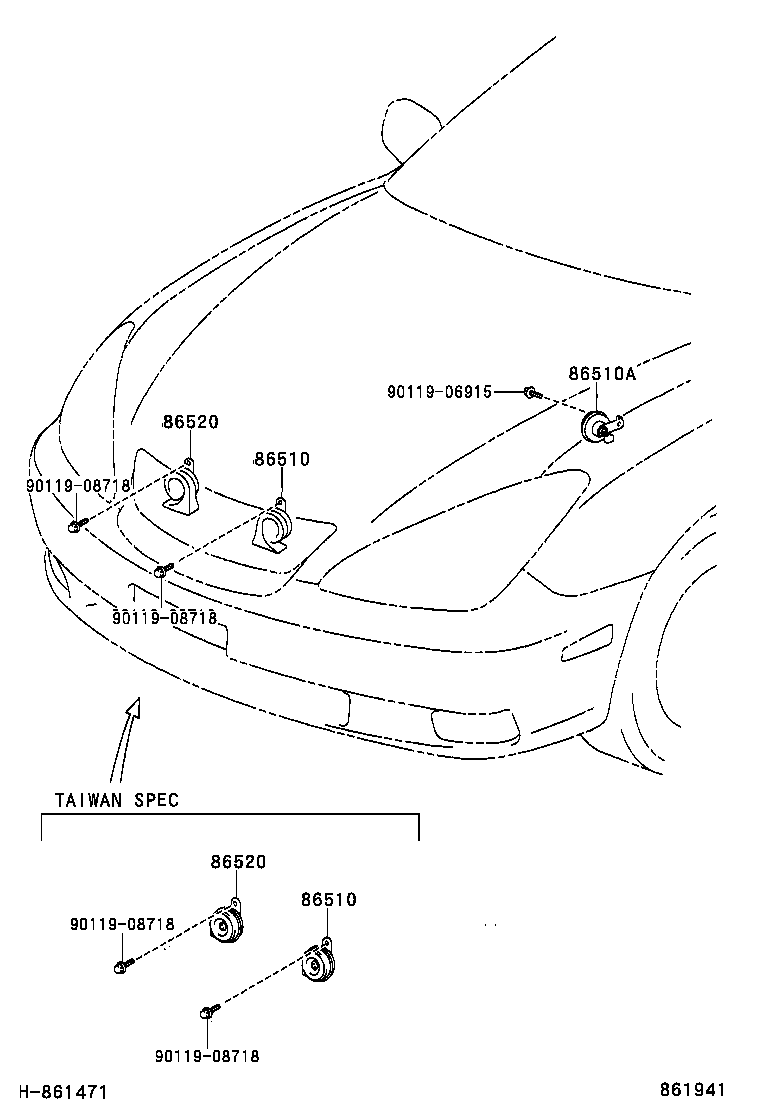

diagram 86510 86510 86510A 86520 86520 9011906915 9011908718 9011908718 9011908718 9011908718
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-33130

MCV30

TAIWAN SPEC

 1
86510-33190

MCV30

 1
86510 - HORN ASSY, HIGH PITCHED
86510-33130

MCV30

TAIWAN SPEC

 1
86510-33190

MCV30

 1
86520 - HORN ASSY, LOW PITCHED
86520-33120

MCV30

 1
86520-33070

MCV30

TAIWAN SPEC

 1
86520 - HORN ASSY, LOW PITCHED
86520-33120

MCV30

 1
86520-33070

MCV30

TAIWAN SPEC

 1
Common parts
90119-06915 None epc.PartDetail.None
90119-08718 None epc.PartDetail.None
